Summary of Contents for Commax WI-249LM
-

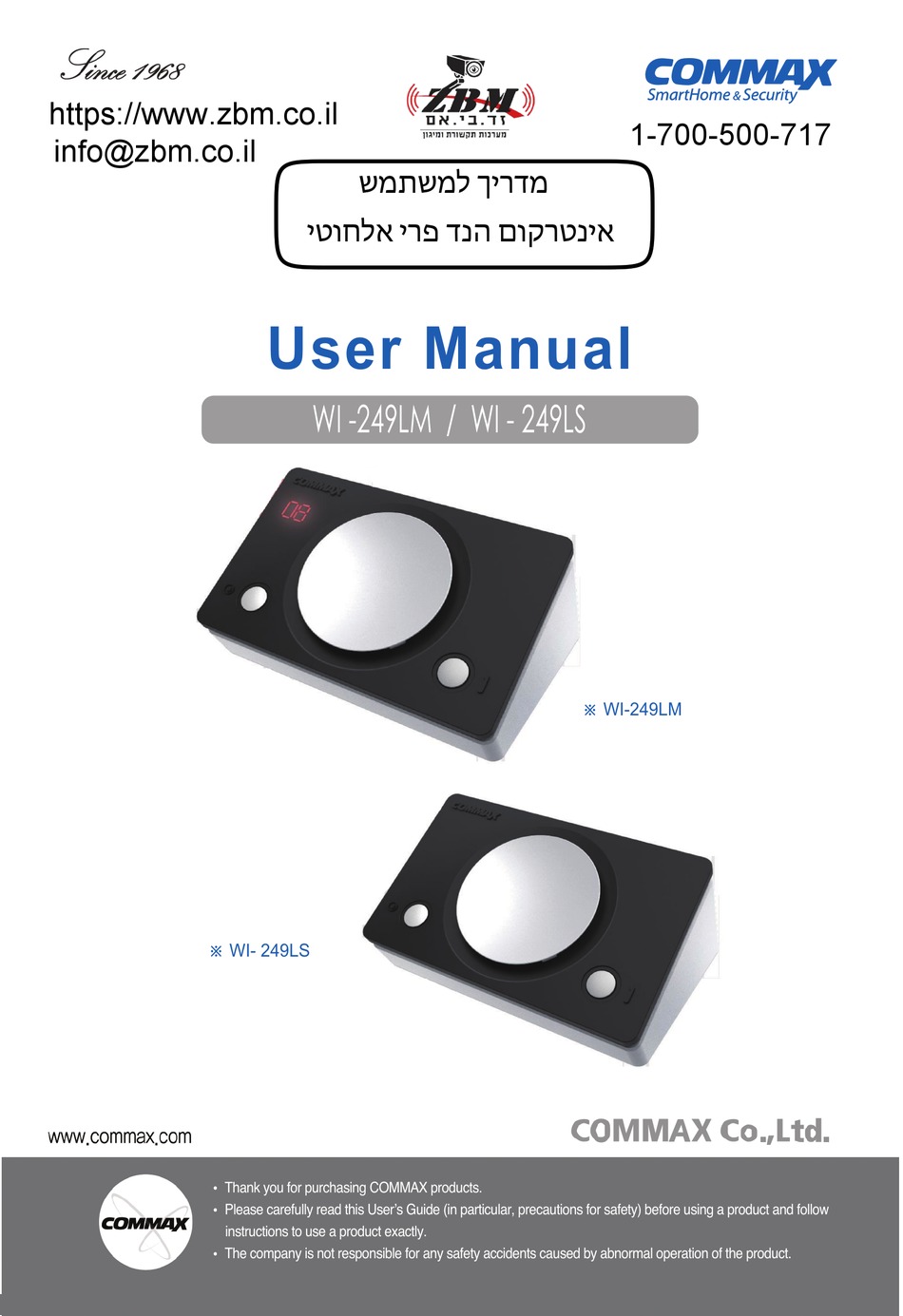

Page 1: User Manual
WI -249LM / WI - 249LS ※ WI-249LM ※ WI- 249LS • Thank you for purchasing COMMAX products. • Thank you for purchasing COMMAX products. • Please carefully read this User’s Guide (in particular, precautions for safety) before using a product and follow •... -
Page 2: Table Of Contents
5. Main Device (WI-249LM) ........6... -
Page 3: Safety Warning & Caution
2. Safety Warning & Caution Please follow the things described below in order to prevent any danger or property damage. Prohibition. Warning It may cause a serious damage or No disassembly injury if violated. No touch Must follow strictly. Caution Shows plugging out the power cord It may cause a minor damage or without an exception... - Page 4 Warning Please don’ t disassemble, If an abnormal sound, burning Please don’t insert any Please use only the designated repair or rebuild this product smell or smoke is coming out metallic or burnable materials batteries for the products of arbitrarily (please contact the of the product, please plug out into the ventilation hole.
-
Page 5: Parts And Description
3. Parts and Description ▶ ▶ Main Device : WI-249LM Parts Name Parts Name Power switch Microphone Volume switch Speaker DC adaptor input FND display Paging button Antenna Select button... - Page 6 ▶ ▶ Sub Device : WI-249LS Parts Name Parts Name Power switch Microphone Volume switch Speaker DC Adaptor Input Paging button Select button 8 Battery Battery...
-
Page 7: Product Concept
Connect 5.0V / 1A power adaptor to ⑧ DC adaptor input located on the side of WI-249LM. Turn the ⑥ Power switch on located at the bottom of WI-249LM. At the right-lower side of FND Display, a small dot LED is on to indicate the device is on. - Page 8 When a sub device (WI-249LS) pages the main device (WI-249LM), the seven-segment display on the main device (WI-249LM) displays the ID number of the sub device (the number allocated to the sub device from the pairing process). When paged, the display blinks repeatedly every 0.25 seconds.
- Page 9 If any of the paired sub devices is replaced, please try to use the same ID number of the removed device to minimize the ID allocating processes. Inverting the FND Display on Main device (WI-249LM) • • Press ④ Paging button and ⑤ Select button simultaneously for 5 seconds to invert the displayed number.
-
Page 10: Sub Device (Wi-249Ls)
6. Sub Device (WI-249LS) Turning the power on • • There are two modes available to power on the sub devices. AA Battery Mode 4 x AA size batteries are to be placed in WI-249LS and turn on the ⑤ Power switch. 5.0V / 1A Power Adaptor When a DC power adaptor (5.0V / 1A) connected, the sub device recognizes it and automatically goes in to a “constant power mode”, enabling the 2-way paging mode between main and sub... - Page 11 “constant power mode”, enabling the 2-way paging mode between main and sub devices. If battery powered, the main device WI-249LM is not being able to page any sub devices (Sub devices can page the main device), 1-way paging mode only.
- Page 12 Repeater mode is enabled only if a constant power is supplied by a power adaptor (5V / 1A DC power adaptor). Pairing (Main WI-249LM/Repeater) • • Press the ⑥ Volume switch on a repeater for 5 seconds to go in to pairing mode. The Red LED blinks every 0.5 seconds to indicate that the repeater is in pairing mode.
-
Page 13: Specification And Features
7. Specification and Features Model WI-249LM WI-249LS Call Method GFSK Power Source , 1A 5V , 1A or or AA Alkaline Battery 4EA Standby 0.8W 0.8W(Adaptor) Consumption Power 1.4W 1.2W Communication Communication HANDS FREE (half duplex) Method Display Ring tone... - Page 14 513-11, Sangdaewon-dong, Jungwon-gu, Seongnam-si, Gyeonggi-do, Korea Int’l Business Dept. Tel. : +82-31-7393-540~550 Fax. : +82-31-745-2133 Web site : www.commax.com PM18249LMS10 Printed In Korea / 2014.04.104...
