Summary of Contents for Activ2Touch A2T-7508-AD-10U
-

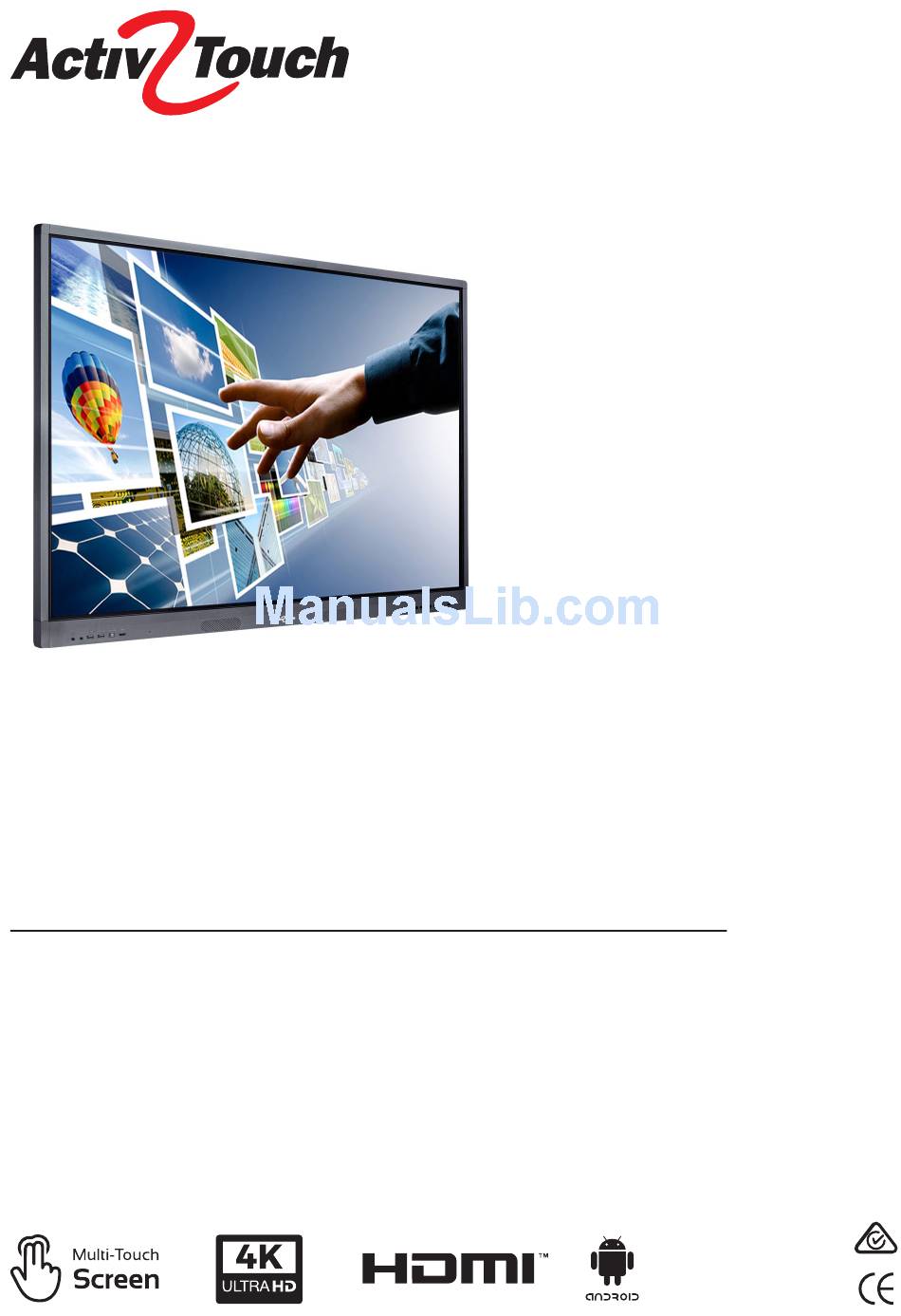

Page 1: Instruction Manual
Instruction Manual A2T-6508-AD-10U A2T-7508-AD-10U... -
Page 3: Table Of Contents
Contents Safety Warning and Precautions ..................Installation & Connection ......................Packing List ..............................Interfaces ............................... Connection Diagram ........................Controls ................................ Remote Control ........................... Basic Operations ..........................Instructions for Android OS ....................Troubleshooting ........................... Technical Specifications ......................ROHS Compliance ........................... -
Page 4: Safety Warning And Precautions
To ensure your safety, prolong the service life of the product and give full play to optimum performance, please read and understand these instructions and nameplates carefully before use and follow them strictly in use. Immediately shutdown your Activ2Touch touchscreen if... • Power outage or unstable voltage. • The product emits abnormal sounds or smell. • AC power cord is damaged • Damage occurs due to fall, strike or impact. - Page 5 Warnings • Do not use the power source other than a lit candle), as it may cause electric shock or fire. AC 220V, 50Hz. • Keep the product away from water drops • All connecting cables shall be connected or splashes. Do not put any container to and disconnected from the interfaces filled with water on the product, or there only when power is disconnected. could be a risk of fire or electric shock.
- Page 6 Warnings (Continued) • Do not allow the children to climb on the • If the LCD screen is broken to cause splashes on skin, please wash with product. clean water for 15min and seek medical • Keep small attachments out of reach of advice. children to avoid accidental swallowing. • When handling the product with hands, • If the product will not be used in a long please hold four corners tightly and prop time, please power it off and remove the the bottom, but do not exert force on the power plug.
-
Page 7: Installation & Connection
Installation and Connection 30cm 10cm 10cm 10cm Allow the clearance detailed above and do not install in an unventilated recess. • Place the Touchscreen nearby an AC • Do not put the product in a place where power socket which is easy to plug and bugs may enter easily. unplug. • Do not install the product facing an air • For your safety, you are recommended to conditioner, or it may cause some fault use a suitable wall bracket or base. -
Page 8: Packing List
Packing List 1 x Touchscreen 1 x Remote control 1 x User’s manual 1 x Power cord 2 x Styluses 1 x HDMI cables 1 x Warranty card 1 x Certificate of quality 1 x Instruction for wall mounting (optional) 2 x Batteries (optional) 1 x USB cable (A-B - 3m) -
Page 9: Interfaces
Interfaces Rear Front 1. Power 13. SPDIF 2. HDMI 14. USB Interface 3. Network 15. RS232 Input and Output 4. VGA 16. Headset (Front) 5. PC Audio 17. Microphone (Front) 6. TV Antenna 18. USB (Front) 7. Video Output 19. HDMI (Front) 8. YPbPr/YCbCr Input 20. LED Light Sensor 9. -
Page 10: Connection Diagram
Connection Diagram Touchscreen & PC Touchscreen (Rear) -
Page 11: Controls
Controls MENU SOURCE Use buttons for Android OS 1. Power/Standby 2. MENU: Press it to display the setup menu 3 & 4. Volume up and down keys 5 & 6. Channel number up and down • Up Key (6) = Home (Homepage Key) keys • Source (7) = Back (Return Key) 7. SOURCE: Press it to enter the signal source selection menu to select a signal source. With on-screen menu operations, press it to confirm the operation. -
Page 12: Remote Control
Remote Control Standby Switch between working mode and standby mode Screenshot Take screenshot Mute Key Toggle sound off or on Letter/ Number Input any letter or number Keys F1 (Still Image) Turn on or off still image Program List View TV program list Homepage Display the homepage Menu... - Page 13 Installation of the batteries: burn used batteries. Please dispose of Remove the battery compartment cover waste batteries in accordance with local and install two AAA batteries (1.5V) into environmental regulations. the battery compartment as per the polarity symbols “+” and “-”. Precautions: • The remote control should aim at the IR sensor (at the bottom right hand side of the panel). Do not leave any obstacle between the remote control and the IR sensor, or the remote contol may not work.
-
Page 14: Basic Operations
Basic Operations Turn power on / Standby mode Menu Operations 1. Insert the power plug into the power 1. Press the “MENU” key on the remote socket control or control panel to display the main menu: 2. Turn on the power on the 2. - Page 15 Settings List Picture Picture mode Select (Different options are provided under different sources). Contrast Measure the luminance between the brightest white and the darkest black that can be produced in the light and dark areas of a picture. Brightness Adjust the overall image brightness: The bigger the value (0-100), the higher the brightness.
- Page 16 Settings List (Continued) Channel Channel Edit Select Channel > Channel Edit; then press "OK" to enter the Channel Edit submenu; press "s / t" to select a channel. 1: Skip: Press the numeric key "1" to enable or disable skipping the channel selected;...
-
Page 18: Instructions For Android Os
Android OS Basic Operation Language and keyboard settings 1. Press the “Home” key on the remote • Language: From the Android OS control to display the intelligent homepage, select Settings > homepage. Preferences > Language and press the “OK” key. 2. Press the up/down left/right keys to select the application;... - Page 19 System time setting APK Installer 1. From the Android OS homepage, select • The APK installer option assists in managing applications. The user can Settings > Date & Time > Auto install any installation file saved in a Determination of Time and Date via local disk or remove any application the Internet. installed locally.
-
Page 20: Wired Network Settings
Android OS (Continued) Multimedia player Wired network settings 1. Connect to the USB storage device via 1. Before using a wired network, firstly USB interface connect one end of the network cable to the interface of Touchscreen and 2. From the Android OS homepage, select then connect the other end to the Local Play and press the “OK”... - Page 21 Wireless network settings 1. From the Android OS homepage, 8. Select Subnet Mask and configure an select Settings > Network Settings > available subnet mask for the product; Wireless Settings and press the “OK” 9. Select Default Gateway and configure key. an available gateway for the product; 2. Select Wi-Fi and press the “OK” key to 10.
- Page 22 Android OS (Continued) Use touchscreen as Wi-Fi hotspot 1. From the Android OS homepage, select Settings > Network Settings > WiFi Hotspot and press the “OK” key to activate WiFi hotspot; 2. Select Configure WiFi Hotspot and press the “OK” key; 3. Input the network name (SSID) in the textbox; the default name is “AndroidAP”, and you can change it to other name if you like.
-
Page 23: Troubleshooting
Troubleshooting Fault Possible Cause Solution Snowflake-like spots on • The antenna connector is loose and the • Check whether the antenna connector the screen accompanied cable is damaged is loose or not and whether the cable is with white noise •... -
Page 24: Technical Specifications
Features & Specifications Features & Specifications A2T 6508-AD-10U 65" Interactive Touchscreen Monitor The latest U-series touchscreen now offers an inbuilt Android operating system with a full 10 touch control. The OPS slot is standard on all models making the integration of attaching the optional slim line PC an easy installation. - Page 25 Built-in Speakers 8Ω x 10W × 2 Audio Stereo Stereo CVBS in: 1 x (CVBS) VGA: 1 x (VGA) Component USB: 2 x Port (Media formats for playback and recording: JPG, BMP, PNG images... AVI, MPG, DAT, VOB, DIV, MOV, MKV, RM, RMVB, Inputs MP4, MPEG, TS, TRP, WMV, ASF and FLV video...
- Page 26 A2T whiteboard software *Windows operating system only. ^Single touch on Mac OSX. Specifications Type 75" Interactive Touchscreen Monitor Screen size 75 inches (16:9) Model A2T-7508-AD-10U Panel LED panel Screen Size 1650 x 928mm Resolution 3840 x 2160 Display Colours 1.07 billion colours...
- Page 27 Built-in Speakers 8Ω x 10W × 2 Audio Stereo Stereo CVBS in: 1 x (CVBS) VGA: 1 x (VGA) Component USB: 2 x Port (Media formats for playback and recording: JPG, BMP, PNG images... AVI, MPG, DAT, VOB, DIV, MOV, MKV, RM, RMVB, Inputs MP4, MPEG, TS, TRP, WMV, ASF and FLV video...
-
Page 28: Rohs Compliance
ROHS Compliance Names and contents of toxic and hazardous substances or elements contained in the product Cr6+ PBDE • • • • • Display screen × • • • • • • Housing PCB assembly* × • • • • •... - Page 29 • Provided by our material suppliers and verified by us, the data in the table above indicates that the product contains hazardous substances. Due to the limitation of the existing technology, the hazardous substances in some materials cannot be replaced, although we have been striving to improve this situation. • The product has an Environmental Friendly Use Period of 10 years. The pollution control symbol is shown on the right.
- Page 30 ©Activ2Touch. All rights reserved. Specifications are subject to change without further notice. Activ2Touch is a registered trademark of Activ2Touch in Australia and other countries. All trademarks are used with permission or are for identification purposes only and are the property of their respective companies.
