Summary of Contents for home & CO EM134AL7

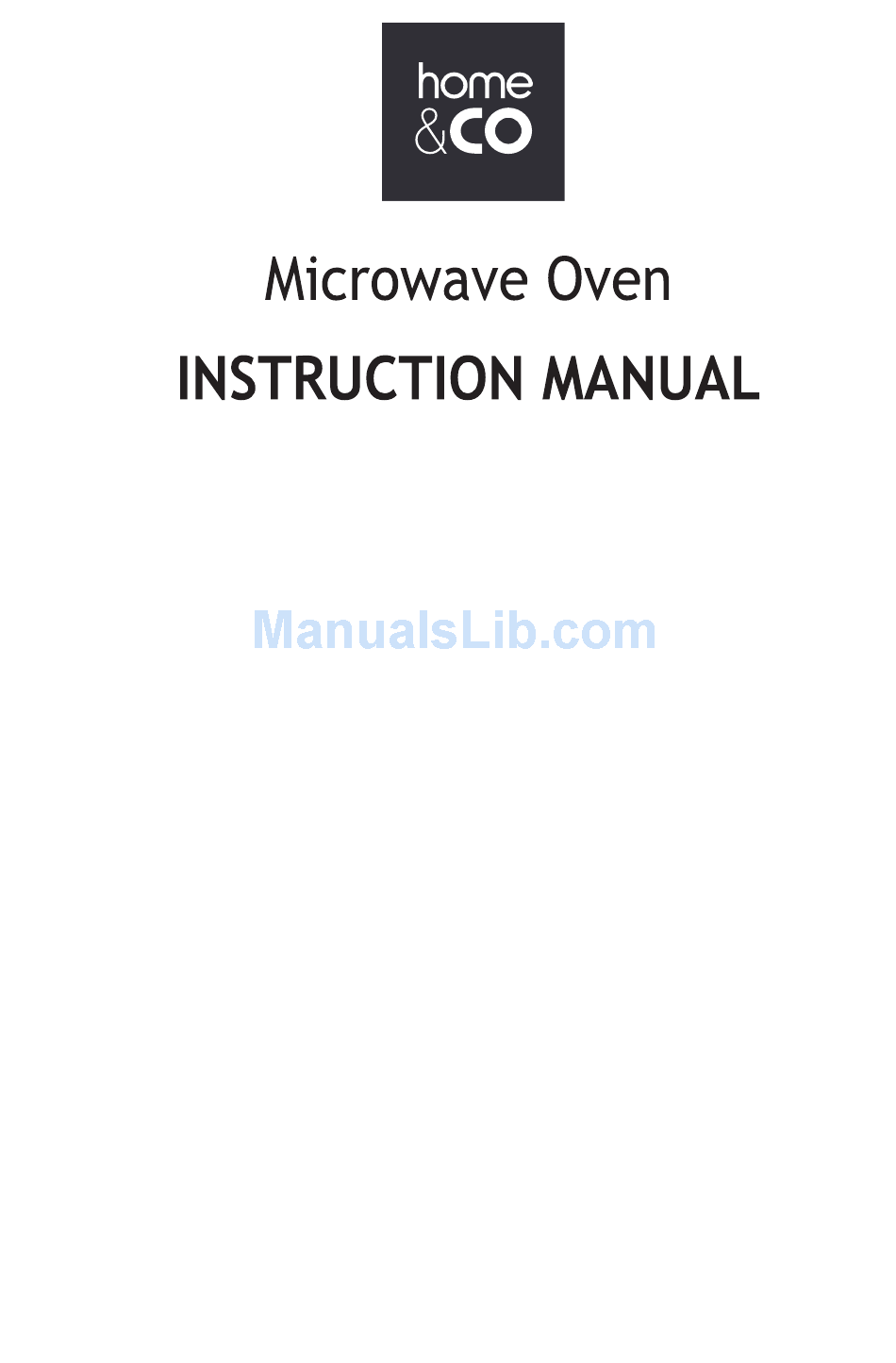

- Page 1 Model:EM134AL7 Read these instructions carefully before using your microwave oven, and keep it carefully. If you follow the instructions, your oven will provide you with many years of good service. SAVE THESE INSTRUCTIONS CAREFULLY...
-
Page 3: Precautions To Avoid Possible Exposure To Excessive Microwave Energy
If the apparatus is not maintained in a good state of cleanliness, its surface could be degraded and affect the lifespan of the apparatus and lead to a dangerous situation. Specifications Model: EM134AL7 Rated Voltage: 220-240V ~ 50Hz Rated Input Power(Microwave): 1500W... -
Page 4: Important Safety Instructions Warning
IMPORTANT SAFETY INSTRUCTIONS WARNING To reduce the risk of fire, electric shock, injury to persons or exposure to excessive microwave oven energy when using your appliance, follow basic precautions, including the following: 1. Warning: Liquids and other foods must not be heated in sealed containers since they are liable to explode. - Page 5 11. Remove wire twist-ties and metal handles from paper or plastic containers/bags before placing them in the oven. 12. Install or locate this oven only in accordance with the installation instructions provided. 13. Eggs in their shell and whole hard-boiled eggs should not be heated in microwave ovens since they may explode, even after microwave heating has ended.
- Page 6 21.The contents of feeding bottles and baby food jars shall be stirred or shaken and the temperature checked before consumption, in order to avoid burns. 22. Microwave heating of beverages can result in delayed eruptive boiling, therefore care must be taken when handling the container.
-
Page 7: Read Carefully And Keep For Future Reference
31.The microwave oven must be operated with the decorative door open. (for ovens with a decorative door.) 32.The rear surface of appliance shall be placed against a wall. 33.The microwave oven must be used freestanding, and not built-in or in a cabinet. 34.The microwave oven is intended for heating food and beverages.Drying of food or clothing and heating of warming pads,slippers,sponges,damp cloth and similar... -
Page 8: To Reduce The Risk Of Injury To Persons
To Reduce the Risk of Injury to Persons Grounding Installation DANGER Electric Shock Hazard Touching some of the internal components can cause serious personal injury or death . Do not disassemble this appliance. WARNING Electric Shock Hazard Improper use of the grounding can result in electric shock. Do not plug into an outlet until appliance is properly installed and grounded. - Page 9 2)The extension cord must be approved type 3-wire cord. 3)The long cord should be arranged so t hat it will not drape or table top where it can be over the counter top pulled on by children or tripped over unintentionally. CLEANING Be sure to unplug the appliance from the power supply 1.Clean the cavity of the oven after using with a...
- Page 10 UTENSILS CAUTION Personal Injury Hazard It is hazardous for anyone other than a compentent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy. See the instructions on "Materials you can use in microwave oven or to be avoided in microwave oven."...
-
Page 11: Materials You Can Use In Microwave Oven
Materials you can use in microwave oven Utensils Remarks Browning dish Follow manufacturer’s instructions. The bottom of browning dish must be at least 3/16 inch (5mm) above the turntable. Incorrect usage may cause the turntable to break. Dinnerware Microwave-safe only. Follow manufacturer's instructions. Do not use cracked or chipped dishes. -
Page 12: Setting Up Your Oven
SETTING UP YOUR OVEN Names of Oven Parts and Accessories Remove the oven and all materials from the carton and oven cavity. Your oven comes with the following accessories: Glass tray Turntable ring assembly Instruction Manual A) Control panel B) Turntable shaft C) Turntable ring assembly D) Glass tray E) Observation window... -
Page 13: Countertop Installation
Countertop Installation Remove all packing material and accessories. Cabinet: Remove any protective film found Examine the oven for any damage such as on the microwave oven cabinet surface. dents or broken door. Do not install if oven is Do not remove the light brown Mica cover damaged. -
Page 14: Operation
OPERATION 1. POWER LEVEL 11 power levels are available. Level Power 100% Display PL10 2. CLOCK SETTING (1) Press " CLOCK ", "00:00" will be displayed. (2) Press the number keys and enter the current time. For example, The time is 12:10 now, please press "1,2,1,0"... -
Page 15: Speedy Cooking
Example: to cook the food with 50% microwave power for 15 minutes. a. Press "TIME COOK" once."00:00" be displayed. b.Press "1","5","0","0" in order. c.Press "POWER"once,then press "5" to select 50% microwave power. d.Press "START/+30SEC." to start cooking. Note:1) In the process of setting, if the " STOP/CANCEL" button is pressed or if there is no operation within 1 minute, the oven will go back to the former setting automatically. -
Page 16: Frozen Vegetable
POPCORN a)Press " POPCORN " repeatedly until the number you wish appears in the display, "50","100"g will display in order. For example, press "POPCORN" once , and "50" will be displayed. b) Press " START/+30 SEC. " to cook, and the buzzer will sound once. When the cooking has finished, the buzzer will sound five times and then turn back to waiting state. -
Page 17: Dinner Plate
BEVERAGE a) Press " BEVERAGE " repeatedly until the number you wish appears in the display, "1","2","3" cup will be displayed in order. One cup is about 120ml. For example, press "BEVERAGE" once , and "1" will be displayed. " to cook, and the buzzer will sound once. When the cooking b) Press "... - Page 18 15. MULTI-STAGE COOKING At most 2 stages can be set for cooking. In multi-stage cooking, if one stage is defrosting, then defrosting shall be placed at the first stage automatically. Note: Auto cooking cannot work in multi-stage cooking. Example: if you want to cook with 80% microwave power for 5 minutes + 60% microwave power for 10 minutes.
-
Page 19: Troubleshooting
Troubleshooting coming out Do not run the unit without any food inside. It is very dangerous. PN:16170000A33315... - Page 20 12 Month Warranty Thank you for your purchase from Kmart. Kmart Australia Ltd warrants your new product to be free from defects in materials and workmanship for the period stated above, from the date of purchase, provided that the product is used in accordance with accompanying recommendations or instructions where provided.
