Summary of Contents for El.Mo TRH series

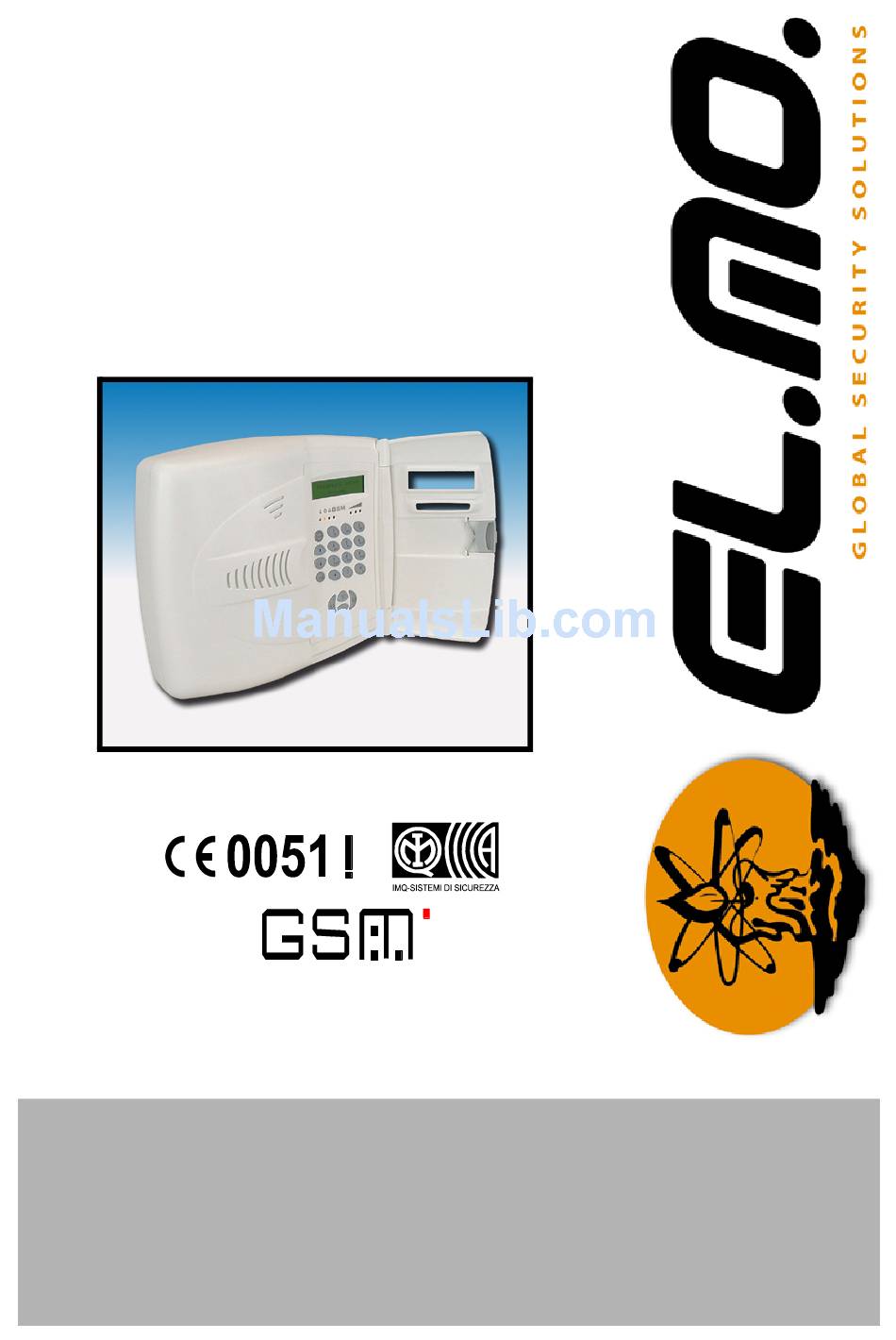

- Page 1 Telephone Diallers TRH Series USER MANUAL...
- Page 2 Some products incorporate rechargeable or non rechargeable batteries as emergency power supply. Their wrong connection may damage the product, properties and the operator’s safety (burst and fire). Your dealer: 2 - TRH Series - USER MANUAL...
-
Page 3: User Interface
OFF - GSM registered and ready SLOW BLINK - GSM registered and ready, low signal strength turned ON - GSM not registered on the network (off-line) Use the quick access menu to check the GSM signal strength. TRH Series - USER MANUAL - 3... -
Page 4: Rf Level Signalling Leds (Trh/Plus Only)
The zone status sub-menu allows the user to check for alarmed zones. If more than one zone is alarmed, use the arrow keys to scroll all alarmed zones. Press OK to switch to normal visualization. Press STOP to switch back to the quick access menu. 4 - TRH Series - USER MANUAL... -
Page 5: Synoptic Status
From this sub-menu it is possible to set-up the internal clock, it is sufficient to enter the desired value and press OK to confirm or STOP to cancel. The S1 and S3 keys can be used to move the cursor to the left or to the right. TRH Series - USER MANUAL - 5... -
Page 6: Anomaly Beep
To change the remote control code follow the same procedure used to change the user code. The remote control code is used to validate the user for SMS (text message) remote control and interrogation. NOTE: setting the remote control code to 000000 disables all remote control and interrogation functionali- ties. 6 - TRH Series - USER MANUAL... -
Page 7: Changing The Arming Status
The disarming key disarms all and only the sectors associated to the remote control. The partial arming-1 key arms only the first sector associated to the remote control. The parial arming-2 key arms only the second sector associated to the remote control. TRH Series - USER MANUAL - 7... -
Page 8: Dialler Stop
WARNING: in this way it is possible to stop all and only the calls related to the same event. Other calls, related to different events, will not be stopped unless the user presses again the key 0 when receives one of such calls. 8 - TRH Series - USER MANUAL... -
Page 9: Remote Control And Interrogation
This command is valid only if TRH is working in Panel Mode otherwise the command is simply ignored. If the command SMS does not contain any valid commands the sender receives an SMS containing the "INVALID COMMAND!" text. NOTE: this command arms all TRH/Plus sectors. TRH Series - USER MANUAL - 9... -
Page 10: Disarming And Dialler Stop Command - I.off
EXAMPLE: El.Mo. TRH: Zone 1 on idle, Zone 2 on alarm, Radio 9 on tampering, Radio 10 on flood alarm. 6.7 Output report command - R.U This command allows the user to remotely interrogate TRH about output status. TRH will reply sending one or more SMS containing the available information. -
Page 11: Note
7. NOTE TRH Series - USER MANUAL - 11... -
Page 12: Table Of Contents
8. TABLE OF CONTENTS ..............12 Telephone Diallers - TRH Series - USER MANUAL August 2005 Edition Product specifications as described above do not bind the manufacturer and may be altered without prior notice.
