Summary of Contents for Ruskin Z2000RT

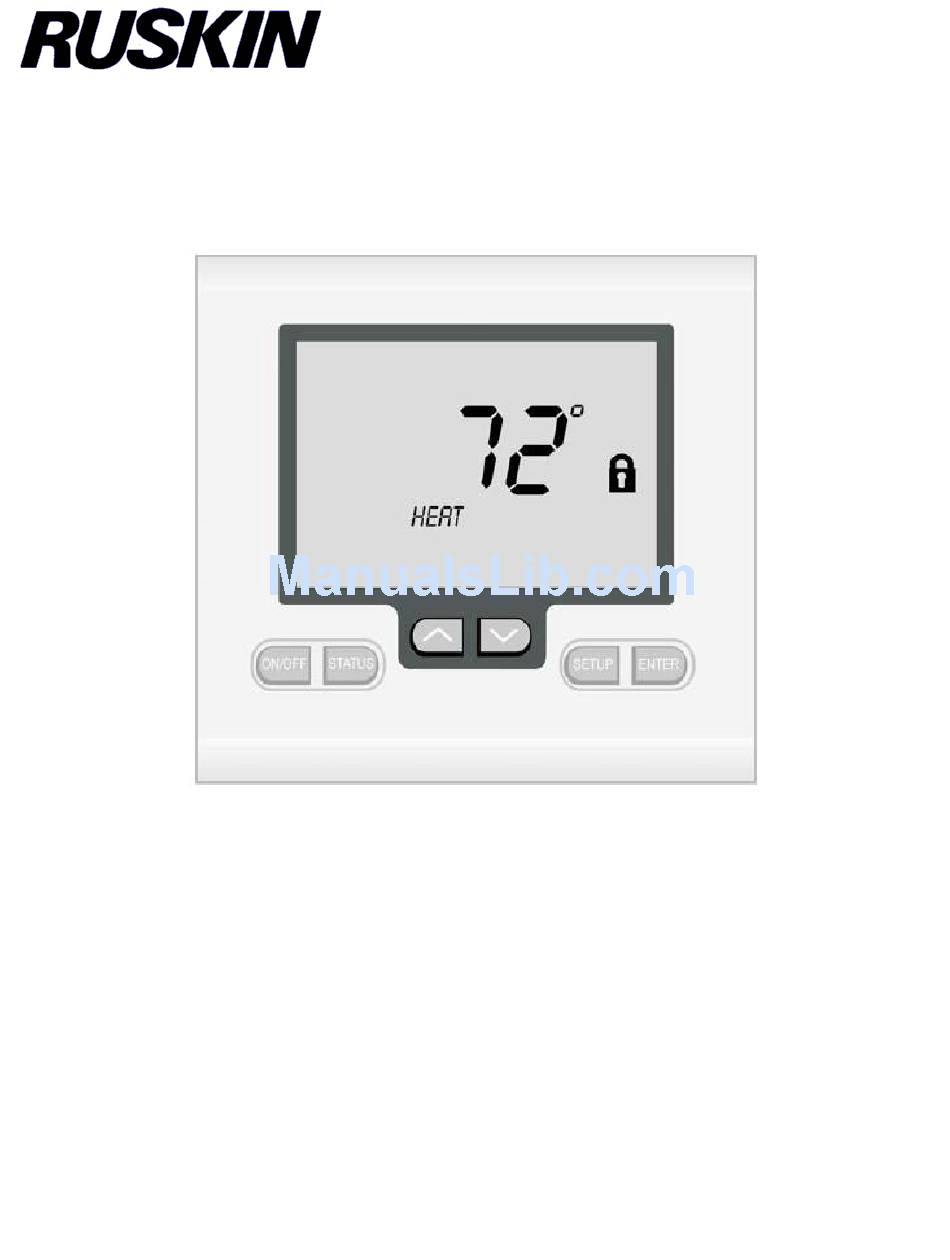

- Page 1 Zone Control Solutions Installation & Maintenance Manual Model: Z2000RT Wall Mount Thermostat © II-Z2000RT-613/New ALL STATED SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT PRIOR NOTICE OR OBLIGATION RUSKIN 2013...
- Page 2 PRIMARY APPLICATION AND INTRODUCTION Ruskin model Z2000RT thermostat is designed to work with the Z2000 modulating zone control system and all Ruskin “Stand- Alone” zone control solutions. Please take time to read and understand this manual so that installation and testing is undertaken in an efficient and effective manner.
- Page 3 THERMOSTAT LOCATION The Z2000RT should be installed in a location that represents the ambient space temperature. Do not install the thermostat in an area where drafts are present, near the floor, behind doors or on an external wall. Avoid placing the thermostat in areas where the air movement is limited, affected by direct sunlight or other areas not typical of the temperature in the space.
- Page 4 SYSTEM WIRING DIAGRAMS Z2000RT WIRE TO OPTIONAL TRACER DSAMPER(S) (UP TO 20 MAY BE WIRED IN PARALLEL) Stand-Alone Modulating Damper or Diffuser System Z2000RT WIRE TO OPTIONAL TRACER DAMPER(S) (UP TO 20 MAY BE WIRED IN PARALLEL) Z2000 Modulating Zone Control System...
- Page 5 KEY FUNCTIONS The A = ON/OFF KEY - When the Z2000RT is not locked, this key allows the thermostat to be turned ON or OFF. When in the OFF position, the damper is also driven closed. B = STATUS KEY - Pressing the STATUS key displays the UNIT number, ZONE number, DUCT temperature and DAMPER position.
- Page 6 Press the SETUP key again and the LCD will display the word ZONE. The factory default is 00. This number can be used to identify each Z2000RT thermostat wired to a Z2000 zone control panel or when used in multiple stand-alone applications.
- Page 7 LCD as indicated on Figure 16 DAMPER POSITION OVERRIDE The Z2000RT has a damper position override feature to assist in air balancing and bypass damper setup. With the thermostat unlocked, press twice and hold the SETUP key until the word...
- Page 8 All Rights Reserved. The product detailed in this manual is protected by a U.S. patent. Illustrations and product descriptions published are not binding in detail. In keeping with its policy of continuous improvement, Ruskin reserves the right to change or modify designs or specifications of...
