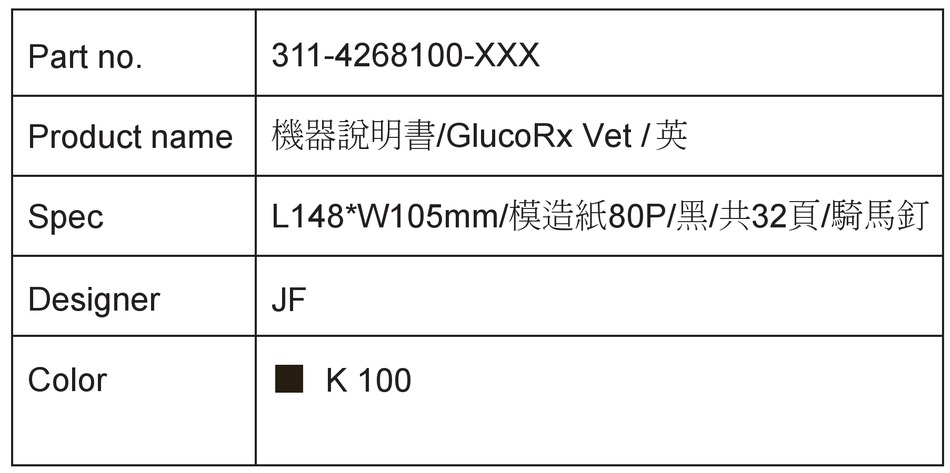

  • Page 1 311-4268100-XXX Part no. 機器說明書/GlucoRx Vet / 英 Product name L148*W105mm/模造紙80P/黑/共32頁/騎馬釘 Spec Designer Color K 100...
  • Page 2 TD-4268 Blood Glucose Monitoring System Owner’s Manual...
  • Page 4 Dear GlucoRx Vet TD-4268 System Owner: Thank you for choosing the GlucoRx Vet TD-4268 Blood Glucose Monitoring System. This manual provides important information to help you use the system properly. Before using this product, please read the following contents thoroughly and carefully.
  • Page 5 9. Proper maintenance and periodic control solution testing are essential to the longevity of your device. If you are concerned about your accuracy of measurement, please contact GlucoRx customer care on 01483 755133 for help. KEEP THESE INSTRUCTIONS IN A SAFE PLACE...

  • Page 6: Table Of Contents

    TABLE OF CONTENTS BEFORE YOU BEGIN Important Information Meter Overview Display Screen Test Strip SETTING THE METER THE FOUR MEASURING MODES BEFORE TESTING Calibration How to Code Your Meter Checking the Code Number Control Solution Testing Performing a Control Solution Test TESTING WITH BLOOD SAMPLE Preparing the Lancing Device for Blood Testing Preparing the Puncture Site...
  • Page 7 Code Code '870' is an example only!

  • Page 9: Before You Begin

    BEFORE YOU BEGIN Important Information ● Severe dehydration and excessive water loss may cause readings which are lower than actual values. If you believe your pet is suffering from severe dehydration, consult the veterinarian professional immediately. ● If your pet's blood glucose results are lower or higher than usual, and they do not have any symptoms of illness, first repeat the test.

  • Page 10: Meter Overview

    Meter Overview Front Left Side Rear Right Side Back Data Port Download test results with a cable connection. M Button (M) Enter the meter memory and silence a reminder alarm. Display Screen Test Strip Slot Insert test strip here to turn the meter on for testing. Test Strip Ejector Eject the used strip by pushing up this button.

  • Page 11: Display Screen

    Test results might be wrong if the contact bar is not fully inserted into the test slot. NOTE: The GlucoRx Vet TD-4268 monitor should only be used with GlucoRx Vet Test Strips. Using other test strips with this meter can produce inaccurate results.

  • Page 12: Setting The Meter

    SETTING THE METER Before using this meter for the first time or if you change the meter battery, you should check and update these settings. Entering the Setting Mode (a) Start with the meter off (no test strip inserted). Press S. 1.

  • Page 13: The Four Measuring Modes

    How to Code Your Meter Your GlucoRx Vet TD-4268 meter is supplied with two code strips. There is one for cats, and one for dogs. Please check your GlucoRx Vet TD-4268 meter with the correspond- ing code strip for your pet to ensure proper performance.

  • Page 14: Checking The Code Number

    Failure to do so will get inaccurate results. If the LCD displayed code is not the same as the code on your test strip vial, and the code number cannot be updated, please contact GlucoRx Customer care on 01483 755133 assistance.

  • Page 15: Control Solution Testing

    Test strips (e), control solutions (f), lancing device (g) sterile lancets (h) should be included in the kit (please check the contents of your product box). They can be obtained separately from GlucoRx Customer care. Please ensure you have all items needed for a blood glucose test beforehand.
  • Page 16 WARNING: When doing the control solution test, you have to mark it so that the test result will NOT mix with the blood glucose TEST RESULTS stored in the memory. Failure to do so will mix up the blood glucose test results with the control solution test results in memory.

  • Page 17: Testing With Blood Sample

    TESTING WITH BLOOD SAMPLE WARNING: To reduce the chance of infection: • Never share a lancet or the lancing device. • Always use a new, sterile lancet. Lancets are for single use only. • Avoid getting hand lotion, oils, dirt, or debris in or on the lancets and the lancing device.

  • Page 18: Performing A Blood Glucose Test

    NOTE: • Choose a different spot each time you test. Repeated punctures at the same spot may cause soreness and calluses. • It is recommended that you discard the first drop of blood as it might contain tissue fluid, which may affect the test result. Performing a Blood Glucose Test To perform a blood glucose test, you will need: (d), (e), (g) and (h). 1. Insert the test strip to turn on the meter Wait for the meter to display “...
  • Page 19 Discard the used test strip and retest with a new one. • If you have trouble filling the confirmation window, please contact the veterinarian professional or GlucoRx Customer Care on 01483 755133 for assistance. 5. Read the result The result of your pet's blood glucose test will appear after the meter counts down to 0. The blood glucose result will be stored in the...

  • Page 20: Meter Memory

    METER MEMORY The meter stores the 1000 most recent blood glucose test results along with respective dates and times in its memory. To enter the meter memory, start with the meter switched off. Reviewing Test Results 1. Press and release M. “ ” will appear on the display. Press M again, and the first reading you see is the last blood glucose result along with date, time and the measuring mode.

  • Page 21: Downloading Results Ontoa Computer

    DOWNLOADING RESULTS ONTO A COMPUTER Data Transmission Via Cable You can use the meter with a RS232 interface cable and the GlucoRx Healthcare Software System to view test results on your personal computer. To learn more about the GlucoRx Healthcare Software System or to obtain a RS232 interface cable separately, please contact GlucoRx Customer care on 01483 755133 for assistance.

  • Page 22: Maintenance

    MAINTENANCE Battery Your meter comes with two 1.5V AAA size alkaline batteries. Low Battery Signal The meter will display one of the messages below to alert you when the meter power is getting low. 1. The “ ” symbol appears along with display messages: The meter is functional and the result remains accurate, but it is time to change the batteries.

  • Page 23: Caring For Your Meter

    Caring for Your Meter Cleaning ● To clean the meter exterior, wipe it with a cloth moistened with tap water or a mild cleaning agent, then dry the device with a soft dry cloth. Do NOT rinse with water. ● Do NOT use organic solvents to clean the meter. Meter Storage ● Storage conditions: -20°C to 60°C (-4°F to 140°F), below 95% relative humidity.

  • Page 24: Caring For Your Carry Case

    ● Write the opening date on the vial label when you first opened it. Discard remaining test strips after 6 months. ● Do not use test strips beyond the expiry date. This may cause inaccurate results. ● Do not bend, cut, or alter a test strip in any way. ● Keep the strip vial away from children since the cap and the test strip may be a choking hazard. If swallowed, promptly see a doctor for help. For further information, please refer to the test strip package insert. Caring for Your Carry Case 1. Remove protective film attached to the sticky sheet before using for first time.

  • Page 25: Important Control Solution Information

    NOTE: Never use any object to wipe off the sticky sheet. 5. After drying completely, the sticky sheet can be restored. Place it back in the carry case for use. NOTE: The sticky sheet will become less sticky the more you touch it, through transfer of your skin oils. Important Control Solution Information ● Use only our control solution with your meter.

  • Page 26: System Troubleshooting

    SYSTEM TROUBLESHOOTING If you follow the recommended action but the problem persists, please call GlucoRx Customer care on 01483 755133. Result Readings MESSAGE WHAT IT MEANS < 0.5 mmol/L (10 mg/dL). > 33.3 mmol/L (600 mg/d L).

  • Page 27: Error Messages

    Repeat the test with a new test E-0, strip. If the meter still does not E-A, Problem with the meter. work, please contact GlucoRx E-E. Customer care on 01483 755133 for assistance. Review the instructions and Appears when test strip is repeat test with a new strip.

  • Page 28: Troubleshooting

    Insert the test strip with contact bars incompletely. end first and facing up. Defective meter or test strips. Please contact GlucoRx Customer care on 01483 755133. 2. If the test does not start after applying the sample: POSSIBLE CAUSE WHAT TO DO Insufficient blood sample.

  • Page 29: Symbol Information

    Control solution, meter, and test strips too cold. should be at room temperature 20°C to 25°C ( 68°F to 77°F) before testing. Defective test strip. Repeat the test with a new test strip. Meter malfunction. Please contact GlucoRx Customer care on 01483 755133. Malfunction of meter and test strip. Please contact GlucoRx Customer care on 01483 755133. SYMBOL INFORMATION SYMBOL...

  • Page 30: Specifications

    SPECIFICATIONS Model No.: TD-4268 Dimensions & Weight: 95 (L) x 55 (W) x 20 (H) mm, 76.15 g Power Source: Two 1.5V AAA alkaline batteries Display: LCD Memory: 1000 non-deletable measurement results with respective date and time External Output: RS232 interface cable Auto electrode insertion detection Auto sample loading detection Auto reaction time count-down Auto switch-off after 3 minutes without action Temperature Warning Operating Condition: 10°C to 40°C (50°F to 104°F), below 85% R.H. (non-condensing) Meter Storage / Transportation Conditions: -20°C to 60°C (-4°F to 140°F), below 95% R.H.
  • Page 31 NOTE...
  • Page 33 Distributed by GlucoRx Ltd. 4 Wintonlea, Monument Way West, Woking, Surrey, GU21 5EN, UK Website: www.glucorx.co.uk Customer careline: 01483 755133 TaiDoc Technology Corporation B1-7F., No. 127, Wugong 2nd Rd., Wugu Dist., New Taipei City 248, Taiwan (R.O.C.) www.taidoc.com...
