KMC Controls KMD-5551E Application Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Applications Guide
KMD-5551E translator
Translator A
Translator B
Includes installation, operation, and maintenance instructions
Revision B

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KMD-5551E and is the answer not in the manual?

Questions and answers

Summary of Contents for KMC Controls KMD-5551E

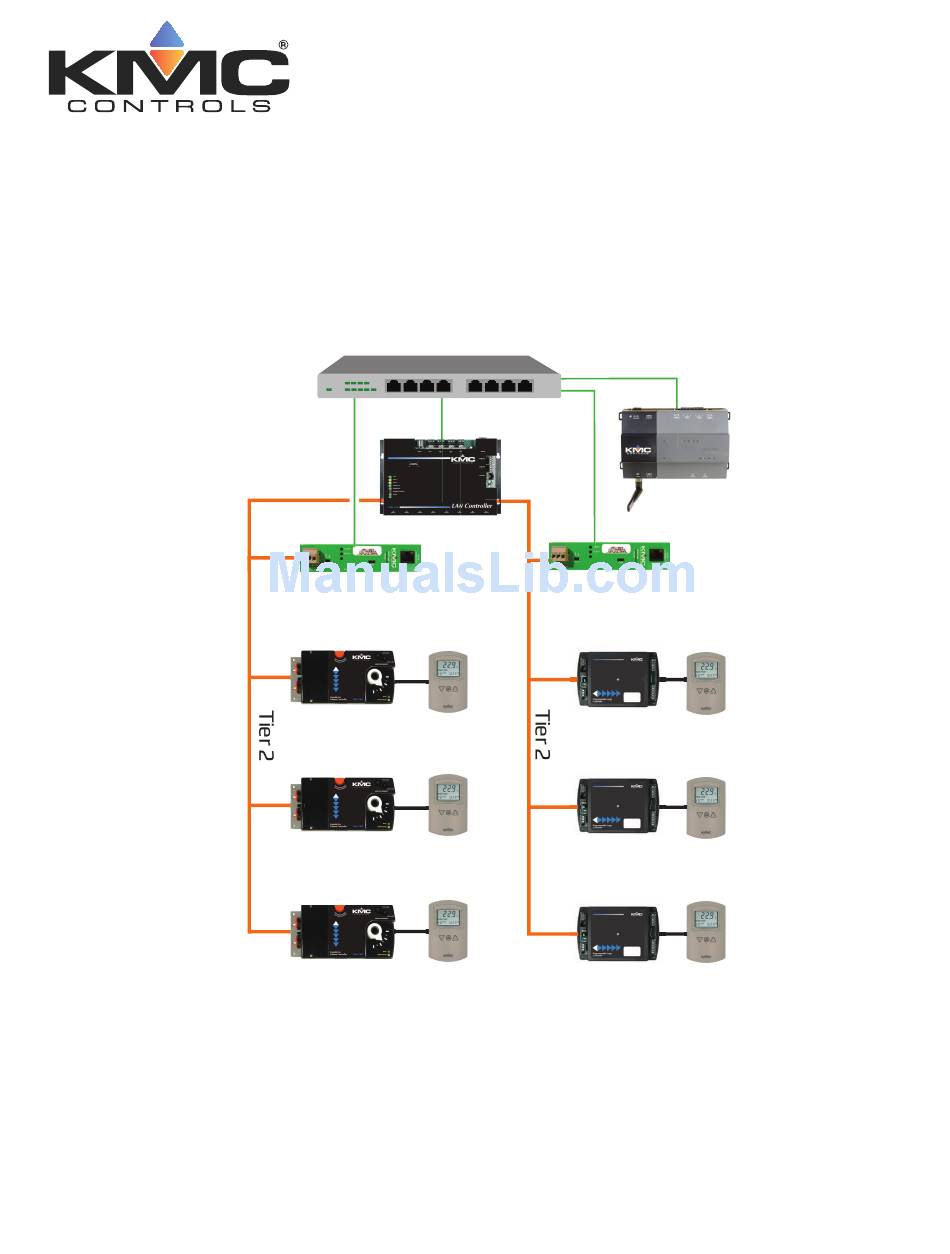

  • Page 1: Bacnet Ethernet, Bacnet Ip, Kmd Tier

    Applications Guide KMD-5551E translator Translator A Translator B Includes installation, operation, and maintenance instructions Revision B...
  • Page 2 KMC Controls, Inc. makes no representations or warranties with respect to this manual. In no event shall KMC Controls, Inc. be liable for any damages, direct or incidental, arising out of or related to the use of this manual.

  • Page 3: Table Of Contents

    Example networks KMD Tier 2 only KMD Tier 1 and a single KMD Tier 2 KMD Tier 1 and two KMD Tier 2 networks Section 3: Configuring the KMD-5551E translator Initial setup Set up for configuration Logging in Changing your computer's address...
  • Page 4 Contents KMC Controls, Inc. Purging the Route Status list Licensing the translator Purchase a license Download the required module files Discover and add translators to the BACnet network Add the module files to the station Add the translator license to the station...

  • Page 5: Specifications

    KMD-5551E Translator Sec ti o n 1: In tr o d u c ti o n This section provides a description of the KMC Controls KMD-5551E translator. It also introduces safety information. Review this material before installing or operating the translator.
  • Page 6 Section 1: Introduction KMC Controls, Inc. Configuration and software All configuration is through internal browser based configuration pages. Requires HTML5 browser. BACnet routing One BACnet IP port that can be set up for any of the following protocols: Normal BACnet IP network routing...
  • Page 7 KMD-5551E Translator Section 1: Introduction Timekeeping The KMD-5551E translator is a BACnet time master device. Update interval Daily, weekly, or monthly Time message type UTC, local, or both Setting time Synchronized to SNTP server, set from computer time, or manually entered Niagara compatibility Compatible with Niagara 3.8 and later.

  • Page 8: Section 1: Introduction

    Section 1: Introduction KMC Controls, Inc. Accessories and replacement parts The following accessories and replacement parts are available from KMC Controls, Inc. Power transformer XEE-6111-50 Transformer, 120-to-24 VAC, 50 VA, single-hub XEE-6112-50 Transformer, 120-to-24 VAC, 50 VA, dual-hub Surge suppressors KMD-5567 EIA-485 surge suppressor for MS/TP or Tier 2 networks...

  • Page 9: Connecting For Network Routing

    Section 1: Introduction Connecting for network routing Connect the KMD-5551E translator to a network router or network switch and, as needed, to a KMD Tier 2 network. For permanent installations, the router is typically connected to a 24 volt transformer for power.

  • Page 10: Tier 2 Wiring

    If the translator is in the middle of the network segment, set the EOL switch to OFF. Connecting power Power the KMD-5551E translator from a 24 volt power source, either AC or DC, or from a USB connection. The translator begins to operate when a power source is applied. Use the following guidelines when choosing and wiring sources to the translator.
  • Page 11 Connect the ground side of the transformer to the ground terminal . Use a Class 2 transformer of the appropriate size to supply power to the translator. KMC Controls recommends powering the translator from a dedicated transformer. Do not run 24 volt power from within an enclosure to external devices.

  • Page 12: Single-Cable Connection

    Do not run 24 volt power from within an enclosure to external devices. Single-cable connection The single-cable connection method connects the KMD-5551E translator to a computer with a USB cable that supplies both power and communications. The USB port becomes a virtual network interface card (NIC) and establishes a network between the computer and the translator.

  • Page 13: Maintenance

    When the log in page opens, set up the translator as described in the topic Setting up translation on page Maintenance The KMD-5551E translator requires no routine maintenance. If necessary, clean with a damp cloth and mild soap. If you encounter difficulty If you experience difficulty with the KMD-5551E translator, KMC Controls provides the following assistance.
  • Page 14 Section 1: Introduction KMC Controls, Inc. Revision B...

  • Page 15: Section 2: Translation Concepts

    Example networks Translation rules The KMD-5551E translator supports one Tier 1 controller and the controllers on one Tier 2 network. The Tier 2 network does not have to be connected to the Tier 1 controller. KMDigital input, output, and variable points are translated as BACnet input, output, and value objects.

  • Page 16: Kmd To Bacnet Translation

    Changing an Input Object to Out of Service changes the KMD point to Manual. Values are cached for up to 30 seconds. Applicable controllers The following controllers are compatible with the KMD-5551E translator. Tier 1 controllers Tier 2 controllers Tier 2 controllers (obsolete)

  • Page 17: Example Networks

    KMD-5551E Translator Section 2: Translation concepts Example networks The following network diagrams are examples of how to connect the KMD-5551E translator to KMDigital networks. These are conceptual diagrams only. For detailed installation instructions, see the following topics. Connecting for network routing on page 9...

  • Page 18: Kmd Tier 1 And A Single Kmd Tier 2

    KMD Tier 1 and a single KMD Tier 2 Connect the KMD-5551E translator to the Tier 2 network and to the same local area network that the Tier 1 and JACE controllers are connected to. The Tier 1 and all Tier 2 controllers will appear on the same virtual BACnet network.

  • Page 19: Kmd Tier 1 And Two Kmd Tier 2 Networks

    BACnet virtual network. The controllers on the Tier 2 network with Translator B will appear on a second BACnet virtual network. Illustration 2–4 Two KMD-5551E translators connected to a Tier 1 controller and two Tier 2 networks Translator A...
  • Page 20 Section 2: Translation concepts KMC Controls, Inc. Revision B...

  • Page 21: Section 3: Configuring The Kmd-5551E Translator

    Security page KMD HPO Override Report page Session timeout Initial setup Configure the KMD-5551E translator with an HTML5 compatible web browser using the web pages served from within the translator. The translator has the following default network address values. IP address—192.168.1.252 Subnet mask—255.255.255.0...

  • Page 22: Set Up For Configuration

    Section 3: Configuring the KMD-5551E translator KMC Controls, Inc. If the translator is part of a system that uses the Internet, you will also need the public IP address and port. You will also need an HTML5 compliant browser, Ethernet cable, and a USB-A to USB-B micro cable or a 24 volt AC power source.
  • Page 23 KMD-5551E Translator Section 3: Configuring the KMD-5551E translator Enter the address 192.168.1.252 At the log in window enter the following user name and password. User name: admin Password: admin Revision B...

  • Page 24: Changing Your Computer's Address

    Section 3: Configuring the KMD-5551E translator KMC Controls, Inc. Once you have logged in, other parameters of the translator can be changed from the Home page. To change the IP address, see the topic Device properties page on page To set up BACnet routing and translation, see the topic...
  • Page 25 KMD-5551E Translator Section 3: Configuring the KMD-5551E translator Choose the local connection for the LAN. Depending on the computer and version of Windows, the exact name for the connection may be Ethernet, Local Area Connection, or something similar. In the Ethernet Status dialog, click...
  • Page 26 Section 3: Configuring the KMD-5551E translator KMC Controls, Inc. In the Properties dialog, select Use the following IP address and then enter the following for the IP address, subnet mask, and Gateway. IP address—192.168.1.10 Subnet mask—255.255.255.0 Gateway—Leave empty or unchanged When all information is correct, click...

  • Page 27: Device Properties Page

    KMD-5551E Translator Section 3: Configuring the KMD-5551E translator Device properties page The Device page identifies the KMD-5551E translator for the Local Area Network (LAN). The IP Address, Subnet Mask, and Default Gateway values are supplied by the IT department system administrator.

  • Page 28: Time Page

    The mask must match the mask for the network gateway router and other devices on the subnet. Default Gateway The address of the network gateway router. The KMD-5551E translator and gateway router must be part of the same LAN subnet. Restart Device Restarts the translator.

  • Page 29: Security Page

    BACnet included, connected to a local area network. The KMD-5551E translator receives these time messages and rebroadcasts them as a BACnet time service message. The BACnet time messages can be sent hourly, daily, weekly, or monthly.

  • Page 30: Kmd Hpo Override Report Page

    Section 3: Configuring the KMD-5551E translator KMC Controls, Inc. The router is configured with the following default user name and password. User name: admin Password: admin Table 3–1 Security access levels Configure Security Administrator Display Display Modify Modify View Only...
  • Page 31 KMD-5551E Translator Section 3: Configuring the KMD-5551E translator KMD controllers must be configured to recognize HPO cards. To configure the controllers use either WinControl Plus or Hardware Configuration Manager. See Technical Bulletin TB0305A, WinControl Compatible Check Box for details. Illustration 3–2 HPO Override Report page Name The name of the KMD controller is listed in the Index column.

  • Page 32: Session Timeout

    Section 3: Configuring the KMD-5551E translator KMC Controls, Inc. Session timeout The browser session will automatically close after one hour of inactivity. After 58 minutes, the Reset Session Timer button appears on any open page. Click to reset the session timer.

  • Page 33: Section 4: Setting Up Translation

    Setti n g u p tr an s l ati o n Use the Configuration window to set up BACnet and KMD networks that will connect to the KMD-5551E translator. Review this information carefully for proper installation. The KMD-5551E translator supports the following routing protocols.

  • Page 34: Bacnet Foreign Device Routing

    Section 4: Setting up translation KMC Controls, Inc. Set the Network and Port properties as needed and then click Save Note: The translator will restart when changes are made. For additional changes, log in again. Enable Select to enable the network. The port block turns green when enabled.
  • Page 35 47808. Remote IP Enter the address of the remote BBMD. If network address translation (NAT) is used between the KMD-5551E translator and the BBMD, contact the network system administrator for the correct public IP address. Remote Port Enter the port number of the remote BBMD. If port address translation (PAT) is used between the KMD-5551E translator and the BBMD, contact the network system administrator for the correct public UDP port.

  • Page 36: Bacnet Broadcast Management Device Routing

    Section 4: Setting up translation KMC Controls, Inc. BACnet Broadcast Management Device routing The IP port can be configured as a BACnet Broadcast Management Device (BBMD). When configuring the IP port as a BBMD, keep in mind the following rules.

  • Page 37: Network Address Translation

    KMD-5551E Translator Section 4: Setting up translation Network address translation When using Network address translation, coordinate with the IT department to obtain a public IP address and a port exception in the firewall. Use public address Select to enable network address translation and port forwarding.

  • Page 38: Bacnet Pad Routing

    Note: The translator will restart. For additional changes, log in again. The KMD-5551E translator supports BACnet IP PAD routing. A BACnet IP PAD router is a special type of router that connects two or more BACnet network segments that are separated by at least one IP-only router.

  • Page 39: Configuring The Kmd Virtual Port

    Remote Port Enter the port number of the remote PAD router. If port address translation (PAT) is used between the KMD-5551E translator and the PAD or BBMD, contact the network system administrator for the correct public IP address. Other IP routing protocols...

  • Page 40: Subnet (Tier 2)

    This must be unique on the virtual network and in the range from 0 to 127. Subnet (Tier 2) Settings in the Subnet area configure communications between the KMD-5551E translator and the KMDigital controllers connected to the translator's Tier 2 connector. Note: The KMD Tier 2 network must be wired to the Tier 2 connector on the translator.

  • Page 41: Kmd Columns

    KMD-5551E Translator Section 4: Setting up translation Auto Assign Device Instance When clicked, the translator automatically assigns BACnet Device Instance numbers to the KMD Tier 2 devices. The beginning instance number is set by the value in Starting Device Instance. All other Tier 2 controllers are assigned an instance number in sequence.

  • Page 42: Bacnet Columns

    Tier 1 controllers. Routing Status page The KMD-5551E translator includes BACnet routing functions. References to the router and routing in this topic refer to the BACnet routing functions and networks, including the BACnet virtual network, within the translator. The status of the KMDigital networks, controllers, or points are not included on this page.

  • Page 43: Route Status Buttons

    KMD-5551E Translator Section 4: Setting up translation Route Status buttons The Route Status buttons are useful for diagnosing routing and network problems. Send I-Am-Router-To-Network Broadcasts to all networks that the router is on the network. This can trigger internetwork wide updates.
  • Page 44 Section 4: Setting up translation KMC Controls, Inc. Discovered (Use Learned Networks not enabled) The learned network number at a port. If this network number is different than the network number on the Configuration page the number is in red and the status will be other than Active. Other networks are listed as N/A.
  • Page 45 KMD-5551E Translator Section 4: Setting up translation Table 4–1 Route status conditions (continued) Status Icon Description Action Duplicate MAC The router has detected Change the MST/TP two MS/TP device using MAC address in either the same MAC address. the router or the device Traffic is not routed.

  • Page 46: Purging The Route Status List

    Licensing the translator To provide a license to the KMD-5551E translator, the translator requires a KMC translator service running on a Tridium station. The KMD translator module is usually added to a station running on a JACE but, it may be added to a KMC Converge or Workbench station as long as the station is continuously in operation.

  • Page 47: Download The Required Module Files

    For brands other than KMC, the "KMC" name in the file path will be different. Discover and add translators to the BACnet network All KMD-5551E translators must be connected to the same BACnet internetwork as the station and the station must have a BACnet driver installed. Installing and configuring the BACnet driver is covered in the Tridium document Niagara BACnet Guide.

  • Page 48: Add The Module Files To The Station

    BACnet internetwork that includes the KMD-5551E translator. Add the module files to the station The KMD-5551E translator license service requires .jar module files to be added to the station. To add files to a Niagara station, do the following: Open the platform.

  • Page 49: Add The Translation Service Palette

    KMD-5551E Translator Section 4: Setting up translation and certificate files are supplied in an email message from KMC Controls, Inc. when the translation driver is purchased. Internet connection If an Internet connection is available, the license and certificate can be obtained from the online license server.

  • Page 50: Discover The Kmd Devices

    Drag the KMC KMD Translator Service Services Within a few minutes the translation service will enable translation for the KMD-5551E translators. Discover the KMD devices Once a translator is enabled from a licensed station, the KMD devices will be available for discovery in Workbench.
  • Page 51 KMD-5551E Translator Section 4: Setting up translation Click Save Illustration 4–3 BACnet tuning policy for KMD-5551E translator Revision B...
  • Page 52 Section 4: Setting up translation KMC Controls, Inc. Revision B...

  • Page 53: Section 5: Advanced Features

    Sec ti o n 5: A d v an c ed f eatu r es This section covers features for updating and backing up the KMD-5551E translator. Features in the Advanced group are for updating the firmware and backing up the translator configuration.

  • Page 54: Updating The Firmware

    Section 5: Advanced features KMC Controls, Inc. Once the address is known, connect the translator to the correct IP subnet for normal operation or translator configuration. Updating the firmware The translator firmware can be updated from the Firmware page in the Advanced group.

  • Page 55: Configure From A File

    . The translator will restart. Commit Configure from a file Configuration properties for the KMD-5551E translator can be saved in a configuration file. The configuration file can then be used as a backup file or to configure other translators with similar properties.
  • Page 56 Section 5: Advanced features KMC Controls, Inc. Save Configuration Saves the router configuration in the file config_5051E.json. The file type is JSON (Java Script Object Notation) and it is saved in the Windows current user's downloads folder. Illustration 5–2 Configure from File page...

  • Page 57: Index

    KMD-5551E Translator firmware updates 54 I n d e x FLASH updates 54 foreign device routing 34 24 volt power 10 gateway configuring 21 default address 21 access level 29 gateway address 27 accessories 8 adding users 29 address HPO Override Report 30...
  • Page 58 KMC Controls, Inc. PAD routing 38 table, broadcast distribution 36 passwords 29 telephone number 13 power Tier 2 24 volt 10 specifications 5 from transformer 10 wiring 10 from USB 10 Time page 28 power specifications 6 time service 28...
