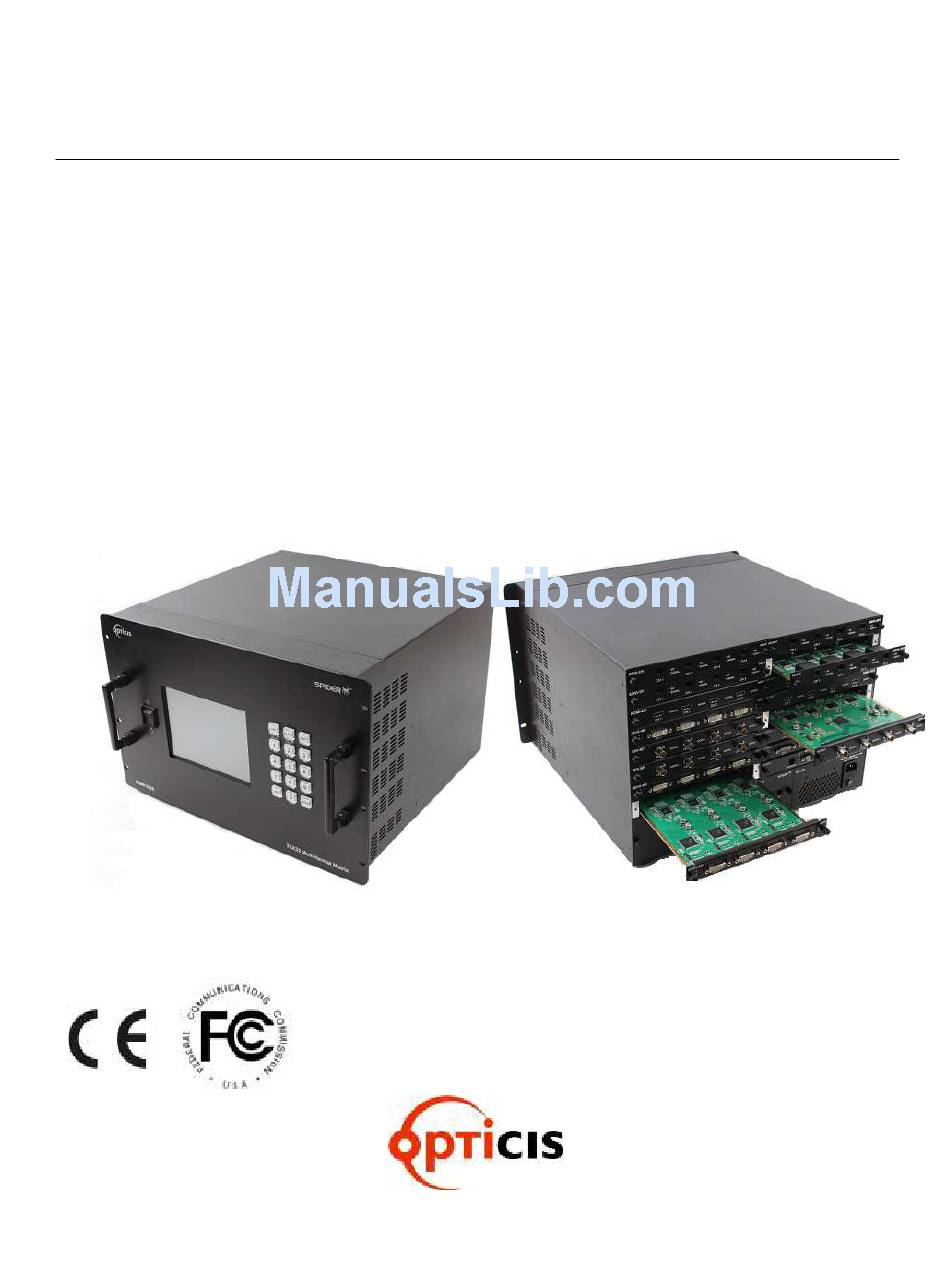

- Page 1 User’s Manual Version 1.0 OMM-2500 Multi-format Modular matrix 32x32 DVI / HDMI / SDI Matrix Doc No. : OM-D140805 / Rev1.0...
-
Page 2: Table Of Contents
ABLE OF ONTENTS Chapter 1. Introduction and installation ....................4 Key features..........................4 Shipping group.........................5 Notice of safe usage........................6 Physical description.........................6 Installation..........................7 1.5.1 Initialization ......................... 7 1.5.2 Connection for remote control .................... 7 EDID Configuration........................7 Chapter 2. Control setup ........................9 TCP/IP.............................9 2.1.1 TCP/IP setup of PC ...................... - Page 3 6.2.9 Baud rate setting for RS-232 .................... 38 6.2.10 Multi-viewer card (QDVI-O) setting ................... 38 6.2.11 Slot status request ......................39 6.2.12 Control lock command ...................... 40 6.2.13 Preset Control Commend ....................41 6.2.14 Power State Request ......................42 6.2.15 Firmware Version Request ....................42 Chapter 7.
-
Page 4: Chapter 1. Introduction And Installation
32X32 by plugging the cards into OMM-2500 mainframe. Introduction The OMM-2500 modular matrix enables to switch up to 32 different DVI, HDMI and SDI sources to 32 different digital displays. It can be configured using 8 input and output cards and each card has 4 ports of input and output. -
Page 5: Shipping Group
PC program by RS-232 and UDP ▪ Works with OPTICIS DVI, HDMI, and SDI optical extender for long signal extension. ▪ Has dual-power supplier for hot-swappable and load-sharing. ▪ Equips multi-viewer card to be used in various monitoring systems. -
Page 6: Notice Of Safe Usage
▪ Carry the unit using the handle in front of the panel with two (2) Users. 1.4 Physical description The OMM-2500 modular matrix chassis is mountable on a 19” standard rack. Key buttons, LCD display and power switch are placed on the front panel as shown in Figure 1-1. -
Page 7: Installation
Then, please make sure the cards are fully seated. ▪ Connect the provided AC power cord to AC power inlet. Turn on the switches at the bottom of the AC power inlet and on the front panel step by step. Then, OMM-2500 will start initialization process. - Page 8 As depicted in Figure 1-2, once EDID is configured, each EDID is stored in EEPROM in Input ports. As a result, the video sources are able to read EDID from the EEPROM during booting process even though the OMM-2500 and connected displays are not powered on yet.
-
Page 9: Chapter 2. Control Setup
Chapter 2. Control setup The OMM-2500 modular matrix can be controlled in various ways such as command input (RS-232, TCP/IP), Web control panel (TCP/IP), supplied PC program (RS-232, UDP) as well as Touch LCD and key button on the front panel. To do this, PC should be configured properly. -
Page 10: Launching Hyperterminal
Stop bits: 1 Flow control: None [Note] Bit per second of Hyper Terminal should be set as same as baud rate of OMM-2500. ▪ Click OK to save the parameters. ▪ Go Start > Programs > Accessories > Communications > HyperTerminal, then new icon will be shown. -
Page 11: Chapter 3. Control Operation
Chapter 3. Control operation 3.1 Home & State ▪ It provides a user-friendly graphic interface showing various status, such as input/output card type, connection, power on/off, firmware version and network information. ▪ If the green LED of output slot number is lit ON as shown above, user can recognize the resolution of input signal (ex. -
Page 12: Link Mode
3.2 LINK mode ▪ It configures input/output connections for cross-switching. Touch , the Link Icon. Touch an input channel to be designated among 32 input buttons. Touch single or multiple output channel(s) among 32 output buttons to be connected with display. -
Page 13: All Link
3.2.1 All Link ▪ It connects an input and all output connection. Touch All Link icon. Touch an input channel button to select desired input. Touch Apply button to save the configuration. Touch selected input channel again to check the connection between the selected input and connected all output. -
Page 14: Configuration Mode
3.3 Configuration mode ▪ It provides basic configuration of OMM-2500. ▪ Touch , configuration icon to see all features. Channel Name LAN & RS232 Multi-Viewer (It is activated when QDVI-O is in output bay) Video Generator ... -
Page 15: Channel Name
3.3.1 Channel Name ▪ It can be allocated specific names for all inputs and outputs to distinguish them. ▪ Touch Input channel or Output Channel bar right next to Channel Name. ▪ Touch a channel bar to enter channel name. ▪... -
Page 16: Lan & Rs232
3.3.2 LAN & RS232 Baud rate: ▪ It sets RS-232 Baud Rate. OMM-2500 supports 9600, 19200, 38400, 57600 and 115200bps. ▪ Touch icon to decrease Baud Rate. ▪ Touch icon to increase Baud Rate. ▪ Touch Apply icon to complete the process. -
Page 17: Multi Viewer
3.3.3 Multi Viewer ▪ The most outstanding feature of OMM-2500 is embedded multi-viewer card, QDVI-O. ▪ Multi-viewer card, QDVI-O can choose 4 inputs among 32 inputs of OMM-2500 and configure and output these input signals with 7 different layouts. ▪ Select the SLOT No. by touching icon. -
Page 18: Video Generator
3.3.4 Video Generator ▪ It changes resolution and pattern of video generator. ▪ Select resolution or pattern and OSD by touching the icons. ▪ Touch Apply icon to complete the process. -
Page 19: Monitoring Port
3.3.5 Monitoring Port ▪ It allocates input to Monitor Output port for monitoring uses. ▪ Connect a display to the Monitoring Output port and any video sources to the DVI input ports on the real panel. ▪ Touch an input channel to select desired input. ▪... -
Page 20: Edid Management
3.3.6 EDID Management ▪ It sets EDID information of display in input port. ▪ OMM-2500 supports four (4) types of EDID setting: Default Mode, Auto detect Mode, Output Copy Mode and Resolution List Mode for supporting easier installation with various displays in the field. - Page 21 Auto detect Mode ▪ It analyzes all EDID of attached displays at the output ports of OMM-2500 and get optimized EDID. By selecting it, user can save optimized one in allocated input. ▪ Touch the Auto detect icon. ▪ Touch single or multiple input channel icons to select desired inputs ▪...
- Page 22 ▪ Then, the keypad window will be shown as above. ▪ Enter the number of desired output channel by select number keys. ▪ Touch Enter and Close. ▪ Then, previous page with 1~32 buttons will be shown. ▪ Touch single or multiple input channel icons to select desired inputs. ▪...
- Page 23 Resolution List ▪ It reads EDID from the selected Resolution List by user and copies it in allocated input. ▪ Touch the icon to select the desired resolution. The Resolution List is as below; SVGA 720P WXGA SXGAp WXGAp (800x600) (1024x768) (1280x720) (1366x768)
-
Page 24: Hdcp On/Off
3.3.7 HDCP on/off ▪ User can set HDCP on/off in this menu. ▪ Select (Deselect) single or multiple Input Channel icons by touching. ▪ Touch the Apply icon to complete the process. [Note] Only the Electrical single link DVI, Dual link DVI and HDMI cards complies with HDCP. -
Page 25: Preset
3.3.8 Preset ▪ It saves and loads the current routings to up to ten (10) specified preset number. 1) Preset Save mode ▪ Touch the Save icon. ▪ Touch the icon to select desired Preset Save number. - Page 26 ▪ Touch the Edit icon to modify or enter a Preset name. ▪ Then, key pad will be shown as above. ▪ Touch the Shift key to select a letter or number. ▪ Touch a letter or number key to enter a desired Preset name. ▪...
- Page 27 2) Preset Load mode ▪ Touch the Load icon. ▪ Touch the icon to select desired Preset Load number. ▪ Touch the Load icon, next to the icon, such as and it shows current input / output connection in the Preset Load number ▪...
-
Page 28: Control Lock
▪ Select the Lock or Unlock by touching the icon. ▪ Touch the Apply icon to complete the process. Reset ▪ It resets OMM-2500 by system reboot and default setting. It maintains the latest link connection and network. ▪ Touch the Reset icon to complete the process. -
Page 29: Chapter 4. Pc Program Operation
▪ Click and download the PC program file. ▪ Run the setup.exe to install OMM-2500 PC program. The OMM-2500 icon will be shown on the wallpaper. Double click it to launch PC program and will be shown as below. Fig 4-1 PC program of OMM-2500... -
Page 30: Connect Info
▪ In case of RS-232 control, enter available COM port number of your PC and select baud rate. The baud rate should be same as that OMM-2500. (115200 is default) ▪ In case of Ethernet, enter IP address of OMM-2500 and port number. 3000 is default port number of OMM-2500. -
Page 31: Chapter 5. Web Control Panel Operation
Chapter 5. Web control panel operation The Web control panel operation provides a user-friendly graphic interface and easy access to control OMM-2500, if the PC is connected to Ethernet. But the functions are a little bit limited comparing with other methods. -
Page 32: Chapter 6. Command Input Operation
Chapter 6. Command input operation The OMM-2500 modular matrix could be operated with various interfaces such as Touch LCD, key button inputs, command input through RS-232 and TCP/IP, Web control through TCP/IP and PC program through RS-232 and UDP. All functions are executed on a basis of a serial command input, but the graphic interfaces on the Web or the PC program make more efficient way to operate the OMM-2500 modular matrix. -
Page 33: Examples Of Command Inputs
▪ User can use capital letters and small letters for commands but cannot mix it like ‘Link’, it must be corrected as ‘link’ or ‘LINK’. ▪ After all input commands, OMM-2500 sends back replies to conform the execution of commands. -
Page 34: Input And Output Name Request And Setting
6.2.3 Input and Output Name request and setting Command Description and reply Requests input 5 name INNAME=05! Reply: INNAME=[05]MATRIX_IN05! Setting input 5 name INNAME=05_DVDPlayer! Reply: INNAME=[05]DVDPLAYER! Requests output 12 name OUTNAME=12! Reply: OUTNAME=[12]MATRIX_OUT12! Setting input 5 name OUTNAME =12_project01! Reply: OUTNAME =[12]PROJECT01! Table 6.4 Input and Output Name request and setting command examples 6.2.4 Network setting ▪... -
Page 35: Video Generator Setting
▪ It changes resolution and pattern of video generator. ▪ It requests current video generator setting. Table 6.6 describes the resolutions and patterns OMM-2500 supports. By command input operation, user can change these to be used with on-site source for easy installation... -
Page 36: Monitor Output Port Setting
Command Description and reply Sets video generator resolution by data #4. VIDRES=4! Reply: VIDRES=1280x1024@60HZ! Sets video generator pattern by data #3. VIDIMG=3! Reply: VIDIMG=VCOLORBAR10SMOVE! Sets Video generator OSD On. VIDOSD=1! Reply : VIDOSD=ON! * OSD Off is ‘0’ Requests current video generator resolution and pattern. Reply: VID=04_03_01! VID=?! (it means data #4 resolution and data #3 pattern and OSD... -
Page 37: Edid Control Command
6.2.7 EDID control command ▪ It stores EDID information in input port of OMM-2500. ▪ It requests current EDID setting for all input ports. Command Description and reply Default mode: Saves default EDID in input ports 1, 7 and 15. -
Page 38: Baud Rate Setting For Rs-232
6.2.9 Baud rate setting for RS-232 ▪ It sets RS-232 baud rate. OMM-2500 supports 9600, 19200, 38400, 57600, 115200bps. ▪ It requests current RS-232 baud rate. Command Description and reply Sets RS-232 baud rate. RS232=115200! Reply: RS232=115200BPS! Requests current baud rate. -
Page 39: Slot Status Request
The first numeric data in command line represents slot number of output bay of OMM-2500 where QDVI-O is inserted. Command Description and reply Sets output resolution of QDVI-O at 1920x1080P. In this case, QUADRES=3_9! QDVI-O is inserted in 3 slot of output bay. -
Page 40: Control Lock Command
Description and reply Requests current cards type in input and output bay. OMM-2500 has 8 rows of input and output slots. If the input output cards are configured as below: row: Single DVI input card / 1 Fiber DVI output card... -
Page 41: Preset Control Commend
6.2.13 Preset Control Commend ▪ It saves routings under a preset number ▪ It requests current Preset mode setting. ▪ It changes the name and reads the Preset status. ▪ Command Description and reply Requests to save the current routings under the preset number selected. Reply: PRE=SAVE<Preset Number>_<link state>! Example: PRE=SAVE<Preset Number>! -
Page 42: Power State Request
6.2.14 Power State Request ▪ It requests current status of SMPS Power On / Off. Command Description and reply Request SMPS OnOff State PWR=?! Reply: PWR=L_ON,R_OFF! Left SMPS On, Right SMPS Off Table 6.19 Power State Request command examples 6.2.15 Firmware Version Request Command Description and reply Request Firmware Version... -
Page 43: Chapter 7. Firmware Update
Chapter 7. Firmware update OMM-2500 has three-way Firmware settings, 1) Main Firmware, 2) Input Firmware, 3) Output Firmware. All Firmware ports are placed on the VGEXT of the rear panel. ▪ RS-232 / F1 port for Main Firmware: Use a supplied download cable, RS-232 ▪... - Page 44 3. Connect the Firmware Port to be updated in a rear panel of OMM-2500 to RS-232 (Comm port) in PC using a supplied download cable. 4. Select ②, ‘CommPort’ to select communication port of PC for RS-232 communication with OMM-2500.
- Page 45 8. After 3~4 minutes, Application Code Runing!!! message will be shown. Then the firmware upload is completed. 9. To be uploaded other Firmware files, repeat steps 2 to 8, if it’s necessary. 10. Please close a megabox.exe program and reboot OMM-2500 to run it under new firmware.
-
Page 46: Chapter 8. Trouble Shooting
Chapter 8. Trouble shooting Problem Symptom Solution Check the connection of power cord to the OMM-2500 No Power Power LED Off and AC power outlet and that make sure that power switch is in the ON. Check the Input Output cables are firmly connected to each port of OMM-2500. -
Page 47: Chapter 9. Specification
Chapter 9. Specification 9.1 General Specification Section Basic Spec. Section Basic Spec. Main VESA resolution & Main vertical frequency from 640x480 up to WUXGA Video (1920x1200), @60Hz Reference video output 9 output video resolutions with 16 patterns resolution WQXGA (2560x1600),@60Hz (Dual link card only) 1) In/Output Link condition Support : Electric DVI, Dual link DVI,... -
Page 48: Power Specification
9.2 Power Specification AC Power 1) Input Voltage : AC100~240V ±10%, 50/60Hz 2) Power consumption : 4.5~1.8A 3) Shall have a power cord that complies with regulatory requirements imposed by the country of sale. 4) Incorporate a power cord management system for securing a bundled up cord. External Fuse 1) Input Voltage: AC100~240V ±10%, 50/60Hz 2) Power consumption: 4.5~1.8A... -
Page 49: Compatibility Between Dual Link Dvi In/Output Cards And Another In/Output Cards
9.4 Compatibility between Dual link DVI In/Output cards and another In/Output cards Output DDVI-2EO SDVI-4EO SDVI-1FO HDMI-4EO SDI -4EO Input Dual Pass DDVI-2EI Single Pass Pass Pass Pass Pass SDVI-4EI Pass Pass Pass Pass Pass SDVI-1FI Pass Pass Pass Pass Pass HDMI-4EI Pass... -
Page 50: Chapter 10. Warranty Information
This product should be serviced such as repair or replace by Opticis and please contact your reseller or Opticis if you have any problems. All products that are replaced will become the property of Opticis. Replacement products may be new or reconditioned. -
Page 51: Chapter 11. Safety Instructions
WARNING: Do not touch signal input, signal output of other connectors, and the patient simultaneously. WARNING: Do not connect any accessory except provided by Opticis. Any damage caused other power adapters or accessories will not be taken any responsibility by Opticis. -
Page 52: Chapter 12. Maintenance
Cleaning ▪ Turn off the power. ▪ Remove all of the electrical and optical fiber from the Modular matrix chassis, OMM-2500. ▪ Separate each input / output card from the body. ▪ Put the cards on the safety place and keep it carefully. - Page 53 Factory #501 Byoksan Technopia, 560, Dunchon-daero, Jungwon-gu, Seongnam-si,Gyeonggi-do, 462-716 Rep. of KOREA Tel: +82 (31) 737-8033 Fax: +82 (31) 737-8039 For order support, please contact your Distributor or Reseller. For technical support, visit Opticis web site, www.opticis.com or contact techsupp@opticis.com...
