Summary of Contents for DMA BF400

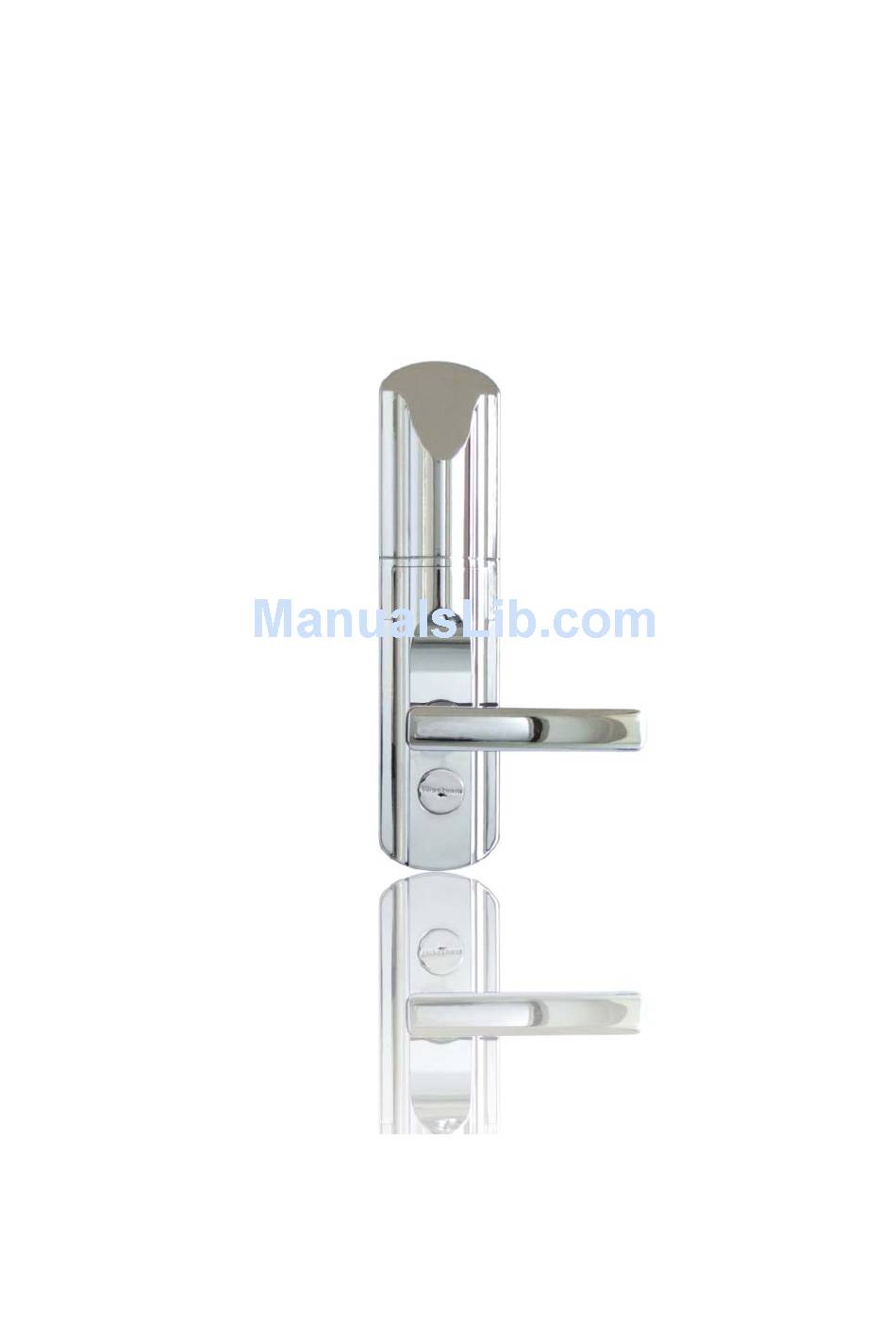

- Page 1 BF400Fingerprint Door Lock Installation Manual...
- Page 2 1, Before installation 一、Notice 1. To check all the enclosed material following the package list. 2. To check the new door lock is perfect or defaced. 3. Don’t register the finger before to finish the installation. 4. To make sure that the Key can open the door before to finish the installation. 5.
- Page 3 2, About the requirement for door 1. It can be installed on the wooden door, or metal door. 2. The dimension of door’s thickness should be more then 36mm. 3. The width of the lock area should be more then 110mm. 3, About tools...
- Page 4 4, Installation There are seven steps in all the installation Step 1, To make the hole in the door side for lock body Step 2, To install the lock body, and then check the position without fixing by screw Step 3, To set the correct position for the lock handles. Step 4, To make the hole in the door to install the lock handles, and then check the position without fixing Step 5, To confirm all the positions suitability with case handles and lock body...
- Page 5 the door side 3. To make the hole in the door side. By the drill, the installation should be more careful. And then to make it suitable with the chisel,...
- Page 6 Step 2, To install the lock body, and then check the position without fixing by screw To make the hole in the door side. And then try to install the lock body inside the hole, to confirm the position again.
- Page 7 Step 3, To set the correct position for the lock handles. After installation the lock body, then no need to fix with the screw firstly so that the lock body can be changed if need in next step. Step 4, To make the hole in the door to install the lock handles, and then check the position without fixing...
- Page 8 Step 5, To confirm all the positions suitability with case handles and lock body Before fixing with the screw, to confirm with all the position on the case handle and the lock body together.
- Page 9 Step 6, To install the other part on the doorframe...
- Page 11 Step 7, To test and fix, then finish the whole installation...
