Summary of Contents for TRONTEQ Electronic Qiwi
-

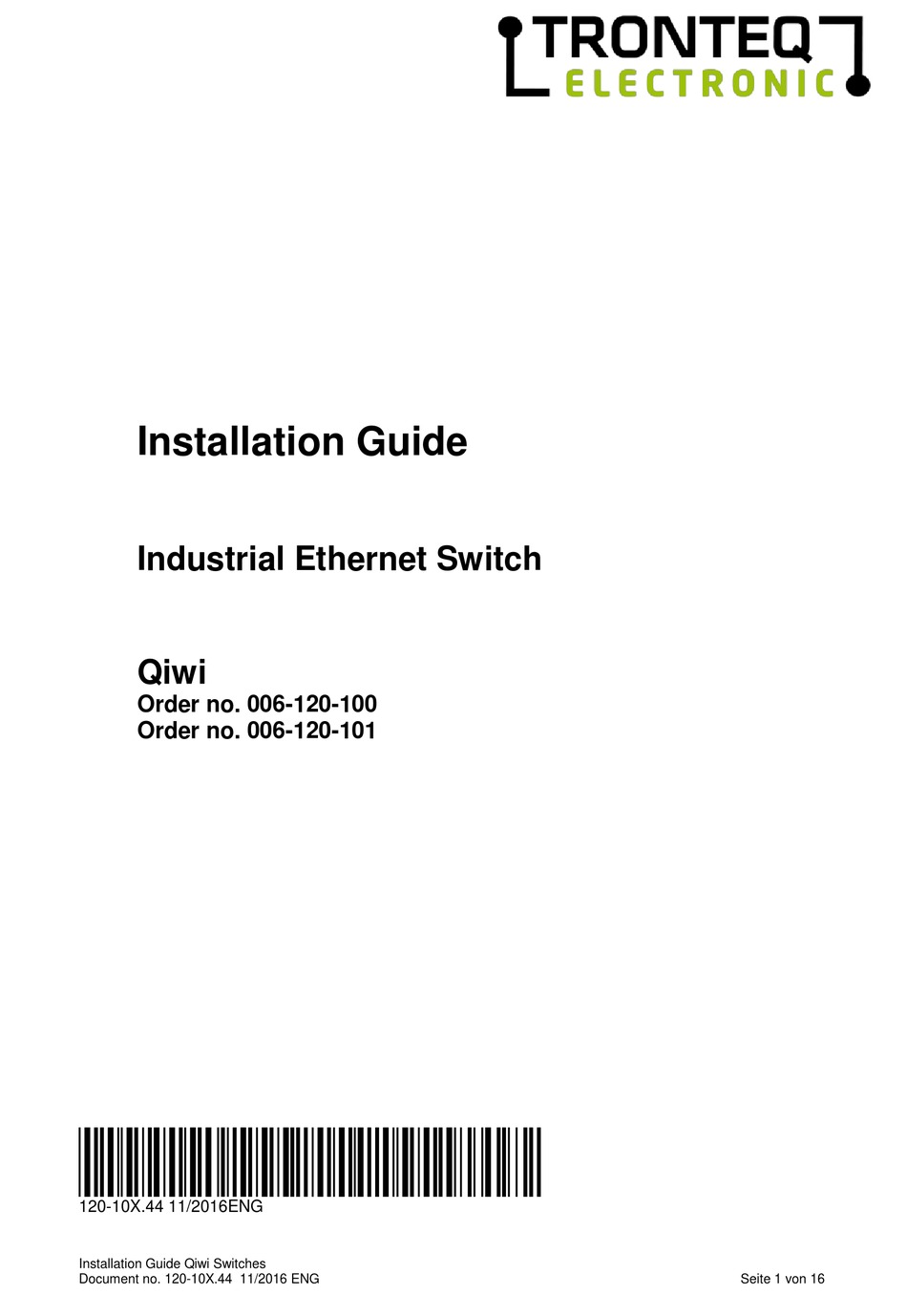

Page 1: Installation Guide
Installation Guide Industrial Ethernet Switch Qiwi Order no. 006-120-100 Order no. 006-120-101 120-10X.44 11/2016ENG 120-10X.44 11/2016ENG Installation Guide Qiwi Switches Document no. 120-10X.44 11/2016 ENG Seite 1 von 16... - Page 2 Any other use which goes beyond in particular copying, reproduction, translation requires written consent of TRONTEQ Electronic. TRONTEQ Electronic reserves the right to modify the contents of this manual. In addition, we refer to the conditions of use specified in the license agreement.
-
Page 3: Table Of Contents
Mechanical ..........................12 6.3. Environment ..........................12 6.4. Standards and approvals ......................13 Order numbers ..........................14 7.1. Qiwi Ethernet Switches ......................14 7.2. Accessories ..........................14 Contact ............................15 8.1. Technical support ........................15 8.2. Specific product variants ......................15 Installation Guide Qiwi Switches Document no. -
Page 4: Safety Instructions
1.1. Information about this operation instructions This operating instruction describes the application of the Qiwi Switches. It allows the safe and efficient handling of the device. The operating instruction is a part of the device and must be available for the users at any time. -
Page 5: Qualified Personnel
The Switches are used to connect several devices to a Ethernet based network. The Qiwi with the Order number 006-120-101 is a managed Switch. It can be configured and updated via an integrated web interface or via a USB interface. Characteristic features are VLAN configuration, Port prioritizing, Port shutdown, Fault Contact and configuration management. -
Page 6: Interfaces
2.2. Interfaces The Qiwi managed Switch is shown below. Order no. 006-120-100 Digit Description V1: power supply 1, V2: power supplyl 2 connection of power supply Ethernet Port mit Port-LEDs: LA = Link Activity, SP = Speed ground connection Order no. 006-120-101... - Page 7 ► For dismantling push down the device and flip it to the front Make sure that the ground connection is always tightened securely. Use toothed lock washers with internal teeth to produce ideal contact. Installation Guide Qiwi Switches Document no. 120-10X.44 11/2016 ENG Seite 7 von 16...
-
Page 8: Assignment Of The Terminal Block
The connection is performed via the RJ-45 connectors (8P8C-jacks) of the device. Assigment Connection Illustration Data TX+ Data TX- Data RX+ not connected not connected Data RX- not connected not connected Installation Guide Qiwi Switches Document no. 120-10X.44 11/2016 ENG Seite 8 von 16... -
Page 9: First Start-Up
4. Start the web browser and enter the LAN-IP address of the device. 5. Perform the desired configuration of the device. 6. Connect the Switch with your network devices. Installation Guide Qiwi Switches Document no. 120-10X.44 11/2016 ENG Seite 9 von 16... -
Page 10: Led Display
Link-Down green light up connected to network, Link-Up green flashes data transfer active none speed 10 MBit/s, Link-Up yellow lights up speed 100 MBit/s Installation Guide Qiwi Switches Document no. 120-10X.44 11/2016 ENG Seite 10 von 16... -
Page 11: Technical Data
Packet size 64Byte – 1518Byte Packet size without VLAN Tag 1518 Byte with VLAN Tag 1522 Byte Fault contact Parameter min. typ. max. Dimension Switching voltage Switching current (SELV) Installation Guide Qiwi Switches Document no. 120-10X.44 11/2016 ENG Seite 11 von 16... -
Page 12: Mechanical
Mounting DIN rail 6.3. Environment Parameter min. typ. max. Dimension Ambient temperature during operation °C Ambient temperature storage °C Humidity (not condensing) Air pressure during operation (+2000m) Installation Guide Qiwi Switches Document no. 120-10X.44 11/2016 ENG Seite 12 von 16... -
Page 13: Standards And Approvals
► FCC47 CFR Part 15 Class A ► Immunity against conducted interference and external fields: ► EN61000-6-2 ► EN61000-4-2 ► EN61000-4-3 ► EN61000-4-4 ► EN61000-4-5 ► EN61000-4-6 Installation Guide Qiwi Switches Document no. 120-10X.44 11/2016 ENG Seite 13 von 16... -
Page 14: Order Numbers
Qiwi Ethernet Switches Order-No. Product code Description 006-120-100 QWI-06F-U-LV-IP20 Qiwi Unmanaged 6-Port Fast Ethernet DIN Rail Switch 006-120-101 QWI-06F-L-LV-IP20 Qiwi Lite Managed 6-Port Fast Ethernet DIN Rail Switch 7.2. Accessories Order-No. Description 006-000-012 8 pole screw terminal 006-000-008 USB flash drive... -
Page 15: Contact
You have a specific problem and you need a product variant that doesn’t exist today. Please contact us for customer specific adaption of our product. Please visit us at www.tronteq.de. Installation Guide Qiwi Switches Document no. 120-10X.44 11/2016 ENG Seite 15 von 16... - Page 16 TRONTEQ Electronic Siemensstraße 22 72766 Reutlingen www.tronteq.de Installation Guide Qiwi Switches Document no. 120-10X.44 11/2016 ENG Seite 16 von 16...
