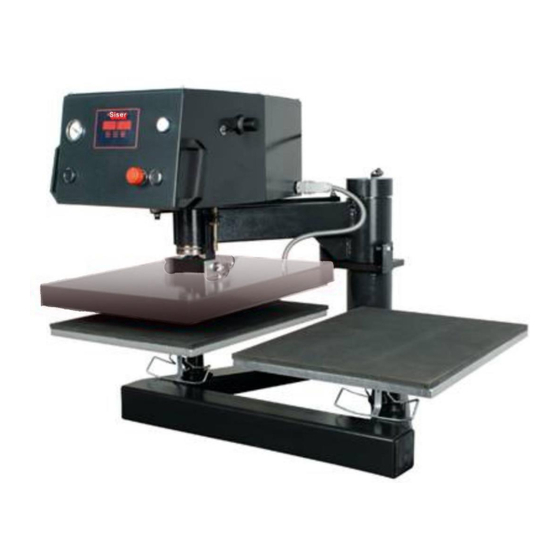

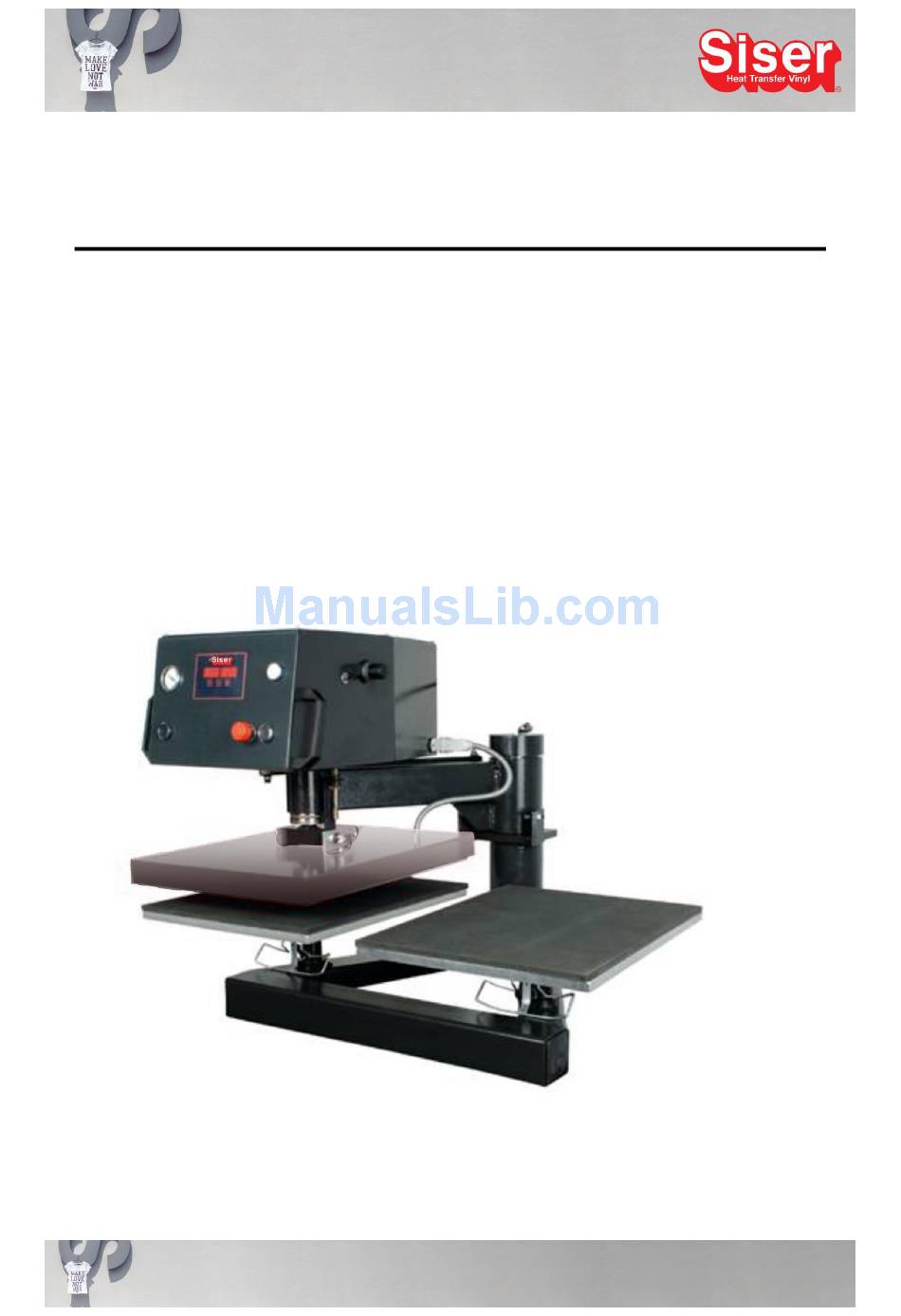

- Page 1 OPERATING INSTRUCTIONS FOR PNEUMATIC Heat Transfer Press TS DUE with interchangeable plates This manual is the property of SISER S.r.l., any even partial reproduction is forbidden Mod. PRD 22 rev.2 - last updating: 01/2015...
-
Page 2: Table Of Contents
11. Spare Parts List 12. Exploded View 13. Electronic Diagram 14. Electronic Diagram board S2 15. Pneumatic Diagram This manual is the property of SISER S.r.l., any even partial reproduction is forbidden Mod. PRD 22 rev.2 - last updating: 01/2015... -
Page 3: Warranty
To submit a warranty claim is only possible if the transfer press has been mounted and used according to the instructions in this manual and all necessary maintenance has been regularly performed. During the warranty period defective or broken parts will be repaired free of charge by Siser Italy. Transport and shipping expenses are on buyer's account. -
Page 4: Cap And Plate Sets
Please do not forget to tighten the plates again. This manual is the property of SISER S.r.l., any even partial reproduction is forbidden Mod. PRD 22 rev.2 - last updating: 01/2015... - Page 5 However you should never use the bent supporting cap plate together with a flat heating plate for t- shirts. TS DUE with plates cm. 15x15 This manual is the property of SISER S.r.l., any even partial reproduction is forbidden Mod. PRD 22 rev.2 - last updating: 01/2015...
- Page 6 TS DUE with plates cm. 15x38 TS DUE with cap set This manual is the property of SISER S.r.l., any even partial reproduction is forbidden Mod. PRD 22 rev.2 - last updating: 01/2015...
-
Page 7: Operating The Transfer Press
Not more than one person may operate the press at a time. Avoid exceeding the specified maximum temperature when operating the press. Siser is not liable for faults, accidents, damages, losses etc. resulting from not following the instructions in this manual. -
Page 8: Mounting, Transport And Mounting Location
Wear protective gloves to avoid the risk of getting burned. This manual is the property of SISER S.r.l., any even partial reproduction is forbidden Mod. PRD 22 rev.2 - last updating: 01/2015... - Page 9 The press is now ready for a new transfer process. 11) A new feature of TS DUE is the yellow stop-button in front of the heat press, which allows a stop of the pressing-process at any time. This can be used for any pre- or post-pressure situation. Just push the button to stop the pressing-process.
- Page 10 The display shows up 02, followed by the audible signal and blinking On the display the preset parameters appear: 150°C and 15 seconds This manual is the property of SISER S.r.l., any even partial reproduction is forbidden Mod. PRD 22 rev.2 - last updating: 01/2015...
-
Page 11: Maintenance
This manual is the property of SISER S.r.l., any even partial reproduction is forbidden Mod. PRD 22 rev.2 - last updating: 01/2015... -
Page 12: Dismantling And Disposal Of Transfer Press
Strictly follow the safety instructions mentioned in this manual when dismantling the press. This manual is the property of SISER S.r.l., any even partial reproduction is forbidden Mod. PRD 22 rev.2 - last updating: 01/2015... -
Page 13: Spare Parts List
37. allen key 38. pantograph back bar 39. guide bar holder 40. guide bar 41. cylinder membrane 42. pressure regulator This manual is the property of SISER S.r.l., any even partial reproduction is forbidden Mod. PRD 22 rev.2 - last updating: 01/2015... -
Page 14: Exploded View
12. Exploded View Exploded view of transfer press with order numbers Electronic Diagram This manual is the property of SISER S.r.l., any even partial reproduction is forbidden Mod. PRD 22 rev.2 - last updating: 01/2015... - Page 15 This manual is the property of SISER S.r.l., any even partial reproduction is forbidden Mod. PRD 22 rev.2 - last updating: 01/2015...
-
Page 16: Electronic Diagram Board S2
14. Electronic Diagram board S2 This manual is the property of SISER S.r.l., any even partial reproduction is forbidden Mod. PRD 22 rev.2 - last updating: 01/2015... -
Page 17: Pneumatic Diagram
2. mini controller 3. electronic valve 4. control of air flow 5. end of piston run (PWS 101) 6. piston This manual is the property of SISER S.r.l., any even partial reproduction is forbidden Mod. PRD 22 rev.2 - last updating: 01/2015...
