Summary of Contents for AMP MPEG4000-D4

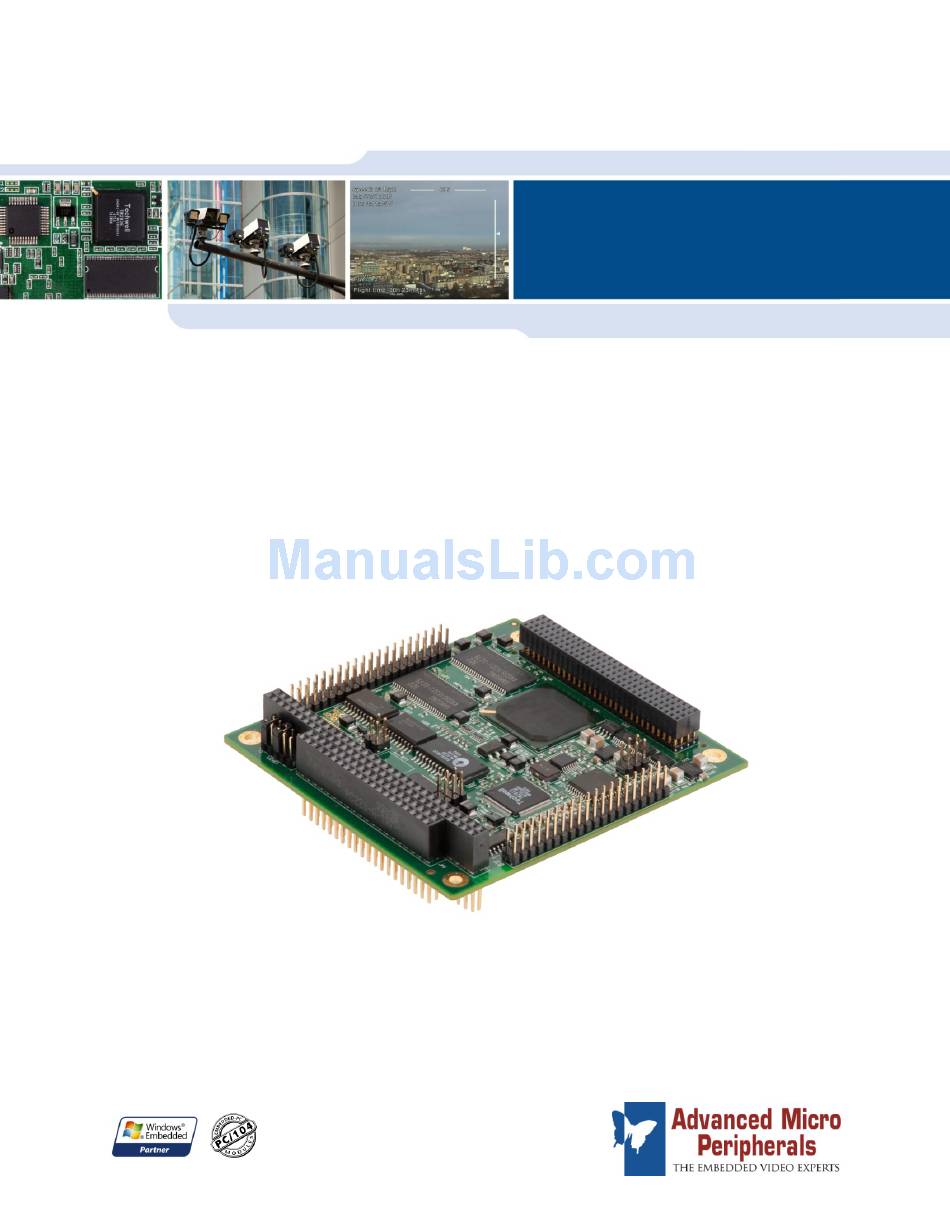

- Page 1 MPEG4000-D4 4 channel MPEG-4 codec PC/104-Plus board Document version: A.01 HARDWARE REFERENCE MANUAL...
- Page 2 Peripherals Ltd (AMP) makes no guarantee or warranty concerning the accuracy of said information and shall not be responsible for any loss or damage of whatever nature resulting from the use of, or reliance upon, it. AMP does not guarantee that the use of any...
-
Page 3: Table Of Contents
MPEG4000-D4 Hardware Reference Manual Contents Introduction ..................... 4 Features ................................5 MPEG4000-D4 ‘at a glance’ ..........................6 Technical specification ............................. 7 Functional summary............................9 Ordering information ............................12 Anti-static handling............................12 RoHS compliance ............................12 Related documentation ..........................12 Installation ..................... 13 System requirements ............................. -
Page 4: Introduction
The high performance MPEG-4 video data compression and reduced bus Plus utilization allows up to four MPEG4000-D4 cards to be fitted in a PC/104- system to provide up to 16 concurrent video streams to disk or across a network. AMP can provide custom configurations (subject to a minimum order quantity) for the MPEG4000-D4. -
Page 5: Features
Real-time video preview to system VGA and analog NTSC / PAL output. ▪ Motion detection available on all channels. ▪ RS-485 PTZ control output (optional) ▪ Up to four MPEG4000-D4 cards per system. ▪ -Plus PC/104 DMA operation for low CPU usage. ▪... -
Page 6: Mpeg4000-D4 'At A Glance
1: Introduction MPEG4000-D4 Hardware Reference Manual MPEG4000-D4 ‘at a glance’ Jumpers for IDSEL card and Sensor, RS-485 PC/104-Plus bus PCI card interrupt selection and alarm 16-bit PC/104 Input / output for bus connectors NTSC / PAL video and audio © 2011 Advanced Micro Peripherals... -
Page 7: Technical Specification
1: Introduction MPEG4000-D4 Hardware Reference Manual Technical specification Video input: One, two or four channel composite video channels Standard CCIR601-NTSC, CCIR-PAL NTSC-M, NTSC-Japan PAL-B, PAL-D, PAL-G, PAL-H, PAL-I, PAL-M, PAL-N Software selectable brightness, contrast and saturation control. 1V peak-to-peak (75Ω input impedance). - Page 8 1: Introduction MPEG4000-D4 Hardware Reference Manual Environmental: 0ºC to 60ºC. -40ºC to +85ºC (-EXT option). -Plus Physical size: Standard 3.6" x 3.8" PC/104 stackable card form factor. Weight: 3.00mm Dia. Hole 8.89 82.55 1.50mm Thickness Pad 95.89 PCI1 90.81 68.50 20.50...
-
Page 9: Functional Summary
Functional summary Signal sources The MPEG4000-D4 is designed to capture and record from up to four separate and unrelated video sources simultaneously. Each of the four video input channels of the MPEG4000-D4 features a video frame grabber and an audio digitizer. Each frame grabber contains a digital NTSC/PAL video and each video channel has an associated audio input. - Page 10 Audio data which is part of the original recording is also decoded and played back in synchronisation with the video. In addition to playback to the system display VGA device, the MPEG4000-D4 also provides a composite NTSC/PAL playback output suitable for directly driving a PAL/NTSC or RS170 display device.
- Page 11 -Plus The MPEG4000-D4 has a full 32-bit PC/104 (PCI Rev 2.1) 3.3v host interface to the host computer. On board jumpers allow the MPEG4000-D4 to be configured -Plus for any of the 4 logical PC/104 stack levels of the host computer.
-
Page 12: Ordering Information
The European RoHS Directive (Restriction on the use of certain Hazardous Substances – Directive 2002/95/EC) limits the amount of six specific substances within the composition of the product. The MPEG4000-D4 is RoHS compliant. Related documentation The following documentation and software may be of use whilst reading this guide: ▪... -
Page 13: Installation
Installation System requirements -Plus Computer form factor PC/104 with 3.3v bus signaling Processor Pentium-class CPU, 266MHz or faster Memory 128MB memory or greater -Plus PC/104 Operating system Windows (2000, XP, XP Embedded), Linux or QNX. © 2011 Advanced Micro Peripherals Document version A.01... -
Page 14: Jumpers And Connectors
2: Installation MPEG4000-D4 Hardware Reference Manual Jumpers and connectors The following diagram shows the location of the jumpers and connectors available on the MPEG4000-D4: LEVEL CONx VID1 Note: pin 1 © 2011 Advanced Micro Peripherals Document version A.01... - Page 15 Jumper is not fitted. VID1 - Input and output for NTSC/PAL video and audio Connector used to attach video sources to the MPEG4000-D4. Pin-out details for the four channels A, B, C and D are shown in the following tables.
- Page 16 2: Installation MPEG4000-D4 Hardware Reference Manual Channel 3 Signal Signal Video-In A3 Reserved Reserved Reserved Audio-In 3 Channel 4 Signal Signal Video-In A4 Reserved Reserved Reserved Audio-In 4 NOTE 1: EVEN NUMBER PINS (2, 4, 6, 8, 10,) ARE GROUND RETURNS FROM THE CAMERA AND AUDIO SOURCES.
- Page 17 ALARM1 ALARM2 ALARM3 Reserved Reserved Reserved JP1 and JP2 16-bit PC/104 bus connectors. These bus connectors are not currently used on the MPEG4000-D4 card except for routing signals to other PC/104 cards. © 2011 Advanced Micro Peripherals Document version A.01...
- Page 18 PCICLK1 IDSEL2 PCICLK2 IDSEL3 PCICLK3 NOTE: WHEN USING MULTIPLE MPEG4000-D4 DEVICES IN A SYSTEM, EACH CARD MUST HAVE -PLUS DIFFERENT REQ/GNT PAIR DEPENDING ON THE LEVEL OF THE DEVICE ON THE PC/104 STACK. © 2011 Advanced Micro Peripherals Document version A.01...
-
Page 19: Card And Software Installation
VID1 connector to provide live video to the Video-In A1 input of the MPEG4000-D4 . If you are using a recent BIOS version and operating system, the MPEG4000-D4 should be detected automatically. © 2011 Advanced Micro Peripherals... -
Page 20: Cable-Mp4D4 Cable Assembly
2: Installation MPEG4000-D4 Hardware Reference Manual Cable-MP4D4 cable assembly The MPEG4000-D4 may be supplied with the following breakout cable (Cable- VCH264D4). The cable is approximately 750mm long (150mm ribbon cable plus 600mm coaxial screened cables with phono plug connectors): x4 video inputs (yellow) x4 audio inputs (red) x1 video output (black) –... - Page 21 2: Installation MPEG4000-D4 Hardware Reference Manual Pin definitions / connector colors for the MP4D4 cable assembly. Signal Signal Video-In A1 (YELLOW) Video-Out 1 (BLACK) Audio-Out 1 (WHITE) Audio-In 1 (RED) Video-In A2 (YELLOW) Audio-In 2 (RED) Video-In A3 (YELLOW) Audio-In 3...
-
Page 22: Recording Options
Recording options Multi-channel recording modes The MPEG4000-D4 can perform recording of up to four channels at full resolution during multi-channel recording at a configurable frame rates. There is the option to record only video or both video and audio. Video from the four frame grabber channels A, B, C and D is recorded as 4 separate and individual streams. -
Page 23: Frame Type Encoding
CBR therefore does not guarantee that the bit rate in practice will be exactly as set – the MPEG4000-D4 simply does its best to achieve the set CBR figure. The real life bit rate when in CBR mode will depend on the incoming video, motion and other environmental factors. - Page 24 Increase the I picture interval NOTE: THESE OPTIONS MIGHT NOT BE AVAILABLE UNDER CBR. IN CBR, QUANTIZATION VALUE IS CONTROLLED BY THE MPEG4000-D4 TO MEET THE SET BIT RATE ONCE THE PICTURE SIZE, FRAME RATE AND I PICTURE INTERVAL ARE FIXED.
-
Page 25: Contacting Amp
Contacting AMP Sales AMP’s sales team is always available to assist you in choosing the board that best meets your requirements. Contact your local sales office or hotline. Sales office US Sales office UK Advanced Micro Peripherals Inc. Advanced Micro Peripherals Ltd.
