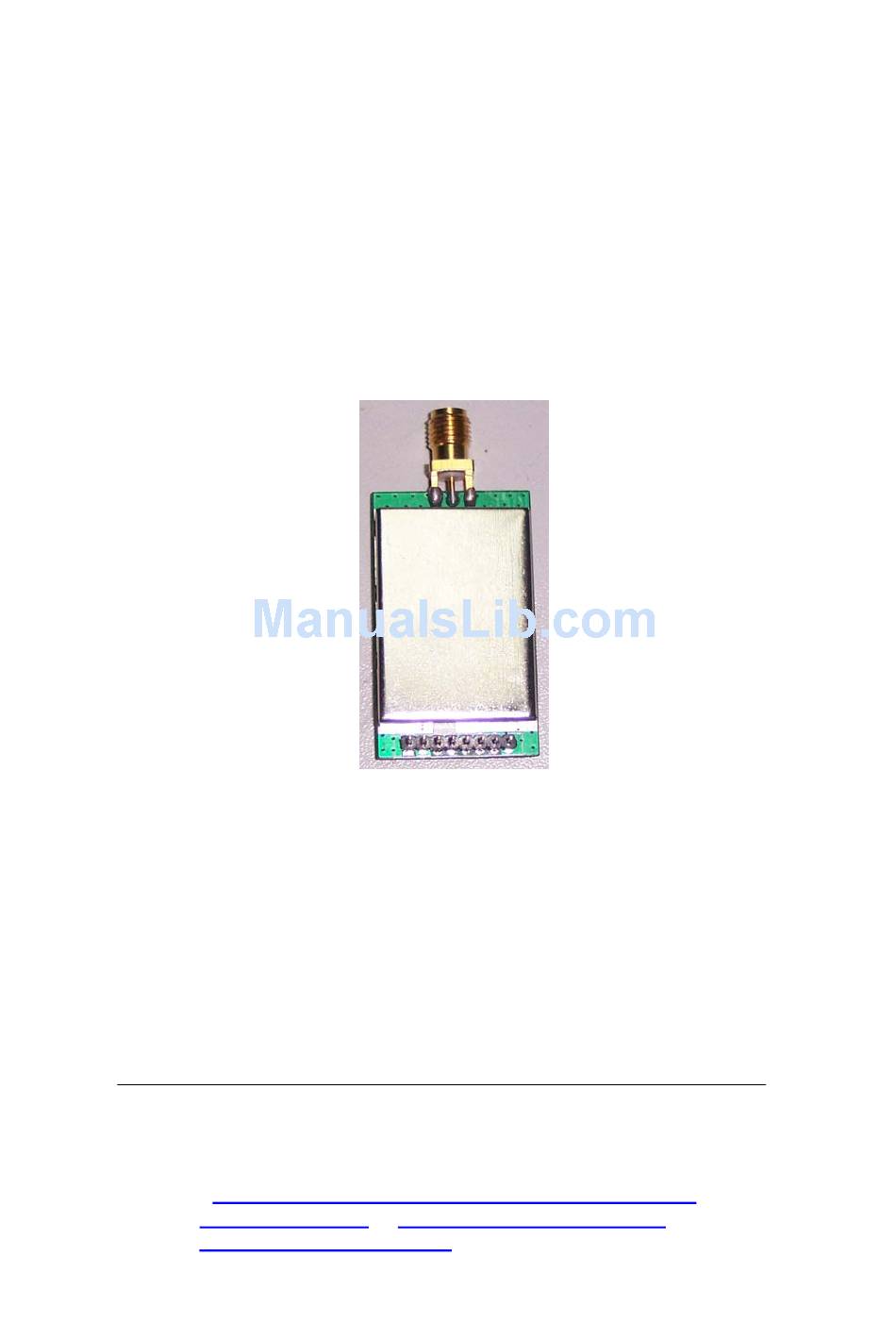

JZ881 Micro Power Wireless Module
SHEN JIZHUO TECHNOLOGY CO., LTD
TEL:
+86-755-83304518 / 83308451
Address: NO.813,212BLD,Tairan Tech Park, Futian District Shenzhen China
Post
Code：518040
Website：http://www.jizhuo.com/page/cn/english.asp?type_id=1
EMAIL：jassie@jizhuo.com
MSN ID:
agatha198522@hotmail.com
User's Manual
FAX:
or
agatha198522@yahoo.com.cn
+86-755-83302824
Advertisement
Summary of Contents for SHEN JIZHUO TECHNOLOGY CO. JZ881
- Page 1 JZ881 Micro Power Wireless Module User’s Manual SHEN JIZHUO TECHNOLOGY CO., LTD TEL: +86-755-83304518 / 83308451 FAX: +86-755-83302824 Address: NO.813,212BLD,Tairan Tech Park, Futian District Shenzhen China Post Code：518040 Website：http://www.jizhuo.com/page/cn/english.asp?type_id=1 EMAIL：jassie@jizhuo.com agatha198522@yahoo.com.cn MSN ID: agatha198522@hotmail.com...
- Page 2 Tel: +86-755-81353151，83304518. About JZ881 JZ881, the Micro power wireless module, is used as the wireless data transmission in short distance. With the small size, weight and power consumption and good stability and reliability, it has the function of bi-directional data sign transmission, test and control.
- Page 3 JZ873 Mini Power Wireless Module User’s Manual receiving/transmitting the data from the interface. JZ881 will automatically complete the other operations, such as transmission/receiving conversion in the air, control, etc. 10. High reliability, small and light Single chip radio- frequency integrated circuit and single chip MCU are used for lessened peripheral circuits, high reliability, and low failure rate.
- Page 4 Power supply/Ground Remarks: a. JZ881 with sleeping function is not open in default ,if the user need ,then you must say it clearly when you place an order. b. The standard power supply is 5V ,if the user need 3V ,then must tell us before place an order.
- Page 5 Interface data format: 8E1/8N1/8O1 Power supply: 5±0.5V DC Working temperature: -20℃～85℃ Working humidity: 10%～90% relative humidity without condensation Dimension: 39.4mm*24mm*8mm Attachable Communication with Model: JZ881/JZ882 Model and name T: TTL interface Naked board Company logo Shenzhen Jizhuo technology CO.,LTD,China TEL：+86-755-83304518 http://www.jizhuo.com...
-
Page 6: Optional Antenna
JZ873 Mini Power Wireless Module User’s Manual Optional Antenna: Trouble and solve ways: Trouble Trouble causes and solve ways a、Power Line badness touch . shine b、Power is bad. Indicator light c、Power line meet in reverse, or diode of polarity protect is bad. a、Radio is badness touch with PC/terminal.
