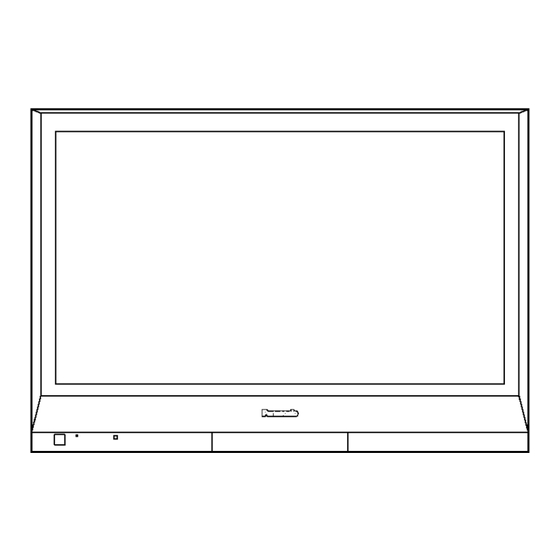

Panasonic TH-37PG9W Service Manual

Specifications

Power Source
Power Consumption
Power on
Stand-by condition
Power off condition
Plasma Display panel
Contrast Ratio
Screen size
(No. of pixels)
Operating condition
Temperature
Humidity
Applicable signals
Scanning format
PC signals
Connection terminals
COMPONENT
PC
Progressive Wide Hospitality Plasma Display
220-240 V AC, 50/60Hz
250 W (37 inch)
Save OFF 0.8 W, Save ON 0.6 W (37 inch)
0.2 W (37 inch)
Drive method: AC type 37-inch,
16:9 aspect ratio (37 inch)
Max 10000:1
818 mm (W) × 461 mm (H) × 939 mm (diagonal) (37 inch)
920 mm (W) × 518 mm (H) × 1,056 mm (diagonal) (42 inch)
408,960 (852 (W) × 480(H))
[2,556 × 480 dots]
0 °C - 40 °C
20% - 80%
525 (480) / 60i 60p, 625 (575) / 50i
30p 24sF.... SMPTE274M, 1250 (1080) / 50i
VGA
SVGA, XGA, SXGA, UXGA..... (compressed)
Horizontal scanning frequency 15 - 110 kHz
Vertical scanning frequency 48 - 120 Hz
Y/G(BNC)
PB/B(BNC),PR/R(BNC)
AUDIO IN (RCA PIN JACK × 2)
(HIGH-DENSITY Mini-D-SUB 15PIN)
TH-37PG9W
TH-42PG9W
GP9D Chassis
280 W (42 inch)
Save OFF 0.8 W, Save ON 0.6 W (42 inch)
0.2 W (42 inch)
Drive method: AC type 42-inch,
16:9 aspect ratio (42 inch)
50p, 750 (720) / 60p 50p, 1125 (1080) / 60i
Y or G with / sync 1.0 Vp-p (75-ohm)
0.7 Vp-p (75-ohm)
0.5 Vrms
Y or G with / sync 1.0 Vp-p (75-ohm)
Y or G without / sync 0.7 Vp-p (75-ohm)
B / P / C :0.7 Vp-p (75-ohm)
B B
© 2006 Matsushita Electric Industrial Co., Ltd. All
rights reserved.
distribution is a violation of law.
ORDER NO. ITD0609073CE
50i 24p 25p
Unauthorized copying and
