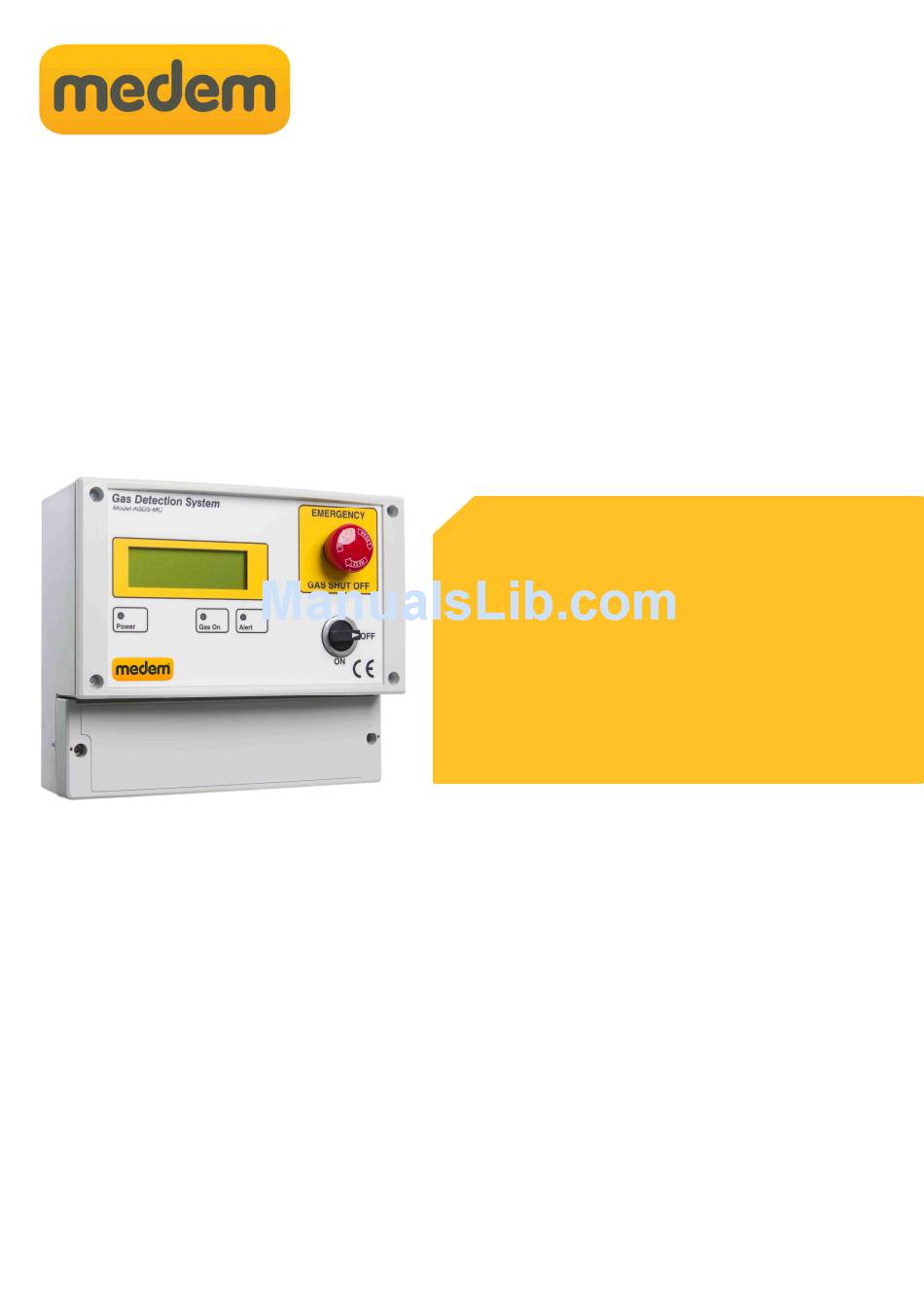

Medem AGDS-MC Installation Instructions Manual

Multi channel gas detection system
Hide thumbs Also See for AGDS-MC:
1
2
3
4
5
6
7
8
9
Table of Contents

Advertisement

Quick Links

Download this manual
The AGDS-MC is a multi channel gas detection system designed for use in boiler houses. Up to sixteen low
voltage detectors can be connected for the detection of natural gas, LPG or carbon monoxide.
In the event of a high alarm from one of the detectors, the system will isolate a connected control valve. Low
alarm indication is also given
It is designed for use primarily in boiler house.
Before commencing installation please familiarise yourself to the equipment by reading the comprehensive
installation instructions. If in doubt then please call 0161 233 0600. Out of hours please call 07894 684080 or
07843 355163.
It is a statutory requirement that this safety system is installed and commissioned
A commissioning certificate must be issued to the end user along with instructions for the operation of the
equipment.
As the Manufacturer Medem UK should commission this safety system whereupon a commissioning report
will be forwarded to the installing agent who should provide a copy to the end user.
At the point of our commissioning an individual serial number will be attached to the system along with a 24
help line number. Photos and all relevant information for the installation will then be stored on the Medem
site database to be accessed in the event of a call on the 24 hour help line. The warranty period for the
panel and sender unit will then be extended to Ten years.
AGDS-MC
Installation Instructions
to the satisfaction of the manufacturer.
•
Gas Detection . (Up to sixteen detectors)
•
Natural gas, LPG and carbon monoxide
•
Remote emergency stops
•
BMS relay (Gas On/Off)
•
5 year warranty - 10 years when commissioned
AGDS-MC features
