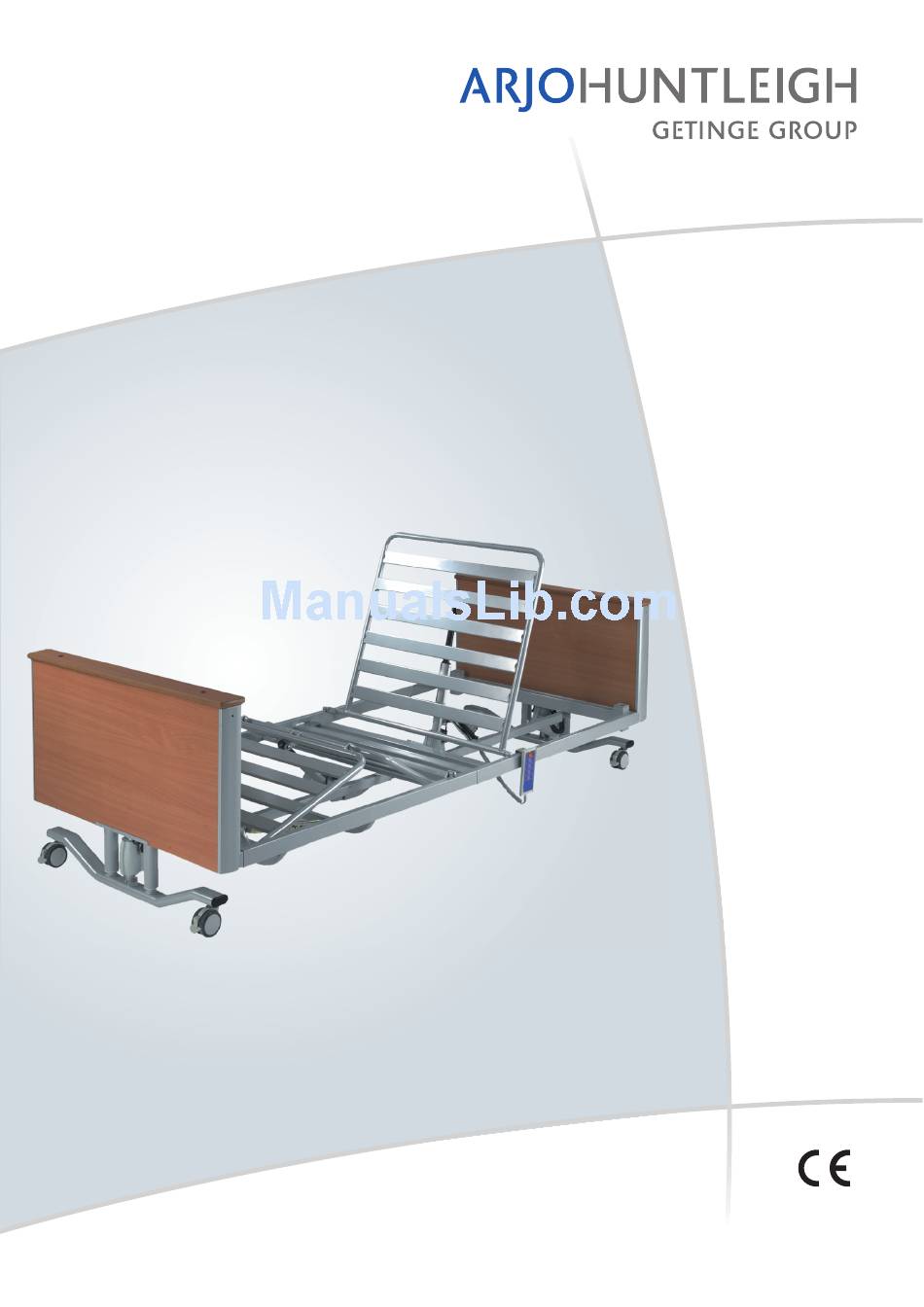

- Page 1 MINUET 2 INSTRUCTIONS FOR USE ...with people in mind 746-574-AM-1 • 10/2015...
- Page 2 Design Policy and Copyright ® and ™ are trademarks belonging to the ArjoHuntleigh group of companies. © ArjoHuntleigh 2004 As our policy is one of continuous development, we reserve the right to modify designs without prior notice. The content of this publication may not be copied either wholly or in part without the consent of ArjoHuntleigh.
-
Page 3: Table Of Contents
Contents Warnings, Cautions and Notes ............... 3 General Warnings and Cautions ............. 4 Introduction ................6 Product description ................. 6 Product overview ..................7 Applications ................. 8 Intended use ................... 8 Indications ....................8 Contra-indications ................... 9 Assembly and Installation ..........11 Mattresses .................... -
Page 4: Warnings, Cautions And Notes
Warnings, Cautions and Notes WARNINGS given in this manual identify possible hazards in procedures or conditions, which if not correctly followed, could result in death, injury or other serious adverse reactions. Cautions given in this manual identify possible hazards in procedures or conditions, which if not correctly followed, could result in equipment damage or failure. -
Page 5: General Warnings And Cautions
Unauthorised modifications or repairs to this product may affect its safety and will invalidate any warranty. ArjoHuntleigh accepts no liability for any incident, accident or reduction in performance which may occur as a result of such repairs or modifications. - Page 6 WARNING Do not allow the power cord to trail on the floor in such a way that it may cause a trip hazard. Do not leave the Minuet 2 bed and accessories for extended periods of time in humid or wet areas. Take care to ensure that the power cord is not damaged by the bed or other objects being moved over it.
-
Page 7: Introduction
1. Introduction Product description ® The ArjoHuntleigh Minuet 2 is a bed with electrically operated functions, intended for use in the care of elderly or disabled persons. It is designed to be dismantled into sections for ease of transportation, but can be easily assembled with a minimum of tools. -
Page 8: Product Overview
Product overview 1. Foot end section 9. Head end actuator 2. Calf (lower leg) section 10. Control handset 3. Seat section 11. Thigh (upper leg) section 4. Control box / backup battery 12. Leg section actuator 5. Backrest actuator 13. Leg section ratchet 6. -
Page 9: Applications
2. Applications WARNING To ensure the patient can use the bed safely, their age, size and condition should be assessed by a clinically qualified person. Model 160 is suitable for use in the following areas: Intended use • Long term medical care where medical supervision is required and monitoring is provided if necessary, e.g. -
Page 10: Contra-Indications
The bed is intended for use by adults and children over Contra- the age of twelve years. indications Model 160 is not suitable for use in the following situations: • Intensive/critical care provided in a hospital where 24-hour medical supervision and constant monitoring is required, e.g. - Page 11 This bed is not suitable for patients weighing less than 88lb. (40kg). The maximum recommended patient weight is 319lb. (145kg). The safe working load of the bed is 396lb.(180kg). The safe working load is calculated as follows (in accordance with EN 60601-2-52): Maximum patient weight ………..……...
-
Page 12: Assembly And Installation
The foot end and head end panels are almost identical. The foot end panel can be identified by the “ArjoHuntleigh” and “Minuet 2” badges attached to it. The various parts of the bed are moved by electrical devices called actuators. -
Page 13: Mattresses
Where the maximum patient weight specified for the mattress is different to that specified for the bed, the lower value applies. To ensure compliance with EN 60601-2-52, an approved ArjoHuntleigh mattress should be used. Compliance with this standard when using other mattresses must be validated by the user. - Page 14 For more information on suitable mattresses and mattress replacements, contact your local ArjoHuntleigh office or approved distributor. A list of ArjoHuntleigh offices can be found at the back of this manual. 746-574-AM-1...
-
Page 15: Assembling The Bed
Assembling the bed The bed is supplied in four main sections, fixed together on two transit brackets (A) for ease of transportation. Remove the cardboard packing block and plastic tie between the mattress platform sections. Lift the two mattress platform sections off the transit brackets and lay them on the floor. - Page 16 Lay the head end panel section on the floor with the two arms on the frame (C) pointing outwards towards the right as shown. Position the bed so that you can work on the underside of the mattress platform whilst assembling the bed. This will make it easier to connect the actuators to the control box.
- Page 17 Assemble the foot end mattress platform to the head end mattress platform by sliding the two parts together. Make sure the slot (E) in the head end section locates over the bar in the foot end section (F), and thread the actuator cables through the central gap as shown. Place socket head screws into the two holes (G) on the underside of the foot end mattress platform to fix the sections together, installing the bottom screw first.
- Page 18 Pull off the plastic cap (K) from the socket on the head end actuator (L). Plug the curly cable (M) into the actuator socket. Replace the cap, making sure it “clicks” into place; this will prevent the connector being accidentally pulled out of the actuator. Connect the foot end actuator cable in the same way.
- Page 19 The control box actuator connections are colour coded. The bed is supplied with the backrest actuator (red), head end actuator (white) and backup battery already connected. Plug the foot end actuator cable (green) into the control box. Plug the leg section actuator cable (yellow) into the control box.
- Page 20 When all the cables are connected, the control box should look like the picture on the left. Make sure the cables lie flat and are not twisted. Replace the control box cover by sliding it into position until it “clicks” into place.
-
Page 21: Operation
4. Operation Control handset The handset gives the user control over backrest angle, leg elevation, bed height and tilt angle (model 161 only). The Auto-Contour function allows easy simultaneous adjustment of leg elevation and backrest angle. When Auto-Contour is used to flatten the mattress platform, the leg ... - Page 22 To lock a function: press and hold the button to the left of the LED for three seconds - the LED goes out. To unlock a function: press and hold the button to the right of the LED for three seconds – the LED turns on. To store the lockout settings, remove the key from the handset.
-
Page 23: Brakes And Castors
Brakes and castors Each of the four castors is equipped with a separate brake. WARNING To prevent the bed from moving, apply the brakes on all four castors whenever the patient is moved to or from the bed. To apply the Press down on the brake operating lever (A) until it locks in brake the “down”... -
Page 24: Kneebreak Angle
Kneebreak angle Use the control handset to raise the thigh section to the desired height. Lift the mattress retaining bar (A) upwards to release the ratchet mechanism; then lower it to the required angle. Slightly lift the mattress retaining bar again to re-engage the ratchet mechanism. -
Page 25: Extending The Bed
Extending the bed To accommodate taller patients, the mattress platform can be extended by 5in.(13cm) as follows. Remove the two socket head screws (A) securing the foot end panel to the bed. Pull the foot end panel out from the bed (B) and line up the end fixing holes below the mattress platform with the fixing holes below the foot... -
Page 26: Accessories - Fitting And Operation
CM-ACC23-1.52 Egress Assist Rail Extra Height (Grey) CM-ACC24 Mattress Retainers (supplied with the bed) CM-ACC26 Full Length Side Rail pads with top cushion ArjoHuntleigh reserves the right to change accessory details and availability without notification. Some accessories may not be available in all countries. 746-574-AM-1... - Page 27 Side Rails – all models, full length and folding WARNING Only use ArjoHuntleigh side rails that are designed and specified for use with this bed. Incompatible side rails can cause a hazard. Side rails should be installed either by a properly trained person or, due to the size and shape of these items, by two people if they are unfamiliar with the installation procedure.
-
Page 28: Full-Length Side Rails
Full-length side rails WARNING Always use the 4mm and 5mm Allen (hexagon) keys supplied when securing the socket head screws. Using other tools may result in the screws not being fully tightened. These instructions show the fitting of wooden extra height side rails model CM-ACC00-1.14. - Page 29 Secure the side rail fixing bracket to the underside of each end panel, using two M8 x 16mm socket head screws (B). Make sure both these screws are fully tightened. Fully tighten the two top fixing screws (A). Repeat this procedure to attach the other side rail on the opposite side of the bed.
-
Page 30: Side Rail Height Extensions
Side rail height extensions These instructions show the installation of side rail height extensions CM-ACC02-1.52 and CM-ACC02-3.52 for full length standard height wooden side rails (CM-ACC00-1.52, CM-ACC00-3.52, and CM- ACC01-1.52). Side rail height extensions should be used with the recommended thickness of mattress (see page 12). - Page 31 Installation Raise the side rail and position the height extension on the side rail with the fixing clamps over the top rail. Push the fixing pin (A) through the larger of the two holes in the fixing clamp (B), so that the fixing pin passes under the side rail top rail.
-
Page 32: Folding Steel Side Rails
Folding steel side rails These instructions show the fitting of side rails model CM-ACC06.52. Extra height folding side rails CM-ACC07.52 are attached and used in the same way. Extra height side rails should be used when the mattress thickness is between 5.9in.(15cm) and 6.8in.(17.2cm). Refer to page 12. - Page 33 Tighten the screw clamp on the head end bracket (B), ensuring that the groove in the clamp block (C) sits tightly against the lower edge of the bed frame. Secure the foot end clamp (D) in the same way. WARNING Make sure the screw clamps are fully tightened.
- Page 34 To lower the side rail: Hold the top rail at the foot end of the bed, keeping your hand clear of the hinge point (E). Pull out and hold the red release knob (F). This is located on the side rail bracket at the foot end of the bed.
-
Page 35: Pads For Full Length Side Rails Cm-Acc03 & Cm-Acc26
Pads for full length side rails CM-ACC03 & CM-ACC26 These washable pads may be used with any of the full-length side rails. They may also be used when height extensions are attached to the side rails. The pads are easy to install, and can be removed from the bed quickly if the side rails need to be lowered in an emergency. -
Page 36: Lifting Poles Cm-Acc09
Lifting poles CM-ACC09 The lifting pole is used to assist a patient in moving or turning whilst lying on the bed. Model CM-ACC09 is fixed in one position above the center of the bed. The lifting pole is supplied with an adjustable strap and handle. - Page 37 Installation Insert the lifting pole vertically downwards into one of the two accessory sockets (C) at the head end of the bed. Twist the pole until you feel it drop slightly in the socket. Make sure the lifting pole cannot rotate in the socket and that the horizontal part of the pole is positioned above the center of the bed.
- Page 38 Cleaning WARNING Remove the strap and handle from the lifting pole before cleaning. Only use approved disinfectants and cleaning methods. Other products may cause degradation and possibly premature failure of the equipment. Use all cleaners and disinfectants with care. Obey the manufacturer’s instructions for use.
-
Page 39: Mobility Support Handle Cm-Acc11 & Cm-Acc12
Mobility support handle CM-ACC11 & CM-ACC12 The mobility support handle is used to assist the patient in getting on or off the bed. It is installed in the accessory socket at the head end of the bed. Two types are available: CM-ACC11 is placed on the left side of the bed (when viewed from the head end) and CM- ACC12 is placed on the right side of the... - Page 40 WARNING Do not overload the mobility support handle. The maximum weight it can safely support is 165lb.(75kg). Do not hang other objects on the mobility support handle. Always install the mobility support handle on the correct side of the bed. Do not apply polish or other liquids to the handle as this may make it more difficult to grip.
-
Page 41: Pole Cm-Acc14
IV pole CM-ACC14 The IV pole has a single fixed hook. It can be used to support drips, pumps and other IV equipment. Installation Insert the IV pole vertically downwards into one of the two accessory sockets (A) at the head end of the bed. Twist the pole until you feel it drop slightly in the socket. -
Page 42: Mattress Pump Bracket Cm-Acc15
Mattress pump bracket CM-ACC15 The pump bracket is designed to support the pump from any compatible ArjoHuntleigh air mattress system. Installation Hang the bracket (A) over the foot end panel with the pump holder on the outside of the bed. -
Page 43: Urine Bag Holder Cm-Acc17
Urine bag holder CM-ACC17 The urine bag holder is designed to support a single urine or drainage bag. It can be attached to either the left or right-hand side of the bed as required. Installation Position the arms (A) of the urine bag holder over the outer frame of the bed (see illustration). -
Page 44: Egress Assist Rail
Egress assist rail WARNING The clinically qualified person responsible should consider the size, age and condition of the patient before allowing the use of egress assist rails. Do not use the egress assist rails like side rail panels due to the short length of the accessory. - Page 45 Installation Head End Label The bed should be unoccupied; if this is not possible, take care not to disturb the patient during installation. Make sure the mattress platform is flat and level. It is not necessary to remove the mattress. Fully undo the fixing clamp screw (C).
- Page 46 Operation To lower the egress assist rail Hold the rail on the bend (F). Pull out and hold the release knob (E). Rotate the Egress Assist Rail towards the foot end of the bed. To raise the egress assist rail Hold the rail on the bend (F).
- Page 47 WARNING The locking bolt must not be visible when the egress assist rail is in the raised position. Using the egress assist rail Adjust the bed height so that the patient can sit on the edge of the mattress with both feet on the floor. Ensure the Egress Assist Rail is locked in the raised position.
-
Page 48: Mattress Retainers Cm-Acc24
Mattress retainers CM-ACC24 This accessory comprises four plastic mouldings that are attached to the backrest and leg sections to prevent sideways movement of the mattress. Installation Clip the mattress retainers onto either side of the backrest and leg sections. They should be positioned on the side frame, between the mattress platform bars, with the flaps angled towards the outside of the bed. -
Page 49: Dismantling The Bed
6. Dismantling the Bed Remove the mattress and all accessories installed on the bed, such as side rails, lifting pole, etc. Use the control handset to lower the bed to minimum height with the mattress platform horizontal. Lower the backrest and leg sections to their flat positions. - Page 50 Remove the two socket head fixing screws securing the head end mattress platform section to the head end panel section. Pull the two sections apart, taking care not to trap or pinch the actuator cables, and lay both sections on the floor. Coil up all the actuator cables neatly and secure them with suitable plastic ties.
- Page 51 Stand the end panel sections, assembled onto the transit brackets, upright on their castors. Slide the head end mattress platform section (D) down onto the short uprights (E) on the transit brackets. Slide the foot end mattress platform section (F) down on to the tall uprights (G) on the transit brackets.
-
Page 52: Cleaning
7. Cleaning WARNING Disconnect the bed from the electricity supply before cleaning. The bed should be cleaned and disinfected before it is used by a new patient. These instructions also apply to accessories but not to lifting straps and handles, mattresses or side rail pads. Cleaning Wearing suitable protective clothing, clean all surfaces with a disposable cloth soaked in a neutral detergent and hand hot... -
Page 53: Care And Preventive Maintenance
CM-ACC06.52 and CM-ACC07.52 (side rails). Check the screw clamps are fully tightened when using CM-ACC22.52 and CM-ACC23.52 (egress assist rails). If the result of any of these tests is unsatisfactory, contact ArjoHuntleigh or an approved service agent. 746-574-AM-1... - Page 54 WARNING The procedures below must be carried out by suitably trained and qualified personnel. Failure to do so may result in injury or an unsafe product. Actions to be done by qualified personnel Yearly Carry out a full test of all electrical bed positioning functions ...
-
Page 55: Troubleshooting Guide
Troubleshooting guide If the equipment fails to operate correctly, the table below suggests some simple checks and corrective actions. If these steps fail to resolve the problem, contact ArjoHuntleigh or an approved service agent. Symptom Possible Cause Action Check the power cord is... -
Page 56: Warranty And Service
9. Warranty and Service ArjoHuntleigh standard terms and conditions apply to all sales. A copy is available on request. These contain full details of warranty terms and do not limit the statutory rights of the consumer. If you experience difficulties operating this equipment or it fails to perform as expected, and for all service and maintenance, please contact your local ArjoHuntleigh office or authorised distributor. -
Page 57: Technical Data
10. Technical Data General Safe working load (SWL) 396lb.(180kg) Maximum patient weight 319lb.(145kg) Operating conditions Temperature 41°F to 104°F (5°C to 40°C) Relative humidity 20% to 90% non-condensing Atmospheric pressure 800 to 1060hPa Audible noise 52dB typical Safety standards Complies with EN 60601-2-52 Product weight (without mattress or accessories) Head and foot end panel sections 50lb.(22.8kg) each... - Page 58 Electrical and Electronic Equipment (WEEE). This symbol indicates that all electrical and electronic products must be taken to a dedicated collection point at end of their working life. Contact ArjoHuntleigh or your local authority for advice on proper disposal. Transportation and storage Handle with care.
- Page 59 Symbols Caution - refer to instructions for use Class II equipment Type B applied part. ncludes all parts of the medical bed that are within reach of the patient, even if they are underneath the mattress support surface. Serial number Model number Date of manufacture / name of manufacturer Complies with the European Medical Devices Directive...
-
Page 60: Electromagnetic Compatibility (Emc)
11. Electromagnetic Compatibility (EMC) Caution The use of non-approved accessories may result in increased emissions or reduced immunity of the equipment. A list of approved accessories is provided in Chapter 5 of this manual. When this equipment is used adjacent to other electronic devices, the user should observe the equipment to verify normal operation. - Page 61 Guidance and manufacturer’s declaration – electromagnetic immunity The bed is intended for use in the electromagnetic environment specified below. The customer or the user of the bed should assure that it is used in such an environment. IEC 60601 Compliance Electromagnetic environment - Immunity test test level...
- Page 62 Guidance and manufacturer’s declaration – electromagnetic immunity The bed is intended for use in the electromagnetic environment specified below. The customer or the user of the bed should assure that it is used in such an environment. IEC 60601 test Compliance Electromagnetic environment - Immunity test...
- Page 63 Recommended separation distances between portable and mobile RF communications equipment and the bed The bed is intended for use in an electromagnetic environment in which radiated RF disturbances are controlled. The customer or the user of the bed can help prevent electromagnetic interference by maintaining a minimum distance between portable and mobile RF communications equipment (transmitters) and the bed as recommended below, according to the maximum output power of the communications equipment.
- Page 64 This Page Intentionally Left Blank 746-574-AM-1...
- Page 65 This Page Intentionally Left Blank 746-574-AM-1...
- Page 66 This Page Intentionally Left Blank 746-574-AM-1...
- Page 67 AUSTRALIA FRANCE POLSKA ArjoHuntleigh Pty Ltd ArjoHuntleigh SAS ArjoHuntleigh Polska Sp. z o.o. 78, Forsyth Street 2 Avenue Alcide de Gasperi ul. Ks Piotra Wawrzyniaka 2 O’Connor CS 70133 PL-62-052 KOMORNIKI (Poznan) AU-6163 Western Australia FR-59436 RONCQ CEDEX Tel: +48 61 662 15 50 Tel: +61 89337 4111 Tél: +33 (0) 3 20 28 13 13...
- Page 68 We operate under the three brands of ArjoHuntleigh, GETINGE and MAQUET. ArjoHuntleigh focuses on patient mobility and wound management solutions. GETINGE provides solutions for infection control within healthcare and contamination prevention within life sciences.
