C.R. LAURENCE CO., INC.
PAL1K "PAL" PLUMB/ANGLE/LEVEL LOCATOR KIT
FOR LEVELING CRL's GRS BASE SHOE SYSTEMS
User's Guide
RECOMMENDED FOR ALL DRY GLAZE TAPER-LOC
Features and Functions:
• Properly Plumbs CRL's Base Shoe to Concrete or Steel
Substrates
• Works with All CRL Guardrail and Windscreen Base
Shoe Profiles
• Vertically Aligns Base Shoe in the Plumb Orientation

OPERATING INSTRUCTIONS

Preparation
IMPORTANT!!! On all installations the mounted base should be adjusted, if required, to assure it is plumb to plus or minus
1/8" (3 mm) at an extended height of 42" (1067 mm). Spend the time required to plumb the base shoe to this tolerance, as the
glass will only be as plumb as the base shoe.
This instruction is intended as a supplement to the GRS Glass Railing System Installation Instructions. Be sure to read both sets of
instructions, as each have important and time-saving information. Please read the manufacturer's Instruction Manual supplied with the
Digital Device as well.

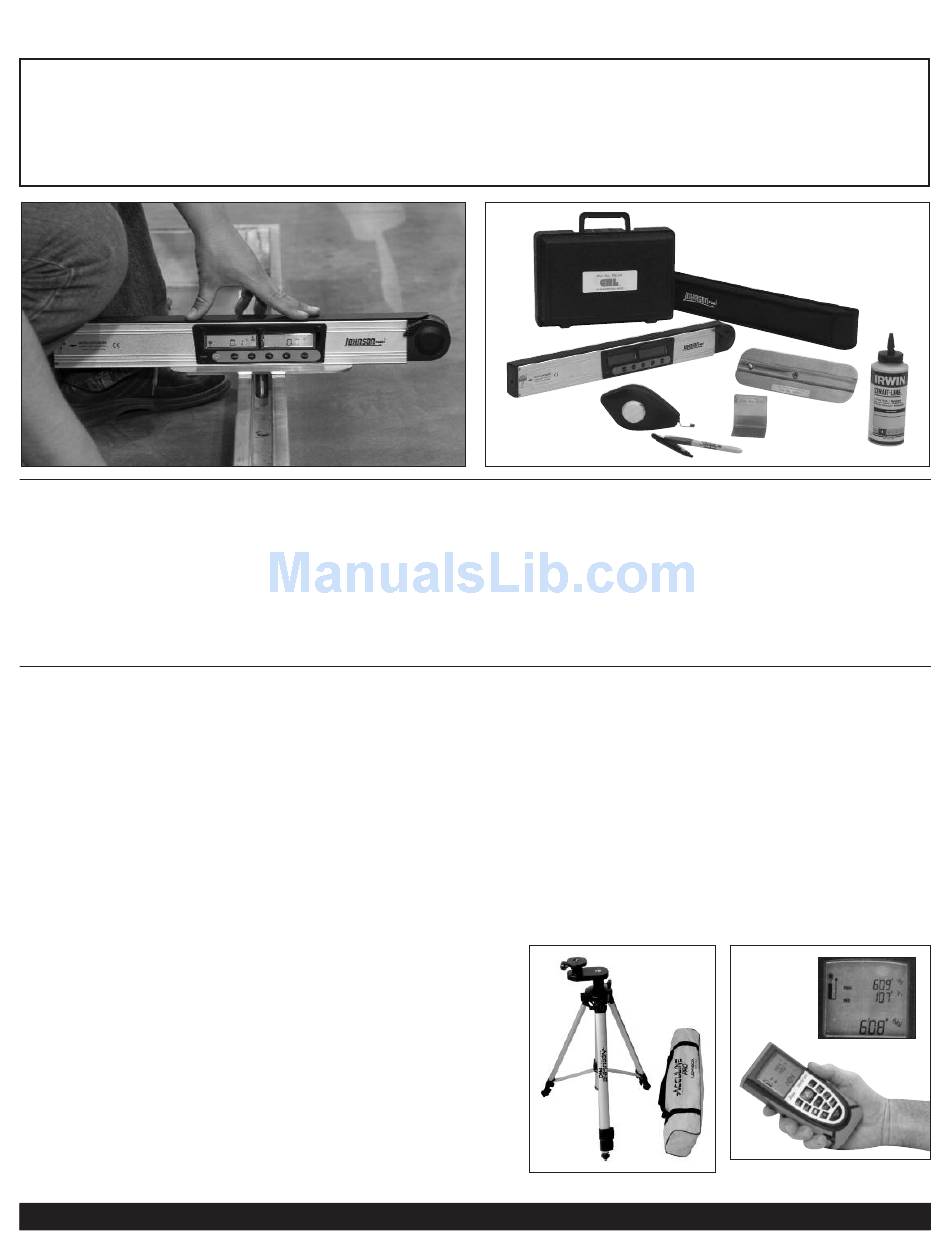

CRL Cat. No. PAL1K "PAL" Plumb/Angle/Level
Locator Kit Includes:
Cat. No. 406065 Digital Plumb/Angle/Level Locator
Cat. No. AMA1 Base Shoe Alignment Mounting Adapter
Cat. No. LT1 Laser Target
Cat. No. ST47099 100' (30.5 m) Professional Chalk Line
Cat. No. P8B Blue Chalk Refill Bottle
Cat. No. MP1 Black Listo Marking Pencil
Cat. No. 2113338 Sharpie Marking Pen
All in a molded carrying case
crlaurence.com • Phone Toll Free (800) 421-6144 • Fax Toll Free (800) 587-7501
Page 1 of 4
See the video at crlaurence.com
™ SYSTEM INSTALLATIONS
• Electronic Angle Finder that Also Locates Corner Angles,
Plus Stairway and Ramp Angles
• Laser Levels Base Shoe in the Horizontal Orientation
• Displays Angle and Inclination Simultaneously
• 1/4"-20 Thread for Connection to CRL Cat. No. LD142 Tripod
Optional accessories available at crlaurence.com
LD142 Aluminum Tripod
*Patent Pending
LA5 Distance Measuring
Laser Meter
AVD3922
