Trio Motion PC-MCAT 64 Quick Start Manual

64 axis ethercat controller + pc
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

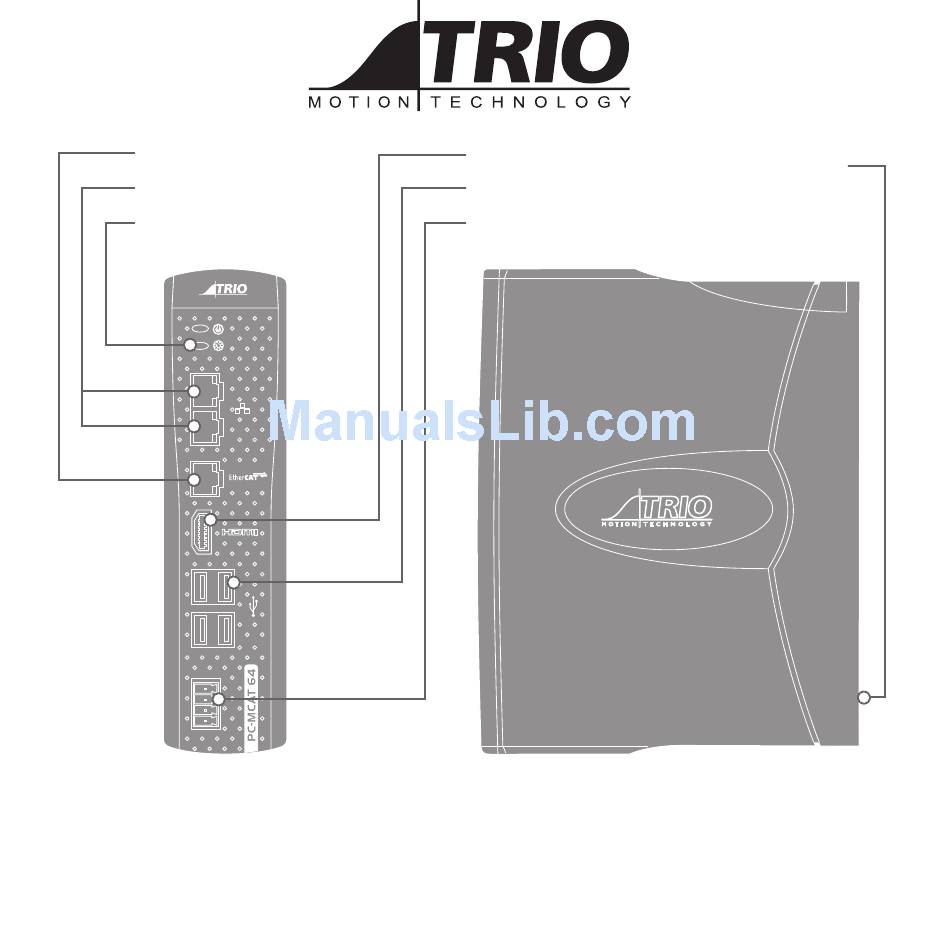

ETHERCAT 100 BASE-T
ETHERNET (GIG-E)
STATUS LED'S
QUICK START GUIDE
T E C H N O L O G Y
HDMI OUTPUT
USB (X4)
DUAL INPUT, POWER
PC-MCAT 64
P760
CHASSIS EARTH
SCREW
