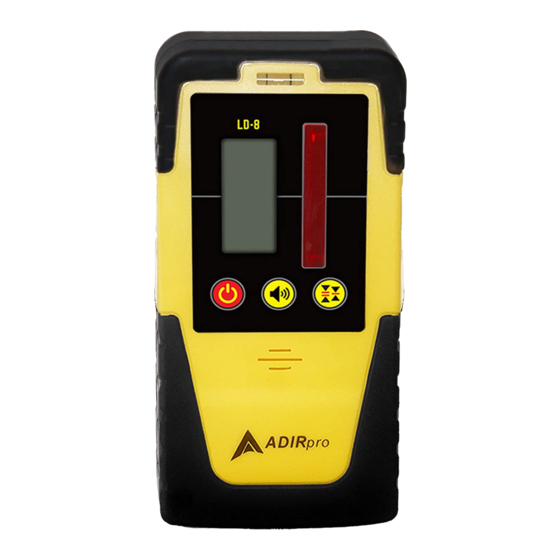

AdirPro LD-8 Operating Manual
  1. Manuals
  2. Brands
  3. AdirPro Manuals
  4. Receiver
  5. LD-8
  6. Operating manual

AdirPro LD-8 Operating Manual

Hide thumbs
1
2
3
4
5
6
7
8

Advertisement

Quick Links

Download this manual

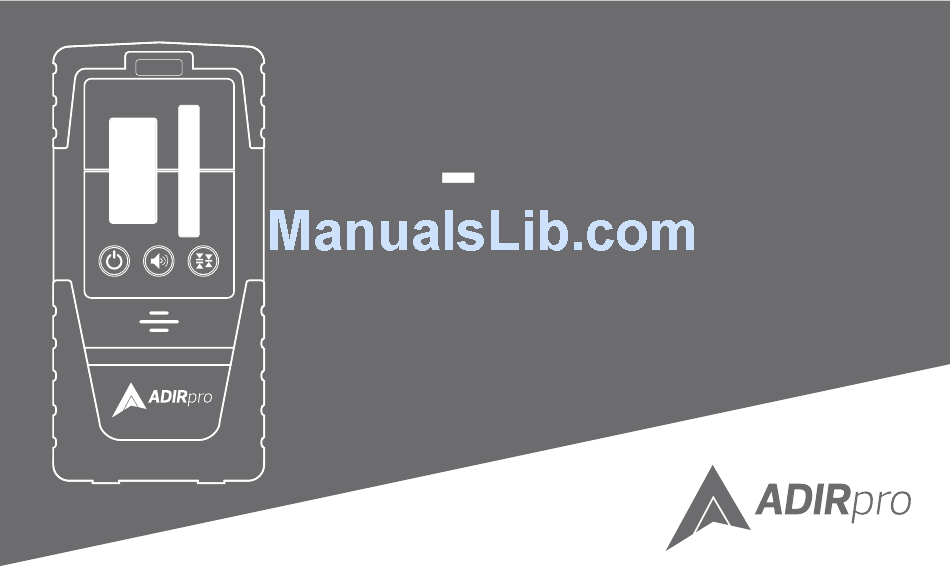

LD 8 RECEIVER
OPERATING MANUAL
Item #790-01

Advertisement

loading
Need help?

Need help?

Do you have a question about the LD-8 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for AdirPro LD-8

  • Page 1 LD 8 RECEIVER OPERATING MANUAL Item #790-01...

  • Page 2: Specifications

    Specifications Weight 7.1 oz Dimensions 2.75" x 5.5" x 1" Housing Plastic rubber with trimming Accuracy Fine: ±1 mm; Coarse: ±2.5 mm Power Source (1) 9V battery Battery Life 40 hours (approx) Low Battery Indicator Operating Temperature 14°F-122°F (-10°C~50°) Volume Settings Loud &...

  • Page 3: Lcd Display

    LCD Display Coarse grade sensitivity Fine grade sensitivity Above reference high frequency beep) should move down Reference (long beep) Below reference low frequency beep) should move up Volume Icon Battery Level Indicator...

  • Page 4: Control Panel

    Control Panel Magnetic strip – Allow you to affix receiver on any metalsurface Bubble level – An extra measure of leveling accuracy LCD - Front display shows the elevation, grade sensitivity, audio, and battery status Laser Receptor - Hold the laser receptor. Face the rotary laser to measure the accuracy Mark - The marking notch is 4.5 mm (1.75”.) from the top of the receiver Accuracy Mode –...
  • Page 5 Back Panel LCD –Back display shows the elevation, grade sensitivity, audio, and battery status ¼” Thread mounting nut – The clamp securely attaches here Battery compartment – Holds the battery securely in place...
  • Page 6 1. Open the battery door using a coin or your thumbnail. 2. Install/Remove the 9V battery noting the positive (+) and negative (–) diagram inside the housing. 3. Push down on the battery door until it “clicks” into position.
  • Page 7 General Purpose Clamp The general purpose clamp allows the receiver to be attached to a grade rod or wooden pole. Features and Functions Bubble level – An extra measure of leveling accuracy Clamp – Ridged edges give extra friction to secure the clamp to a grade rod or pole Width adjuster –...
  • Page 8 NJ 07111 | cs@adirpro.com | .adirpro.com...
