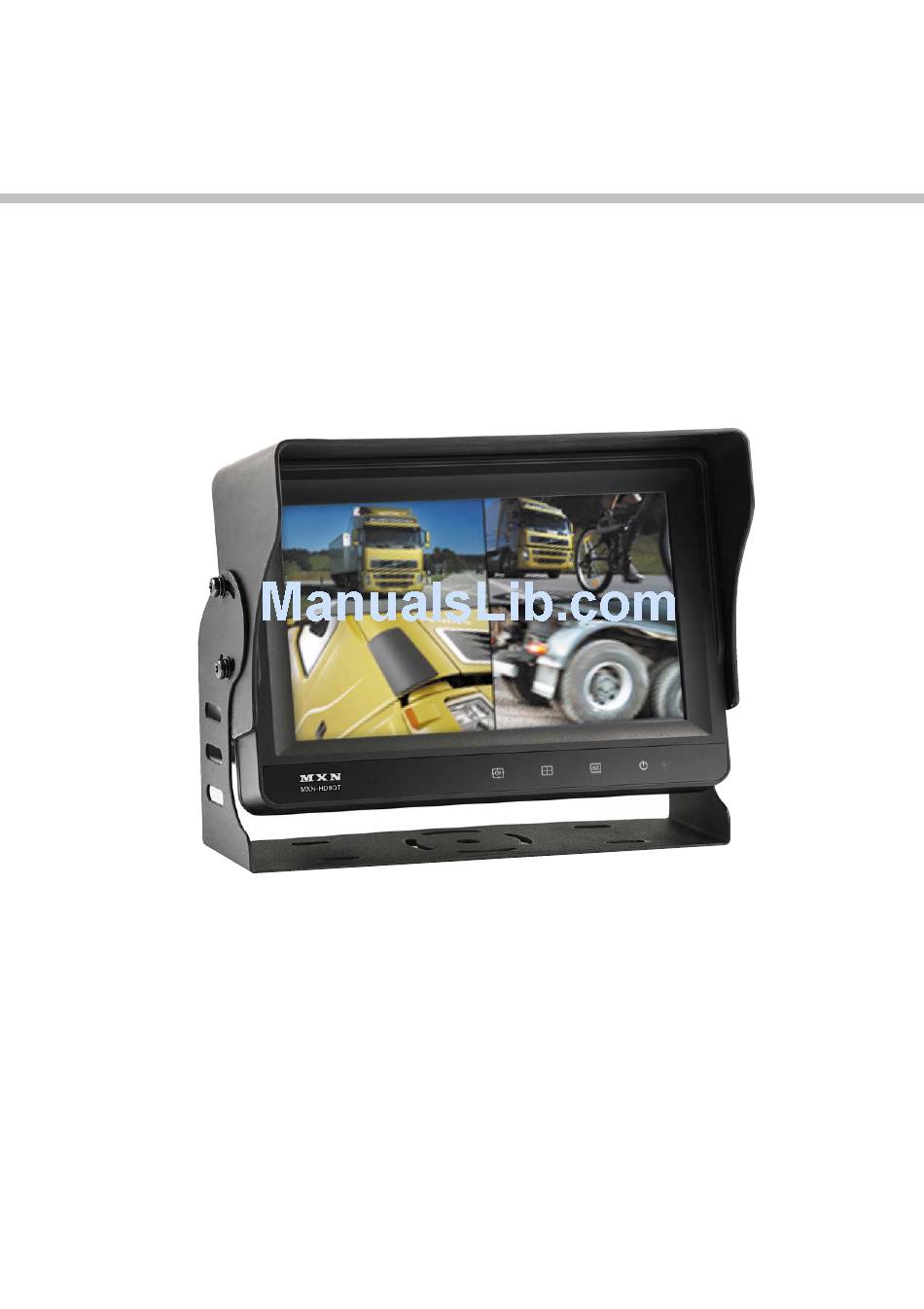

Mount 8"

Touch screen vehicle monitor

for allround vision

Instruction Manual(Ver. 1.0)

Model : MXN-HD8QT

Design and Specifications are subject to change without notice.

Table of Contents

Need help?

Do you have a question about the MXN-HD8QT and is the answer not in the manual?

Questions and answers

Summary of Contents for MXN MXN-HD8QT

Page 1 Mount 8" Touch screen vehicle monitor for allround vision Instruction Manual(Ver. 1.0) Model : MXN-HD8QT Design and Specifications are subject to change without notice.
Page 2 8" Touch screen Monitor Model : MXN-HD8QT Instruction Manual (Ver 1.0) Index 1. Caution 2. Components of the product 3. How to use the product 4. How to install the product 5. Specification Thank you for purchasing our touchscreen vehicle monitor.
Page 3 Caution For your safe operation, please read this manual before you start to use the product. We inform you that our company shall not be responsible for failures and troubles that are occurred due to misuse or neglection of the cautions written on this manual.
Page 4: Components Of The Product
Components of the product Blue Black Touch Screen By touching one of the small pictures during multi screen mode, the concerning small picture will be enlarged into Full Screen mode. By touching the screen it is possible to control the equipment or to change the settings. Power On/Off Press the Power button for 0.5 seconds to turn on the screen.
Page 5: Split Screen
Components of the product CH Auto scan Display the full screen according to each Channel setup when setting up On Split Screen A split screen appears. AUX Button Press the Input button to change Input.
Page 6: System Connection
Components of the product System Connection (Optional : Heater/Shutter) AUDIO in DC 12V VIDEO in GROUND Monitor connection (Optional : Heater/Shutter) AUDIO in VIDEO in DC 12V GROUND Blue Blue Camera connection Black Black Camera 1 Camera Cable Camera 2 Camera 3 Camera 4 EXT.MIC...
Page 7: Package Contents
If any items are missing, please contact your dealer. Monitor Sunvisor Bracket Mount 8" Touch screen vehicle monitor for allround vision Instruction Manual(Ver. 1.0) Model : MXN-HD8QT Design and Specifications are subject to change without notice. Camera Cable Power Cable Manual Option EXT, Speaker EXT,MIC...
Page 8: How To Use The Product
How to use the product Start Screen When the booting is ready, the multi screen as below will be displayed When the small window is touched, it is enlarged. When the small windows on the multi screen are touched, the channel is enlarged into full screen mode.
Page 9: Volume Control
How to use the product Volume Control Press the button to display Volume Pop-up. Press the button to mute Press the button to increase the volume Press the button to decrease the volume...
Page 10: Setting Mode
How to use the product Setting Mode Press the setting menu button to open the Setting screen. CAM : Adjust brightness of Camera input screen AUX : Adjust brightness of AUX screen...
Page 11 How to use the product Auto scan Touch here Press the Auto scan button : Full screen will be displayed sequentially. Auto Scan will be set on the action.
Page 12 How to use the product Multi screen Press the multi screen button to divide the screen. Touch here Press multi screen Press multi screen button once: button 3 times: Cam1,Cam2 Cam1,2,3,4 Press multi screen button twice: Cam3,Cam4...
Page 13: Input Selection
How to use the product Input selection Touch here Press the Input button to change Input Press input button Press input button once: AUX1 twice: AUX2...
Page 14 How to use the product Display Input the name into each channel. Mirror : Mirror image or normal image Up : Mirror image or reverse image Shutter : Enable to operate Shutter/Heater Camera...
Page 15 How to use the product Display Setup screen position of each channel Caution: Cam1 and AUX1 cannot be setup at the same time. Setup the screen on each trigger. Mirror : Mirror image or normal image Up : Change up and down of the screen Shutter : Enable to operate Shutter/Heater Camera...
Page 16 How to use the product Display Display the full screen according to each channel setup when setting up On * AUX1 input RVM-704M and RVM-804 is one. Display the dividing lines of the screen...
Page 17 How to use the product Display Adjust Parking line of each Trigger Calibration Trig.1 Front & Rear...
Page 18 How to use the product Function The screen is turned ON automatically when starting the vehicle ON : power on mode -> Power on Standby mode -> Power on Off : Power on mode -> Power on Standby mode -> Standby Automatic brightness adjustment by sensor in the front housing Sensitivity of automatic brightness adjustment, level 0 to 10 controlled...
Page 19 How to use the product Function Keep Trigger activated during setup time after Trigger off in order to bridge temporary powerloss, e.g. from vehicle's turnlight signal Re-adjust center Point of Touch panel STEP 1 of 3 Click on center of '+' icon for Touch screen calibration.
Page 20 How to use the product Function Detect speed of a vehicle from 10 to 999 Hz To switch automatically into the screen ON mode, by detecting a speed signal (tacho signal)
Page 21 How to use the product System Set time displaying the Menu screen Set time displayed on the screen The screen is turned off when there is no input like touching it or so during setting up time...
Page 22 How to use the product System Set a password to lock the Menu button Support languages for each country ( Option )
Page 23 How to use the product System Initializing set points of Menu Display Firmware Version and Model name...
Page 24: Installation
Installation Installation Monitor Sunvisor Dashboard Bractet Specification DES CRIP TION ITEM 8" On - d a s h mo u n tin g (RVM- 804) Camera Input 4 Ch input (1Vp- p 75Ω ) / NTSC,PAL(Video & A udio) AV input AUX (1 CH RCA / 1Vp- p 75Ω...
Page 25 MEMO...
