LED-signal table
Once the download is complete, or if an error occurs
during the download, the downloadkey LEDs are ca-
pable of displaying various information on the status
of the downloadkey.

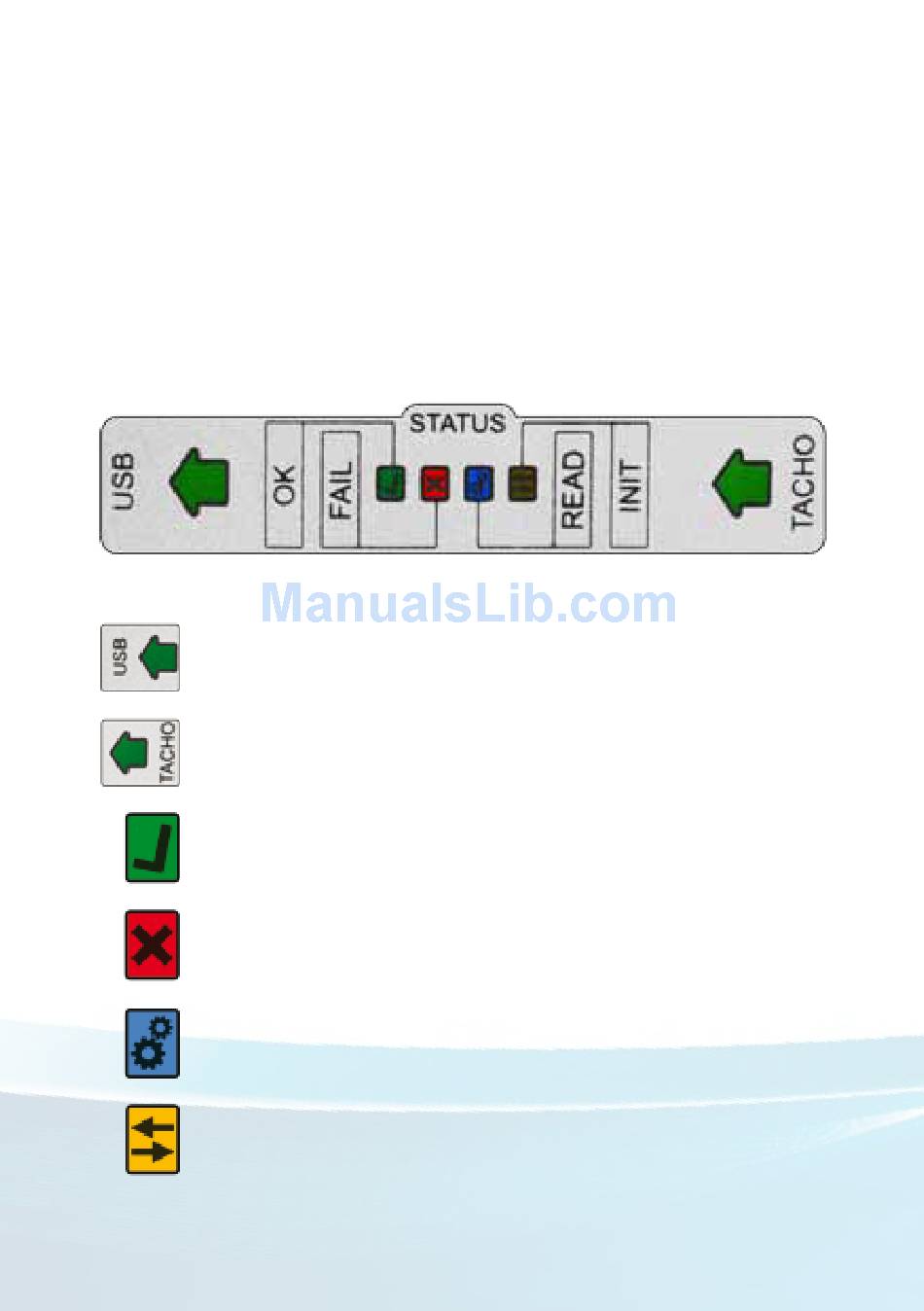

The download key has six LEDs:
The USB-LED indicates whether the device is
connected via USB
The TACHO-LED indicates whether the
device is connected to the tachograph
The OK-LED indicates that the download
completed successfully
The FAIL-LED indicates whether an error
has occurred (See LED signal table, p.13)
The READ-LED indicates that the download
is in progress
The INIT-LED flashes briefly when you
connect the device to control
