INSTALLATION INSTRUCTIONS: OGDEN - OGM1900
DESCRIPTION:
OGDEN, BENCH SYSTEM
DWG: INSTALL_OGDEN
REV: M01

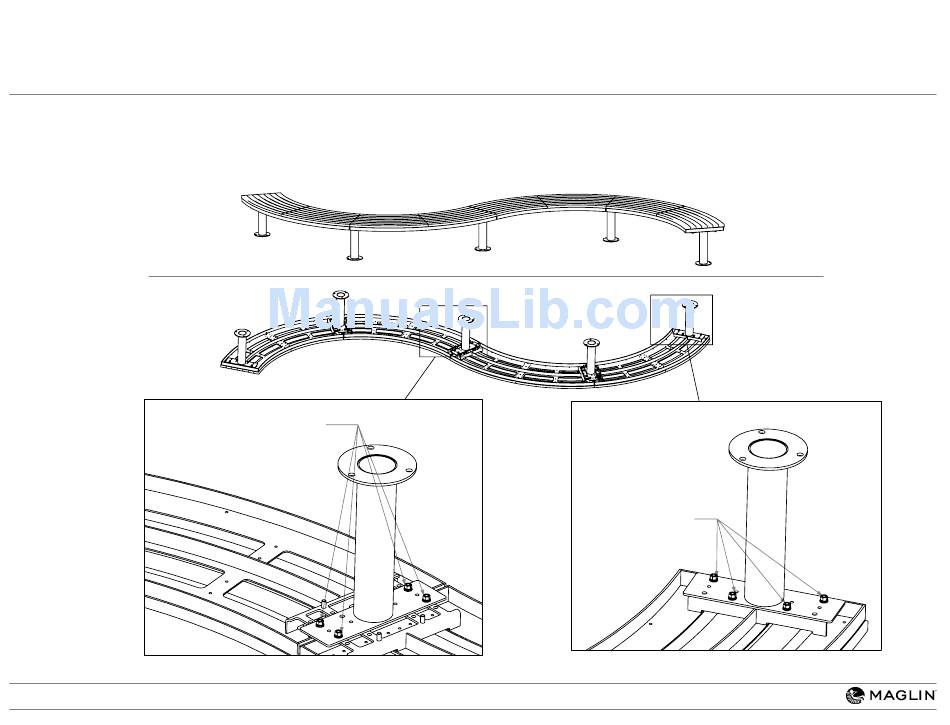

MOUNTS - QUICK REFERENCE
NOTE THAT PRINCIPLES SHOWN IN THIS QUICK REFERENCE CAN BE APPLIED TO ALL MOUNT STYLES
TOP VIEW
BOTTOM VIEW
4 X 3/8" HARDWARE
(PER 2 STUDS EACH SEAT SECTION)
NOTE ONLY TWO STUDS PER SIDE
ARE USED
BETWEEN TWO SEAT SECTIONS
THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE PROPERTY OF MAGLIN SITE FURNITURE INC. ANY REPRODUCTION IN PART OR AS A WHOLE WITHOUT THE WRITTEN PERMISSION OF MAGLIN SITE FURNITURE INC. IS PROHIBITED.
DETAIL A
END OF ONE SEAT SECTION
4 X 3/8" HARDWARE
(PER EACH STUD)
NOTE LOCATION
OF HARDWARE
DETAIL B
WWW.MAGLIN.COM

Advertisement

loading
Need help?

Need help?

Do you have a question about the OGM1900 and is the answer not in the manual?

Questions and answers

Summary of Contents for Ogden OGM1900

  • Page 1 INSTALLATION INSTRUCTIONS: OGDEN - OGM1900 DESCRIPTION: OGDEN, BENCH SYSTEM DWG: INSTALL_OGDEN REV: M01 MOUNTS - QUICK REFERENCE NOTE THAT PRINCIPLES SHOWN IN THIS QUICK REFERENCE CAN BE APPLIED TO ALL MOUNT STYLES TOP VIEW BOTTOM VIEW DETAIL A DETAIL B 4 X 3/8"...
  • Page 2 INSTALLATION INSTRUCTIONS: OGDEN - OGM1900 DESCRIPTION: OGDEN, BENCH SYSTEM DWG: INSTALL_OGDEN REV: M01 CIRCLE (CLOSED LAYOUTS) NOTE THE PRINCIPLES FOR THE CIRCLE LAYOUTS APPLY TO ALL MOUNT STYLES. SEE WALL MOUNT AND CANTILEVER INSTALLATION PAGES FOR SPECIFIC DETAIL REGARDING THEIR INSTALLATION.

  • Page 3: Wall Mount

    WALL MOUNT FOR WALL MOUNTS BENCHES PRINCIPLES APPLY TO BOTH OPEN OR CLOSED LAYOUTS (REFER TO PAGE 1) CANTILEVER MOUNT FOR CANTILEVERED SECTIONS PRINCIPLES APPLY TO BOTH OPEN OR CLOSED LAYOUTS (REFER TO PAGE 1) CENTER ARM OR SKATE DETERRENT NOTE PRINCIPLES FOR ASSEMBLY ARE THE SIMILAR FOR BOTH THE CENTER ARM AND THE SKATE DETERRENT.
  • Page 4 NOTES: !CAUTION! FAILURE TO FOLLOW INSTRUCTIONS COULD LEAD TO INJURY, ENSURE ALL STEPS ARE FOLLOWED AND FASTENERS ARE USED, TWO OR MORE PEOPLE ARE REQUIRED FOR INSTALLATION !CAUTION! NOTE THAT THE ASSEMBLY THREADED STUDS ONLY AID IN THE ASSEMBLY PROCESS. PARTS SHOULD NOT BE LEFT UNATTENDED AND SHOULD BE BOLTED TOGETHER IMMEDIATELY AFTER PARTS ARE PLACED IN DESIRED LOCATION AS SEATING IN NOT SAFE FOR USE UNTIL FULLY FASTENED TOGETHER AND ANCHORED DOWN.
  • Page 5 PARTS: LEG SQUARE 17 1/4" 9/16" HOLE FOR CONCRETE ANCHOR 11 1/2" 17 1/4" !CAUTION! - FOR REFERENCE ONLY. DIMENSIONS ARE SUBJECT TO CHANGE AND MAY VARY. USE ACTUAL PRODUCT TO MARK HOLE LOCATIONS. THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE PROPERTY OF MAGLIN SITE FURNITURE INC. ANY REPRODUCTION IN PART OR AS A WHOLE WITHOUT THE WRITTEN PERMISSION OF MAGLIN SITE FURNITURE INC. IS PROHIBITED. WWW.MAGLIN.COM...
  • Page 6 PARTS: LEG PEDESTAL 7" 9/16" THRU HOLES FOR CONCRETE ANCHORS 14" !CAUTION! - FOR REFERENCE ONLY. DIMENSIONS ARE SUBJECT TO CHANGE AND MAY VARY. USE ACTUAL PRODUCT TO MARK HOLE LOCATIONS. THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE PROPERTY OF MAGLIN SITE FURNITURE INC. ANY REPRODUCTION IN PART OR AS A WHOLE WITHOUT THE WRITTEN PERMISSION OF MAGLIN SITE FURNITURE INC. IS PROHIBITED. WWW.MAGLIN.COM...
  • Page 7 PARTS: WALL MOUNT BRACKET 7/16" THRU 4" - PAIR B HOLE FOR 3/8" CONCRETE ANCHOR USE ON WALLS 4 3/4" ! USE ONLY ONE PAIR OF HOLES (A OR B) ! BETWEEN 8" - 12" WIDE 8" - PAIR A USE ON WALLS 2 3/4"...
  • Page 8 PARTS: CANTILEVER BRACKET 2 1/2" RIGHT BRACKET LEFT BRACKET HOLES FOR CENTER ARM HOLE FOR BENCH ASSEMBLY 4 3/16" 16" 3" 9/16" THRU HOLE FOR 1/2" CONCRETE ANCHOR 1 1/2" !CAUTION! - FOR REFERENCE ONLY. DIMENSIONS ARE SUBJECT TO CHANGE AND MAY VARY. USE ACTUAL PRODUCT TO MARK HOLE LOCATIONS. THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE PROPERTY OF MAGLIN SITE FURNITURE INC.
  • Page 9 CIRCLE W/LEGS TURN BENCH ONTO SEAT SURFACE, ENSURE TO PLACE ON A CLEAN SCRATCH RESISTANT SURFACE. ATTACH BOTH LEGS TO ONLY 2 THREADED STUDS AND OVERHANG LEG FROM SEAT SECTION EDGE (DETAIL A). ATTACH WITH 3/8" FASTENERS. HEX NUT LOCK WASHER WASHER DETAIL A THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE PROPERTY OF MAGLIN SITE FURNITURE INC.
  • Page 10 FLIP OVER BENCH SECTION. NEXT PLACE NEXT SEAT SECTION ONTO SEAT SURFACE. AGAIN ENSURE IT IS PLACED ON A CLEAN SCRATCH RESISTANT SURFACE. DETAIL B ATTACH NEXT LEG BY ALIGNING LEG TO 2 THREADED STUDS ON SEAT TO 2 HOLES ON LEG, ENSURE TO OVERHANG 2 HOLES AND FASTEN USING 3/8" FASTENERS.(DETAIL B) HEX NUT LOCK WASHER FLAT WASHER...
  • Page 11 CONTINUE SAME ASSEMBLY METHODS TO COMPLETE CIRCLE (DETAIL E). THE LAST SECTION WILL NOT REQUIRE A LEG TO BE ATTACHED AS IT WILL SHARE ONE ON EITHER SIDE. SHIM BENCH IF NOT LEVEL AND LAG DOWN ALL LEGS INTO APPROPRIATE SUBSTRATE USING APPROPRIATE ANCHORS. UTILIZE ALL HOLES ON LEGS, 2 PER SQUARE LEG, 3 PER PEDESTAL LEG (DETAIL F).
  • Page 12 ARC OR WAVE TURN SEAT SECTION ON BACK, ENSURE TO PLACE ON A CLEAN SCRATCH RESISTANT SURFACE. FIRST IDENTIFY THE BEGINNING OF CHOSEN LAYOUT AND ALIGN LEG TO ALL 4 STUDS (DETAIL B). IF CONTINUING LAYOUT ALIGN SECOND LEG WITH 2 STUDS AND OVERHANG OTHER 2. FASTEN LEGS WITH 3/8"...
  • Page 13 FLIP OVER BENCH SECTION. NEXT PLACE NEXT SEAT SECTION ONTO SEAT SURFACE. AGAIN ENSURE IT IS PLACED ON A CLEAN SCRATCH RESISTANT SURFACE. IF LAYOUT IS GOING TO CONTINUE ATTACH NEXT LEG BY ALIGNING LEG TO 2 THREADED STUDS ON SEAT TO HEX NUT 2 HOLES ON LEG, ENSURE TO OVERHANG 2 HOLES AND FASTEN USING 3/8"...
  • Page 14 CONTINUE SAME ASSEMBLY METHOD TO COMPLETE DESIRED SHAPE. DETAIL F ENSURE 4 THREADED STUDS OF THE LAST BENCH SECTION ALIGN WITH POINT G 4 HOLES ON THE OUTSIDE LEG (POINT G). SHIM BENCH TO LEVEL IF NECESSARY. LAG DOWN ALL LEGS INTO APPROPRIATE SUBSTRATE USING APPROPRIATE ANCHORS. UTILIZE ALL HOLES ON LEGS, 2 PER SQUARE LEG, 3 PER PEDESTAL LEG (DETAIL H).
  • Page 15 WALL MOUNT FIRST IDENTIFY WHETHER LAYOUT IS AN OPEN OR CLOSED LAYOUT (REFER TO PAGE 1). PLACE ALL SECTIONS ON WALL AND MARK BRACKETS WHERE FINAL INSTALL IS DESIRED. THEN REMOVE ALL PIECES NEXT ATTACH FIRST 2 BRACKETS IN APPROPRIATE LOCATION FOR CHOSEN LAYOUT STYLE (OPEN OR CLOSED). PLACE BENCH SECTION INCLUDING BRACKETS ON WALL.
  • Page 16 DRILL HOLES AT MARKED LOCATION TO CORRECT SIZE AND DEPTH FOR CONCRETE ANCHORS. ENSURE TO FOLLOW ANCHOR AND CONCRETE SPECS WHEN DRILLING CLOSE DETAIL C TO CONCRETE EDGE. REMOVE BOTTOM HALF OF WALL MOUNT BRACKETS FROM BENCH ASSEMBLY USING 7/32" HEX KEY. (DETAIL D) KEEP FASTENERS FOR RE-ASSEMBLY IN A LATER STEP.
  • Page 17 ALIGN BOTTOM HALF OF BRACKET WITH HOLES THAT HAVE BEEN DRILLED AND FASTEN DOWN WITH CHOSEN CONCRETE ANCHORS (DETAIL D). DETAIL E ALIGN BENCH WITH BRACKETS. USING 7/32" ALLEN KEY FASTEN BENCH SECTION TO BRACKETS (DETAIL F) USING FASTENERS PREVIOUSLY REMOVED. DETAIL F THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE PROPERTY OF MAGLIN SITE FURNITURE INC.
  • Page 18 NEXT DETERMINE IF YOUR LAYOUT CONTINUES OR ENDS AFTER ADDING THIS NEXT SECTION. ATTACH BRACKET TO THE CORRECT LOCATION AND NUMBER OF STUDS (DETAIL G)(SEE - MOUNTS - QUICK REFERENCE, PAGE 1) MARK BRACKET HOLE LOCATIONS AS COMPLETED IN STEP 1. NEXT FOLLOW STEPS 2-5 FOR THIS BENCH SECTION FOR ALL OTHERS SECTIONS IN LAYOUT.
  • Page 19 CANTILEVER FIRST IDENTIFY WHETHER LAYOUT IS AN OPEN OR CLOSED LAYOUT (REFER TO PAGE 1) ***IMPORTANT THERE ARE LEFT AND RIGHT BRACKETS. ENSURE CORRECT BRACKET IS PLACED AT THE END OF OPEN LAYOUTS. ONE LEFT AND ONE RIGHT ON EITHER SIDE*** NEXT TEMPORARILY ATTACH 2 BRACKETS USING 3/8"...
  • Page 20 DRILL HOLES AT MARKED LOCATION TO CORRECT SIZE AND DEPTH FOR CONCRETE ANCHORS. ENSURE TO FOLLOW ANCHOR AND CONCRETE SPECS WHEN DRILLING CLOSE TO CONCRETE EDGE. DETAIL C REMOVE BRACKETS FROM BENCH ASSEMBLY THAT HAS BEEN SET ASIDE. HOLD ONTO FASTENERS. DETAIL D THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE PROPERTY OF MAGLIN SITE FURNITURE INC.
  • Page 21 ALIGN BRACKET WITH HOLES THAT HAVE BEEN DRILLED AND FASTEN DOWN WITH CONCRETE ANCHORS (DETAIL D). DETAIL E USING WRENCH, FASTEN BENCH SECTION TO BRACKETS USING FASTENERS PREVIOUSLY REMOVED. IF LAYOUT HAS ONLY ONE SECTION INSTALLATION IS NOW COMPLETE. IF LAYOUT CONTINUES GO TO STEP 6 DETAIL F THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE PROPERTY OF MAGLIN SITE FURNITURE INC.
  • Page 22 PLACE BRACKET ONE BRACKET ON NEXT SECTION. IF LAYOUT CONTINUES AFTER THIS 2ND SECTION ATTACH BRACKET TO 2 STUDS ONLY . IF LAYOUT ENDS, ATTACH TO 4 STUDS ALIGN BENCH TO 2 HOLES AVAILABLE ON SHARED BRACKET ALREADY INSTALLED. FOLLOW STEP 1-5 FOR THIS SECTION AND ALL OTHERS. DETAIL G INSTALLATION IS NOW COMPLETE.
  • Page 23 SKATE DETERRENTS SKATE DETERRENTS CAN BE PLACED IN THE FOLLOWING LOCATIONS FROM A-E. TYPE 1: A) MIDDLE OF A BENCH SECTION - INSIDE RADIUS (PRE INSTALLED) B) MIDDLE OF A BENCH SECTION - OUTSIDE RADIUS (PRE INSTALLED) TYPE 2: TYPE 1 - A TYPE 1 - B C) END OF AN OPEN LAYOUT (PRE INSTALLED) D) MIDDLE OF A BENCH SECTION (PRE INSTALLED)
  • Page 24 SKATE DETERRENT - TYPE 2-E THIS METHOD IS USED FOR SKATE DETTERENT TYPE 2-E ONLY WHEN MOUNTING BETWEEN TWO SEAT SECTIONS. USE SKATE DETTERENT WITH PRE-INSTALLED 1/4" THREADED RODS AND 1/4" FASTENERS TO ATTACH SKATE DETERRENT FROM UNDERNEATH BENCH(DETAIL C) 1/4"...
  • Page 25 CENTER ARM CENTER ARMS CAN BE PLACED IN THE FOLLOWING THREE TYPES OF LOCATIONS. A) END OF AN OPEN LAYOUT B) MIDDLE OF A BENCH SECTION C) BETWEEN TWO BENCH SECTIONS (SEE IMAGE TO THE RIGHT ) THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE PROPERTY OF MAGLIN SITE FURNITURE INC. ANY REPRODUCTION IN PART OR AS A WHOLE WITHOUT THE WRITTEN PERMISSION OF MAGLIN SITE FURNITURE INC. IS PROHIBITED. WWW.MAGLIN.COM...
  • Page 26 ALL CENTER ARMS USE THE SAME ASSEMBLY PRINCIPLES AND SIMILAR HARDWARE (DETAIL A). USE PROVIDE FASTENERS AND FASTEN SECURELY. PLEASE SEE THE NEXT STEPS FOR EXAMPLES OF EACH. DETAIL A 1/4" FASTENER 1/4" FLAT WASHER 1/4" LOCK WASHER 1/4" HEX NUT EXAMPLE A) END OF AN OPEN LAYOUT ARM ALIGNS WITH LEG.
  • Page 27 EXAMPLE B) MIDDLE OF A BENCH SECTION ARM ALIGNS WITH HOLES IN THE CENTER OF THE BENCH SECTION DETAIL C EXAMPLE C) BETWEEN TWO BENCH SECTIONS ARM ALIGNS WITH HOLES IN LEG AND ARE PLACED IN BETWEEN TWO BENCH SECTIONS DETAIL D THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE PROPERTY OF MAGLIN SITE FURNITURE INC.
