Summary of Contents for Estyma CTP-02R

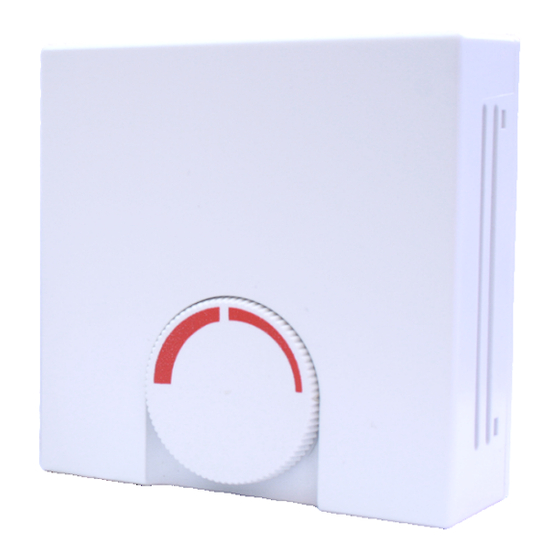

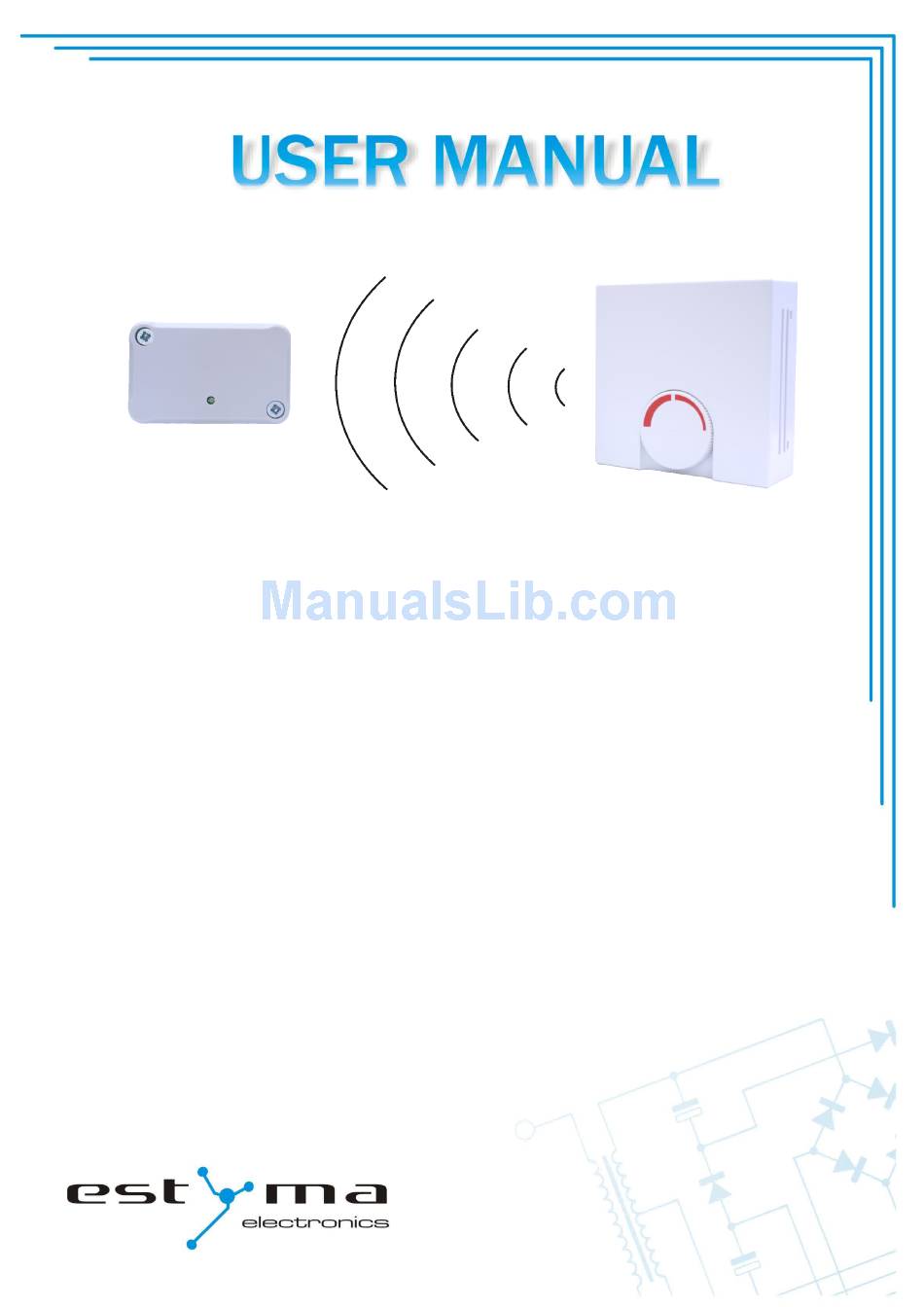

- Page 1 WIRELESS SENSOR OF ROOM TEMPERATURE CTP-02R...
- Page 2 page 2 PL20130612...
-
Page 3: Table Of Contents
3.2 Adjustment of temperature 4 Non-standard configuration 4.1 Switches 4.1.1 Addressing..................12 4.1.1 Addressing..................12 4.1.2 Change of transmission mode............13 4.1.2 Change of transmission mode............13 4.1.3 Selection of controller..............14 4.1.3 Selection of controller..............14 4.2 Calibration 5 Specification estyma electronics page 3 www.estyma.pl PL20130612... -
Page 4: General Information
The transmitter is powered by 2 AAA batteries. The device operates correctly in the range from 0 C to 50 The controller operates only with the most modern controllers of Estyma company, starting from, Platinum Bio series. It is operated not only by the main controller, but also by CAN I/O expansion units. -
Page 5: Precautions
Before starting any maintenance operations, you must absolutely disconnect the device from power supply. • No benzine, solvents or other chemical agents, which can damage the housing of device, can be used for cleaning the device. A soft cloth is recommended for this purpose. estyma electronics page 5 www.estyma.pl PL20130612... -
Page 6: Procedure With The Used Equipment
1 General information 1.4 Procedure with the used equipment The electronic device was made from materials, which are good for recycling only in part. That is why, the device must be returned to the recovery and recycling place of electrical and electronic equipment or handed over to the manufacturer. -
Page 7: Connection To The Controller
It is recommended that the controller be mounted at a height not less than 1,5 m over the floor. 4. The receiver should be mounted near the controller. 2.3 Connection to the controller In the figure below you will find a general operation diagram of CTP-02R set with controllers of IGNEO line. estyma electronics page 7 www.estyma.pl... -
Page 8: Igneo Wall (Platinum Bio)
2.3.1 IGNEO Wall (Platinum Bio) 1. Disconnect the controller from the power and remove batteries from the transmitter. 2. Connect the receiver to the controller according to the diagram above. 3. Activate the controller and replace batteries in the transmitter. 4. -
Page 9: Igneo Slim
(sends information). The green LED of receiver should light up after it has received the information from the transmitter. If the set does not operate correctly in spite of correct signalling, you should remove and replace the batteries in the transmitter. estyma electronics page 9 www.estyma.pl... -
Page 10: Igneo Compact
2.3.3 IGNEO Compact 1. Disconnect the controller from the power and remove the batteries from the transmitter 2. Connect the set to the controller according to the diagram above. 3. Activate the controller and replace batteries in the trnasmitter. 4. In the controller, enter the heating and indicate "CTP2" as a sensor of room temperature. (step-by-step instruction is presented in point 2.3.4 on page 11) 5. -
Page 11: Settings In The Controller Of Boiler
You can adjust the temperature using the knob. Neutral setting is a default location, which does not have any impact on the temperature set up. The temperature is sent to the receiver every 1,5 minute. estyma electronics page 11 www.estyma.pl... -
Page 12: Non-Standard Configuration
IGNEO Wall (Platinum bio) and IGNEO Compact. Four switches placed inside the transmitter and receiver, which are designated with number from 1 to 4, change standard settings – for example, to increase the number of CTP-02R sets, or to change transmission or indications of controller. 4.1.1 Addressing Addresses are determiend by the combination of the settings of three first switches in the transmitter and receiver. -
Page 13: Change Of Transmission Mode
(ON) mode . Continuous transmission is set for the switch in the (OFF) mode. NOTE! The mode of continuous transmission absorbs the current from battery more quickly, that is why it is recommended to set the transmitter in cyclic transmission mode. estyma electronics page 13 www.estyma.pl... -
Page 14: Selection Of Controller
4 Non-standard configuration 4.1.3 Selection of controller In order to indicate what controller the set is to operate with, it is necessary to set the switch number 4 in the receiver in the right way. As regards the switch in (ON) mode, the set operates with IGNEO Wall (Platinum Bio) and IGNEO •... -
Page 15: Specification
Spacing of mounting holes 60mm Weight of controller Receiver Ambient temperature allowed 0-60°C Dimensions (length x height x width) 40mm x 30,3mm x 64mm Spacing of mounting holes 50,8 mm x 26,8 mm Weight of controller estyma electronics page 15 www.estyma.pl PL20130612... - Page 16 Manufacturer: Estyma electronics tel. +48 87 429 86 75 al. Lipowa 4 fax +48 87 429 86 75 11-500 Giżycko biuro@estyma.pl POLAND www.estyma.pl page 16 PL20130612...
