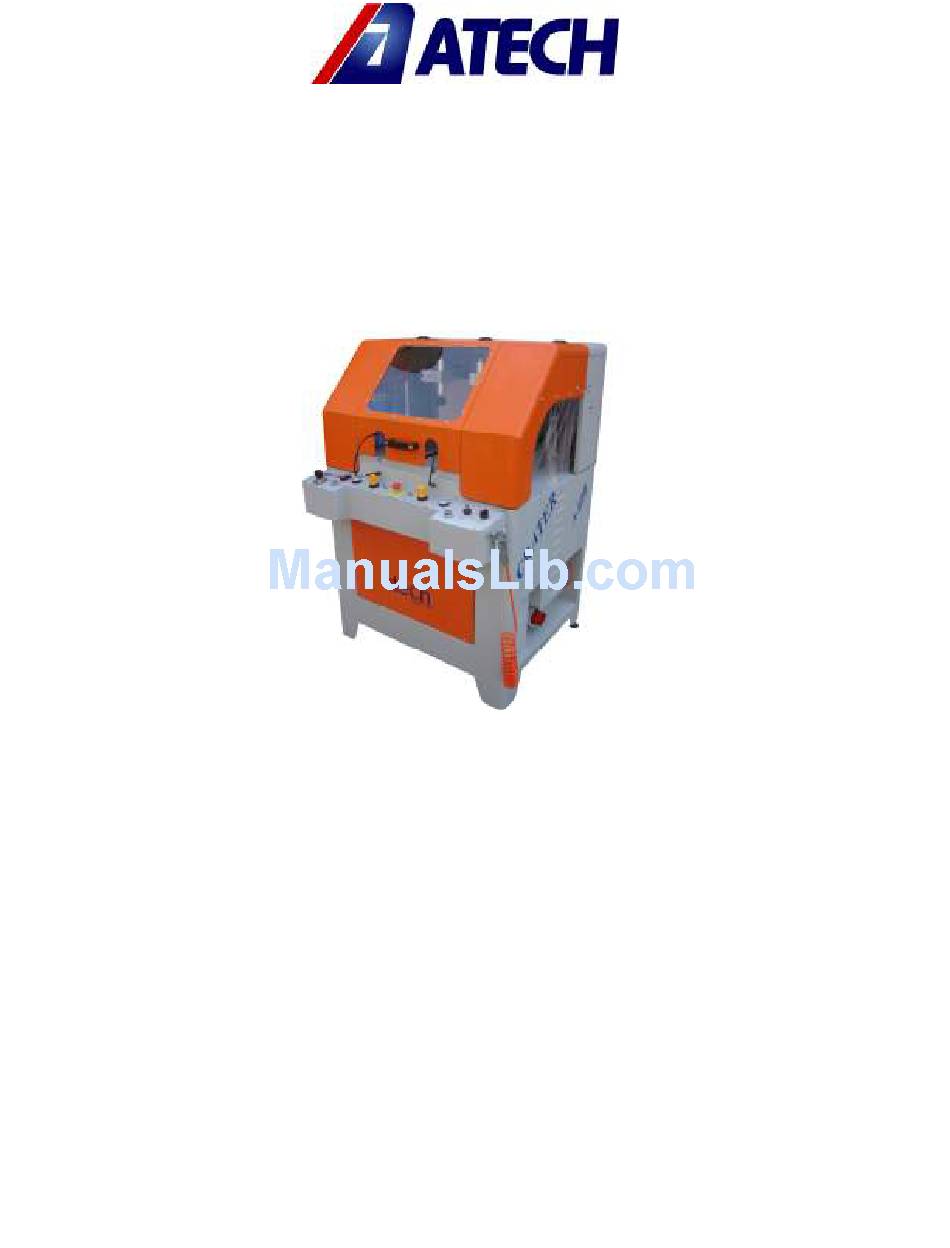

- Page 1 CRATER-600 A AUTOMATIC STRAIGHT UPCUT SAW User's Manual Operating and Safety Instructions...
-
Page 2: General Information
Safe and efficient use of the machine for long term depends on understanding and following the instructions contained in this manual. The technical drawings and details contained in this manual constitute a guide for the operator. 1.2. DISTRIBUTOR ATech Machine, Inc. 309 Ridgemont Ave., MD 20850 - USA Phone: +1-240-505-1967 Fax: +1-301-560-6627 Website: www.ATechMachinery.com... - Page 3 Please include the below mentioned data in all your correspondence regarding the machine with the manufacturer and/or your ATECH dealer. *Machine model *Machine’s serial number *Voltage and frequency *Name of dealer where machine was purchased *Date of purchase *Description of the machine fault *Average daily operation period Note: for safety reasons the motor does not start unless the upper protective cover is closed.
-
Page 4: Technical Features
2.2. TECHNICAL FEATURES Technical Features (Imperial) CRATER- 5.5 HP D=24” 3000 rpm 1 CFM 39”x38”x57” 1,232 lb 06A/600 220V/440V 60Hz d=1.2” 2.3. CUTTING DIAGRAM (mm) Operating and Safety Instructions... -
Page 5: Overall Dimensions (Mm)
2.4. OVERALL DIMENSIONS (mm) 2.5. ELECTRIC AND PNEUMATIC CONTROL PANEL The electric and pneumatic control panel enables you to make adjustments regarding the air pressure. The cover of the panel has to be definitely kept closed during operation. At servicing works for remedy of defects: SWITCH OFF THE ELECTRIC AND PNEUMATIC SUPPLY CONNECTIONS. -
Page 6: Danger Warning
IMPORTANT The IMPORTANT symbol above is one telling to apply special care and to be careful at carrying out the specified operation. CAUTION ! The CAUTION! Symbol above warns you against specific dangers, and requires to read the text. Not observing may cause damage to the equipment. DANGER WARNING The above symbol DANGER WARNING, warns you against specific dangers, and you have definitely to read them. - Page 7 Operating and Safety Instructions...
-
Page 8: General Safety Information
3.3. GENERAL SAFETY INFORMATION 3.3.1. The power cable should be led in such a way that nobody can step on it or nothing can be placed on it. Special care has to be taken regarding the inlet and outlet sockets. 3.3.2. -
Page 9: Transport Of The Machine
3.3.11. Ensure safe working position, always keep your balance. 3.3.12. Keep your machine always clean for safe operation. Follow the instructions at maintenance and replacement of accessories. Check the plug and cable regularly. If damaged, let it replace by a qualified electrician. Keep handles and grips free of any oil and grease. - Page 10 Operating and Safety Instructions...
- Page 11 7). The ground, where the machine will be placed, should be even, solid enough to bear the weight of the machine. 5.1.2. At our upcut saw CRATER-600 A all parts are delivered by the manufacturer ready for use. Figure - 6...
-
Page 12: Parts List
5.2. PARTS LIST 1. Main Table 13/2. Vertical Clamp Pressure Adjustment 2. Fence Plate 13/3. Vertical Clamp Speed Adjustment 3. Top Clamp Holder 14. Main Switch 4. Top Clamp Housing 15. Emergency Stop 5. Clamp cylinder Ø40x80 16/1. Horizontal Clamp Speed Adjustment 6. -
Page 13: Electric Connection
5.3. ELECTRIC CONNECTION 5.2.1. The three-phase power cable socket has to be in accordance with the socket on the machine. 5.2.2. Use a connection cable socket in accordance with the UL & CSA Safety Directives. 5.2.3. Check the inlet power supply before powering the machine. See Page 18 Item 3.8.3. 5.2.4. -
Page 14: Machine Safety Information
6. MACHINE SAFETY INFORMATION 6.8.1. It is not allowed to operate the machine with the protective cover and other protective equipment removed. 6.8.2. Your machine operates with 400V (440V) ~ 3 Phase 50Hz (60Hz). Let the electric installation of your machine carry out by a qualified electrician only. 6.8.3. -
Page 15: Operation
Outer Diameter: 100 mm 8. OPERATION The automatic upcut saw model CRATER-600 A cuts non-ferrous aluminum, PVC profiles and PVC materials. The operator adjusts (manually via knob) the cutting speed of the saw blade according to the material type to be cut. Inner and outer sharp edges of the carbide tipped circular saw blade ensures high quality clean cutting results. - Page 16 8.1.2. The machine is equipped with vertical & horizontal clamps. These clamps can be adjusted easily according to the material. 8.1.3. Avoid randomly pressing the buttons on the panel. If you feel danger during the cutting operation, push the emergency stop button immediately, which will terminate the operation.
-
Page 17: Adjusting The Air Pressure
Pressure Adjustment Button Oil Depot Manometer Air Pressure and Oil Filling Cap Water Discharge Screw NOTE: Adjust the air pressure between 90-120 psi. The air pressure is read in Bar from the manometer. If the value read on the manometer is the lower or higher than the desired pressure, adjust the pressure between 90-120 psi by turning the air pressure adjustment key to the right or to the left accordingly. - Page 18 WHEN REPLACING THE SAW BLADE MAKE SURE THAT IT ROTATES IN THE CORRECT DIRECTION (MARKEWD WITH AN ARROW ON THE MACHINE BODY) 8 mm key 5.5 HP motor Saw blade flange I Saw blade shaft pulley M10 Bolt Saw blade 600mm (24”) saw shaft M10x35 Bolt...
- Page 19 10. MAINTENANCE 10.1. ROUTINE CONTROLS and MAINTENANCE 10.1.1 BEGINNING OF THE WORK 10.1.1. Ensure that the table and all kind of parts are clean and dry. Degrease and dry the table. Especially ensure that the holding grips are clean and dry. 10.1.2.
-
Page 20: Troubleshooting Guide
11. TROUBLESHOOTING GUIDE Here are some recommendations for solving urgent problems. If the trouble cannot be solved, or if you have a problem other than those described hereunder, please contact our technical service or your nearest dealer. TROUBLE CAUSES REMEDY Low surface quality (at Not cooling the saw blade Lubricating the saw blade cutting...
