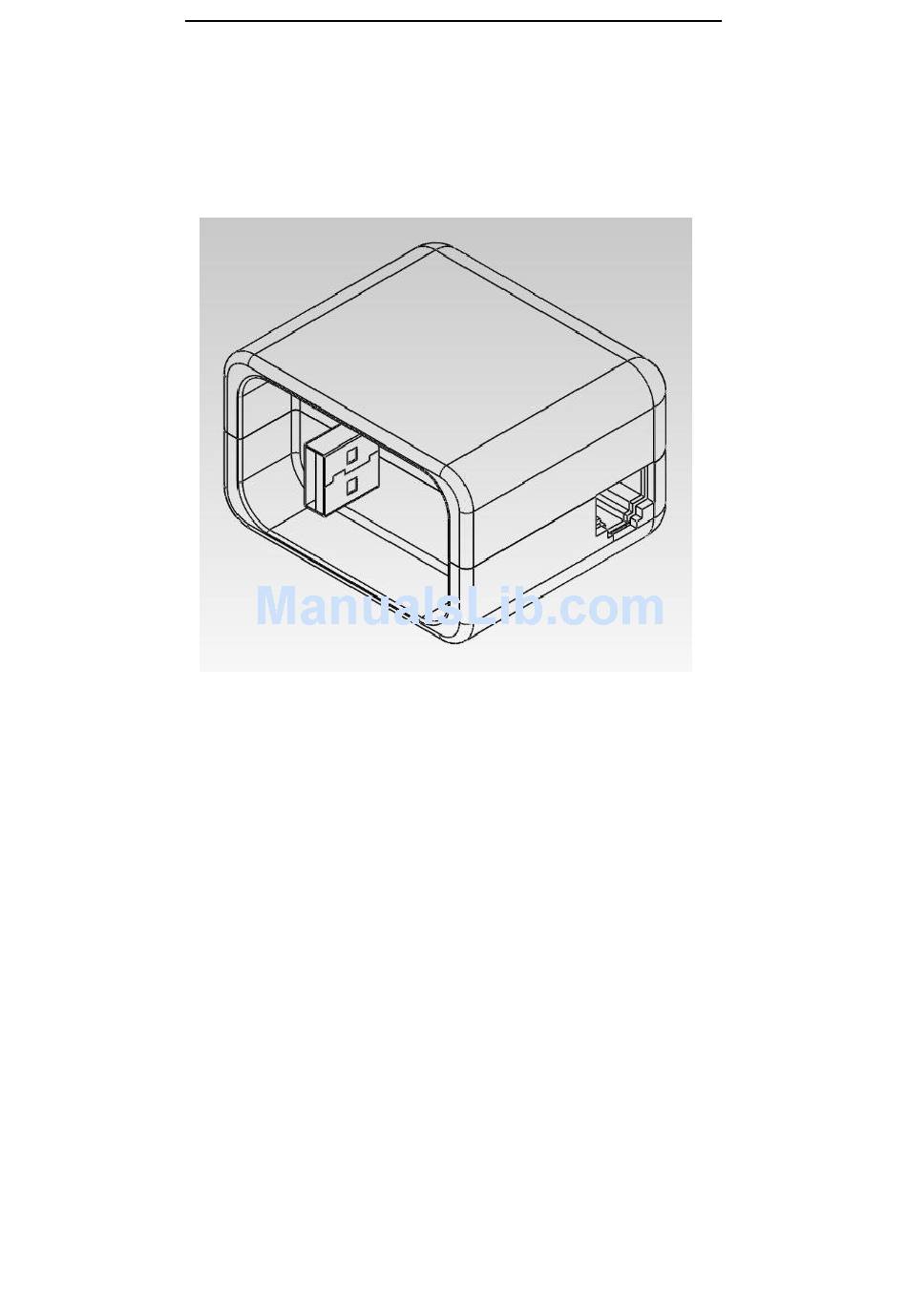

- Page 1 Carry Technology ComWi Quick Guide ComWi (DW06) Quick Guide Copyright © 2011, Carry Technology Co., Ltd. All Right Reserved...
-
Page 2: Table Of Contents
2.3 Interface & LED Indicators Description ……………..……..…….……6 Chapter 3: Wireless and Network Setup ……………...………….8 3.1 Default Network setting for ComWi ……………..…………………8 3.2 Configure Network setting for ComWi … … … … … … … … . . … … … … 8... -
Page 3: Chapter 1: Introduction
1.1 Introduction Thank you for purchasing the ComWi for your iPad accessory. The ComWi Wi-Fi travel router is designed for use with tablets, smart phones, and handheld electronic wireless devices. The ComWi can be powered by power adapter of iPad, can conveniently connect to the internet and share the connection around an average sized room at 150Mbps.The... -
Page 4: Hardware Features
Carry Technology ComWi Quick Guide 1.2 Hardware Features Standard IEEE 802.11b/g/n standards compliant Wireless LAN 1T1R Mode (150Mbps) Antenna Internal PIFA 2 dBi antenna Interface • USB Type-A Plug for iPad Power Adapter • USB Type-A Receptacle for iPad Charger •... -
Page 5: Software Features
Carry Technology ComWi Quick Guide 1.3 Software Features • DHCP Client • Static IP • PPPoE (for ADSL…) • PPTP • L2TP Networking • DHCP Client/Server • Dynamic DNS Wi-Fi • 1 Transmit and 1 Receive paths (1T1R) • 20MHz/25MHz bandwidth •... -
Page 6: Chapter 2: Hardware Installation
2.2 How to start iPad charger function Follow the below steps to enable iPad Charger function: 1. Connect the 30-pin connector of Apple cable to your iPad device. 2. Connect the other end (USB Type-A Plug) of Apple cable to ComWi (USB Type-A Receptacle). -
Page 7: Interface & Led Indicators Description
ComWi Quick Guide 2.3 Interface & LED Indicators Description iPad Power Adapter Hole Type-A Receptacle (RJ-45) 1. PWR LED (Green): Indicates ComWi is Power On for Wi-Fi mode. 2. Wi-Fi LED (Red): Indicates the Wireless LAN is keeping in working stage. - Page 8 Carry Technology ComWi Quick Guide 3. Reset (3Sec) button under the Hole: First, please make sure you had powered on the Wi-Reader and Wi-Fi LED (Red) is keeping in working stage, then you can use a kit to press the Reset button. After pressing 3 seconds, you will see Wi-Fi LED (Red) will turn off.
-
Page 9: Chapter 3: Wireless And Network Setup
Carry Technology ComWi Quick Guide Chapter 3: Wireless and Network Setup This chapter is to describe how to configure Network of ComWi. If you don’t want to update any Network setting, please skip this Chapter (Chapter 3). 3.1 Default Network setting for ComWi IP address 10.10.1.1... - Page 10 Carry Technology ComWi Quick Guide 2. Choose a Wi-Fi Network: “ComWi_xxxxxx” 3. Open iPad / iPhone Native Browser – Safari 4. Enter: http://10.10.1.1/ in URL-address...
- Page 11 Carry Technology ComWi Quick Guide 5. Refer to the following Web U/I and click “Next”.
- Page 12 ComWi Quick Guide 6. LAN Interface Setup The following figure is to show how to configure the parameters for local area network connected to the ComWi. If you don’t want to update LAN Interface Setup, please click “Next” directly to skip it.
- Page 13 For Example: Select PPPoE for ADSL on WAN interface. User Name and Password need to be done and click “Next”. If there is no ADSL network for connecting WAN Port of ComWi, you can keep it in “DHCP Client” and click “Next” directly to...
- Page 14 Carry Technology ComWi Quick Guide 8. Wireless Basic Settings for using different SSID for your ComWi. After updating it, please click “Next” directly.
- Page 15 9. Wireless Security Setting The following figure is to show setting up the security of the ComWi. Turning on the ComWi security will prevent any unauthorized access to the wireless network and. After updating it, please click “Finished” and wait about 20 second for accessing...
-
Page 16: Upgrade Firmware
Carry Technology ComWi Quick Guide 10. Upgrade Firmware The feature allows ComWi firmware to be upgraded to a new version. Please refer to the following figure for updating firmware. It shows the current Firmware version. Select the latest firmware file from the local system like PC/Notebook and click “Upload”.
