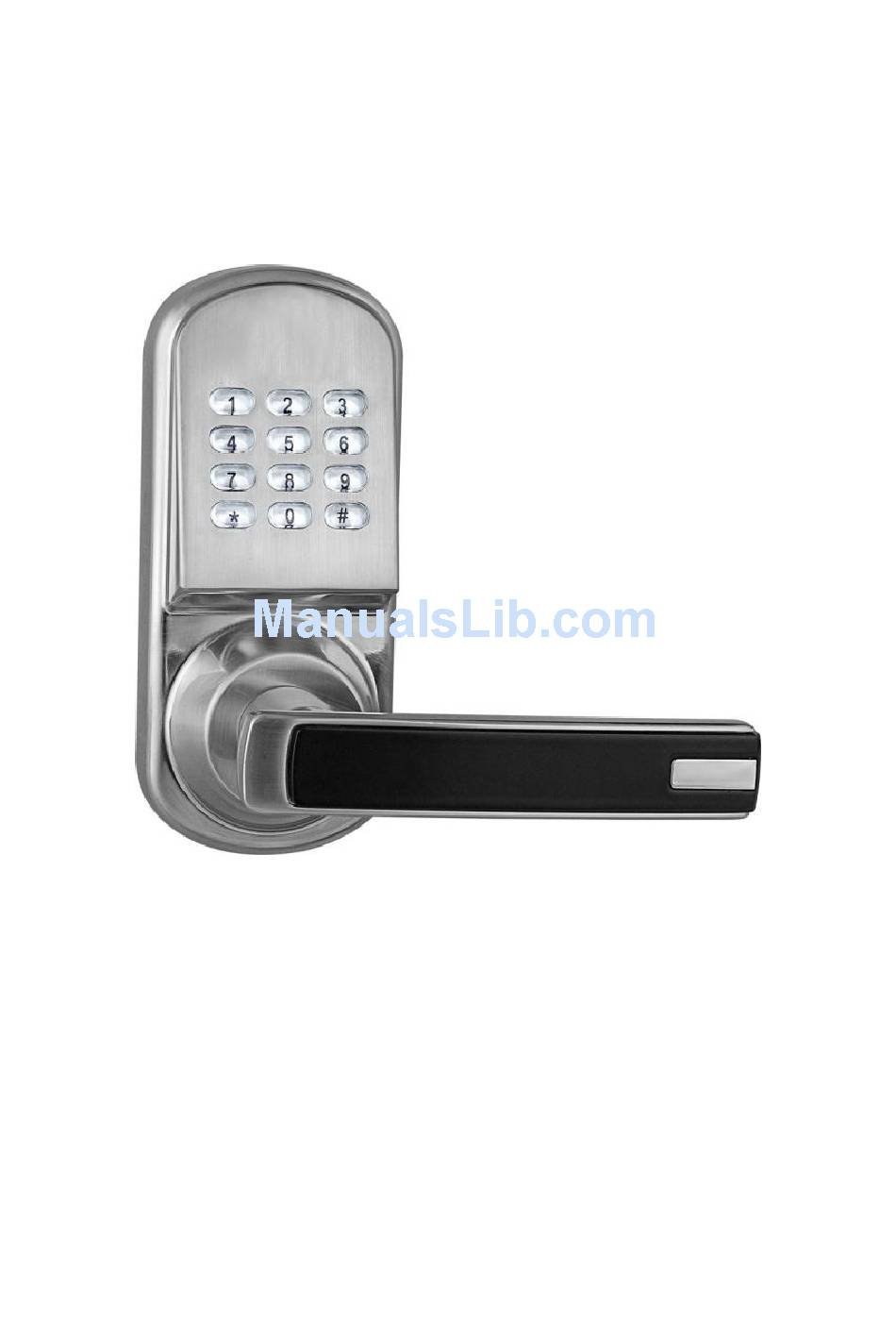

- Page 1 LS-8015-ZW-MM-BG Manual Operation Guide...
- Page 2 LS-8015-ZW-MM-BG General Information: Exit setting mode: Enter * to exit the setting procedure, or wait for 10 seconds Low battery warning: When the voltage drops below 5.2V after entering a valid code, the lock beeps for three times. Unlocking indicator: Music sounds and motor rotate. Locking indicator: Red Light flashing one time, and music sounds and motor rotate.
- Page 3 Types to operate the lock： User code unlock: 6 digits user code Emergency unlock: 8 digits programming code + 9 (for emergency) Wireless :Mobile or PC or PAD Manual key: Turn the override key 90 degree clockwise, then turn the handle Terms: Programming code: 8 digits.
- Page 4 Steps to setup a new lock (please follow the order） Change programming code (For example, change to 23456789) {12345678}+{4}+{23456789}+{23456789} Add user code (For example, add 123456 to the lock) {23456789}+{1}+{123456 }+{123456} Functions Detail 1. How to change programming code (but not delete existing users) Function Code: 4 { programming code}+{4}+{new programming code}+{new programming code}...
- Page 5 Please be noted that the lock will not accept any user code but programming code only in vacation mode. {programming code}, disable vocation mode. 7. How to enable button beeps (on & off) Function Code: 6 {programming code}+{6}, toggle beep on/off. 8.
- Page 6 If the lock has not been enrolled with any other gateway, lock sounds a short beep after 50sec indicating unenroll unsuccessfully. Unenroll operation is unnecessary. After restore factory default, the enroll status of Z-Wave is still effective. Z-wave Generic Information ：...
- Page 7 Device Support Command Class Included Included Included Included Included Included as no- as no- 设备支持的命令类 secure secure secure secure secure secure node, node, node, node, node, node, Anti- Security Anti- Anti- response theft response support theft theft protect, response protect, protect, Security response...
- Page 8 BASIC SET ON(0xFF) and OFF(0x00) command while vacation mode is enable and disable. COMMAND_CLASS_CONFIGURATION Device reserves 255 bytes memory store space use for upper application. Upper application could access the memory by configuration command class, default setting always set to zero (0x00) , parameter size always set to one (0x01), parameter possible value could be from 0x00 to 0xFF which is decided by upper application.
