One Tech Nightshot HD DV User Manual

1080p@30fps full hd video recording
Hide thumbs
Table of Contents

Advertisement

Quick Links

Nightshot HD DV
User Guide
Ver1.0-20140623

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Nightshot HD DV and is the answer not in the manual?

Questions and answers

Summary of Contents for One Tech Nightshot HD DV

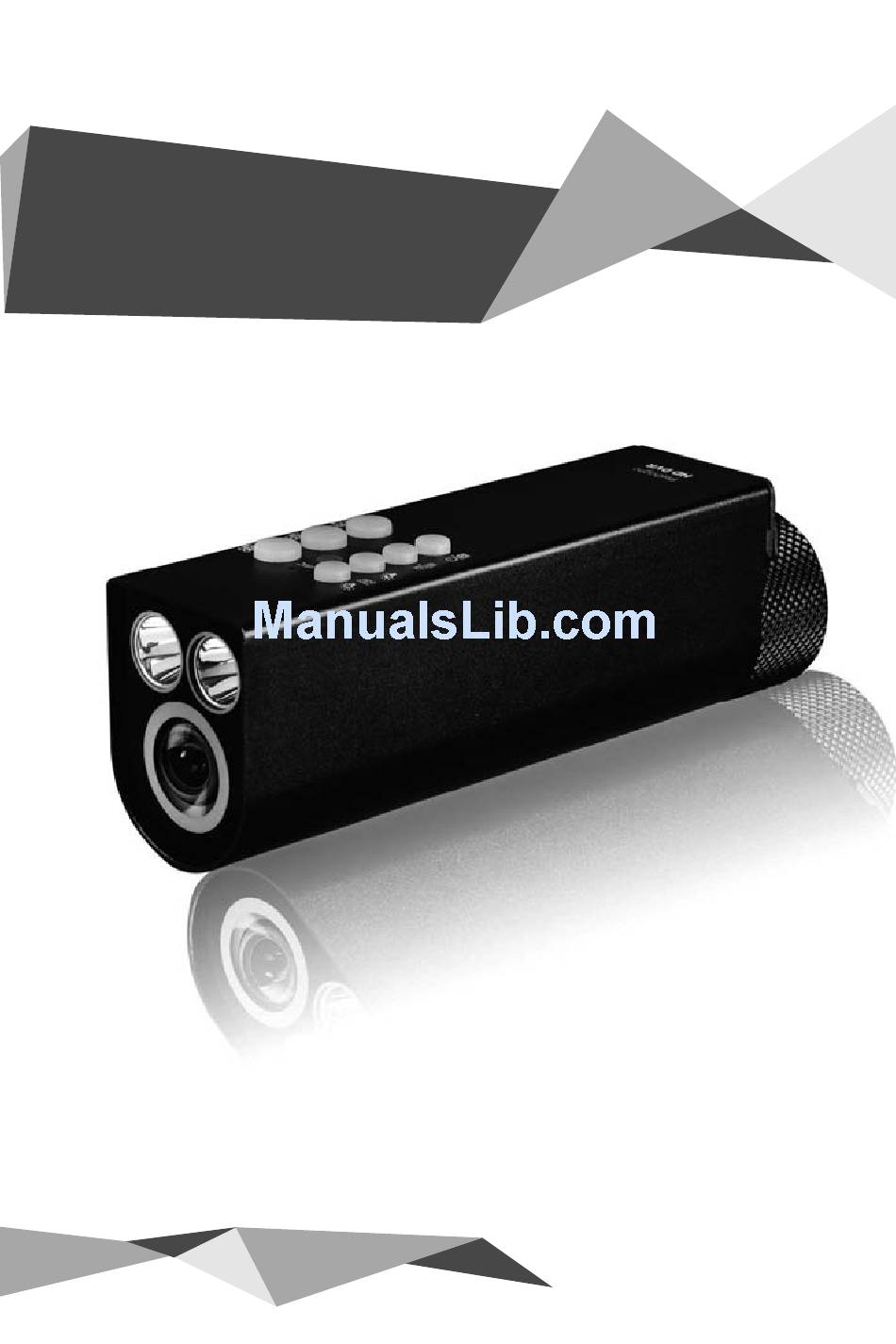

  • Page 1 Nightshot HD DV User Guide Ver1.0-20140623...
  • Page 2 Content...
  • Page 3 1. The declaration Thanks for your purchase of our product, before the product use, please read this manual carefully. One shall use this product strictly according to the instructions in this manual, Especially one can not violate the contents restricted in 'Prohibitions and warnings'.

  • Page 4: Product Introduction

    • Warning: Please keep the use and storage of products and accessories under the humidity between 20%-80%. • Warning: The product can only prevent small amount of water splash and is not completely waterproof. • Warning: Do not use the product under very dusty environment. •...

  • Page 5: Structure Overview

    4. Structure overview Item Description LED button-1 controls the two highlight LEDs according to the sequence of shutdown - weakest - weaker - stronger - strongest – shutdown. LED button 1 Meanwhile, it can also be used with another button to turn on/off the SOS LED button-2 controls the two highlight LEDs according to the sequence of shutdown - strongest - stronger - weaker - weakest –...
  • Page 6 In recording mode, this button can be used to start/stop the 1080p@30FPS ordinary recording or start/stop 1080P time-lapse recording. 1080P Video REC / Left In video/picture playing back mode, this button can be used to select the button can fast rewind the video. In parameter settings mode, this button can be used to select setting items or adjust parameters.
  • Page 7 5. Indicator lamps overview Mode&Status indicator: Indicator Color Status of Indicator Descriptions Red + Blue + Green Solid light Booting and initializing. Alternate and quick Abnormal memory card (no card, damaged card or full Red + Blue + Green card). Formatting the memory card.
  • Page 8 6. Operation guide 6.1. Turn on/off Turn on: • Hold down the button for about 3 seconds, then release. • When red, green and blue lights are illuminated simultaneously, it means that the DV is being initialized. • When the green indicator shows solid light and gives vibrating alert, it means that the booting is completed.

  • Page 9: Taking Photos

    • Press the button again, the recording stops. The indicator light turns to green and shows solid light, vibrate twice. 1080P time-lapse video recording: • When waiting for recording after booting, the green indicator shows solid light. • Press down the button for 3 seconds, time-lapse recording begins.
  • Page 10 Capture pictures when recording videos: • When recording videos, you can capture static pictures at any time. • Press the button once, capture a picture. • When capturing pictures the green light flashes quickly, .After capturing, the indicator light will return to the original state. Note: •...
  • Page 11 Play the Video: • In video playback mode, the functions of relevant buttons are as follows: Select the previous video: Select the next video: Play the video: Pause the video: press this button. press this button. Press this button. Press this button again. Play the photos: •...
  • Page 12 Select the previous Select the next picture: Full-screen display: Exit full-screen display: picture: press this button. press this button press this button again press this button. Delete videos or photos: • • Press this button with left/right button. • Press this button , Complete the operation.
  • Page 13 Play the Video: • Press the button to enter video playback mode. • In video playback mode, the functions of relevant buttons are as follows: Select the previous video: Select the next video: press this button. press this button. Play the video: Pause the video: FR in video play: FF in video play:...

  • Page 14: Parameter Settings

    • Press the button and enter photo playback mode. • In photo playback mode, the functions of relevant buttons are as follows: Select the previous Select the next picture: Full-screen display: press Exit full-screen display: picture: press this button. this button press this button again press this button.
  • Page 15 After the above menu appears, the functions of relevant buttons are as follows: Press this button to exit Menu interface : Menu interface : Menu interface : settings Select the previous item. Select the next item. Enter the selected item. Close the settings menu: Settings interface: Settings interface:...

  • Page 16: Set The Time

    Set the time: • Connect the recorder to a computer. • Create a txt document in the root directory of the storage card, and named it 'time'. • Input the date and time you want. Please pay attention to type the correct separator and spaces, in which separators support English half-angle "-", "."...
  • Page 17 Time watermark refers to the recording date and time Timestamp (Time Watermark) MaxRecordTime In the process of recording, according to setting values, (Time of Automatic Video Segmentation) Unit: min. It suggests the photo resolution and its pixel. 2: 2M pixel. ImageSize 3: 8M pixel.
  • Page 18 If the light is too bright, you can reduce a level at any time. If the light is not bright enough, you can increase a level. If you don t want to press many times to turn off the light, you can press down either of the two buttons to turn it off directly.
  • Page 19 • again at the same time off directly ( When you are in danger, energy should be used economically. Thus, SOS functions provide two levels of brightness strong and weak, for you to choose according to the actual situation. After turning on SOS, the way to adjust light intensity is: •...

  • Page 20: Replace The Battery

    • powers. • After fully charged, the battery is taken out. Pull the charger out from the socket and place it properly. 6.12. Replace the battery If you want to replace the battery, please rotate the bottom cover as shown in the picture---positive faces inside and negative outside, and screw in the cover.
  • Page 21 abnormal state. Please eliminate the abnormalities according to the following steps. • Reason: No card is inserted. • Solution: Insert a memory card. • Reason: The card is full. • or replace it with a new card. If loop recording is set, the device will not prompt if •...
  • Page 22 7.7. Other Unknown Errors For other abnormal conditions, please refer to Notes in corresponding operation parts. Basically, all the descriptions and solutions about the abnormal conditions of this product have been covered. If you still fail to solve the problem, please consult the local dealer.
