Summary of Contents for POPCORN HOUR Transformer

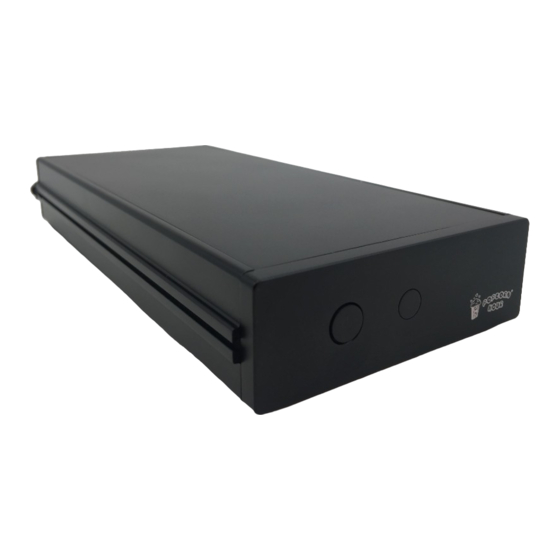

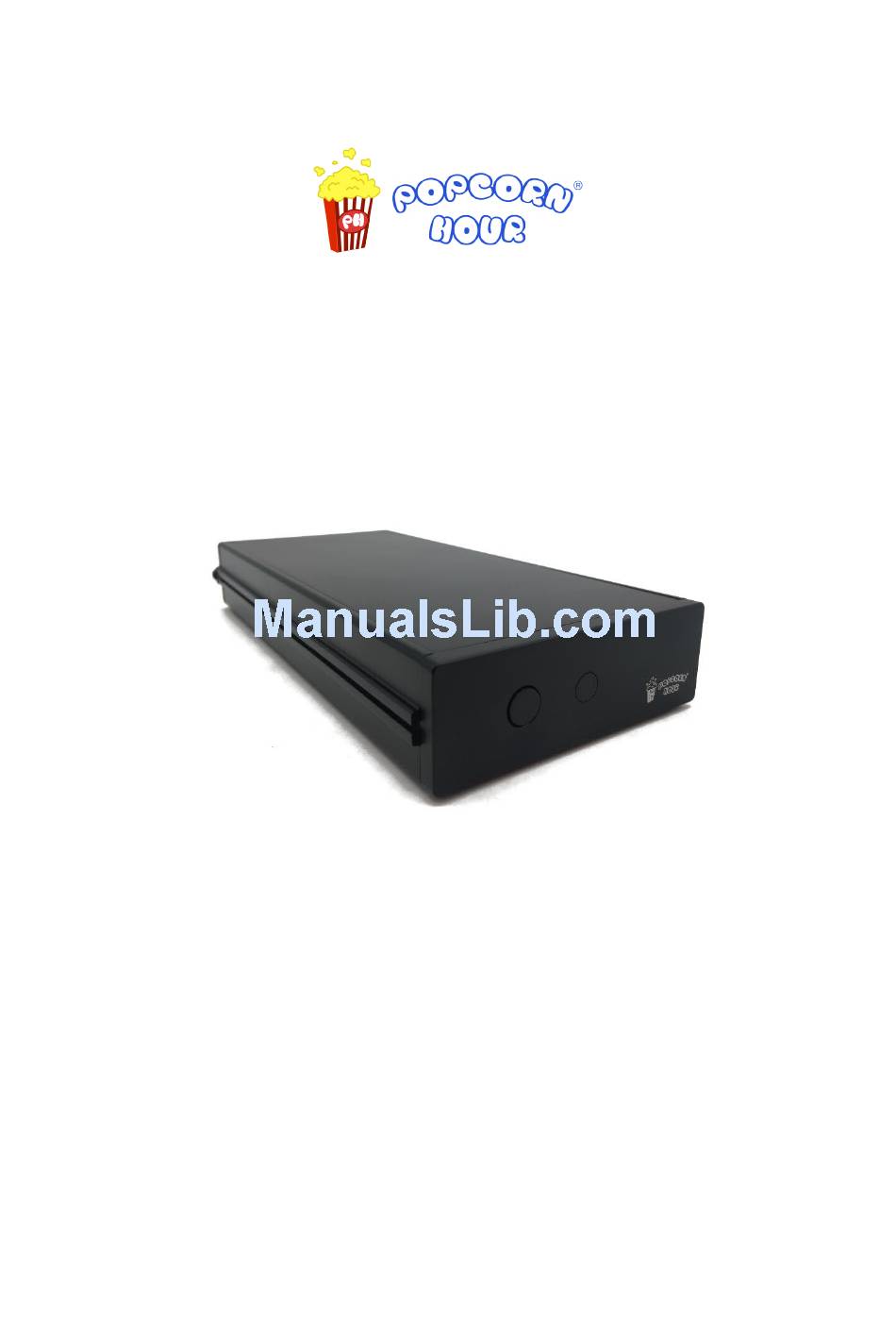

- Page 1 Popcorn Hour Transformer Media Computer User Manual - Revision 1.0...
-
Page 2: Table Of Contents
2. Package Content......................... 2 3. Safety Notes..........................3 4. Hardware Specifications......................4 5. Getting Started..........................4 5.1 Popcorn Hour Transformer Media Computer Overview.............4 5.2 Connecting to TV via HDMI.......................4 6. Remote Control........................... 6 7. Android Home..........................6 8. Android Settings.......................... 8 8.1 Wi-Fi Settings.......................... -
Page 3: Introduction
Popcorn Hour Transformer Media Computer 1. Introduction Popcorn Hour Transformer Media Computer is an Open Source 4K HDR Android Player Machine. Android 7.1.2 • 4K 10bits 30fps H.264 • 4K 10bits 60fps H265 HDR10/HLG • BT.2020 • Build in RKMC (Rockchip optimized media center forked from Kodi 16.1) •... -
Page 4: Safety Notes
Popcorn Hour Transformer Media Computer 5V3A Power Adapter + US/EU Power Cable IR Remote Control 3. Safety Notes Read these operating instructions carefully before using the unit. Follow the safety instructions on the unit and the applicable safety instructions listed below. Keep these operating instructions handy for future reference. -
Page 5: Hardware Specifications
• Audio Jack (Analog Stereo or Optical S/PDIF) • Infra Red Receiver and Remote Control • High Quality Aluminum Casing with Passive Cooling Fins 5. Getting Started 5.1 Popcorn Hour Transformer Media Computer Overview Front and Side Rear Back Rear 5.2 Connecting to TV via HDMI 5.2.1 What do you need... - Page 6 • 5.2.2 Connect HDMI Cable Connect the HDMI cable to your TV HDMI terminal and the other end to your Popcorn Hour Transformer Media Computer. Note: Some HDMI TVs have input and output HDMI terminals. Please make sure the HDMI terminal is connected to input rather than output.
-
Page 7: Remote Control
Popcorn Hour Transformer Media Computer 6. Remote Control POWER In STANDBY mode: Press once to turn ON the device. In ON mode: Press once to turn the device to STANDBY. INTERNET Go to web browser. MUTE Mutes the audio output. - Page 8 Popcorn Hour Transformer Media Computer Play Store - Official app store app by google.com which you can use to find and install • Android apps. Apps - Showing all the installed Android apps. • FileExplorer - Application to browse and manage your local storage files (e.g. Folders/files •...
-
Page 9: Android Settings
8.1 Wi-Fi Settings If you would like to setup your Wi-Fi wireless connection, first, plug in your USB Wi-Fi dongle (e.g. RTL8812AU, RTL8188EU) before boot up your Popcorn Hour Transformer Media Computer, then go to: [Android] Settings => Network => Press on "Wi-Fi" to enable => Select your "Wi-Fi SSID Name"... -
Page 10: Display Settings
Popcorn Hour Transformer Media Computer 8.2 Display Settings To manage your TV display (e.g. Resolution, Zoom and etc), please go to: [Android] Settings => Display. 8.3 Audio Settings To manage your audio settings (e.g. HDMI audio output, HD Audio or S/PDIF passthrough through Amplifier), please go to: [Android] Settings =>... -
Page 11: More Settings
Popcorn Hour Transformer Media Computer Default Output - For normal HDMI audio output • Spdif Passthrough - For S/PDIF passthrough through amplifier • HDMI Bitstream - For Audio or HD Audio passthrough through amplifier • 8.4 More Settings You can access to more Android settings by going to: [Android] Settings =>... -
Page 12: Fileexplorer
Popcorn Hour Transformer Media Computer 9. FileExplorer You can use FileExplorer app to browse and manage your local storage (e.g. microSD Card, eMMC, HDD or USB Drive) and Windows Samba shared (NetHood) folders and files. Highlight on the specific folder or file and press on the MENU button on your Remote Control to bring up the context menu (e.g. -
Page 13: Rkmc Audio Channels Settings
Popcorn Hour Transformer Media Computer Next, set the Settings level at the bottom of the left menu to "Advanced". Then, go to Playback and set "Adjust display refresh rate" to "Always". 10.2 RKMC Audio Channels Settings If your audio output through Amplifier with more than 2 channels/speakers (e.g. 7.1 channels), then you can set the settings on: [RKMC] SYSTEM =>... -
Page 14: Rkmc Audio Passthrough
Popcorn Hour Transformer Media Computer 10.3 RKMC Audio Passthrough If you are using Amplifier then you may want to enable audio passthrough: [RKMC] SYSTEM => Settings => System => Audio output => Enable passthrough. Note: Make sure the Settings level at the bottom of the left menu is set to "Advanced". - Page 15 Popcorn Hour Transformer Media Computer You can either directly access to the locally connected HDD and USB Drive or use the "Add videos..." and "Browse" to add videos from other sources. You can use the left menu to access to other options and operations on Video.
-
Page 16: Rkmc Music
Popcorn Hour Transformer Media Computer While highlighting a folder or file, use the MENU button on your Remote Control to bring up the context menu to access to other options and operations on the selected folder or file. For example, "Set content" is used to add your videos folder into the Movie and TV Series library (jukebox). - Page 17 Popcorn Hour Transformer Media Computer You can either directly access to the locally connected HDD and USB Drive or use the "Add videos..." and "Browse" to add music from other sources. You can use the left menu to access to other options and operations on Music.
-
Page 18: Media Center
Popcorn Hour Transformer Media Computer While highlighting a folder or file, use the MENU button on your Remote Control to bring up the context menu to access to other options and operations on the selected folder or file. For example, "Scan item to library" is used to add your music folder into the Music library (jukebox). -
Page 19: Media Center Nfs
Popcorn Hour Transformer Media Computer 11.1 Media Center NFS To add an NFS shared folder, press on the MENU button on your Remote Control to bring up the context menu and select "Add NFS device". Fill in the NFS Server Address and press the OK button. - Page 20 Popcorn Hour Transformer Media Computer © 2001 - 2018 Cloud Media. All Rights Reserved...
