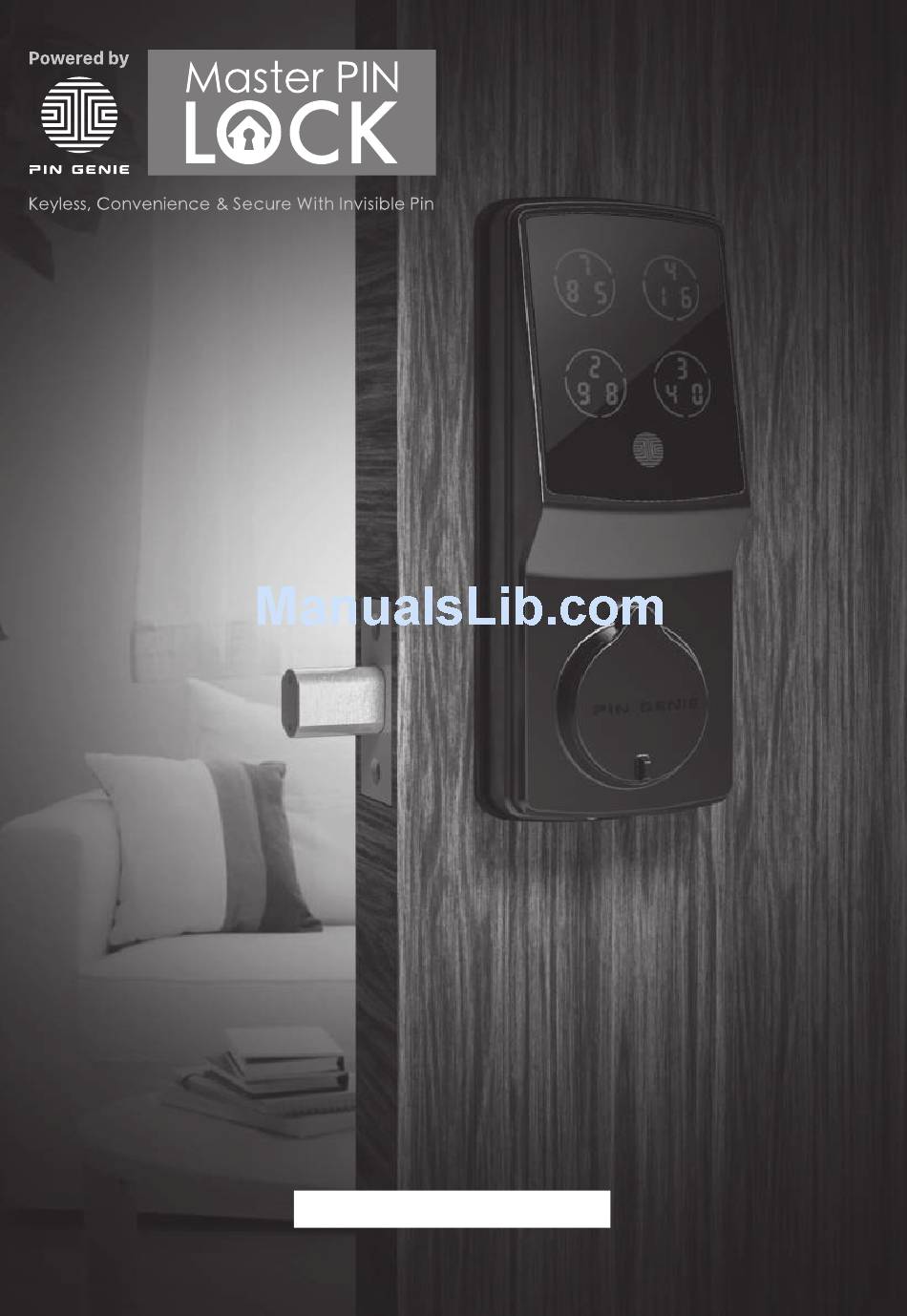

PIN Genie Smart Lock
User Manual
Thank you for choosing our PIN Genie product.
Please read this manual carefully to ensure the Smart Lock is used safely and reliably.
You should keep it for future reference and maintenance.
Model No. PGD718 / PGD728
U.S. Patent No. 9,665,706

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PGD718 and is the answer not in the manual?

Questions and answers

Related Manuals for Pin Genie PGD718

Summary of Contents for Pin Genie PGD718

  • Page 1 PIN Genie Smart Lock User Manual Thank you for choosing our PIN Genie product. Please read this manual carefully to ensure the Smart Lock is used safely and reliably. You should keep it for future reference and maintenance. Model No. PGD718 / PGD728...
  • Page 2 PGD 718 / PGD728 Smart Lock is keyless and equipped with the patented innovative PIN Genie Pad, which is peep proof and hidden camera proof. It is with a high security level that even when people watch you entering your PIN, they will not be able to know it.

  • Page 3: Table Of Contents

    Section 2 Introduction of the smart lock 2.1 Components 2.2 Setting switch 2.3 Reset 2.4 Display keypad switch 2.5 Restart 2.6 PIN GENIE button 2.7 Changing the battery Section 3 Programming Passcode 3.1 Passcode information 3.2 How to enter settings 3.3 Add Passcode 3.4 Delete Passcode...

  • Page 4: Section 1 Installation Instruction

    Section 1 --Installation Instruction Installation overview Assembly parts...

  • Page 5: Prepare Door And Check Dimensions

    Prepare door and check dimensions If drilling a new door, please use the template supplied. 1/2" 12mm * Drill hole 3-109/127"(98mm) 2-3/8"(60mm) 2-3/4"(70mm) 1" 2-1/8" 25mm 54mm 1-3/8"—2" (35mm—50mm) * Drill hole Adjust the backset of latch Hold the latch in front of the drilled hole as shown below. If the latch holes are centered in the drilled hole, no adjustment is needed.

  • Page 6: Extend The Bolt

    Extend the bolt Install latch Extend the latch bolt as shown. P(2X) Pay attention to the direction of the latch. Prepare exterior assembly Vertical Take out the screw which When the bolt is extended, the is being used for fixing torque blade should be kept in the cylinder during transit a vertical position.

  • Page 7: Install Exterior Assembly

    Install exterior assembly When the bolt is extended, the torque blade should be kept in a vertical position. Note: Please use the physical key to rotate the torque blade Cable goes underneath latch in vertical position and then pull out the key. Center hole Side hole Route cable through center hole, then push it into side hole.

  • Page 8: Install Interior Assembly

    Install interior assembly Open the battery compartment by unscrewing the screw and remove the cover. Note: Do not install batteries yet! Connect the cable. Pay attention to the direction and ensure tight cable connection. Make sure thumbturn is in the vertical position.

  • Page 9: Install Batteries

    Install batteries Install strike 1.10 1.11 Install 4 new AA batteries. Make sure batteries are correctly oriented. Before installing the last battery, press and hold “Program” button until you finish, then you will hear a long beep. Once you release the button, the latch will automati- P(2X) cally do a self-check and the display keypad will play boot animation.

  • Page 10: Section 2 Introduction Of The Smart Lock

    Key Hole Key Hole Cover Restart Button Thumbturn Reset Button Display Keypad Switch Program Button Back-up Battery Socket Setting Switch Siren PIN GENIE Button Note: When Model728 APP is enabled, the RESET, PROG will be disabled and controlled by APP.

  • Page 11: Setting Switch

    Specifications Certifications Finishes: Polished brass, Bronze, Satin Nickel Function: Single cylinder deadbolt Door Prep: 2 1⁄8” diameter face hole & 1” diameter FCC Certified latch hole This device complies with Part 15 of the Door Handing: Reversible FCC Rules. Operation is subject to the Door Thickness: 1 3⁄8”...

  • Page 12: Reset

    报警功能开启状态 报警功能开启状态 Successfully disarm. Press and hold any two circles Alarm mode ON Alarm mode OFF on the screen for 1.5 seconds. The circles you pressed will flash and you will hear a long BEEP. Reset Reset: Restore the smart lock to factory default setting. Use a stick-like object such as a clip, toothpick etc.

  • Page 13: Restart

    Reboot: Press and release the restart button. The smart lock will beep once and restart. The smart lock is ready for use again. Note: No setting will be changed. Restart Button PIN GENIE button Status Indicator Alarm system triggered Quick flashing green and red light...

  • Page 14: Section 3 Programming Passcode

    Battery Icon on the display keypad outside will light up to indicate low Replace batteries immediately to battery . The PIN GENIE button avoid battery failure. Smart lock can Batteries low on the back will flash red at the same still be operated for approximately time.

  • Page 15: How To Enter Settings

    How to enter settings Press the “Program” button and the screen will be activated. The setting page is as shown below. Number Mode Add Passcode Delete Passcode Check Passcode OK Button PROGRAM BTSwitcher (PGD728) Alarm Sensitivity • To end, press the “Program” button at any time. •...

  • Page 16: Delete Passcode

    If the passcode you entered twice match, it will be displayed on the screen for your final confirmation. Press . Your passcode is now set. To quit, press "OK" or Input Y to confirm Setting page • If the passcode entered twice does not match, an error message will appear for a second.

  • Page 17: Check Passcode / Btswitcher (Pgd728)

    Press to delete. Press to end. Hold down the OK button Press to switch Confirm deletion Note: There are two situations that users could not delete passcode. • If there is no passcode preset, the delete passcode mode will be invalid. The default passcode will not be shown on the display key pad.

  • Page 18: Alarm Sensitivity

    No passcode preset BTSwitcher (PGD728) Passcode enquiry function valid only on PGD718. On PGD728, this menu is for BlueTooth ON/OFF switch through OK button. Touch OK to exit this menu. Alarm Sensitivity Press “Program” button and the Press "4"...
  • Page 19 No passcode preset When the alarm system is triggered, the OK button will begin to flash. At the same time, the PIN GENIE button on the back will rapidly flash a green and red light. To deactivate the alarm, you can:...

  • Page 20: Section 4 Locking And Unlocking The Door

    Section 4 --Locking and unlocking the door Unlock from outdoor 1. Slide your hand across the screen to activate it. · Enter the passcode within 1 minute. If you mistakenly enter the wrong digits, press OK to re-enter. · If the passcode entered is correct, the door will be unlocked.
  • Page 21 • If the code entered twice is correct, the door will be unlocked. If not, it will lead to a 10-minute disabling period. First wrong attempt: leads to a 10-minute disabling period. • After 10 minutes, it will go back to safe mode again. Repeat steps to unlock under safe mode.

  • Page 22: Unlock & Lock From Indoor

    Unlock & Lock from indoor Lock from outdoor Rotate the inside thumbturn as below. Under Auto Lock mode, the smart lock will automatically relock the door 30s after unlocking. Alternatively you can press the OK button to lock the door. Automatic lock press the OK button to lock the door.
