Summary of Contents for DV Power BAC25A

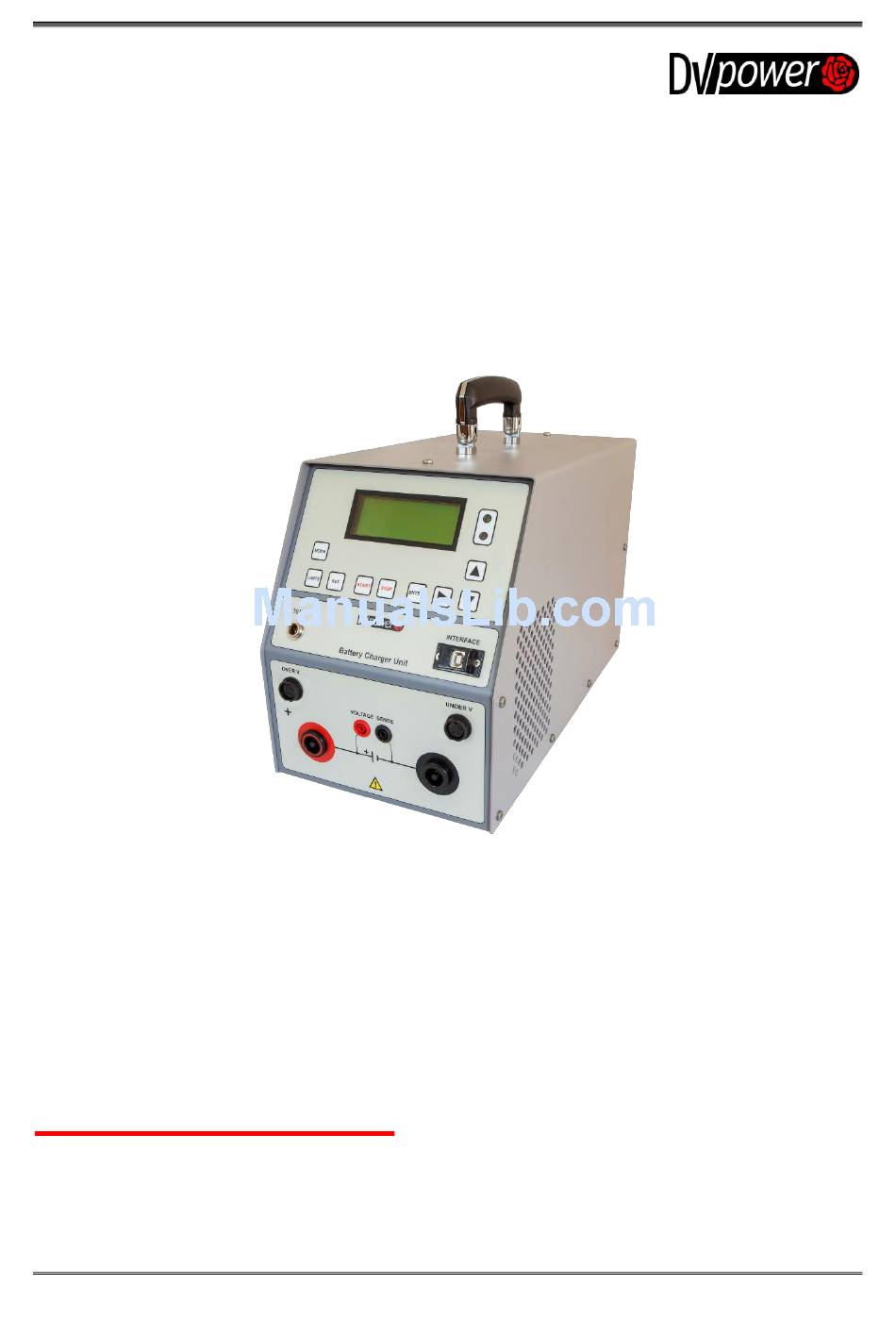

- Page 1 Battery Charger BAC25A BATTERY CHARGER BAC25A Manual Manual Version: M-B025CN-300-EN This Manual refers to the firmware version 2.xx Publishing date: 2016-03-22 M-B025CN-300-EN...
-
Page 2: Table Of Contents
Battery Charger BAC25A Contents 1. Introduction ..........................3 1.1 S ..........................3 AFETY NSTRUCTIONS 1.1.1 Safety terms and symbols ......................3 1.1.2 Terms of Use ..........................3 1.1.3 Orderly Practices and Procedures ....................4 1.1.4 Device Maintenance ........................4 1.1.5 Operator Qualifications ....................... -
Page 3: Introduction
1.1.2 Terms of Use • The BAC25A shall be used only if it is in good technical condition. Its use shall be in accordance to local safety and industrial regulations. Adequate precautions must be taken to avoid any risks related to high voltages associated with this equipment and nearby objects. -
Page 4: Orderly Practices And Procedures
Do not operate the BAC25A if explosive gas or vapors are present. • When setting up the BAC25A, make sure that the air slots of the test set remain unobstructed. • Removing the BAC25A protective casing will void the warranty. Any work inside the instrument without prior authorization from DV Power will also void the warranty. -
Page 5: Power Supply
(e.g. L1-L2; A-B). However, the voltage must not exceed 264 V AC. Please refer to the “Technical Data” section. • The BAC25A should be positioned in such a way that it is possible to disconnect it from the power supply safely at any moment. WARNING / AVERTISSEMENT This is a class A product. -
Page 6: Intended Use
The Battery charger Unit BAC25A is a stand-alone instrument designed for charging primarily Lead-Acid and Ni-Cd batteries. BAC25A is intended to support the main charger in order to charge battery much faster or to quickly recharge a battery following a discharge test. It is used for charging batteries that serve as backup power supply in: •... -
Page 7: Description
Manual BAC25A 2 Description 2.1 Front Panel Components 1. Display Displays the settings during the device charging mode selection as well as the measured values during and after charging operation. 2. Keyboard Used to control the device. • UP/DOWN buttons are used to navigate through the active menu and to set the charging parameters. - Page 8 The USB PC interface enables firmware loading. A USB cable is provided as an accessory. 6. Alarm Overvoltage Alarm overvoltage channel is used for connecting the BAC25A with an external ALARM buzzer. If unexpected overvoltage occurs, the external alarm will be activated.
-
Page 9: Mains Power And Protective Earth Connectors
Connects the BAC25A to the mains power supply with a power cord. Power switch – Double pole switch I - In this position, the BAC25A is connected to the mains power supply. 0 - In this position, the BAC25A is separated from the mains power supply. -
Page 10: Getting Started
Manual BAC25A 3 Getting Started 3.1 Connecting BAC25A to Test Object Before the BAC25A has been connected to a test object (e.g. a battery), the following steps must be taken: • The battery should be examined for any visual damages or liquid leakage. -
Page 11: Setting Test Parameters
3.2 Setting Test Parameters After the BAC25A device is switched on, the initial message informing the user about name of the device and installed firmware version is displayed, Figure 3-2. Figure 3-2: The initial screen After the initial screen is being displayed for several seconds, the BAC25A changes the display to the main menu and the green LED lights up. -
Page 12: Mode Menu
25 A. The BAC25A sets automatically the value of Charge U and Charge I parameters depending on the battery voltage being measured. The Charge I current is set as maximum respecting the battery voltage level. - Page 13 Manual BAC25A Charge U parameter will be set on the value approximately 2% higher than the battery voltage being measured. The automatically set values are not obligatory for the charging and can be changed by the user. NOTE: In case of a mains power supply interruption, the charging will be postponed until the supply is restored.
-
Page 14: Limits Menu
Boost I. Boost current represents the maximum current (current limit) value at which the BAC25A will boost (equalize) the battery. The BAC25A sets automatically the value of Boost U and Float U parameters depending on the battery voltage being measured. If the device is / remains connected to the battery charged in the previous test, same values of Boost U and Float U parameters as in the previous test will be set. -
Page 15: Set Menu
The charging process will stop automatically if any of the following parameters reaches its pre-set value: STOP U, STOP I and STOP T (Figure 3-9). However, when Boost T parameter is reached in UU mode, the BAC25A will switch to Float charging without interrupting the test. Figure 3-9: STOP messages The ENTER button is used to confirm limit values after the parameters are enabled and set. - Page 16 Manual BAC25A Figure 3-10: The Settings menu The UP and DOWN buttons are used for navigation and ENTER for entering the chosen submenu. Alarm values are the first parameters to be set. After entering the SET ALARM submenu, the instrument switches to the following screen:...
-
Page 17: Charging
Manual BAC25A Figure 3-12: The Time and Date menu The RIGHT button is used for navigation, and UP / DOWN buttons to set desired values of time and date. Date format can be changed by pressing UP / DOWN buttons when cursor is placed on the FORMAT parameter. - Page 18 Manual BAC25A Figure 3-14: The Ready to charge screen Up to two enabled limits can be displayed on the Ready to charge screen for final, pre-test verification. If the user needs to modify any limit settings before the charging is started, STOP button should be pressed to exit the Ready to charge screen (which will enable the LIMITS button).
- Page 19 Manual BAC25A The alarm settings can be reset by pressing the SET button during the charging, which displays the ALARM menu (Figure 3-18). Figure 3-18: The Alarm menu Changes are confirmed by pressing ENTER and the display switches back to the Charging screen.
-
Page 20: Uu Mode
Manual BAC25A 3.3.2 UU mode Once the parameters are set in the main manu, ENTER should be pressed to confirm the selection and Ready to charge screen will be displayed (Figure 3-21). Figure 3-21: The Ready to charge screen Up to two enabled limits can be displayed on the Ready to charge screen for final, pre-test verification. - Page 21 Manual BAC25A Figure 3-24: The Limits menu The alarm settings can be reset by pressing the SET button during the charging. The ALARM menu is displayed (Figure 3-25). Figure 3-25: The Alarm menu Changes are confirmed by pressing ENTER and the display switches back to the Charging screen.
-
Page 22: Charging Parameters
Manual BAC25A Figure 3-27: STOP messages The charging will not be terminated in case Boost T parameter is reached. The BAC25A will switch to the Float charging while corresponding message is displayed. Figure 3-28: The Float charging message 3.3.3 Charging Parameters The maximum charging current for a certain battery voltage range, with the minimum achievable cell voltage of 1,75 V is shown in the Table 3.1. -
Page 23: Charging Rates
Manual BAC25A Table 3.2: Maximum currents for various battery voltages at 110 V mains power supply Battery Min-Max Max. charge voltage voltage current 10,5 V 12 V 20 A 14,1 V 21,0 V 24 V 20 A 28,2 V 42,0 V... -
Page 24: External Alarm Function
Manual BAC25A 4. External Alarm Function This function is provided and controlled by a relay connected to a connector called “UNDER V” and “OVER V”(the figure below). This connector and the adequate cable are used for connecting to the external alarm or battery control panel. The relay specifications are 8 A, 24 V. -
Page 25: Alarm Messages
The sound can be stopped by pressing the STOP button. Figure 5-2: Alarm message "Undervoltage" Note: If the external alarm for overvoltage and undervoltage is not used, the internal BAC25A alarm buzzer will be activated the same way instead in all the above scenarios. M-B025CN-300-EN... -
Page 26: Error Messages
Manual BAC25A 6 Error Messages Any operational error is indicated by the red LED blinking and accompanied by an alarm buzz. Furthermore, the display indicates an error status message. To stop the alarm buzz, the status message should be removed from the display. Return to the starting menu by pressing STOP. -
Page 27: Error Message "Overheat
Figure 6-4: Error message "Overheat" 6.5 Error message "Malfunction" If this message is shown on the display, or if BAC25A cannot operate anymore at all, a serious internal error occurred. Please do not open BAC25A without permission and instructions given by IBEKO Power AB. -
Page 28: Customer Service
Manual BAC25A 7 Customer Service Before calling or sending an e-mail to Customer Service for assistance, please take the following steps: • Check all cable connections. • Try the test on another instrument, if available. • Perform the troubleshoot procedure. -
Page 29: Packing The Instrument For Shipment
Manual BAC25A 8 Packing the Instrument for Shipment If you need to send the instrument to DV Power for servicing, please contact the DV Power Customer Service for return instructions at: Local support (Sweden): +46 8 731 78 24 International support: +46 70 0925 000 E-mail: support@dv-power.com... -
Page 30: Technical Data
Manual BAC25A 9 Technical Data 9.1 Mains Power Supply • Connection according to IEC/EN60320-1; C320 • 90 V – 264 V AC, 50 / 60 Hz, single-phase Voltage • Power consumption up to 3 200 VA • Fuse 20 A / 230 V, type F 9.2 Output Data... -
Page 31: Accessories
Manual BAC25A 10 Accessories Included Article No Mains Power cable Ground (PE) cable Recommended Article No Current cables 2 x 5 m 6 mm (16.4 ft, 9 AWG) with alligator clamps (A2) C2-05-06LMA2 isolated Device bag DEVIC-BAG-00 Cable bag CABLE-BAG-00... -
Page 32: Manufacturer Contact Information
Manual BAC25A IBEKO Power AB 2016 This Manual is a publication of IBEKO Power AB, 181 50 Lidingö, Sweden. These documents are protected by Swedish Copyright law and international contracts as intellectual property of the IBEKO Power AB. The documents contain confidential information of IBEKO Power AB which is protected by patent, copyright, trademarks or otherwise as inventions, trademarks or creations of IBEKO Power AB.
