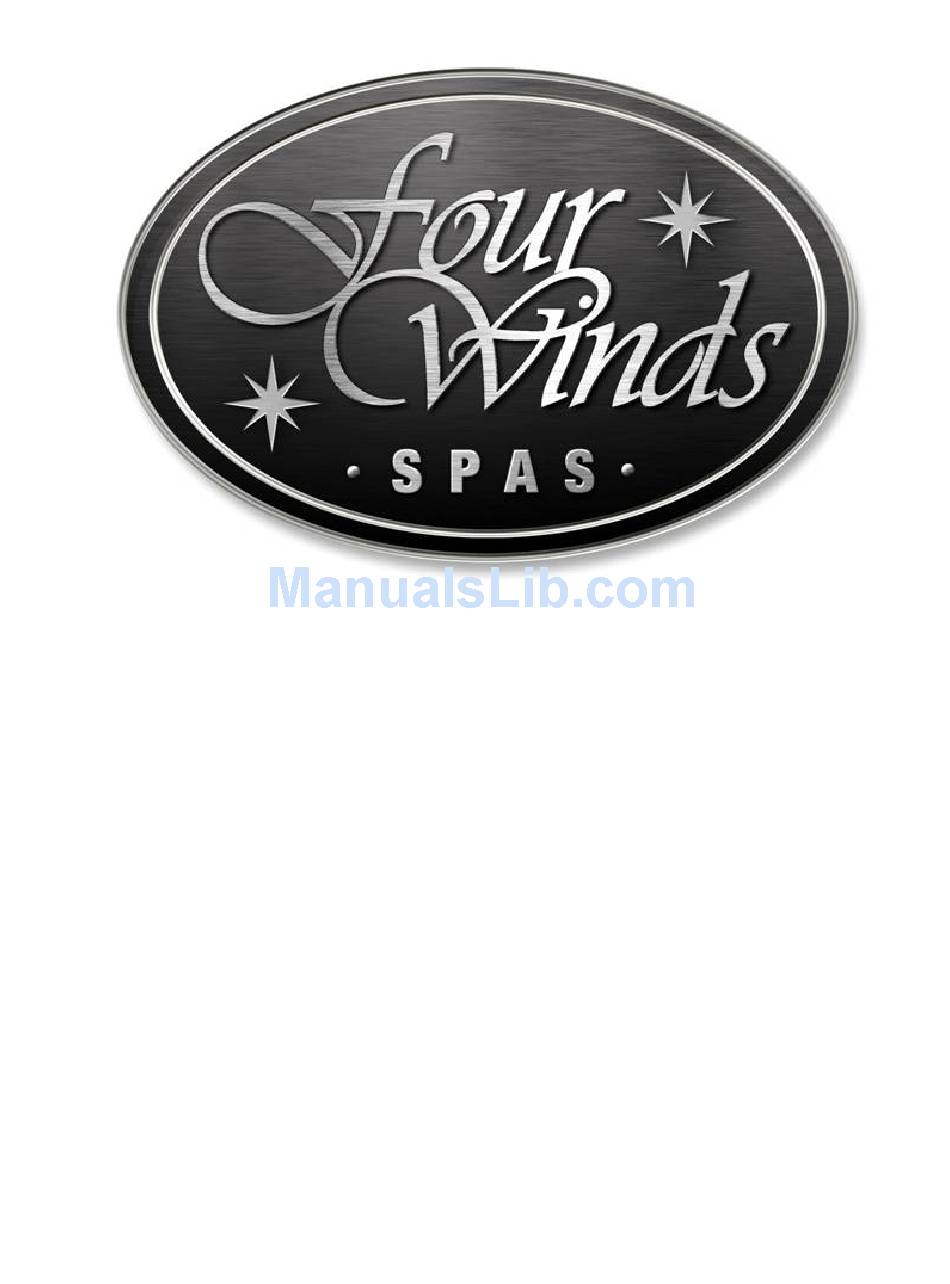

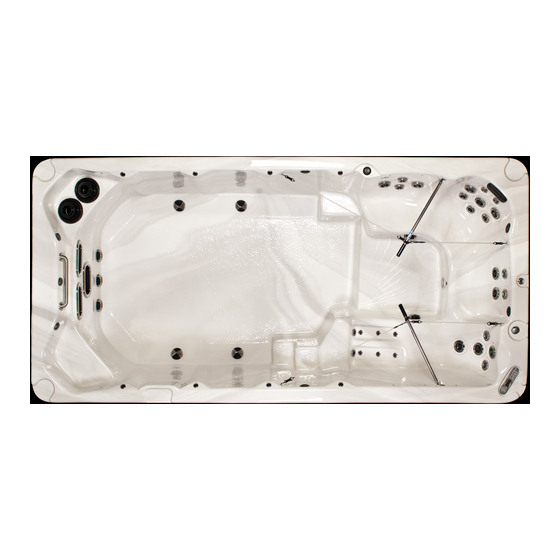

- Page 1 Owner’s Manual Copyright Four Winds Spas 2016 © Specifications subject to change.
- Page 2 Dear Valued Customer, Thank you for your purchase of a Four Winds Spa. We are sure you will have many years of enjoyment with your Four Winds Spa. Whether relaxing from a busy day, reconnecting with loved ones or just enjoying the massaging jets, you will find your mind and body are both soothed and rejuvenated.
-
Page 3: Table Of Contents
Manual Overview Page Contents Important Safety Instructions General Guidelines Site Preparation Electrical Requirements Electrical Installation Instructions 12-13 Electrical Safety Understanding Spa Controls and Features Beginning Startup Procedures 15-16 Hot and Cold Weather Use 16-17 Troubleshooting Recommendations for Maintenance 19-20 Codes, Meanings and Actions Required Chemical Instructions Other WARNINGS! Record of Ownership... -
Page 4: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS READ AND FOLLOW ALL INSTRUCTIONS DANGER Do not lay across the foot well. Always sit in an upright position. WARNING To reduce the risk of injury, do not permit children to use this product unless they are closely supervised. CAUTION Water temperature may rise when jets are operating on “high”... - Page 5 WARNING: PEOPLE USING MEDICATIONS AND/OR HAVING AN ADVERSE MEDICAL HISTORY SHOULD CONSULT A PHYSICIAN BEFORE USING A SPA OR HOT TUB. AVERTISSEMENT: LES PERSONNES QUI PRENNENT DES MÈDICAMENTS ou ONT DES PROBLEMES DE SANTÈ DEVRAIENT CONSUTLER UN MÈDECIN AVANT D’UTILISER UNE CUVE DE RELAXATION WARNING Extreme caution must be exercised to prevent unauthorized access by children.
- Page 6 DANGER – RISK OF INJURY. The suction fittings in this spa are sized to match the specific water flow created by the pump. Should the need arise to replace the suction fittings or the pump, be sure that the flow rates are compatible. Never operate spa if the suction fittings are broken or missing.
-
Page 7: Save These Instructions
37. All field-installed metal components such as rails, ladders, drains or other similar hardware within 5’ of the spa or hot tub shall be bonded to the equipment grounding bus with copper conductors not smaller than No. 8 AWG. STEREO SPA SAFETY INSTRUCTIONS “CAUTION”... - Page 8 Hyperthermia WARNING: THE USE OF ALCOHOL OR DRUGS CAN GREATLY INCREASE THE RISK OF FATAL HYPERTHERMIA IN HOT TUBS AND SPAS LA CONSOMMATION DI ALCOOL ou DE DROGUE AUGMENTE CONSIDERABLEMENT LES RISQUES D’HYPERTHERMIE MORTELLE DANS UNE CUVE DE RELAXATION. The causes, symptoms, and effects of hyperthermia may be described as follows. Hyperthermia occurs when the internal temperature of the body reaches a level several degrees above the normal body temperature of 98.6º...
-
Page 9: General Guidelines Site Preparation
General Guidelines for Site Preparation Requirements for Access: The size of the actual spa you choose will determine the amount of space needed to move the spa from the street to its final resting area. Be sure to measure all gate and door openings, also look for any vertical obstructions such as roof overhangs and power lines. -
Page 10: Electrical Requirements
All 120 Volt capable spas require a Dedicated 15 AMP GFCI service connection. An optional 15 Amp GFCI 12ft cable is available from Four Winds Spas. Never use an extension cord to run your spa. Meeting this standard may require you to have your standard receptacle and/or circuit breaker upgraded by a Licensed Electrician. -
Page 11: Electrical Installation Instructions
Electrical Installation Instructions A copper bonding lug connector has been provided on the Spa Control Pack to allow for connection to local ground points. A 6 AWG copper ground wire is required and must be connected securely to a grounded metal structure item such as a cold water pipe or the main ground lug inside of the connecting electrical panel. -
Page 12: Electrical Safety
Electrical Safety GFCI Breaker Concerns If the GFCI breaker will not stay engaged after you wire your spa and apply power, the GFCI breaker is not wired correctly. Check the GFCI breaker wiring chart following this section and verify that all of your connections are correct. Generally if the breaker will not stay engaged, it is a wiring problem with the neutral wire. - Page 13 EURO Wiring Specs (50 Hz) 1 x 32 AMP Service for 1-3 Pump Spas 2x 32 AMP Service for 4 Pump Spas...
-
Page 14: Understanding Spa Controls And Features
Servicing your spa: Four Winds Spas does not recommend that you service this spa, but if you choose to open the spa electrical panel and service the spa yourself, always assume that there is power (230Volts) to the system, unless you have verified with a test meter that there is no power to the panel. There are generally no user serviceable parts inside this panel unless you have proper training. -
Page 15: Beginning Startup Procedures
Professional Installer starts the spa and all pump fuses blow, the pumps may have frozen water in them. Four Winds Spas makes every effort to remove as much water from water testing as possible before shipping, but it is impossible to remove all water from a spa plumbing system,... -
Page 16: Troubleshooting
These fuses can be acquired at most Lowe’s or Home Depot and are SC or SLC 30. **Four Winds Spas, or its authorized service centers will not be held responsible for damage to spa and/or components caused by improperly wired spas or any personal injury related to an owners attempt to repair a spa. - Page 17 Troubleshooting Continued If the spa is running but not heating: If your spa has worked and heated before with no problem and it suddenly is dropping temperature, check first to be sure you haven’t accidentally put the controls in the economy mode or sleep mode.
-
Page 18: Recommendations For Maintenance
Recommendations for Maintenance Chemical Maintenance: It is very important that you maintain the correct level of chemicals in your spa. Otherwise, you run the risk of damaging the jets and the heating elements, as well as encouraging cloudy water and skin and eye irritations. Also remember that chemical damage is not covered under warranty. Please refer to Chemical Safety Instructions at the back of the manual for further instructions. -
Page 19: Codes, Meanings And Actions Required
Codes, Meanings and Actions Required Code* Meaning Action Required No message on display. Power The control panel will be None has been cut off to the spa. disabled until power returns. Spa settings will be preserved until next power up. Temperature unknown. - Page 20 Spa is shut down. The sensor If the problem persists, contact that is plugged into the Sensor your dealer or service “B” jack is not working. organization. (May appear temporarily in an overheat situation and disappear when the heater cools.) Sensors are out of balance.
-
Page 21: Chemical Instructions
Chemical Instructions: Important numbers of reference: -Maintain Total Alkalinity level of 80 – 120 PPM. -Maintain sanitizer level of 3.0 – 5.0 PPM for bromine or 1.5 – 3.0 PPM for chlorine. -Maintain Ph level of 7.2 to 7.8. -Maintain calcium hardness level of 100 – 250 PPM. Recommended items to purchase: -Ph test strips -Spa Up and Spa Down, or Ph Balance... - Page 22 WARNINGS! DANGER RISK OF PERSONAL INJURY OR DEATH Never Operate the spa if a suction fitting, suction cover, filter, filter lid or weir assembly are broken, damaged or missing. DANGER RISK OF SEVERE INJURY OR DROWNING! Entrapment may occur if hair is entangled, knotted or snagged in a suction drain or filter lid, or weir assembly.
-
Page 23: Record Of Ownership
Four Winds XL Swim Spa Four Winds XL Swim Spa Record of Ownership Record of Ownership Four Winds Model: Serial Number: Date Purchased: Dealer Name: Dealer Number: Dealer Address: Dealer City/State: Service Technician: Other Info:...
