Thank you for selecting our product. To ensure that your installation goes smoothly, please read
these instructions carefully before you begin. Also review the recommended materials and tools for a
smooth installation.
Before you start, verify that you have all the mentioned components for your vanity base model
shown below and ensure that all are free from defects. If any part is missing or damaged, contact
Customer Service for replacement parts.
Installation INSTRUCTIONS FOR:
PRODUCT:
30-1/4 in. KUBE BASE
DIMENSIONS: 30-1/4 in. W x 17-1/2 in. D x 29-5/16 in. H
(Dimensions are without vanity top)
MODEL:
KU.VB200
• Faucet and vanity top not included
Questions? Call our customer service department at 1-855-995-5578, 8:30 a.m. - 5 p.m., EST, Monday -
Friday or e-mail: contactus@magickwoods.com.
PREPARATION
Tools Required for Assembly (not included):
• Tape Measure
• Electric Drill with #2 Drill Bit (A)
• Straight Edge or Leveling Meter
• (2) #8 x 2 in. Screws (B)
• (2) Wall Anchors - if the vanity will not
be screwed to wall studs (C)
• Pliers (D)
Estimated Installation Time: 2 hours (including removal of old vanity if applicable)
Base (1x)
Handle (4x)
1 in. screw
(8x)
KUBE VANITY BASES
PRODUCT:

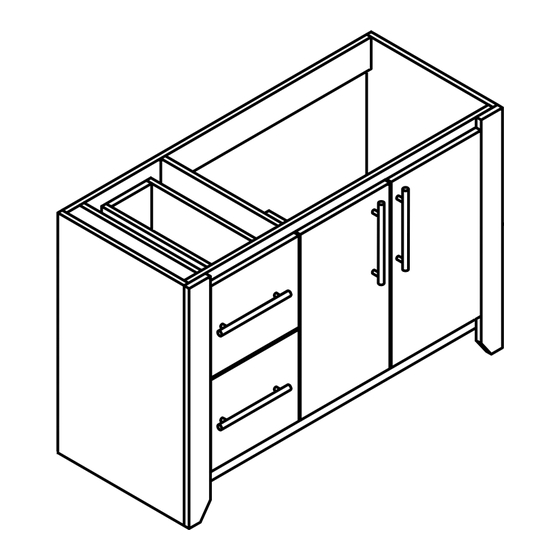

38-1/4 in. KUBE BASE
DIMENSIONS: 38-1/4 in. W x 17-1/2 in. D x 29-5/16 in. H
(Dimensions are without vanity top)
MODEL:
KU.VB202
Base (1x)
Handle (4x)
1 in. screw
(8x)
Advertisement
Table of Contents
Related Manuals for Magick woods KU.VB202
Summary of Contents for Magick woods KU.VB202
- Page 1 DIMENSIONS: 38-1/4 in. W x 17-1/2 in. D x 29-5/16 in. H (Dimensions are without vanity top) (Dimensions are without vanity top) MODEL: KU.VB200 MODEL: KU.VB202 Base (1x) Base (1x) Handle (4x) Handle (4x) 1 in. screw 1 in. screw...
- Page 2 WARNINGS & CAUTIONS WARNING: Two people are required for safe installation. Take extra precautionary measures to ensure a secure grip on the vanity base when lifting. CAUTION: • To maintain the beauty of the vanity finish, avoid placing the vanity in direct sunlight. •...
-
Page 3: Troubleshooting
Step 5: Attach the handles with the 1 in. screws. Figure 3a: 30-1/4 in. base. Figure 3b: 38-1/4 in. base. For 30-1/4 in. base: For 38-1/4 in. base: Figure 3b Figure 3a 30-1/4 in. base: complete 38-1/4 in. base: complete Figure 4a Figure 4b TROUBLESHOOTING... - Page 4 If upon inspection you find your product is damaged or missing parts, it is not necessary to return the unit to the store of purchase. Please contact Magick Woods Exports Pvt. Ltd. Customer Service to obtain a replacement part.
