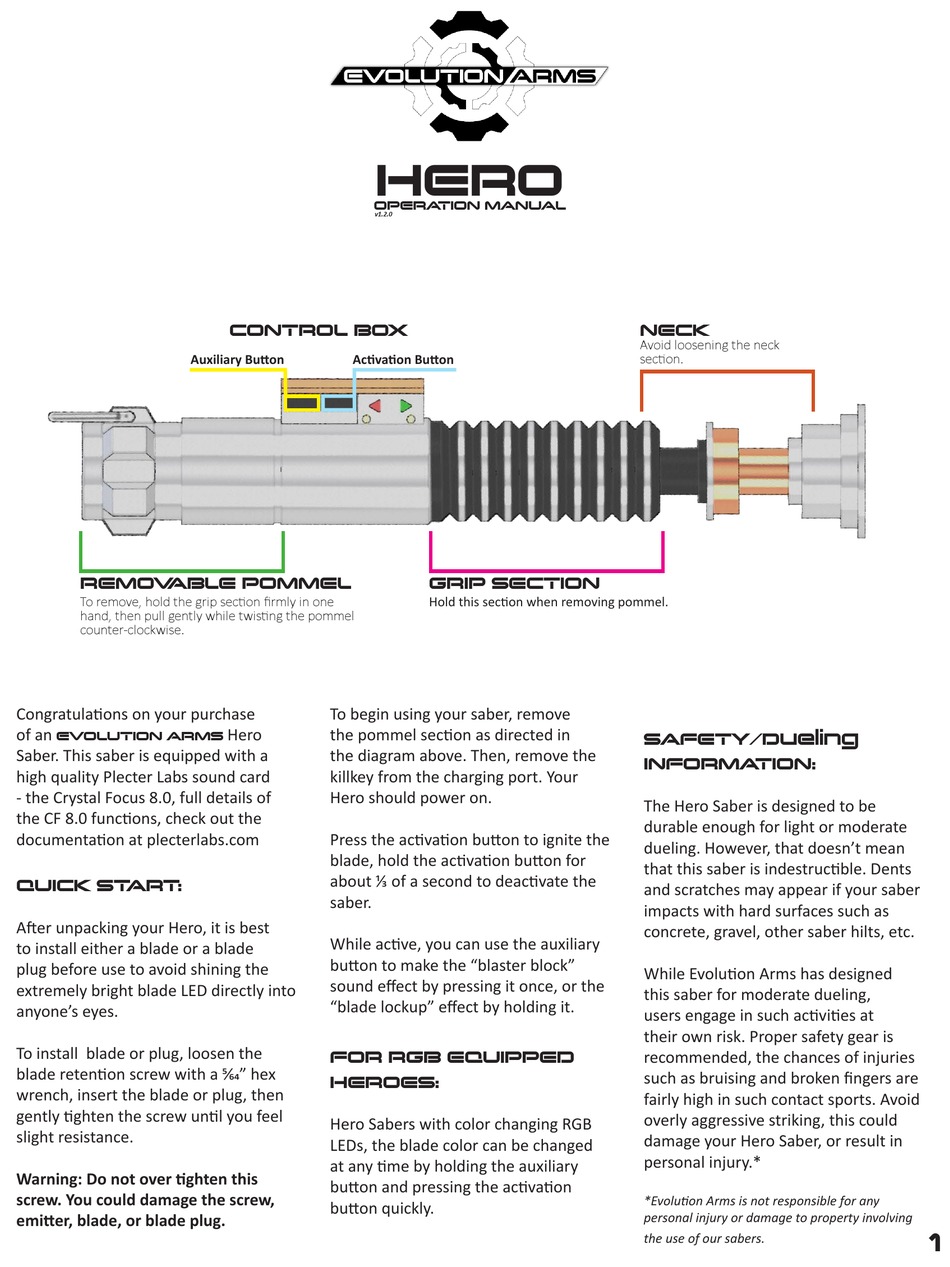

EVOLUTION ARMS Hero Saber Operation Manual

Auxiliary Button
REMOV ABLE POMMEL
To remove, hold the grip section firmly in one
hand, then pull gently while twisting the pommel
counter-clockwise.
Congratulations on your purchase
of an
EVOLUTION ARMS
Saber. This saber is equipped with a
high quality Plecter Labs sound card
- the Crystal Focus 8.0, full details of
the CF 8.0 functions, check out the
documentation at plecterlabs.com

QUICK START:

After unpacking your Hero, it is best
to install either a blade or a blade
plug before use to avoid shining the
extremely bright blade LED directly into
anyone's eyes.
To install blade or plug, loosen the
blade retention screw with a 5/64" hex
wrench, insert the blade or plug, then
gently tighten the screw until you feel
slight resistance.
Warning: Do not over tighten this
screw. You could damage the screw,
emitter, blade, or blade plug.
HERO
OPERATION MANUAL
v1.2.0
CONTROL BOX
Activation Button
To begin using your saber, remove
Hero the pommel section as directed in
the diagram above. Then, remove the
killkey from the charging port. Your
Hero should power on.
Press the activation button to ignite the
blade, hold the activation button for
about ⅓ of a second to deactivate the
saber.
While active, you can use the auxiliary
button to make the "blaster block"
sound effect by pressing it once, or the
"blade lockup" effect by holding it.
FOR RGB EQUIPPED
HEROES:
Hero Sabers with color changing RGB
LEDs, the blade color can be changed
at any time by holding the auxiliary
button and pressing the activation
button quickly.
GRIP SECTION
Hold this section when removing pommel.
NECK
Avoid loosening the neck
section.
SAFETY/Dueling
INFORMATION:
The Hero Saber is designed to be
durable enough for light or moderate
dueling. However, that doesn't mean
that this saber is indestructible. Dents
and scratches may appear if your saber
impacts with hard surfaces such as
concrete, gravel, other saber hilts, etc.
While Evolution Arms has designed
this saber for moderate dueling,
users engage in such activities at
their own risk. Proper safety gear is
recommended, the chances of injuries
such as bruising and broken fingers are
fairly high in such contact sports. Avoid
overly aggressive striking, this could
damage your Hero Saber, or result in
personal injury.*
*Evolution Arms is not responsible for any
personal injury or damage to property involving
the use of our sabers.
1
