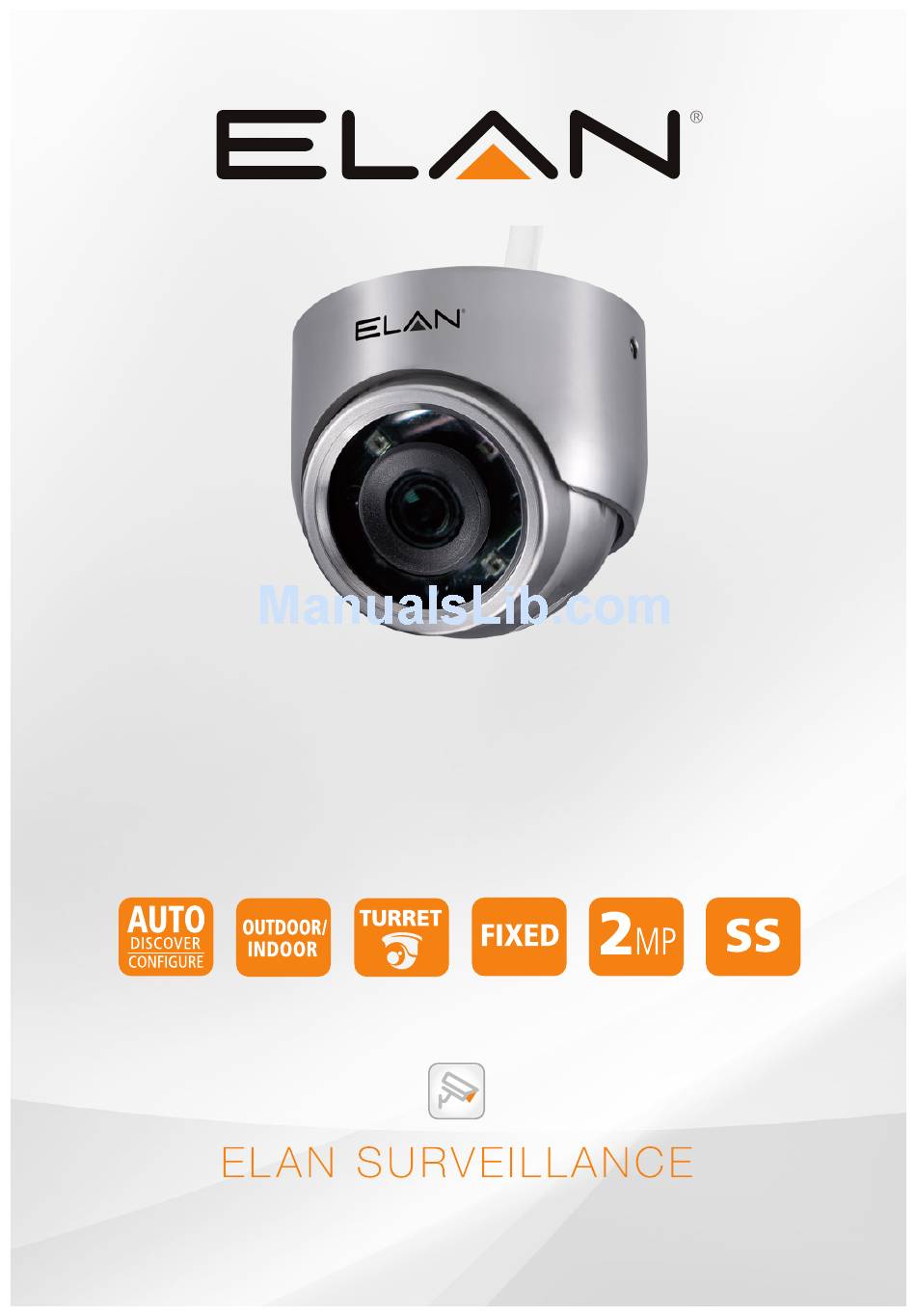

Page 1: Quick Start Guide
EL-IP-OTF2-SS Quick Start Guide... - Page 2 QUICK START GUIDE BEGINNING USING THIS CAMERA IMPORTANT!! If you are installing an ELAN Cameras and/or ELAN NVR with an ELAN Controller, please refer to the “ELAN Surveillance” Integration Note for setup and software configuration. ELAN Integration Notes are served through the ELAN tools and on elanhomesystems.com/ dealer-resources.
- Page 3 EL-IP-OTF2-SS NOTE This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
- Page 4 QUICK START GUIDE Unit: mm 13 0 ø67 58. 1 39. 7 www.elanhomesystems.com...
- Page 5 EL-IP-OTF2-SS PART DESCRIPTION & DIMENSIONS Indicator LEDs Green: System status display. Orange: SD status display. Red: Alarm status display. RJ-12 Image Sensor Unit Input Connector Detection Sensor Input Connector (optional) Micro SD Card Slot Reset Key DC12V Power Input Jack (DC12V±10%) Live Video Output RCA Jack Audio Input 3.5mm Phone Jack...
-
Page 6: Installation
QUICK START GUIDE INSTALLATION Main Unit Installation Please use a screwdriver to fixe the iron plates to the bottom base (FIG.1), insert the provided screws (M4.0 x 25, wooden screw) through the holes marked as “a,” and secure the main unit to the desired position (FIG.2). FIG. - Page 7 EL-IP-OTF2-SS 2. Follow the installation diagram and fit the screws to bracket mounting holes marked as “a” (FIG.5) to secure the bracket to any desired location. Then, attach the rubber plugs to their original positions (FIG.6) 43.8m m ø60. 6 ø4 0...
- Page 8 QUICK START GUIDE SYSTEM ARCHITECTURES For connecting D/N 1080P HD IP Camera series to the network, please follow one of the system architectures: (1). Use DC12V power adaptor and network switch connected to a network. (2). Use with PoE of the network switch connected to the network. (3).
-
Page 9: Emergency Factory Default
3. Search for the IP device using the IPScan software. 4. Start the IP device via an Internet browser. 5. Enter the default username “ELAN” and password “3526” to operate. NOTE: Cameras are configured to use DHCP by default but will revert to the default address 192.168.0.200 if a DHCP server is not available. -
Page 10: Software Requirements
QUICK START GUIDE SOFTWARE REQUIREMENTS Universal ActiveX software components are required for online display of MJPEG or H.264 Full HD video. When you log in to the IP camera from Internet Explorer, a security warning dialog box will prompt the installation of the Universal ActiveX plug-in. Click Install to download it. - Page 11 EL-IP-OTF2-SS INTERNET BROWSER SETTINGS & APPLICATION REQUIRED Make sure your Internet browser allows the signed ActiveX plug-in to work on your computer. To do this, open Internet Explorer and go to Tools-> Options-> Security Settings. Set “Download Signed ActiveX plug-in controls” to “Prompt” and “Run ActiveX control and plug-in”...
- Page 12 1 (707) 283-5900 - International 1 (707) 283-5901 - Fax web: elanhomesystems.com Core Brands, LLC, 1800 S McDowell Blvd., Petaluma, CA 94954, USA ©2017 Core Brands, LLC. All rights reserved. 10019579 Rev-A0, 11/2017 ELAN is a registered trademark of Core Brands, LLC.
