DTP-800/DTP-1900 Operating Manual
1. Introduction

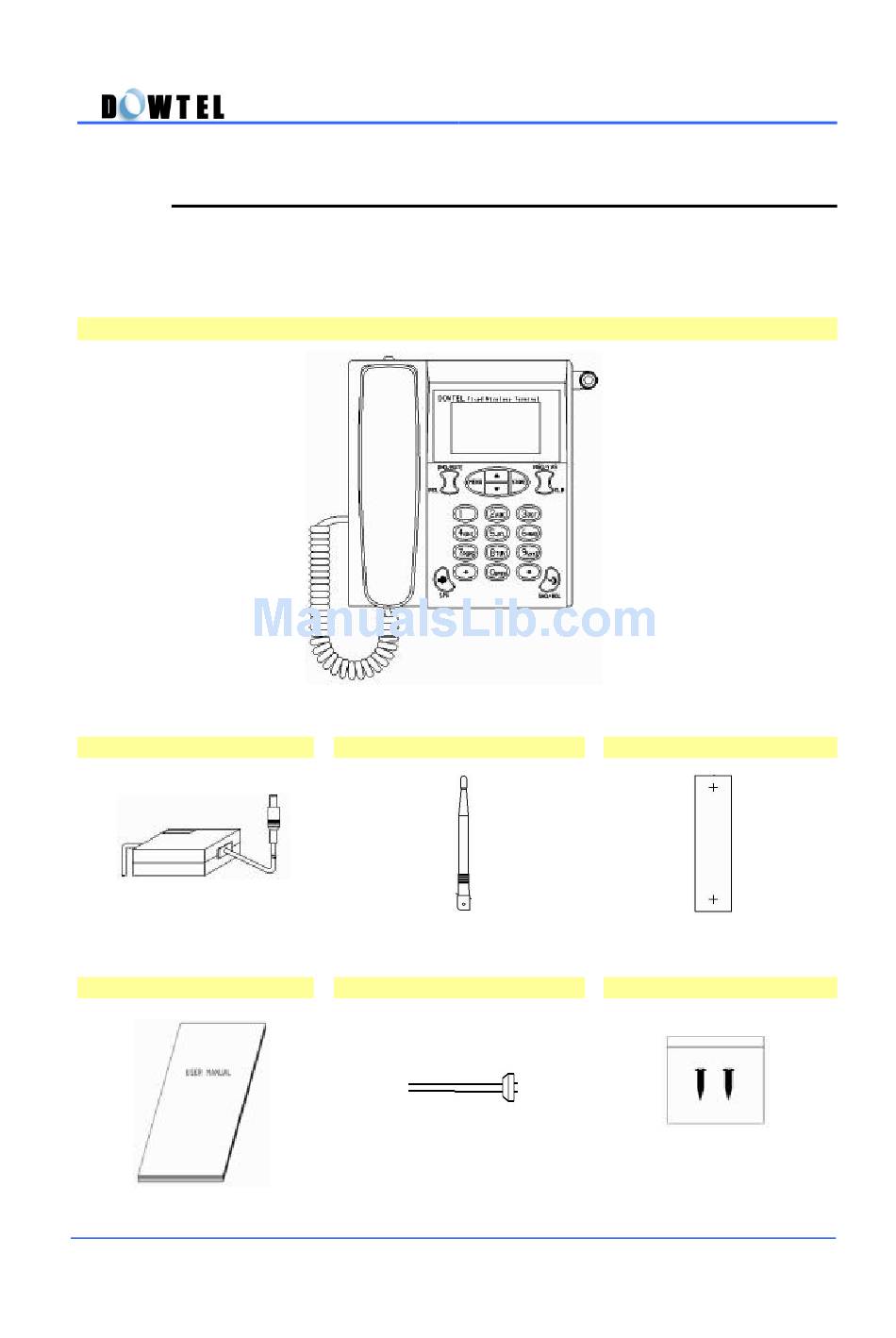

Thank you for purchasing this product. Please check whether the product
package contains the following items. If there are missing items, please
call the service center.
1. Phone
2. Power Supply(SMPS)
3. Antenna
4. Installation Panel
5. User's Manual
6. Power Cord
7. Screws
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DTP-1900 and is the answer not in the manual?

Questions and answers

Related Manuals for Dowtel DTP-1900

Summary of Contents for Dowtel DTP-1900

  • Page 1 DTP-800/DTP-1900 Operating Manual 1. Introduction Thank you for purchasing this product. Please check whether the product package contains the following items. If there are missing items, please call the service center. 1. Phone 2. Power Supply(SMPS) 3. Antenna 4. Installation Panel 5.

  • Page 2: Installation Procedure

    DTP-800/DTP-1900 Operating Manual 1.1 Installation Procedure ① Connect the DC jack to the back panel of phone as shown in the figure below. ② Connect the plug of the SMPS to a power outlet and to SMPS for the phone.
  • Page 3 DTP-800/DTP-1900 Operating Manual ④ Adjust the antenna direction until the maximum Antenna power sign is displayed on the LCD screen. (Each bar indicates the received signal strength. The more bars mean the higher signal strength, the better service condition.) ☞ See 2.1 Power-Up / Power-Down 1.2 Installation of the Wall Bracket...
  • Page 4 DTP-800/DTP-1900 Operating Manual 1.3 Panel Overview Antenna Menu Button Up/Down Button STORE Button DND/MUTE & RCL Button MSG/VAS & Clear Button Earpiece Dial Button SND/RDL Button Speaker Button Microphone Figure: 1.2 - 1...
  • Page 5 DTP-800/DTP-1900 Operating Manual Antenna RF Connector Power Switch DC Power Jack Serial Port Figure : 1.2 - 2...

  • Page 6: Safety Instructions

    DTP-800/DTP-1900 Operating Manual 1.4 Safety Instructions Basic safety precautions should always be followed to reduce the risk when using this unit. · Read and follow all instructions marked on the product. · Do not disassemble this unit to reduce the risk of electric shock. When the unit is subsequently used, incorrect reassembly can cause electric shock.

  • Page 7: Table Of Contents

    DTP-800/DTP-1900 Operating Manual 2. Before Using 2.1 Power-Up / Power-Down 2.1.1 General Power-Up ① Manufacturer’s logo will be displayed for 1 second when the power is turned on. F i g u r e : 2 . 1 . 1 - 1 ②...
  • Page 8 DTP-800/DTP-1900 Operating Manual 2.1.2 No Service If “No Service” message is appeared like the figure 2.1.2, the location where the phone is installed may be the area of which the signal from the Service Provider is not delivered to the phone.
  • Page 9 DTP-800/DTP-1900 Operating Manual 2.1.4 Power Two types power is used in this phone. AC power : 100 ~ 270 V Internal Battery If the AC power is suddenly disconnected to the phone by a power failure or any reason, the power source is automatically changed from AC power to internal battery.

  • Page 10: Figure : 2.2.1

    DTP-800/DTP-1900 Operating Manual 2.2 Keypad As shown in the figure below, there are 12-Dial Button and 10-Function Button in this phone. DND/MUTE MSG/VAS MENU STORE PQRS WXYZ OPER SND/RDL Figure : 2.2.1 2.2.1 DND/MUTE & RCL DND/MUTE - Use this button to set on/off the [DND(Do Not DND/MUTE Disturb)] function if you don’t want to answer...
  • Page 11 DTP-800/DTP-1900 Operating Manual <Note> DND/MUTE & RCL and MSG/VAS & CLR buttons are designed as an one -button as shown in figure 2.2.1. But these buttons separately operate the upper side and bottom side of the button to work their own function.
  • Page 12 DTP-800/DTP-1900 Operating Manual 2.2.5 MSG/VAS & CLR (Clear & Recall) MSG/VAS - Use this button if you want to retrieve the text message of SMS(Short Message Service) MSG/VAS transmitted and received during the idle-state. - Use this button to make a call to VMC(Voice...

  • Page 13: Dowtel

    DTP-800/DTP-1900 Operating Manual 2.2.8 Dial Button(0~9, * , # ) - Use this button to store the phone number - There are small alphabets beside the numeric number on the each Dial Button. It is used to store the name related with the phone number when you want to store the phone number.
  • Page 14 DTP-800/DTP-1900 Operating Manual 2.3 ICON The various icons are displayed in the first line on the LCD screen to indicate the setting-status and operating-status of the phone. 2.3.1 RSSI Icon - Indicate the strength of received signal. It is closely related with the quality of service.
  • Page 15 DTP-800/DTP-1900 Operating Manual 2.3.4 Speaker Phone Icon - Indicate the phone is in Speaker Phone Mode. - It is displayed when you attempt to make a call using the speaker and microphone. 2.3.5 Voice Mute Icon - Indicate the status that the user’s voice, any surrounding sounds, and keypad tone are not transmitted to the calling party.
  • Page 16 DTP-800/DTP-1900 Operating Manual 2.3.8 Battery Icon - Indicate the strength of the battery installed inside the phone - The battery strength is displayed 5-step. - When the battery strength is weakening, the phone beeps to request the recharge of the battery.

  • Page 17: Dial Tone

    DTP-800/DTP-1900 Operating Manual 2.4 Sound & Tone 2.4.1 Power-up Sound When you turn on the power of the phone, The phone starts with the beep- sound. 2.4.2 Dial Tone This sound indicates that the phone is able to connect with the system and you can make or receive a call 2.4.3 Warning Tone...
  • Page 18 DTP-800/DTP-1900 Operating Manual 2.4.9 SMS/VMS notification tone It beeps through the speaker when the phone is received the SMS or VMS message. 2.4.10 Error Beep Tone It beeps when the user push the keypad incorrectly. In this case, the incorrect operating is ignored.

  • Page 19: Nov 11 (Sun)

    DTP-800/DTP-1900 Operating Manual 3. Basic Function 3.1 Making Calls 3.1.1 Using the Handset Nov 11 (Sun) 11:11 am ▶ Pick up the handset and dial the phone number you want to make a call. 1001234 ▶ Press the [SND/RDL] button Connecting…...
  • Page 20 DTP-800/DTP-1900 Operating Manual 3.1.2 Using the Speaker Phone ▶ Press the [SPK] button and dial the phone number you want to make a call. 1001234 ▶ Press the [SND/RDL] button. Connecting… 1001234 ▶ The call is connected. 00:01 1001234...
  • Page 21 DTP-800/DTP-1900 Operating Manual 3.1.3 On-Hook Dialing ▶ Dial the phone number, and then press the [SND/RDL] button. Connecting… 1001234 (figure 3.1.3-1) ▶ The speaker phone operates automatically, and then the call is connected. 00:01 1001234 (Figure 3.1.3-2) 3.1.4 Redial the Last Number called <Method 1>...
  • Page 22 DTP-800/DTP-1900 Operating Manual ▶ The last number dialed is connected automatically. 00:01 1001234 (Figure 3.1.4-2) <Method 2> ▶ Press the [SND/RDL] button, and then the speaker Phone operates automatically. 00:01 ▶ The last number dialed is connected. 1001234 (Figure 3.1.4-3) 3.1.5 Speed Dial...
  • Page 23 DTP-800/DTP-1900 Operating Manual <Method 1> ▶ Pick up the handset or press the [SPK] button. ▶ Press the memory station Speed Dialing number stored in the address [1] ~ [9] for over 2 seconds then the Memory 1 stored number dialed, or press the...
  • Page 24 DTP-800/DTP-1900 Operating Manual ▶ The speaker phone operates automatically and the phone number stored in the Phone Book is connected. Connecting… 1001234 (Figure 3.1.5.1-4) 3.1.5.2 Two-Touch Dialing This function allows you to simply make a call using the phone numbers stored in addresses 10 through 99.
  • Page 25 DTP-800/DTP-1900 Operating Manual ▶ The number in the Phone Book is connected. Connecting… 1001234 (Figure 3.1.5.2-2) <Method 2> ▶ Press the button of the phone number stored in any of Address [10] ~ [99], and then press the Speed Dialing [SND/RDL] button.

  • Page 26: Answering Calls

    DTP-800/DTP-1900 Operating Manual 3.2 Answering Calls 3.2.1 On-Hook State ▶ When a call is being received, the phone rings. ▶ If you subscribe a caller ID service, Ringing… the calling party information will be displayed in the third line on the 1001234 screen.
  • Page 27 DTP-800/DTP-1900 Operating Manual 3.2.2 Off-Hook State ▶ If a call is being received when the handset is picked up or the speaker is on, click the Hook Switch or press Ringing… [SPK] button, and then the call is connected., 1001234 (Figure 3.2.2 -1)

  • Page 28: Disconnecting Calls

    DTP-800/DTP-1900 Operating Manual 3.3 Disconnecting Calls 3.3.1 Using the Handset ▶ Hang up the handset when the call is finished. Nov 11 (Sun) ▶ If the calling party hang up the phone before you do that, the 11:11 am warning-tone sound is supplied through the earpiece until you hang up the phone.
  • Page 29 DTP-800/DTP-1900 Operating Manual 3.4 Transfer between Handset & Speaker Phone 3.4.1 Transfer to Speaker Phone in Off-Hook State ▶ When you press the [SPK] button under the Off-Hook state, the [SPK] lamp is turned on and voice is out through the speaker.

  • Page 30: Volume Control

    DTP-800/DTP-1900 Operating Manual 3.5 Volume Control You can adjust the volume from low to high in 5 different levels. 3.5.1 Keypad Tone Control ▶ The Keypad Tone can be changed by pressing [▲] or [▼] button when the handset is on the Keypad Volume phone and the [SPK] button is off.
  • Page 31 DTP-800/DTP-1900 Operating Manual 3.5.4 Ringer Volume Control ▶ The Ringer Volume can be changed by pressing [▲] or [▼] button when the phone is ringing. Ringer Volume ☞ (Figure 3.5.4-1)

  • Page 32: Hot Line

    DTP-800/DTP-1900 Operating Manual 3.6 Hot Line This function is useful when you want to make an automatic call to the designated number without dialing or pressing the [SND/RDL] button. Hot Line operates in 2 modes. ▶ Timed Hot Line : This will make a call to the designated number without dialing or pressing the [SND/RDL] button within the Sending Time(4 ~ 8 seconds) after you pick up the handset.
  • Page 33 DTP-800/DTP-1900 Operating Manual 3.7 Emergency Call Hold This function is used in the emergency situation and once the call is connected, it won’t be disconnected as long as the receiver does not hang You can store up to three emergency call hold numbers at address 01 ~ 03 in the Phone Book.
  • Page 34 DTP-800/DTP-1900 Operating Manual 3.8 Do Not Disturb (DND) When you don’t want to answer the incoming call, use this function. [Setting ON] ▶ Press the [DND/MUTE] button when the handset is on the phone and the [SPK] lamp is off.
  • Page 35 DTP-800/DTP-1900 Operating Manual 3.9 Voice Mute 3.9.1 Functions During the conversation, if you don’t want to transmit your voice or sound to the called party, use this function. You can use this function the following case. When you input the memo in the phone Book using the keypad.
  • Page 36 DTP-800/DTP-1900 Operating Manual ▶ When the setting is done, the Voice Mute Icon is appeared on the screen and any voice or sound will not be transmitted to the other 00:36 party. ▶ If you want to release this function, select the <Unmute> in figure 3.9.2-2 and press the...
  • Page 37 DTP-800/DTP-1900 Operating Manual 4. Additional Functions 4.1 Short Message Service (SMS) You can transmit/receive the simple text or voice message using this phone. MESSAGE ! VOICE MAIL 4/10 11:45am 4/10 11:45am (Figure 4.1-1) (Figure 4.1-2) ▶ When the phone received the text message, the sign like the figure 4.1-1 is appeared on the screen with the SMS/VMS notification tone.
  • Page 38 DTP-800/DTP-1900 Operating Manual ▶ To send the text message. ① Press the [MSG/VAS] button in the idle-state, and then press the [MENU] button. ② Press the [1] button to input the receiver’s name, and then press the [STORE] button. ③ Press the [2] button again to input the message, and then press the [STORE] button.

  • Page 39: Alarm Reminder

    DTP-800/DTP-1900 Operating Manual 4.2 Alarm Reminder This phone has Time Alarm function. You can set the alarm time under the 12-hour system. The phone has a Two-type mode (Onetime Mode and an Always Mode). The Alarm time can be set and edit under the 12-hour system.
  • Page 40 DTP-800/DTP-1900 Operating Manual 4.3 Voice Privacy (System Dependent) 4.3.1 On-hook State ▶ Press [MENU]à3à4 in order and Select <Enhanced> mode or <Standard> mode by using [ ▲ ] or Voice Privacy [▼] button, and then press the [STORE] button. Standard (그림...

  • Page 41: Using The Phone Book

    DTP-800/DTP-1900 Operating Manual 4.5 Using the Phone Book 4.5.1 Store the Phone Number in idle-state ▶ When the state of the phone is in idle-state, Nov 11 (Sun) 11:11 am (Figure 4.5.1-1) ▶ Enter the phone number using the dial button, and then press the [STORE] button.
  • Page 42 DTP-800/DTP-1900 Operating Manual ▶ The figure 4.5.1-4 is displayed on the screen. ▶ Press the memory location <<Address Reg>> number you want to store the phone number, then press User Define [??] [STORE] button. Auto [03] ▶ If you just press the [STORE] button, the number is stored at memory location number [03].
  • Page 43 DTP-800/DTP-1900 Operating Manual [Note] The incoming call’s number is displayed in the left side on the screen and the making call’s number is displayed in the right side on the screen to separate between the incoming call and making call.
  • Page 44 DTP-800/DTP-1900 Operating Manual 4.5.3 Storing the Memo during a conversation During a conversation, you can enter the number using the dial button and store the number in the Phone Book or make a call after the call is finished. ▶ Press the [MENU] button during a conversation.

  • Page 45: Figure

    DTP-800/DTP-1900 Operating Manual 4.5.4 Search the Stored Number ▶ When the phone is in idle-state, screen(Figure 4.5.4 -1) displayed if you press the [RCL] button. 1.Address Search 2.Name Search 3.Last 10 Dialed (Figure 4.5.4-1) ▶ When you press the [1] button, screen(Figure 4.5.4 -2)
  • Page 46 DTP-800/DTP-1900 Operating Manual ▶ If you press the [UP]/[Down] button in the figure 4.5.4-3, you can search other number. 01:DOWTEL ▶ Select the address you want, and then press the [STORE] button. 02:TOM The phone displays the number of the stored address.
  • Page 47 DTP-800/DTP-1900 Operating Manual ▶ If you press the [3] button in the figure 4.5.4-1, the screen(figure 4.5.4-7) is displayed. 01:0172890085 ▶ Select the number using the [UP]/[DOWN] button, and then press 02:0166121601 the [STORE] button. The phone displays the number of the stored 03:9176203899 number.
  • Page 48 DTP-800/DTP-1900 Operating Manual ▶ Select the [1] button in the figure 4.5.5-1, and then you can change the number using the [CLR] and dial button. 1001234 (Figure 4.5.5-3) ▶ After changing the number in the figure 4.5.5-3, press the [STORE] button.
  • Page 49 DTP-800/DTP-1900 Operating Manual ▶ When the address that you enter in the figure 4.5.5-4 is already existed on the phone book, the phone will ask you to replace the < O v e r w r i t e ? >...
  • Page 50 DTP-800/DTP-1900 Operating Manual ▶ Press the [Menu] button in the figure 4.5.6-1, the screen is changed in the edit state. 01:DOWTEL 1. EDIT 2. DELETE (Figure 4.5.6-2) ▶ If you select the [2] button in the figure 4.5.6-2, the screen will be changed like the figure 4.5.6-3.
  • Page 51 DTP-800/DTP-1900 Operating Manual 4.6 List of the Dialed Number 4.6.1 Last 10 Called Number ▶ Press the [RCL] button when the phone is in the idle-state. ▶ The screen (figure 4.6.1-1) is 1.Address Search displayed. 2.Name Search 3.Last 10 Calls (Figure 4.6.1-1)

  • Page 52: Data Service

    DTP-800/DTP-1900 Operating Manual 4.7 DATA Service 4.7.1 Definition DTP-800/1900 provides the Data Service. You can transmit and receive the data or fax data through the wireless path as connecting the Notebook (or Desktop PC) with DTP-800/1900. The following service is available.

  • Page 53: Menu Mode

    DTP-800/DTP-1900 Operating Manual 5. Menu 5.1 Menu Mode 1. Sound Control 1. Ring Select 2. DTMF Tone Len 3. Keypad Volume 4. Ringer Volume 5. Ear Volume 6. Speaker Volume 2. Management 1. Talk Time Info 1. Recent Call 2. Outgoing Lock 2.

  • Page 54: Sound Control

    DTP-800/DTP-1900 Operating Manual 5.2 Sound Control You can select the tone types, ring types and sound volume of this phone using the Menu Mode. 5.2.1 Ring Select You can select the ring types when the phone rings. There are 6 Bell-Type and 4 Melody-Type in this phone.
  • Page 55 DTP-800/DTP-1900 Operating Manual ▶ Press the button as following sequence; [MENU] → 1 → 2 DTMF Tone Length ▶ The screen(figure 5.2.2) is → Short displayed. ▶ At this time, select the DTMF Mode you want using the [▼] or [▲] button and then press the...
  • Page 56 DTP-800/DTP-1900 Operating Manual 5.2.4 Ringer Volume This menu is to select the ringer volume. This function has from <Silent> mode to 5-volume level. ▶ Press the button as following sequence; [MENU] → 1 → 4 Ringer Volume ▶ The current volume level is ☞...
  • Page 57 DTP-800/DTP-1900 Operating Manual [Speed Menu] You can select the volume level simply using the [▼] or [▲] button when you pick up the handset. 5.2.6 Speaker Volume This menu is used to select the speaker volume. This function has 5-volume level.

  • Page 58: Enter Password

    DTP-800/DTP-1900 Operating Manual 5.3 Management You can use this function to limit the phone use by others. And also, memory management, editing Lock Code, Reset as default and checking phone version are available. ▶ Press the button as following sequence [MENU] →...
  • Page 59 DTP-800/DTP-1900 Operating Manual 5.3.1 Talk Time Information The phone records the call time when you make a call only. You can search or erase the records using this menu. ▶ Press the button as following sequence. [MENU] → 2 → Password → 1...
  • Page 60 DTP-800/DTP-1900 Operating Manual 5.3.1.2 Total Calls ▶ The total call time is displayed on the screen when you press the [2] button as the figure 5.3.1. Total Calls ▶ The total call time is displayed as [Hour:Minute:Second] & 00:05:13 number of Calls.

  • Page 61: Outgoing Call

    DTP-800/DTP-1900 Operating Manual 5.3.2 Outgoing (Call) Lock This menu is to limit or permit to make a call. ▶ Press the button as following sequence. [MENU] → 2 → Password → 2 Outgoing Call ▶ <Yes>/<No> menu Lock ? toggled in the bottom of the screen.

  • Page 62: Phone Number

    DTP-800/DTP-1900 Operating Manual ▶ If the reentered new password is not correct, the figure 5.3.3-3 is displayed on the screen and the phone is returned to the figure 5.3.3- No Match! Please Try Again (Figure 5.3.3-3) 5.3.4 Phone Information This menu is to confirm the number of the phone and the software version.
  • Page 63 DTP-800/DTP-1900 Operating Manual 5.3.4.2 S/W Version ▶ If you press the [2] button in the figure 5.3.4, the installed S/W Version in the phone is displayed on the screen. S/W Version ST0PP0-04.07 (Figure 5.3.4.2) 5.3.5 Clear Memory This menu is to erase the list of last-dialed number and the stored numbers in the Phone Book.

  • Page 64: Phone Book

    DTP-800/DTP-1900 Operating Manual 5.3.5.2 (Clear) Phone Book ▶ If you press the [2] button in the figure 5.3.5, the figure 5.3.5-2 is displayed on the screen. Phone Book ▶ If you want to erase the records of the Phone Book, press the Clear ? [STORE] button when “Yes”...
  • Page 65 DTP-800/DTP-1900 Operating Manual The Check Points when using the Reset As Default Function When you re-initialize the phone using this function, only the following items will be re-initialized to the default value. Item Default Value Remark Keypad Volume 3 Steps 5.2.3...

  • Page 66: Speed Dial

    DTP-800/DTP-1900 Operating Manual 5.4 Call Functions This menu is to set or release some useful function related with the calls. ▶ Press the button as following sequence. [MENU] → 3 1.Speed Dial 2.Emergency Call ▶ The figure 5.4 is displayed on the screen.
  • Page 67 DTP-800/DTP-1900 Operating Manual 5.4.2 Emergency Call ▶ Press the button as following sequence. [MENU] → 3 → 2 Emergency Call ▶ The figure 5.4.2 is displayed on Enabled the screen. ▶ If you press the [STORE] button when the <Enabled> menu is (Figure 5.4.2)

  • Page 68: Voice Privacy

    DTP-800/DTP-1900 Operating Manual ▶ If you press the [STORE] button when the figure 5.4.3-3 is displayed on the screen, the phone is in “Timed Hotline” state. Hotline Call ▶ And then the screen will be Timed changed to the figure 5.4.3-4.

  • Page 69: Alert Per 1Min

    DTP-800/DTP-1900 Operating Manual ▶ If you press [▲]/[▼] button, the figure 5.4.4-2 is displayed on the screen. Voice Privacy ▶ And then, if you press the [STORE] button, the phone is in the Enhanced enhanced privacy mode. (Figure 5.4.4-2) 5.4.5 Alert per 1 min This menu is used to set or release the alarm sound every 1-minute during the call.

  • Page 70: Enabled

    DTP-800/DTP-1900 Operating Manual ▶ Select the “Yes” or “No” menu using the [▲] or [▼] button, and then press the [STORE] button. Automatic Dialing Enabled (Figure 5.4.6-1) ▶ When you select the “Yes” menu, the figure 5.4.6-2 is displayed on the screen.

  • Page 71: Alarm Setting

    DTP-800/DTP-1900 Operating Manual 5.5.1 Alarm Setting This menu is used to set on/off the alarm function and the alarm time. ▶ Press the button as following sequence. [MENU] → 4 → 1 Alarm Time ▶ The figure 5.5.1-1 is displayed on the screen.
  • Page 72 DTP-800/DTP-1900 Operating Manual ▶ If you want to use the alarm for only one time, select the figure 5.5.1-3 using the [▲] or [▼] button in the figure 5.5.1 -2 and Alarm Mode then press the [STORE] button. Only Once (Figure 5.5.1-3)
  • Page 73 DTP-800/DTP-1900 Operating Manual ▶ When you select the figure 5.5.2- 2 using the [▲] or [ ▼ ] button in the figure 5.5.2-1, press the [STORE] Modem button. Receive Mode ▶ The phone stays at the Modem Receive Mode. Always (Figure 5.5.2-2)
  • Page 74 DTP-800/DTP-1900 Operating Manual ▶ When the phone is set in the PC Fax Receive Mode, the PC Fax Receive Mode Icon is displayed on the screen. ▶ When the phone is set in the Modem receive Mode, the Modem receiving mode Icon is also displayed on the screen.
