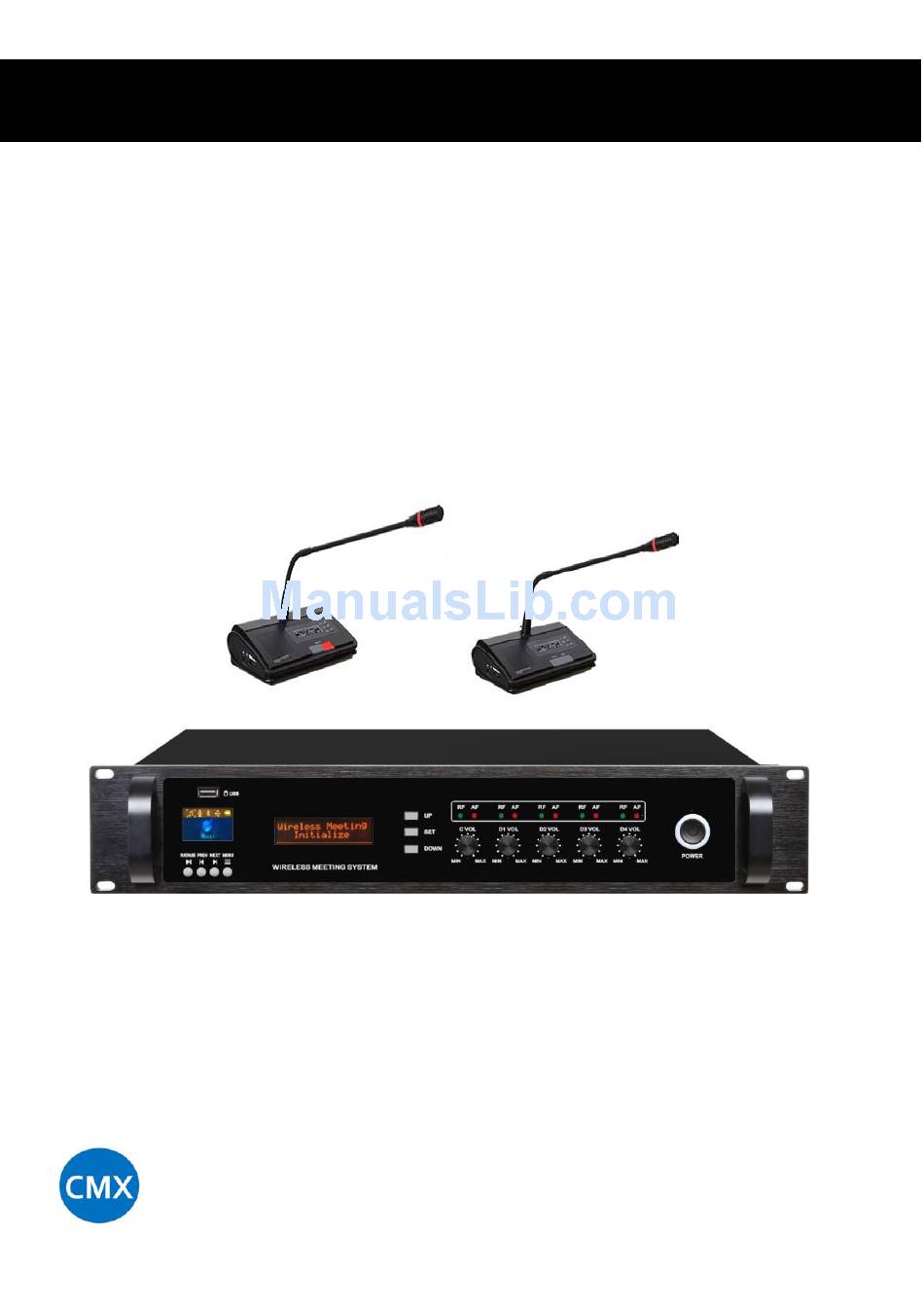

- Page 1 OPERATION MANUAL UHF-300 WIRELESS CONFERENCE SYSTEM Version: REV1.0 (2017)
-
Page 2: Table Of Contents
UHF-300 Wireless Conference System CONTENTS----------------------------------------------------------------------------------2 System Configuration and description-----------------------------------------------2 System features-----------------------------------------------------------------------2 Wireless meeting system receiver unit ---------------------------------------------2 1.2.1 Picture of the actual object -----------------------------------------------------------2 1.2.2 Features of wireless meeting system receiver unit ----------------------------------3 1.2.3 Schematic diagram of wireless meeting system receiver unit -----------------------3 1.2.4 Parameter of wireless meeting system receiver unit---------------------------------4... -
Page 3: Contents
UHF-300 Wireless Conference System Overview With high flexibility and reliability, our UHF-300 wireless conference system is an ideal choice for mobile conference systems. It offers simple operation, compact structures. The wireless conference system can be perfectly integrated into any meeting rooms, without additional wiring. -
Page 4: Features Of Wireless Meeting System Receiver Unit
UHF-300 Wireless Conference System 1.2.2 Features of wireless meeting system receiver unit UHF-300MC Support Mode: Limit (1/2/3/4), FIFO (1/2/3/4), Chairman Only Support video camera auto-track with video processor 160x32 dot matrix LCD display system information Receiver can control the microphone status when powered off, such as clear or shutting off all microphones. -
Page 5: Parameter Of Wireless Meeting System Receiver Unit
UHF-300 Wireless Conference System 15 ANT DATA: System data control antenna interface 16 DATA: External video processor connection interface 17 DC Power input 18 MIX OUT: Mixed audio output 19 MIX BAL: Mixed audio balance output 20 ANT B: Delegate mic RF antenna interface... -
Page 6: Picture Of The Actual Object
UHF-300 Wireless Conference System 1.3 Wireless meeting system microphone unit UHF-300CU & UHF-300DU 1.3.1 Picture of the actual object 1.3.2 Features of wireless delegate microphone UHF-300DU Portable table moving and microphone pipe can be pull out. Extended pipe option. Electric capacity type microphone, equipped with windshield cover LCD display microphone ID, battery level, microphone state, control channel, etc. -
Page 7: Parameter Of Parameter Of Wireless Microphone
UHF-300 Wireless Conference System 6) MIC ON/OFF key 7) Chairman Priority 8) LCD 9) Microphone power switch 10) Microphone speaker 11) DC Power input jack 12) Phone 3.5mm input jack 13) Inner speaker volume control 1.3.5 Parameter of wireless microphone unit UHF-300CU & UHF-300DU... -
Page 8: Battery Charger
UHF-300 Wireless Conference System 1.4 Battery charger UHF-300BC 1.4.1 Picture of the actual object 1.4.2 Features of battery charger UHF-300BC a. Input Voltage: AC 110V~220V b. Charges 16 PCS of lithium battery per charging c. Intelligent charging management electro circuit to protect the LIP battery d. -
Page 9: Parameter Of Battery Charge
UHF-300 Wireless Conference System 1.4.4 Parameter of battery charger UHF-300BC Items Parameter Power supply 110V-240V/50Hz~60Hz Consumption Rating 200W Charge quantity MAX charging current of each 700mA Charging time About 8~10 hours Charging status Red LED flashing –Charging, Green LED –Full... -
Page 10: System Installation
DC15V Dimensions 130×75×20mm 250g 2. UHF-300 Wireless Conference System Installation 2.1 Warning This is a wireless communication system, use UHF band carrier frequency. We recommend that users consult local radio management committee to choose the appropriate and legally available frequency, in order to avoid RF interference... -
Page 11: Caution On Handling Of The Microphone Unit
UHF-300 Wireless Conference System 2.1.1 CAUTION on handling of the wireless microphone unit Do not grasp the microphone to lift or pull on the microphone unit: pick up the unit by its base Slowly bend and straighten the flexible part of the microphone. Do not bend it with... -
Page 12: Identify Room Layout
UHF-300 Wireless Conference System 2.2 Identify room layout 2.2.1 Check coverage area Real coverage area of conference room (usually coverage area of conference room is smaller than the conference room area) 2.2.2 System configuration Description Model No. Max Qty Marks... -
Page 13: Antenna Connection
UHF-300 Wireless Conference System 2.3.2 Antenna connection There are 4 antennas of receiver unit. 1 piece data control antenna (426MHz), 1 piece chairman microphone audio control/RF antenna (A: 627.50MHz) and 2 pieces delegate microphone audio control/RF antenna (B: 652.50MHz) Please note: Receiver antennas should be connected correct position, or system can not work properly. -
Page 14: Receiver Unit To Video Processor
UHF-300 Wireless Conference System 2.3.4 Receiver unit to video processor Please connect DATA interface of receiver unit to DATA interface of video processor by RJ45 network cable. Please read the user manual of video processor. 2.3.5 Receiver unit to external antenna If the distance between receiver and microphone is not far, and there does not have any obstruct, antenna can be connect to the “ANT”... -
Page 15: System Setting
UHF-300 Wireless Conference System 2.5 Wireless Conference System setting 2.5.1 Receiver unit UHF-300MC setting a. POWER ON/POWER OFF POWER ON: Hold the “POWER” button on the left front panel of receiver till LCD display “ “ and then release it LCD will display “... - Page 16 UHF-300 Wireless Conference System Mode setting method: Press SET key one or several times till “FIFO” character flashing, press UP key, the flashing character change to LIMIT (press DOWN the flashing character will change back to FIFO), and then press SET to save it or wait about 3 seconds the system will save the setting automatically, characters will stop flashing.
- Page 17 UHF-300 Wireless Conference System Chairman microphone audio channel Manual setting: Press SET key one or several times till “40” character flashing, press DOWN or UP key to select the channel, and then press SET to save it or wait about 3 seconds the system will save the setting automatically, characters will stop flashing Auto-scan setting: Press SET key one or several times till “40”...
-
Page 18: Microphone Setting And Operation
UHF-300 Wireless Conference System microphones' FM high frequency signals. Default sort order is D1, D2, D3, D4. If there is some problem of D1, then system microphone can not turn on/off properly, user can set this channel not available, then receiver LNB default sort order is D2, D3, D4, and only support 3 delegate microphones working at the same time maximum. -
Page 19: Usb Recording Module
UHF-300 Wireless Conference System the channel by VOL - and VOL + key, and press MUTE to save the setting, Microphone will switch to next setting part automatically. User can see receiver data channel setting for reference. Microphone ID setting: Chairman microphone ID number can be set from 0-9, A-F total 16 ID for option, delegate microphone ID number can be set from 0-255, total 156 ID for option. - Page 20 UHF-300 Wireless Conference System Function key instruction: Function Key Instruction Short press P lay/Pause ： PLAY/PAUSE Long press: Sub-menu switch interface (MSC/REC/BT/SYS/UDI) PREV PREV / V-: Short press for previous audio file, long press for decrease volume NEXT NEXT/ V+: Short press for next audio file, long press for increase...
-
Page 21: Troubleshooting
UHF-300 Wireless Conference System 3. UHF-300 System Trouble shooting Situation Check Solutions The microphone unit shut off Check the battery capacity The batteries must be charged ★ ★ automatically before initial use Charge before use ★ The receiver unit is not turn on.
