EN.
USER MANUAL EN.

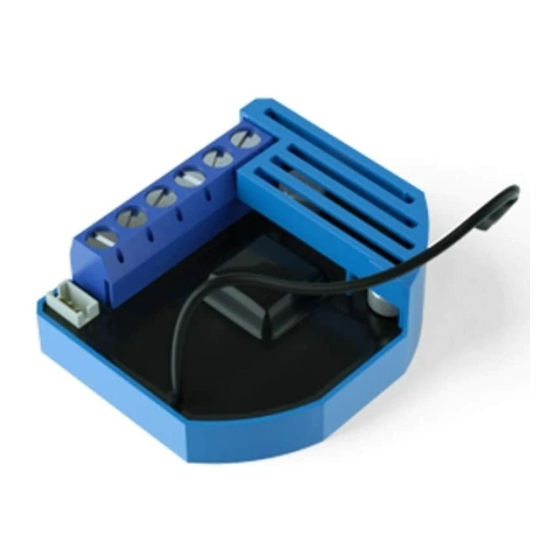

QUBINO FLUSH SHUTTER DC
The Qubino Flush Shutter DC module is ideal for remotely controlling 12–24V DC motors of
blinds, rollers, shades, venetian blinds and similar sunscreens.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FLUSH SHUTTER ZMNHOD1 and is the answer not in the manual?

Questions and answers

Related Manuals for QUBINO FLUSH SHUTTER ZMNHOD1

Summary of Contents for QUBINO FLUSH SHUTTER ZMNHOD1

  • Page 1 USER MANUAL EN. QUBINO FLUSH SHUTTER DC The Qubino Flush Shutter DC module is ideal for remotely controlling 12–24V DC motors of blinds, rollers, shades, venetian blinds and similar sunscreens.

  • Page 2: Table Of Contents

    Safety Information ........................4 Flush Shutter DC - Available Frequencies .................. 4 1. Introduction ..........................5 2. Qubino Flush Shutter DC Advantages and Highlights ............6 3. Package Contents ........................8 4. Technical Terms Used In the Manual ..................9 5. Installation..........................10 6.

  • Page 3: About Qubino

    About Qubino Qubino is a family of innovative Z-Wave modules, many of them the smallest of their kind in the world. Numerous breakthrough innovations, 100% quality control and responsive customer service make Qubino the number one choice for ambitious DIYers.

  • Page 4: Safety Information

    Safety Information To ensure your safety, please read this manual carefully before device installation and follow the instructions herein. The manufacturer (GOAP d.o.o. Nova Gorica) shall not be legally responsible for any equipment damage or personnel injury caused by incorrect installation or operation other than that covered in this manual.

  • Page 5: Introduction

    0.4 W. The Qubino Flush Shutter DC module can operate across a wide temperature range, from a chilly -10˚C to a scorching 40˚C (14˚–104˚F). It supports the connection of a digital temperature sensor, which means you can create complex scenarios and switch any device relative to a set temperature range.

  • Page 6: Qubino Flush Shutter Dc Advantages And Highlights

    • By scanning the QR code on the back of your Qubino, the serial and part number of the module are automatically copied on user’s mobile device and they can have direct access to Qubino’s technical support team.
  • Page 7 ADDITIONAL PRODUCT HIGHLIGHTS: • Precise Z-Wave and manual control of motorized blinds, shades, shutters, and sunscreens • Allows control of venetian blinds and changing vertical position and angle of the shades • Calibrates positioning automatically from your smart home UI and locally •...

  • Page 8: Package Contents

    3. Package Contents • Flush Shutter DC Module • Installation Manual...

  • Page 9: Technical Terms Used In The Manual

    4. Technical Terms Used In the Manual Symbol Switch example images Definition Qubino Other names Two-way Single pole, Switch; One-way switch Toggle single throw Bi-stable switch (regular switch (SPST) switch switch) Single pole, Three- Two-way Two-way double throw switch switch...

  • Page 10: Installation

    5. Installation After Qubino installation:...
  • Page 11 Temperature sensor installation:...
  • Page 12 The installation process, tested and approved by professional electricians, consists of the following simple steps: 1. To prevent electrical shock and/or equipment damage, disconnect electrical power at the main fuse or circuit breaker before installation and maintenance. 2. Be aware that even if the circuit breaker is off, some voltage may remain in the wires — before proceeding with the installation, be sure no voltage is present in the wiring.
  • Page 13 ⓘ Danger of electrocution! Installation of this module requires a great degree of skill and may be performed only by a licensed and qualified electrician. Please keep in mind that even when the module is turned off, voltage may still be present in the module’s terminals. ⓘ...

  • Page 14: Product Information And Support

    By scanning the QR code on the back of your Qubino module, its product title, serial number, and part number are automatically copied to your mobile device. You can also use the code for direct access to the module’s product page for more information.

  • Page 15: Electrical Diagram (12-24 Vdc)

    7. Electrical Diagram (12-24 VDC) Notes for diagram: +VDC (12-24 VDC) ⬆ -VDC (0V) ⬆ Output for motor UP (open) Output for motor DOWN (close) Input for switch/push button DOWN (close) Input for switch/push button UP (open) Temperature sensor terminal Service button (used to add or remove module from the Z-Wave network)

  • Page 16: Z-Wave Inclusion

    8. Z-Wave Inclusion AUTO-INCLUSION 1. Enable inclusion mode on your Z-Wave controller 2. Connect the module to the power supply (with the temperature sensor already connected*). If the sensor is not connected before the connection of the power supply it will not work. 3.
  • Page 17 MANUAL INCLUSION 1. Connect the module to the power supply (with the temperature sensor already connected — see the Note below) 2. Toggle the switch connected to the I1 terminal 3 times within 3 seconds Press and hold the S (Service) button for at least 2 seconds 3.

  • Page 18: Z-Wave Exclusion

    9. Z-Wave Exclusion Z-WAVE EXCLUSION 1. Connect the module to the power supply 2. Make sure the module is within direct range of your Z-Wave controller or use a hand-held Z- Wave remote to perform exclusion 3. Enable exclusion mode on your Z-Wave controller 4.

  • Page 19: Associations

    10. Associations Use associations for direct communication between the Flush Shutter module and other devices within your Z-Wave network without the need to use the primary controller. Association Groups: Root device: • Group 1: Lifeline group (reserved for communication with the primary controller), 1 node allowed.
  • Page 20 • Group 2: Multilevel set (status change report slats tilting position), up to 16 nodes. End point 3 (External Temperature Sensor): • Group 1: Lifeline group, 0 nodes allowed. • Group 2: Multilevel sensor report (external temperature sensor report – sensor sold separately), up to 16 nodes.

  • Page 21: Flush Shutter Dc Calibration

    11. Flush Shutter DC Calibration Automatic calibration Automatic calibration is a process during which the Flush Shutter DC learns the position of the limit switches. Shutter positioning calibration (par. 71 set to 0) There are two options to calibrate the device: •...
  • Page 22 2) Set parameter 71 to 1 ‘Venetian blinds’. 3) Exclude the module (without reset!). 4) Include the module. 5) After module inclusion beside main Shutter widget, another widget for slates control will appear on UI. 6) By default full turn movement is set to 1.5s. If this time is too long (if after slates full cycle Shutter starts moving up or down), decrease this time defined with parameter 72.
  • Page 23 Keeping the push-button pressed (for time > full turn slates time-par.72) connected to I2 (down), initiates Shutter down movement, until the push-button is released. Keeping the push-button pressed (for time > (full turn slates time +2s)) connected to I1 (up), initiates up movement, until the push-button is released.

  • Page 24: Configuration Parameters

    12. Configuration Parameters Parameter no. 10 - Activate / deactivate ALL ON/ALL OFF Functionality Flush Shutter DCs module responds to commands ALL ON / ALL OFF that may be sent by the primary or secondary controller within the Z-Wave network. Values (size is 2 byte dec): •...
  • Page 25 Parameter no. 40 – Watt Power Consumption Reporting Threshold for Q1 Load Choose by how much power consumption needs to increase or decrease to be reported. Values correspond to percentages so if 10 is set (by default), the module will report any power consumption changes of 10% or more compared to the last reading.
  • Page 26 Parameter no. 71 – Operating modes Choose between the two operating modes. If the venetian mode is selected, an additional widget/endpoint will be displayed on the UI interface, which can be used to control the tilt position of the slats. If the Shutter mode is selected, this additional endpoint is hidden. Values (data type is 1 byte dec): •...
  • Page 27 Parameter no. 73 – Slats position Choose the position of the slats after up/down movement (activated through the Z-Wave controller or the push-buttons) is completed. Values (data type is 1 byte dec): • default value 1 • 0 - Slats return to the previously set position only after being activated via the Z-Wave controller (not valid for limit switch positions).
  • Page 28 Parameter no. 74 – Motor moving up/down time This parameter defines the time, required by the Shutter DC motor, to completely open or completely close the attached shutters. Values (data type is 2 byte dec): • default value 0 • 0 – moving time disabled (working with limit switches) •...
  • Page 29 Parameter no. 76 - Motor operation detection Define the power consumption threshold at the end positions. Based on this value, the device will know, that the shutters reached the limit switches. Values (data type is 1 byte dec): • default value 30 = 30W •...
  • Page 30 Parameter no. 85 – Power consumption max delay time Define the maximum time before the power consumption of the motor, after one of the relays is switched ON, is read from the device. If there is no power consumption during the set time (motor not connected, damaged or requires longer time to start, motor at the end position), the relay will switch OFF.
  • Page 31 Parameter no. 86 – Power consumption at limit switch delay time This parameter defines the maximum time after which the active output will switch off, due to reaching a limit switch. When power consumption is below the specified power threshold, defined in the parameter no.
  • Page 32 Parameter no. 90 – Time delay for next motor movement This parameter defines the minimum time duration between successive motor movements (minimum time after which the motor is switched off and on again). Values (data type is 1 byte dec): •...
  • Page 33 Parameter no. 110 – Temperature Sensor Offset Settings Set value is added to or subtracted from the actually measured value to adjust the temperature report sent by an external sensor (sold separately). This parameter only applies to the degrees temperature unit (the Fahrenheit unit is currently not supported). Values (size is 2 byte dec): •...
  • Page 34 Parameter No. 250 – Unsecure / Secure Inclusion Flush Shutter DC supports secure and unsecure inclusion. Even if the controller does not support security command classes, a dimmer could be included as unsecure and keep all the functionality. Values (size is 1 byte dec): •...

  • Page 35: Technical Specifications

    13. Technical Specifications Power supply 12-24VDC +/-10%* Rated load current Overcurrent protection Output circuit power of DC output 48W (24VDC) (resistive load) Power measurement accuracy +/-5% Digital temperature sensor range -50 ~ +125°C (-58 ~ 257°F) Operation temperature -10 ~ +40°C (-14 ~ 104°F) Z-Wave operation range up to 30 m indoors (98 ft) 41,8x36,8x16,9 mm (79x52x22 mm) / 1,65x1,45x0,66 in...

  • Page 36: Z-Wave Command Classes

    14. Z-Wave Command Classes COMMAND_CLASS VERSION_V2 COMMAND_CLASS_DEVICE_RESET_LOCALLY_V1 COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2 COMMAND_CLASS_POWERLEVEL_V1 COMMAND_CLASS_SECURITY Securely Supported Command Classes: COMMAND_CLASS_SWITCH_ALL_V1 COMMAND_CLASS_SWITCH_BINARY_V1 COMMAND_CLASS_SENSOR_BINARY_V1 COMMAND_CLASS_SWITCH_MULTILEVEL_V3 COMMAND_CLASS_METER_V4 COMMAND_CLASS_SENSOR_MULTILEVEl_V7 COMMAND_CLASS_NOTIFICATION_V5 COMMAND_CLASS_MULTI_CHANNEL_V4 COMMAND_CLASS_ASSOCIATION_2 COMMAND_CLASS_MULTI_CHANNEL_ASSOCIATION_V3 COMMAND_CLASS_ASSOCIATION_GRP_INFO_V2 COMMAND_CLASS_CONFIGURATION_V1 COMMAND_CLASS_MARK COMMAND_CLASS_BASIC_V1 COMMAND_CLASS_SWITCH_MULTILEVEL_V3 Endpoint1: Device Class: BASIC_TYPE_ROUTING_SLAVE...
  • Page 37 GENERIC_TYPE_SWITCH_MULTILEVEL SPECIFIC_TYPE_CLASS_C_MOTOR_CONTROL Command Classes: COMMAND_CLASS_ZWAVEPLUS_INFO_V2 COMMAND_CLASS_SECURITY COMMAND_CLASS_SWITCH_ALL_V1 COMMAND_CLASS_SWITCH_BINARY_V1 COMMAND_CLASS_SWITCH_MULTILEVEL_V3 COMMAND_CLASS_METER_V4 COMMAND_CLASS_NOTIFICATION_V5 COMMAND_CLASS_ASSOCIATION_V2 COMMAND_CLASS_MULTI_CHANNEL_ASSOCIATION_V3 COMMAND_CLASS_ASSOCIATION_GRP_INFO_V2 COMMAND_CLASS_MARK COMMAND_CLASS_SWITCH_MULTILEVEL_V3 Endpoint2: Device Class: BASIC_TYPE_ROUTING_SLAVE GENERIC_TYPE_SWITCH_MULTILEVEL SPECIFIC_TYPE_CLASS_C_MOTOR_CONTROL Command Classes: COMMAND_CLASS_ZWAVEPLUS_INFO_V2 COMMAND_CLASS_SECURITY COMMAND_CLASS_SWITCH_ALL COMMAND_CLASS_SWITCH_BINARY_V1 COMMAND_CLASS_SWITCH_MULTILEVEL_V3...
  • Page 38 COMMAND_CLASS_ASSOCIATION_V2 COMMAND_CLASS_MULTI_CHANNEL_ASSOCIATION_V3 COMMAND_CLASS_ASSOCIATION_GRP_INFO_V2 COMMAND_CLASS_MARK COMMAND_CLASS_SWITCH_MULTILEVEL_V3 Endpoint 3: Device Class: GENERIC_TYPE_SENSOR_MULTILEVEL SPECIFIC_TYPE_ROUTING_SENSOR_MULTILEVEL Command Classes: COMMAND_CLASS_ZWAVEPLUS_INFO_V2 COMMAND_CLASS_SECURITY COMMAND_CLASS_SENSOR_MULTILEVEL_V7 COMMAND_CLASS_ASSOCIATION_V2 COMMAND_CLASS_MULTI_CHANNEL_ASSOCIATION_V3 COMMAND_CLASS_ASSOCIATION_GRP_INFO_V2 NOTE: The above list is valid for the product with a temperature sensor connected to TS terminal at the time of inclusion. In case the sensor is not connected then the following command class and endpoint 3 are not supported: COMMAND_CLASS_SENSOR_MULTILEVEL_V7 Endpoint 2 is supported by the module only when the parameter no.
  • Page 39 case overload, device will send overload notification (COMMAND_CLASS_NOTIFICATION_V5) towards the controller with the "Notification type" field set to 0x08 (POWER MANAGEMENT) and the "Event" field set to 0x08 ("Over load detected"). This Security Enabled Z-Wave Plus product can be included and operated in any Z-Wave network with other Z-Wave certified devices from any other manufacturers.

  • Page 40: Important Disclaimer

    Contact us for help before returning the product: http://qubino.com/support/#email 16. Warning Do not dispose of electrical appliances as unsorted municipal waste, use separate collection facilities.
  • Page 41 Gorica reserves all rights to revise and update all documentation without any obligation to notify any individual or entity. Declaration of Conformity Qubino Flush Shutter Module DC is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. WEEE According to the WEEE (Waste electrical and electronic equipment) Directive, do not dispose of this product as household waste or commercial waste.
