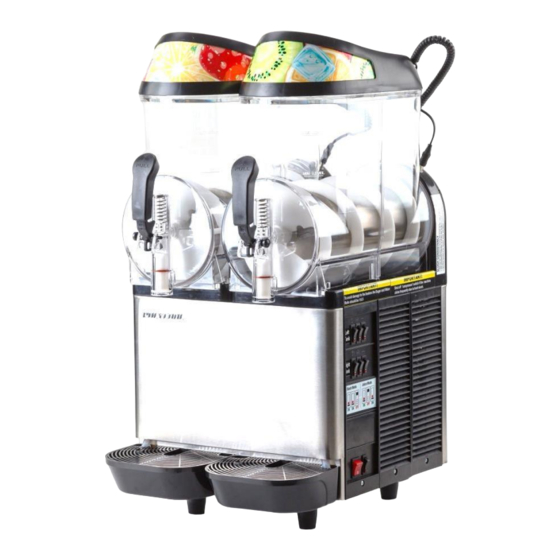

PRSL Series IV Slushie Machine
User Manual
[Revision 2.0 July 2017]
READ THIS MANUAL CAREFULLY BEFORE USE – FAILURE TO DO SO MAY RESULT IN INJURY, PROPERTY
DAMAGE AND MAY VOID WARRANTY. • KEEP THIS MANUAL FOR FUTURE REFERENCE. • Products covered by
this manual may vary in appearance, assembly, inclusions, specifications, description and packaging.
E&OE
©2017 Polycool
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for PolyCool PRSL-3000
Summary of Contents for PolyCool PRSL-3000
- Page 1 READ THIS MANUAL CAREFULLY BEFORE USE – FAILURE TO DO SO MAY RESULT IN INJURY, PROPERTY DAMAGE AND MAY VOID WARRANTY. • KEEP THIS MANUAL FOR FUTURE REFERENCE. • Products covered by this manual may vary in appearance, assembly, inclusions, specifications, description and packaging. E&OE ©2017 Polycool...
-
Page 2: Safety
• outlet. Do not plug into double Do not clean equipment with adaptors or multi-outlet extension solvents, flammable liquids or harsh power boards. abrasives. • Children should be under adult supervision whilst using the machine. E&OE ©2017 Polycool... -
Page 3: Table Of Contents
Maintenance Schedule ..........................10 Cleaning ..............................10 Compressor Servicing ..........................13 Seal Replacement ............................13 Transportation and Storage ........................13 Troubleshooting .......................... 14 Specifications ..........................15 PRSL-3000 ..............................15 PRSL-4500 ..............................15 Fill and Clean Quick Reference ....................17 E&OE ©2017 Polycool... -
Page 4: Applicable Models
PRSL Series IV Slushie Machine Applicable Models This manual applies to the following Polycool slushie machines: PRSL-3000 Series IV [ICESLHPLYA24L] Twin Tank PRSL-4500 Series IV [ICESLHPLYA36L] Triple Tank E&OE ©2017 Polycool... -
Page 5: Parts Identification
Control Panel Dispenser Plunger (1 per tank) Tank Cooling Drum (1 per tank) Tank Cover/Light Box (1 per tank) Beater (1 per tank) Dispenser Handle (1 per tank) Drip tray (1 per tank) Plunger Spring (1 per tank) E&OE ©2017 Polycool... -
Page 6: Assembly
7. See Fig 4. Hook the drip tray (7) to the slots in the machine body (C). 8. Ensure that the drip tube (8) is in the drip tray, then place the tray cover (9) on to the drip tray. 9. Perform steps 8 to 9 for each tank. Fig. 4 E&OE ©2017 Polycool... -
Page 7: Operation
The machine compressor (cooling unit) and tank cover lights for all tanks are controlled by a single set of “master” switches at the bottom of the control panel. When a switch is placed in the ON position, the red lamp on the switch illuminates. E&OE ©2017 Polycool... -
Page 8: Adjusting Tank Temperature
6. When finished filling, place the tank cover in position and re-connect the cable. Reconnect the machine to the electricity supply if previously unplugged. Switch ON the slush or juice mode switch and beater for the tank or at the “master” switch. Switch ON the tank lights. E&OE ©2017 Polycool... -
Page 9: Adjusting Slush Consistency
To re-install a drip tray (1), hook it to the slots in the machine body (B). Ensure that the drip tube (2) is in the drip tray, then place the tray cover (3) on top of the drip tray. E&OE ©2017 Polycool... -
Page 10: Maintenance
10. See Fig 9. Pull the driveshaft seal (5) from the end of the beater (it may have remained attached to the end of the driveshaft). Pull the tank seal (6) from the end of the cooling drum. Inspect both seals for wear or damage and replace if necessary. E&OE ©2017 Polycool... - Page 11 Fig. 15 Fig. 16 7. See Fig 16. Smear a small amount of food grade silicone lubricant onto the dispenser plunger (7) O-ring (8) and the sealing plug (2) at the bottom of the dispenser plunger (3). E&OE ©2017 Polycool...
- Page 12 12. See Fig. 20. Place the tank cover (22) into position on the top of the tank. 13. Plug the tank cover cable (E) to the connector at the rear of the machine. 14. Perform the above steps for each tank. E&OE ©2017 Polycool...
-
Page 13: Compressor Servicing
Drain the tanks and clean the machine (see Cleaning). • Store the unit in a dry, well-ventilated area and out of the reach of children. • Do not store in direct sunlight. • Cover the machine to protect it from dirt and dust. E&OE ©2017 Polycool... -
Page 14: Troubleshooting
Check that dispenser is correctly assembled. Check O-ring for wear, dirt or damage – clean Dispenser not sealing or replace O-ring as required. Tank not sealing Check that tank seal and tank are correctly assembled. Check seal for wear, dirt or damage – clean or replace seal as required. E&OE ©2017 Polycool... -
Page 15: Specifications
PRSL Series IV Slushie Machine Specifications PRSL-3000 Input Voltage 240VAC / 50Hz Current Consumption 5.8A Drink Tank Capacity 2 x 12l Drink Tank Temperature -4 to -2°C (24.8 to 28.4°F) Refrigerant Agent R134a / 400g Frothing Agent HCFC-141b Ambient Operating 5 to 35°C (41 to 95°F) - Page 16 ©2017 Polycool. All rights reserved. No part of this document, including descriptive content, concepts, ideas, diagrams or images may be reproduced or transmitted in any form or by any means, electronic or mechanical, including photocopying, scanning or recording, or any information storage and retrieval system, without express permission or consent from the publisher.
-
Page 17: Fill And Clean Quick Reference
• Lubricate tank around tank seal (18), then push tank firmly over tank seal then push down until tank “clicks” into position (19). • Reassemble dispenser plunger and lubricate O-ring (20), then re-install dispenser (21). • Re-install drip tray (22). • Fill tank (see above). E&OE ©2017 Polycool...
