Summary of Contents for Nexus Cidron Standard Reader

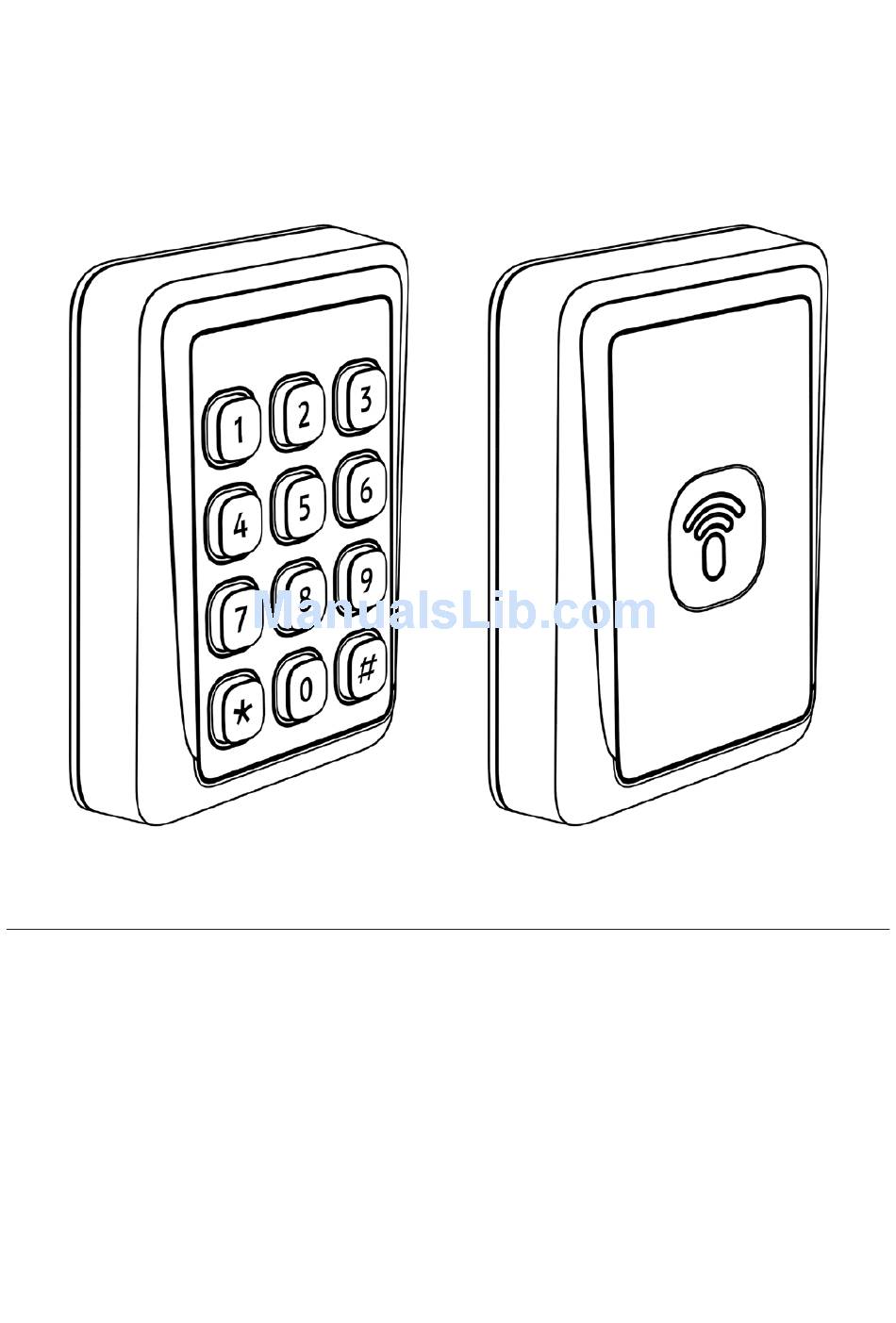

- Page 1 CIDRON Installation guide Cidron Standard Reader Cidron Combi Reader...
-
Page 2: Technical Specifications
Also supports other ISO 14443 A/B* compatible cards. Reading technologies *Not all ISO14443 B cards have been implemented in the reader, please contact Nexus for more details on current status. MIFARE is a registered trademark of NXP B.V. and is used under license. Secure Access Module... - Page 3 MIFARE DESFire EV1. Also supports other ISO 14443 A/B* compatible cards. Reading technologies *Not all ISO14443 B cards have been implemented in the reader, please contact Nexus for more details on current status. MIFARE is a registered trademark of NXP B.V. and is used under license. Secure Access Module...
- Page 4 Package content: • 2pcs Installation screws • 1pc Installation plate • 2pcs Screw plugs • 1pc Reader module with front plate • 1pc Cable strip • 1pc Front cover • 1pc Fixing screw • 2pcs Terminal connector (8-pin) • 1pc Quick installation guide * Please note that all pictures in this manual are illustrations and do not represent the actual sizes and form of the components.
- Page 5 ~20 cm In order to facilitate installation a cable length of 20cm is recommended.
- Page 6 Ensure that the installation plate is fixed in the correct direction, i.e. the arrows pointing upwards.
- Page 7 Ensure that the area behind the tamper switch bulb of the installation plate is flat, to be able to push the bulb for correct tamper alarm functionality. If it is not flat enough, you will find accessories in this manual that will assist with improving this functionality.
- Page 8 48 mm 21 mm 69 mm When installing directly to wall or door, use the recommended vertically aligned holes (as picture describes). If using other screws than the ones supplied with the reader, make sure to use a flat headed screw with a maximum height of 2.8 mm and a maximum diameter of 7.8 mm on the screw head.
- Page 9 Installation box tamperswitch bracket, part no: SC9189-RF When installing reader on a installation box, use the recommended horizontally aligned holes (as picture describes). If the tamperswitch functionality should be used a installation box tamperswitch bracket must be installed between the reader and the installation box. Utilize screws supplied with the installation box but make sure to use a screw and possible also washer with a maximum height of 2.8 mm and a maximum diameter of 7.8 mm.
- Page 10 P2 - Black socket P1 - Blue socket Make sure to place the terminal connectors with the fastening screws facing towards you.
- Page 11 Blue Black Tamper GPO1 D1 Clock GPO2 D0 Data B/RX G-LED A/TX R-LED BZ CTRL K-LED RS485/ Clock/ Description Wiegand OSDP Data Tamper Tamper output GPO1 General purpose I/O GPO2 General purpose I/O Ground B/RX RS485 - A/TX RS485 + Power supply Power supply 9-30 VDC Card Present...
- Page 12 Make sure no excess connection cable is left in between the reader module and the installation plate. Use the enclosed cable strip to fix the cable in the cord grip. It is recommended to connect the the wires to the terminal connectors before tightening the cable strip.
- Page 13 When installing the reader to the mounting plate ensure that the reader pin header contact perfectly aligns with the terminal connector block.
- Page 14 Mount the front cover as per the image above and make sure it is fitted correctly. In order to do so, allign and fit the top snap fastening, apply and maintain pressure on the top of the front cover while sliding the front cover over the bottom snap fastening.
- Page 15 To secure the front cover to the reader use the supplied fixing screw and fix it into the installation plate through the front cover.
- Page 16 Cidron tool, part no: SC9914 To open the reader, first remove the fixing screw and then detach the front cover from the installation plate by inserting the tip of the tool into the slot at the bottom of the front cover and move the tool upwards. This will release the front cover without damaging the front cover and/or the installation plate.
- Page 17 Overview, programming of reader Setting the reader in programming mode see page: Configuring the Changing Resetting the reader authentication card OSDP secure channel. see page: see page: see page:...
- Page 18 Setting the reader in programming mode BEEP ! Reading distance approximately 2 cm. In order to set the reader in programming mode, present the valid “Authentication Card” to the reader as shown. The reader will beep and start blinking yellow to indicate that it is now in programming mode.
-
Page 19: Configuring The Reader
Configuring the reader BEEP ! Reading distance approximately 2 cm. 1: Set the reader in programming mode, see page: 18 2: Present the “Configuration Card” to the reader as shown. Keep the card within reading distance until the reader beeps and blinks in green. - Page 20 Changing authentication card BEEP ! Reading distance approximately 2 cm. 1: Set the reader in programming mode, see page: 18 2: Present the “CHANGE Authentication Card” to the reader as shown. Keep the card within reading distance un til the reader beeps and blinks in green.
- Page 21 Resetting the OSDP secure channel. BEEP ! Reading distance approximately 2 cm. 1: Set the reader in programming mode, see page: 18 2: Present the “OSDP Installation mode Card” to the reader as shown. Keep the card within reading distance until the reader beeps and blinks in green.
- Page 22 Installing Secure Access Module MIFARE® SAM AV2 (SIM Card), part no: SK2010 Software ISLOG SAM Manager, part no: PVISSAM-MGT In order to install the SAM into the reader open the SAM socket by unlocking and opening the lid. Then place the SAM into the socket lock it into place by closing the lid and sliding it into locked position.
- Page 23 CIDRON Accessories Cidron Standard Reader Cidron Combi Reader...
- Page 24 Distance plate, standard Matte black, part no: SC9191-S Matte white, part no: SC9191-V The distance plate can be used for example when installing readers in environments where the installation surface is uneven or/and external wiring at the same side as the reader. Can also be used when mounting readers over installation boxes.
- Page 25 Distance plate, large Matte black, part no: SC9197-S Matte white, part no: SC9197-V Used to install readers on an area where additional cover is needed to hide old installation holes or on uneven surfaces. Can also be used with external wiring on the same side as the reader.
- Page 26 Distance plate, angled 10° Matte black, art nr: SC9193-S Matte white, art nr: SC9193-V Used to increase accessibility as well as visibility of the keypad.
- Page 27 Distance plate, angled 33° * Screws and screw plugs included with accessory. Matte black, art nr: SC9192-S Used to increase accessibility as well as visibility of the keypad. Recommended height is 900mm (center of reader) above the ground/floor. Note: The reader can also be installed turned around 180 degrees for use on speed gates or tabletop readers, for instance.
- Page 28 Vandalization protection * Screws and screw plugs included with Matte black, part no: SC9180-S accessory. The vandalization protection is an accessory that shields the reader and helps it withstand violence by absorbing and redirecting external forces away from the reader. Can be retro-fitted to already installed readers.
- Page 29 Distance plate, large + Vandalization protection A recommended combination when external wiring is needed together with the vandalization protection. Can also be used for covering up old installation holes.
- Page 30 Climate- & Privacy protection * Screws and screw plugs included with Transparent, part no: SC9901-T accessory. White, part no: SC9901-V The transparent version SC9901-T is recommended to use for in- creased protection from rain and snow while still providing great visibility and accessibility in a slender format.
-
Page 31: Cleaning Instructions
Cleaning instructions Use compressed air in between the buttons to remove dust and dirt and after that Isopropyl alcohol can be used with a piece of fabric to rub in between the buttons and the reader exterior. - Page 32 The Cidron readerfamily are intended for; Sale to professional security companies and installation by experienced security professionals. Nexus Group can not provide assurance that any entity or person buying or obtaining the product is properly experienced or trained to correctly install security related products including card readers.
