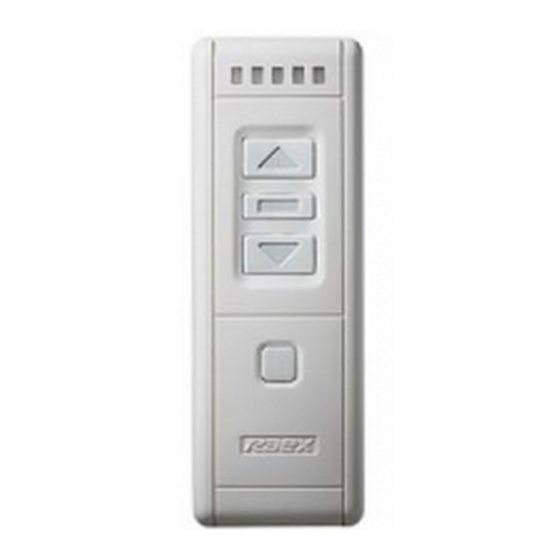

YR1226 Remote Transmitter

YR1226 remote control is used to control the motors. motors fit all
kinds of electric roller blinds, canopies, Roman blinds, Venetian
blinds, projection screens, awnings, and outside solar protections.
This kind of motor integrated with a radio receiver within its casing,
No wiring is required between the motor and its control point, and is
compatible with low voltage switch.

Specification

Transmit modulate: 433.92MHz,ASK
Transmit intensity: +10dBm
Remote channel: 6 channels
Battery: CR2032×1
Remote cradle holder: optional part

Common buttons function:

1. YR1226 transmitter has six channels. Each light is one channel.
Five lights flash at the same time means the sixth channel.
[Channel choose] button can switch circularly any one channel.
2. [Up] [stop] [down] buttons separately transmit different function
signals under the current selected channel.
3. [Channel setting] key is only used to set
remote channels. Please see <setting
methods>.
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the YR1226 and is the answer not in the manual?

Questions and answers

Summary of Contents for Raex YR1226

  • Page 1 YR1226 Remote Transmitter YR1226 remote control is used to control the motors. motors fit all kinds of electric roller blinds, canopies, Roman blinds, Venetian blinds, projection screens, awnings, and outside solar protections. This kind of motor integrated with a radio receiver within its casing, No wiring is required between the motor and its control point, and is compatible with low voltage switch.
  • Page 2 25 seconds. This function will help consumer default the first channel every time. 2. YR1226 radio transmitter can compatible with different radio receivers. Different receivers will have different setting and use methods. The operation will base on the receiver’s manual.
  • Page 3 When the work direction of the motor is different from the control direction, you needn’t change the cable connection. You can only correct the direction on the transmitter. Application Example YR1226 radio transmitter and AR8611 radio receiver setting steps: Setting remote channel 1. Press [Learning] 2. Press [channel 3.
  • Page 4 1. Press [learning] key 3 seconds 3. Press [channel choose] till the light is on. The controller button, do not release. Then enters into record state. press [Stop] button one time. FCC Information This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: 1) this device may not cause harmful interference, and 2) this device must accept any interference received, including interference that...
  • Page 5 different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. Any special accessories needed for compliance must be specified in the instruction manual. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
