Instruction No
Instruction No
Version
Version
31210439
31210439
1.5
1.5
J8504529
J8504529
© Volvo Car Corporation

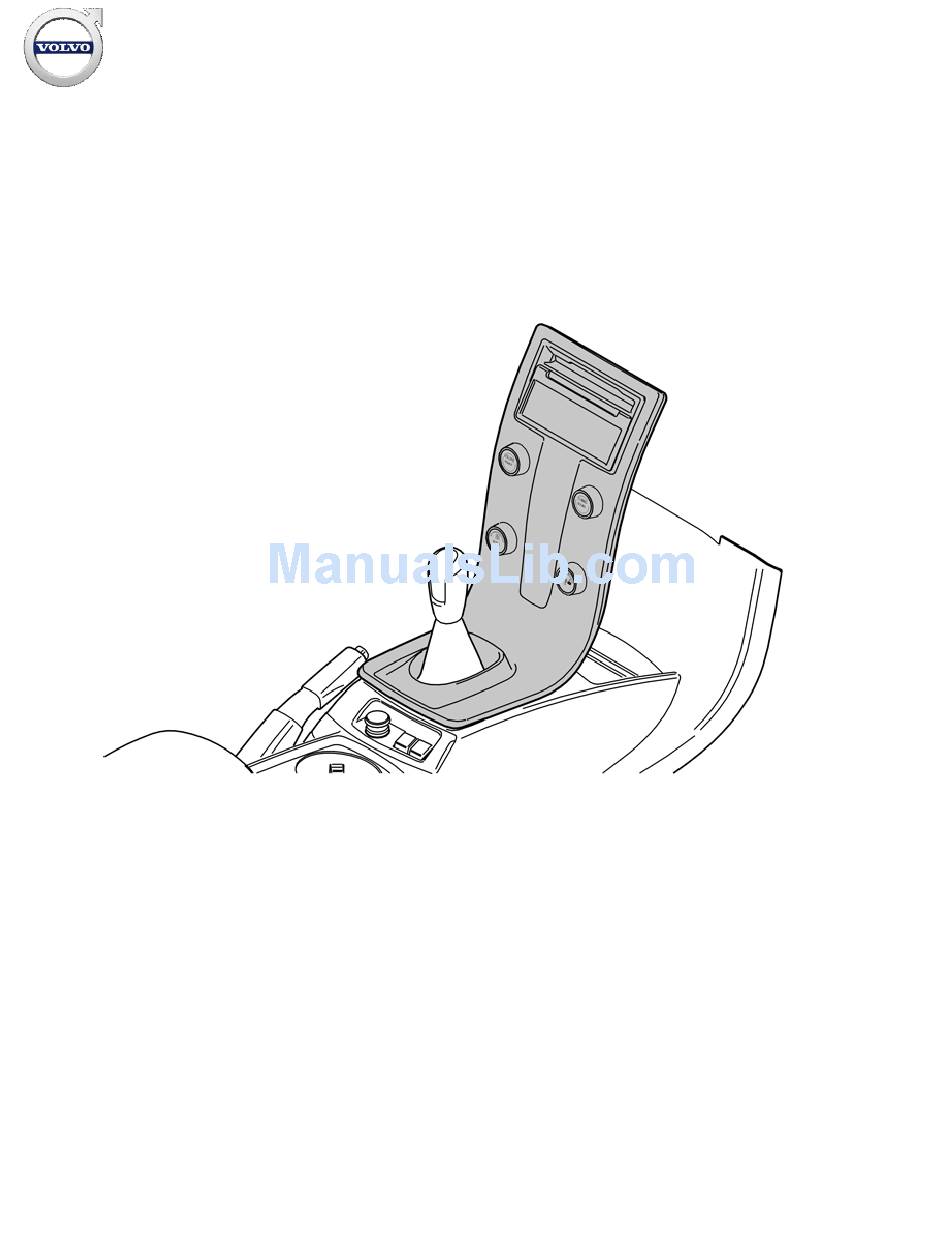

Installation instructions, accessories
Volvo Car Corporation Gothenburg, Sweden
Part. No.
Part. No.
31201030, 31210456, 31316256
31201030, 31210456, 31316256
CD player, MD/CD player, CD changer
CD player, MD/CD player, CD changer
CD player, MD/CD player, CD changer- 31210439 - V1.5
Page 1 / 9
Advertisement
Related Manuals for Volvo 31210456
Summary of Contents for Volvo 31210456
- Page 1 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Instruction No Instruction No Version Version Part. No. Part. No. 31210439 31210439 31201030, 31210456, 31316256 31201030, 31210456, 31316256 CD player, MD/CD player, CD changer CD player, MD/CD player, CD changer J8504529 J8504529 ©...
- Page 2 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Equipment A0000162 A0801178 J3905335 © Volvo Car Corporation CD player, MD/CD player, CD changer- 31210439 - V1.5 Page 2 / 9...
- Page 3 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden IMG-213320 © Volvo Car Corporation CD player, MD/CD player, CD changer- 31210439 - V1.5 Page 3 / 9...
- Page 4 Explanatory text is also given for more complicated steps. In the event of any problems with the instructions or the accessory, contact your local Volvo dealer. Note! This accessory is connected to the car's electrical system. It requires software unique to the car.
- Page 5 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Detach the panel at the rear edge of the centre console: Use a plastic weatherstrip tool to pry loose the panel. The panel is secured by a catch on each short side.
- Page 6 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Remove the panel on the rear of the centre console: Open the glove compartment. Use a plastic weatherstrip tool carefully to pry loose the panel. The panel is secured by a catch on each long side.
- Page 7 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Press out the display module from the reverse of the centre console. Press straight backwards, using both hands. Disconnect the two connectors. Put the display to one side. J8504534 Remove the two screws holding the centre console to the dashboard.
- Page 8 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Remove the two clips securing the cables to the media player by first pressing them to the sides and then pulling them away downwards. Note! Be careful with the optic cables so that they are not bent or stretched.
- Page 9 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden player. Reinstall: the connector for the dashboard environment panel the centre console for the dashboard and tunnel console the connectors for the display the display Applies to CD player/changer: Reinstall the display surround and the media player.
