Summary of Contents for Rock Solid RSM1-20AB-08N1

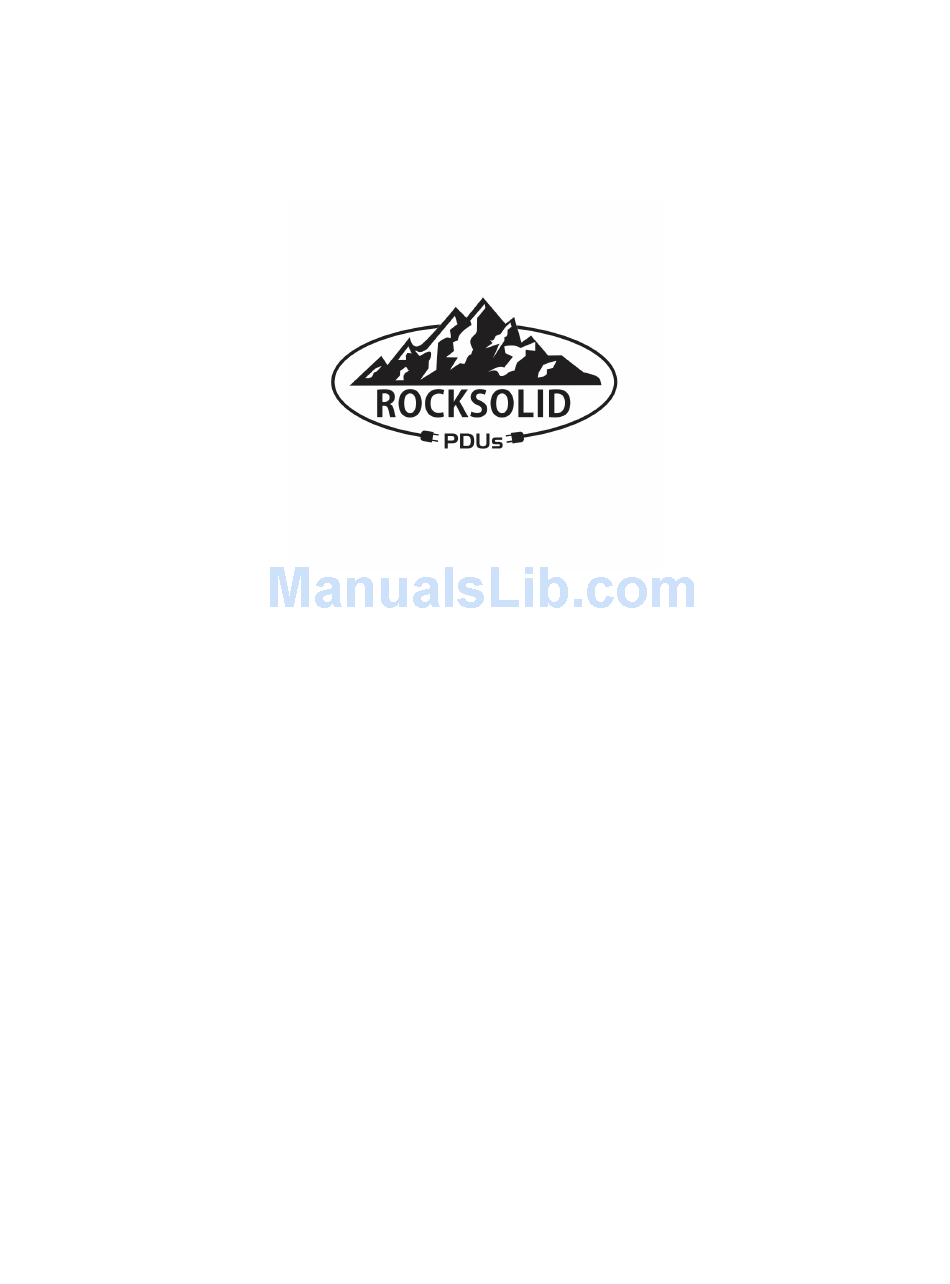

- Page 1 Metered Power Distribution Unit User Guide RSM1-15AA-08N1 RSM1-20AB-08N1 RSM0-30AM-16N2 Date 20 January 2012 Revision...
-
Page 2: Features Of The Pdu
1. Introduction The Rock Solid Metered Power Distribution Unit (PDU) is an Internet ready device designed and equipped with a true RMS current-meter that will indicate the total power consumption of the PDU. The current load can be accessed locally via a digital display or remotely via secure web access. -
Page 3: Package Contents
• USB Flash Drive, containing: o User Manual o PDU Utility Software o SNMP MIB: Management Information Base (PDUMIB.mib) Rock Solid Metered PDU Manual GS Geiger Group ∙ 181 Sand Creek Rd Ste I-1 ∙ Brentwood ∙ CA ∙ 94513 ∙ USA... - Page 4 The warning alert can be disabled, see instructions on the Function Button above. 9. Ethernet Port: RJ45 port for connecting to the network Rock Solid Metered PDU Manual GS Geiger Group ∙ 181 Sand Creek Rd Ste I-1 ∙ Brentwood ∙ CA ∙ 94513 ∙ USA...
-
Page 5: Installing The Hardware
6. Connect your equipment to the output power sockets on the PDU Connect the PDU to your network system using an Ethernet cable 8. Switch on the PDU Rock Solid Metered PDU Manual GS Geiger Group ∙ 181 Sand Creek Rd Ste I-1 ∙ Brentwood ∙ CA ∙ 94513 ∙ USA... - Page 6 PDU to factory defaults if you do so. 4. Click on Apply. Login again to continue PDU configuration. Rock Solid Metered PDU Manual GS Geiger Group ∙ 181 Sand Creek Rd Ste I-1 ∙ Brentwood ∙ CA ∙ 94513 ∙ USA...
-
Page 7: Changing Network Parameters
This ensures access to your power equipment in the event of main data network failure. Rock Solid Metered PDU Manual GS Geiger Group ∙ 181 Sand Creek Rd Ste I-1 ∙ Brentwood ∙ CA ∙ 94513 ∙ USA... - Page 8 Checking the PDU Load The total input load in amps is shown at the top of the screen under the Rock Solid logo. Clicking on the PDU link off the main menu also shows the PDU input load and the current threshold values.
- Page 9 4. Click Apply. A confirmation dialog box will pop up, click OK to save the new values. Read Community is public and fixed. Rock Solid Metered PDU Manual GS Geiger Group ∙ 181 Sand Creek Rd Ste I-1 ∙ Brentwood ∙ CA ∙ 94513 ∙ USA...
- Page 10 6. Power Management Consolidation The data from your Rock Solid PDUs can be consolidated using the PDU Utility software. With the PDU Utility software one can: • Add PDUs that will have their data consolidated by the PDU Utility • Create groups and add PDUs to the groups •...
-
Page 11: What This Warranty Does Not Cover
2 years. Should any manufacturer defect occur within the warranty period, Rock Solid PDUs will correct the defect free of charge with the exception of the cost to ship the product to the factory or authorized dealer that sold the device. Proof of purchase in the form of an invoice or prior registration is required to activate this warranty.
