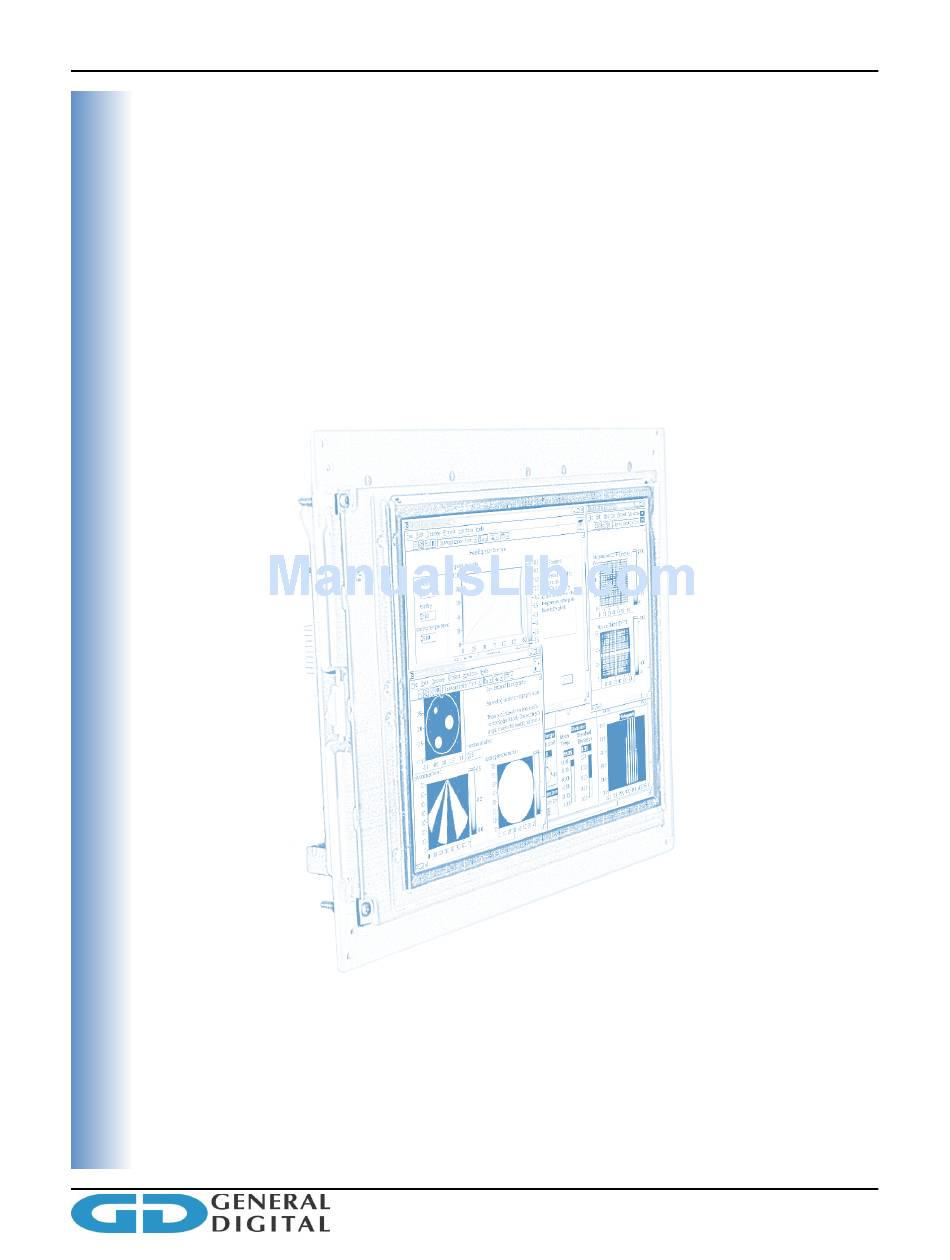

- Page 1 User’s Manual ™ OEM Monitor Kit Open Frame LCD Monitor Kit MK-06V Series MK-08V Series MK-10V Series MK-10S Series MK-12S Series Manual P/N: 01-800 Revision 1.0 The Innovators of Flat Panel Technology...
- Page 2 ...to record the following information in the space provided below. Should the need arise to contact General Digital™ regarding your LCD monitor, this information will help us to better serve you. You will fi nd the model number/serial number label affi xed to the rear of your monitor.
-
Page 3: Table Of Contents
Table of Contents Precautions .................4 Package Contents..............6 Installation .................7 Connections................8 Troubleshooting ...............11 Specifi cations..............12 Options & Accessories .............14 Mechanical Drawings............15 Warranty................19 Contact Information ............21 OEM Monitor Kit User’s Manual ™ The Innovators of Flat Panel Technology... -
Page 4: Precautions
If your LCD screen exhibits any minor anomalies, it is not an indication of a malfunction. General Digital™ inspects each screen to even more rigid specifi cations than the manufacturer’s and will not ship any product found to be substandard. - Page 5 A specially designed fl uorescent tube is installed as the lighting apparatus for this mon- itor. If the screen becomes dark, unstable or does not turn on, replace the fl uorescent ™ tube with a new one. Consult General Digital when replacing the fl uorescent tube. Maintenance •...
-
Page 6: Package Contents
Package Contents Please take a moment to ensure that you have received the following items. Report any discrepancies immediately. ™ One (1) OEM Monitor Kit model from one of the following LCD monitor families: MK-06V Series MK-08V Series MK-10V Series MK-10S Series MK-12S Series One (1) Documentation CD with User’s Manuals and LCD Monitor Calibration &... -
Page 7: Installation
Installation 1) Install your monitor into the desired panel, console or enclosure of your choosing using the provided mounting holes on the perimeter of the mounting panel. 2) Attach a shielded video cable (connected at one end to your computer, work- station or composite NTSC/PAL video source) to the video connector(s) located on the rear of the LCD monitor. -
Page 8: Connections
Connections ™ General Digital’s LCD monitors are equipped with several types of connectors to suit a variety of purposes. To reference the information about the connectors on your unit, simply match the connectors on your unit with the photos on these pages. - Page 9 Connections (continued) DC Power Input Connector: 3-pin 3W3 Enclosure Mating Connector GD Part No.: 30-425/30-364 30-382 Manufacturer: Cinch/ITT Cannon Cinch Manufacturer Part No.: 008 0328-3/DAMC3H3PJK87 008 00334-4 PIN NUMBER SIGNAL 1 (A1) +12 VDC 30-425 2 (A2) — 3 (A3) Ground 30-364 30-382...
- Page 10 Connections (continued) VGA Input Connector: 15-pin High Density Enclosure Mating Connector GD Part No.: 30-238 30-239 Manufacturer: Amphenol (or equivalent) Amphenol (or equivalent) Manufacturer Part No.: 17HD015SAA000 17HD015PAA000 PIN NUMBER SIGNAL Green 30-238 Blue — Ground Red Return 30-239 Green Return Blue Return —...
-
Page 11: Troubleshooting
Verify that a video signal of compatible resolution and Graphic Card Settings refresh rate is being provided to the monitor. No Image Defective Display, Contact General Digital Service Department for a Return Backlight Inverter or Material Authorization (RMA). Internal Connection Dim Display OSD Settings Check Brightness and Contrast settings. -
Page 12: Specifi Cations
Specifi cations MK-06V-100 MK-08V-150 Display Size (Diagonal) 6.4" 8.4" Resolution (Pixels) 640 x 480 640 x 480 Colors 262,144 262,144 Luminance (Minimum) 300 Nits 300 Nits Contrast* 300:1 250:1 Hor. Viewing Angle (Min.) ±70° ±55° Vert. Viewing Angle (Min.) +40°, -70°... - Page 13 Specifi cations MK-10S-220 MK-12S-301 Display Size (Diagonal) 10.4" 12.1" Resolution (Pixels) 800 x 600 800 x 600 Colors 262,144 262,144 Luminance (Minimum) 230 Nits 250 Nits Contrast* 300:1 300:1 Hor. Viewing Angle (Min.) ±60° ±60° Vert. Viewing Angle (Min.) ±50° +45°, -55°...
-
Page 14: Options & Accessories
Options & Accessories Though the most popular options and accessories are listed here, we have many others from which to choose. Please visit our web site at http://www.GeneralDigital.com or inquire with a Sales Engineer for details. LCD DISPLAY OVERLAY* Clear Float Glass, Antiglare One Side Clear Float Glass, Antiglare Two Sides Clear Float Glass, Antirefl... -
Page 15: Mechanical Drawings
Mechanical Drawings OEM Monitor Kit User’s Manual ™ The Innovators of Flat Panel Technology... - Page 16 Mechanical Drawings (continued) OEM Monitor Kit User’s Manual ™ The Innovators of Flat Panel Technology...
- Page 17 Mechanical Drawings (continued) OEM Monitor Kit User’s Manual ™ The Innovators of Flat Panel Technology...
- Page 18 Mechanical Drawings (continued) OEM Monitor Kit User’s Manual ™ The Innovators of Flat Panel Technology...
-
Page 19: Warranty
Warranty ™ GENERAL DIGITAL CORPORATION (hereinafter Seller) STANDARD TERMS AND CONDITIONS OF SALES 1. Acknowledgment and acceptance of any order by seller is • Unauthorized modifi cation of the product by any means. expressly limited to and made conditional upon the terms •... - Page 20 13, infringement by said product or part thereof. General Digital shall be entitled to injunctive or other relief to enforce its rights under this agreement without prejudice to 6. TERMS OF PAYMENT. Payment terms for sales within its rights under this paragraph.
-
Page 21: Contact Information
Contact Information We want you to be completely satisfi ed with your product. Please feel welcome to contact us should you require any of our services. General Digital ™ Corporation 8 Nutmeg Road South South Windsor, CT 06074 Phone: 860.282.2900 Toll-Free: 800.952.2535...
