Owner's Manual & Safety Instructions
Save This Manual
operating, inspection, maintenance and cleaning procedures. Write the product's serial number in the
back of the manual near the assembly diagram (or month and year of purchase if product has no number).
Keep this manual and the receipt in a safe and dry place for future reference.
Email our technical support at: productsupport@harborfreight.com
When unpacking, make sure that the product is intact
and undamaged. If any parts are missing or broken,
please call 1-888-866-5797 as soon as possible.
©
Copyright
2017 by Harbor Freight Tools
No portion of this manual or any artwork contained herein may be reproduced in
any shape or form without the express written consent of Harbor Freight Tools.
Diagrams within this manual may not be drawn proportionally. Due to continuing
improvements, actual product may differ slightly from the product described herein.
Tools required for assembly and service may not be included.
Keep this manual for the safety warnings and precautions, assembly,
Visit our website at: http://www.harborfreight.com
®
. All rights reserved.
Read this material before using this product.
Failure to do so can result in serious injury.
SAVE THIS MANUAL.
17i
Advertisement
Table of Contents
Related Manuals for Ames Instruments 64013
Summary of Contents for Ames Instruments 64013
- Page 1 Owner’s Manual & Safety Instructions Save This Manual Keep this manual for the safety warnings and precautions, assembly, operating, inspection, maintenance and cleaning procedures. Write the product’s serial number in the back of the manual near the assembly diagram (or month and year of purchase if product has no number). Keep this manual and the receipt in a safe and dry place for future reference.
-
Page 2: Table Of Contents
Indicates a hazardous situation which, if not avoided, could result in death or serious injury. Indicates a hazardous situation which, if not avoided, could result in minor or moderate injury. Addresses practices not related to personal injury. Page 2 For technical questions, please call 1-888-866-5797. Item 64013... - Page 3 (If in doubt about the condition of the Meter, have 13. Stay alert. Watch what you are doing, it serviced before use.) use common sense. Do not operate any Meter when you are tired. Item 64013 For technical questions, please call 1-888-866-5797. Page 3...
- Page 4 22. Prior to testing resistance, diodes, be built into this product, but must or continuity; disconnect all power be supplied by the operator. to the circuit and discharge all high-voltage capacitors. SAVE THESE INSTRUcTIONS. Page 4 For technical questions, please call 1-888-866-5797. Item 64013...
-
Page 5: Specifications
± 3.0% of rdg + 3D Sampling Rate ~3 times/second Operating Temperature Range: 32° - 104° F Max Jaw Opening 28mm Display 3-¾ digit LCD (max. display: 3999) Battery 3x AAA batteries (included) Item 64013 For technical questions, please call 1-888-866-5797. Page 5... -
Page 6: Setup

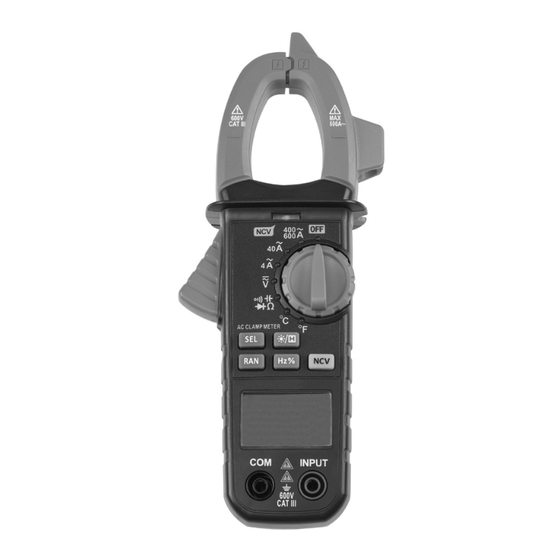

Worklight Test Lead clip Non-contact Voltage Indicator clamp Trigger Rotary Switch Backlight/Data Select Button Hold Button Range Button Non-contact Voltage Button Frequency/Duty AUTO cycle Button Display cOM Jack Input Jack Page 6 For technical questions, please call 1-888-866-5797. Item 64013... - Page 7 Percentage (duty cycle) Hz, kHz Hertz (frequency) MV, V Volts (Voltage) μA, mA, A Amps (Current) nF, uF, mF Farads (Capacitance) Ω, kΩ, MΩ Ohms (Resistance) Continuity Diode Display Hold Item 64013 For technical questions, please call 1-888-866-5797. Page 7...
-
Page 8: Data Hold
Note: Frequent use of the backlight will shorten the life of the batteries. Only use the backlight when necessary. Page 8 For technical questions, please call 1-888-866-5797. Item 64013... -
Page 9: Auto Power Off
If Meter is not used for approximately 30 minutes, it will automatically turn itself off to conserve battery power. To turn Meter back on after auto-off, press the SEL button. Item 64013 For technical questions, please call 1-888-866-5797. Page 9... -
Page 10: Operation
Turn Rotary Switch to 400-600A~, 40A~ or 4A~ position. Start with When testing is complete, turn highest range if amperage is unknown. Rotary Switch to OFF, and store Meter. Page 10 For technical questions, please call 1-888-866-5797. Item 64013... - Page 11 Plug black test lead into cOM Jack. Note: If voltage is too high, Plug red test lead into INpUT Jack. Display will read OL. Turn Rotary Switch to the position. Item 64013 For technical questions, please call 1-888-866-5797. Page 11...
-
Page 12: Capacitance Measurements
Display will read OL. Turn Rotary Switch to the position. When testing is complete, turn Press SEL button until nF is displayed. Rotary Switch to OFF, remove and store capacitor and Meter. Page 12 For technical questions, please call 1-888-866-5797. Item 64013... -
Page 13: Resistance Measurements
MΩ is displayed. Note: When leads are disconnected Carefully touch exposed or measurement is out of conductors with tips of probes. range, OL is displayed. Read measured resistance on the Display. Item 64013 For technical questions, please call 1-888-866-5797. Page 13... -
Page 14: Temperature Measurement
Connect red end of Thermocouple on the Display. (included) to the INpUT Jack and WARNING! To prevent electric the black end to the cOM Jack. shock, remove Thermocouple before switching between testing modes. Page 14 For technical questions, please call 1-888-866-5797. Item 64013... -
Page 15: Maintenance
Turn the unit over. Replace cover and retighten screw. Remove screw on battery cover. calibration Have the Meter calibrated by a qualified technician every year to maintain accuracy. Item 64013 For technical questions, please call 1-888-866-5797. Page 15... -
Page 16: Warranty
Limited 90 Day Warranty Harbor Freight Tools Co. makes every effort to assure that its products meet high quality and durability standards, and warrants to the original purchaser that this product is free from defects in materials and workmanship for the period of 90 days from the date of purchase. This warranty does not apply to damage due directly or indirectly, to misuse, abuse, negligence or accidents, repairs or alterations outside our facilities, criminal activity, improper installation, normal wear and tear, or to lack of maintenance.
