Summary of Contents for AP systems ECU-R

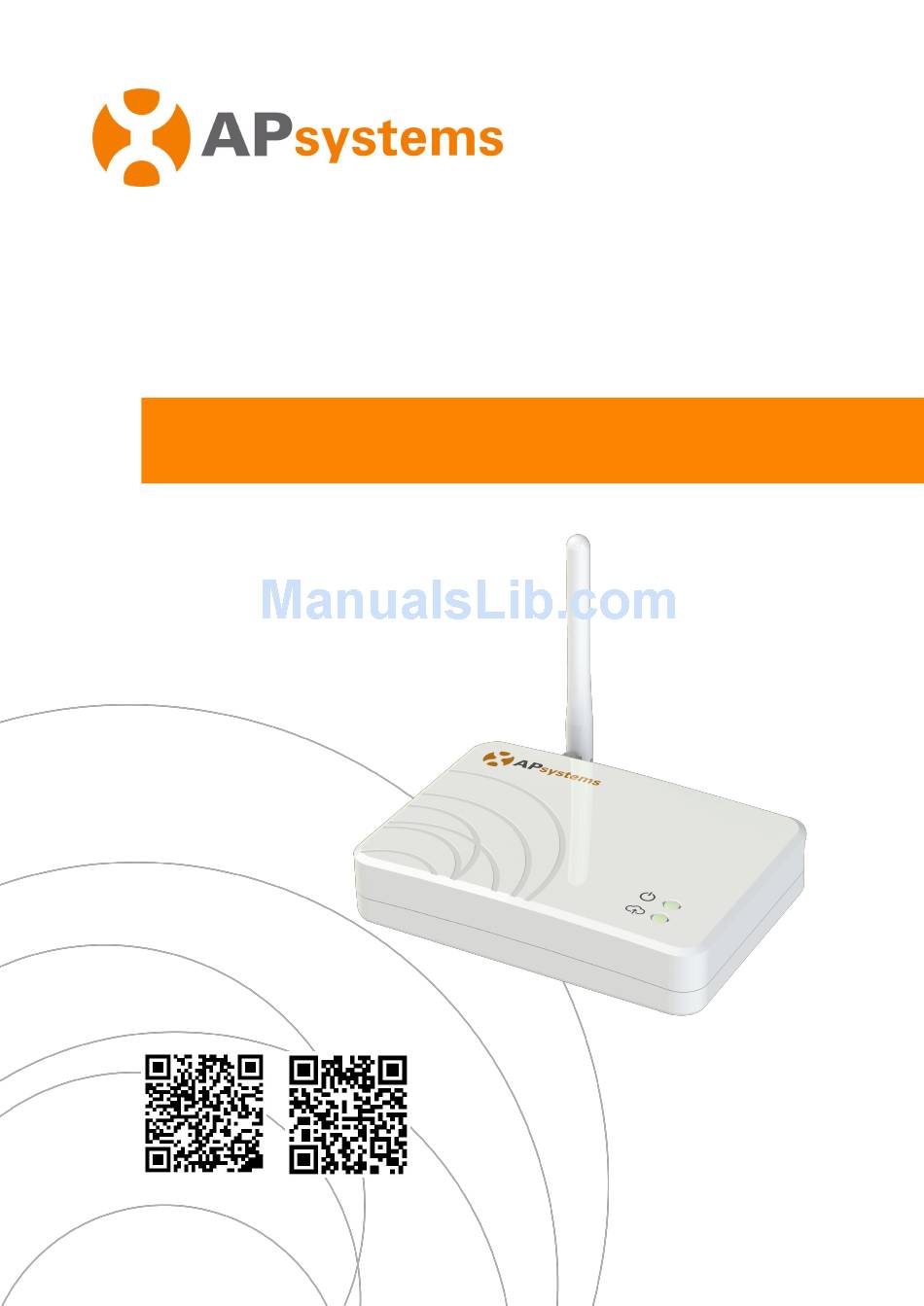

- Page 1 Installation / User Manual ECU-R Energy Communication Unit Rev 1.1 Please use mobile browser to scan the QR codes to download ECU APP : (Android) (iOS) © All Rights Reserved...
-
Page 2: Table Of Contents
3.3 Installation ......................... 6 3.4 Cable Connection....................... 8 3.5 Internet Connection ....................9 4. ECU-R User Interface..........................10 4.1 Connecting to the ECU-R via the Local Wireless ............10 4.2 Add UID........................11 4.3 Homepage ........................ 11 4.4 Data .......................... 12 4.4.1 Real Time Data.....................12... -
Page 3: Introduction
1. Introduction The Energy Communication Unit (ECU-R) is the information gateway for our inverters. The unit collects module performance data from each individual inverter and transfers this information to an Internet database in real time, requiring only a single data and power cable. -
Page 4: Interface Explanation
RJ45 Signal（Only for Australia） RJ45 Ethernet Network Port 2.2 Reset Press the Reset button for three seconds or longer, and the ECU-R will automatically return to the default settings. The wireless password will be changed to ‘88888888’. 2.3 Power Connection Port The power connection port connects power through the power adapter. -
Page 5: Rj45 Ethernet Network Port
The antenna in the package should be connected to ECU-R. LED1 Figure 3 LED2 2.8 LED1 LED1 will be on When the ECU-R works well. 2.9 LED2 LED2 will be on When the ECU-R connects to the sever. ECU-R Installation/User Manual... -
Page 6: Hardware Installation
NEMA electrical box. 3.3 Installation Using a Wall Mount When mounting the ECU-R to a wall, make sure to select a cool, dry indoor location. Depending on the wall surface you are mounting the ECU-R to, use either two drywall screws or wall anchors, installed 100 mm apart (The drywall screws and wall anchors are not included in the ECU-R kit). - Page 7 If you use the energy communicator in power distribution cabinet: Install the 2 guide rail fasteners on the Guide rail, the space between fasteners shall be 100mm. Align and move the ECU-R to the 2 guide rail fasteners. Figure 5 ECU-R Installation/User Manual...
-
Page 8: Cable Connection
3. Hardware Installation 3.4 Cable Connection Connect the adapter to the power connection port on the top of the ECU-R. Figure 6 ECU-R Installation/User Manual... -
Page 9: Internet Connection
3. Hardware Installation 3.5 Internet Connection There are two different approaches to connecting the ECU-R to the Internet: Option 1: Direct LAN cable connection. 1) Make sure the LAN cable is connected to the network port on the bottom of the ECU-R. -
Page 10: Ecu-R User Interface
Please use mobile browser to scan the QR codes to download ECU APP : （iOS） （Android） 4.1 Connecting to the ECU-R via the Local Wireless Open the ECU APP. Open the WLAN, link the WiFi of ECU-R, the default password is “88888888”. ECU-R Installation/User Manual... -
Page 11: Add Uid
4.3 Homepage Click "Home" at the bottom of the page. The information about systems info of ECU-R, ECU-R ID, version NO., total number of inverters, the number of connected inverters, intraday power output, historical Power output and current system power shall Be displayed. -
Page 12: Data
4. ECU-R User Interface Green light indicates the mobile phone is connected to the ECU-R. Grey light indicates the mobile phone fails to connect to the ECU-R. 4.4 Data 4.4.1 Real Time Data This page shall display the added inverter. According to different models of inverter, each inverter would have the corresponding modules displaying the real time power. -
Page 13: Power
4. ECU-R User Interface 4.4.2 Power To This page displays the daily system power curve. Click "Power" at the real time data page to view the historical system power curve. 4.4.3 Power generation statistics Press “Energy” at the real-time data page to view the system power generation of the solar system. -
Page 14: Settings
4.5.1 Manage IDs Please refer to 4.2 to add UID. 4.5.2 Time management Enter the page, the time of ECU-R shall be displayed on the right side of the page. Click "date" or "time" to modify. ECU-R Installation/User Manual... -
Page 15: Manage The Network Connection
ECU-R's wired network setting has 2 options: automatically obtain an IP address or use a fixed IP address.Obtaining an IP address automatically means the router would distribute IP to ECU-R automatically. When choose user fixed IP, users shall use the following IPs. -
Page 16: Wlan Password
4. ECU-R User Interface After the password is sent, ECU-R will restart. Please reconnect to ECU-R. 4.5.5 WLAN PASSWORD Please reconnect the ECU-R hotspot after setting the password.On the page, you can change Password. If user forget the password, hardware reset could be carried out. -
Page 17: Language
4. ECU-R User Interface 4.5.6 Language Switch Language. 4.5.7 Help ECU-R Installation/User Manual... -
Page 18: Technical Data
ECU-R Installation/User Manual... - Page 19 2 hours and can lead to death.Keep new and used batteries away from children.If you think batteries might have been swallowed or placed inside any part of the body, seek immediate medical attention. ECU-R Installation/User Manual...
-
Page 20: Contact Information
600 Ericksen Ave NE, Suite 200 Seattle, WA 98110 Tel: 844-666-7035 Mail: info@APsystems.com Altenergy Power System Inc. (Europe) Rue des Monts dor ZAC de Folliouses Sud-Les Echets 01700 Miribel, France Tel: +33-481 65 60 40 Mail: emea@APsystems.com ECU-R Installation/User Manual...
