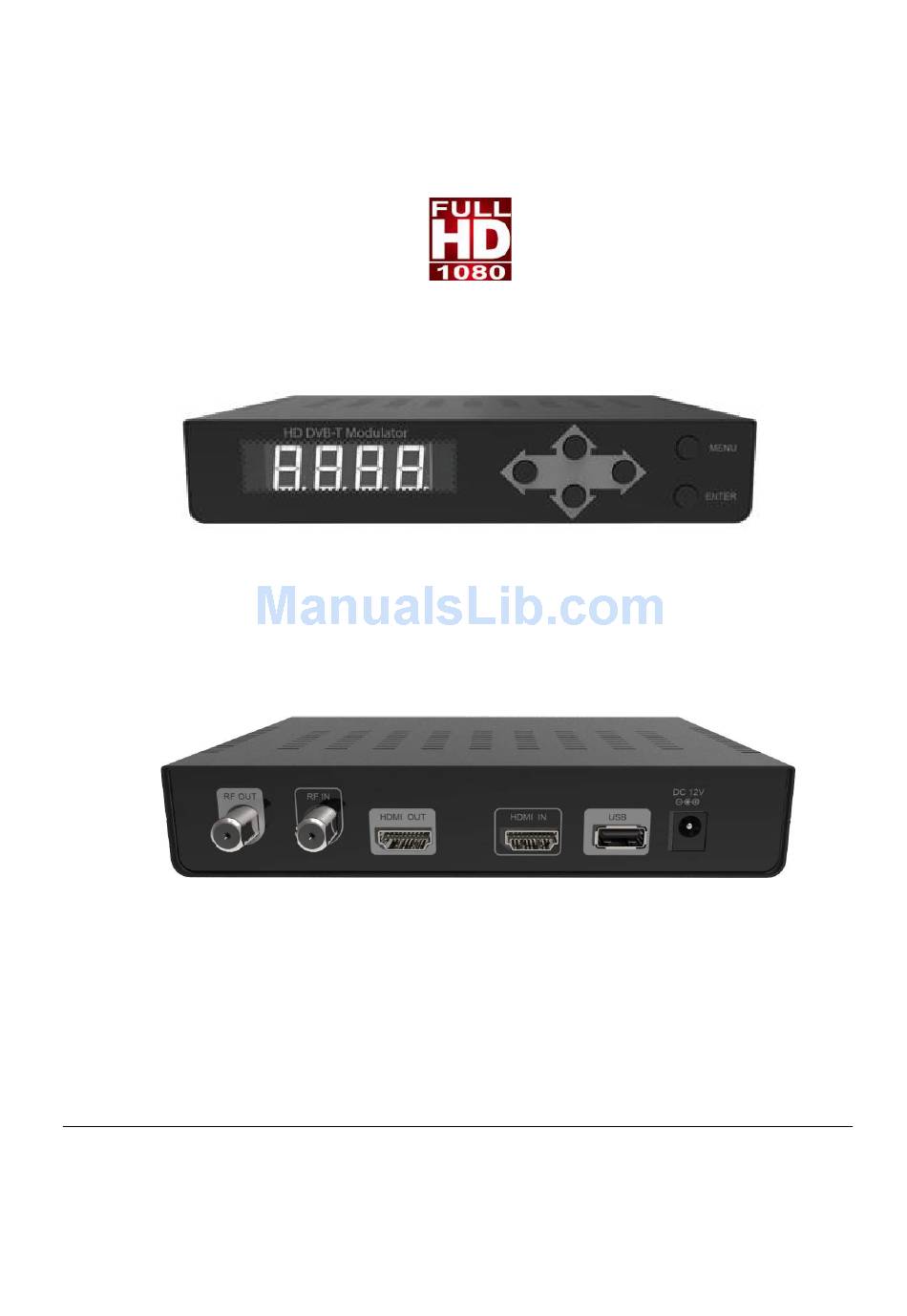

- Page 1 1080P DVB-T MODULATOR WITH HDMI LOOP THROUGH + RF output + RF input USER GUIDE...
-
Page 2: Table Of Contents
TABLE OF CONTENT 1 GENERAL ......................2 1.1 Description ........................2 1.2 Specifications ......................3 2 INSTALLATION ....................5 2.1 Power Supply ......................5 2.1.1 Operation via external power supply ..............5 2.2 Connection .........................5 2.2.1 Connection diagram examples ................5 2.3 Navigation and edition of values................6 3 OPERATING INSTRUCTIONS ................6 3.1 Description of controls and components ..............6 3.2 Starting ........................7... -
Page 3: General
HOME DIGITAL MODULATOR 1 GENERAL Description The module able to generate a signal in DVB-T format (Digital Terrestrial Television) from HDMI input. This is H264 encoding, DVB-T modulation integrated device to convert HDMI signal to DVB-T RF out. It has equipped with one channel HDMI input, one HDMI out(HDMI pass-though) and one DVB-T RF out. -
Page 4: Specifications
Specifications Source input : ‧Input Channel HDMI ‧Video ‧Video System 480i/p, 576i/p, 720p, 1080i/p ‧Audio system HDMI Compression : H.264 Baseline Profile Level4.0 ‧Video ‧Video Resolution 1080p 25 / 30 Max ‧Video Bit rate 12Mbps MAX MPEG-2 / AAC ‧Audio ‧Audio Bit rate 192 Kbit/S ‧DVB insertion tables SDT, NIT... - Page 5 Standard DVBT (ETSI EN 300 744) Constellation QPSK, 16QAM, 64QAM Guard Interval 1/4, 1/8, 1/16, 1/32 Modulation Code Rate 1/2, 2/3, 3/4, 5/6, 7/8 FFT Carriers Mode 2K, 8K Bandwidth 6MHz, 7MHz, 8MHz, 7-8MHz Power Supply 12V ADAPTOR Display LCD panel @ 2 x 16 characters (on front panel). 6 Local keys on front panel : ‧ENTER Key : Select parameter, or menu...
-
Page 6: Installation
2 INSTALLATION 2.1 Power Supply To start using it, connect the external power supply to the 230V mains and the 12V to the instrument input. Once connected to power, the device turns on and it takes about 37 seconds to be operational. -
Page 7: Navigation And Edition Of Values
Navigation and edition of values. The instrument is configured through its 6 keys and front panel display. In general, it is not necessary to configure the instrument to generate a DVB-T signal compatible with any digital terrestrial television receiver. Select parameter / menu. Move Right / Left between menu / characters. -
Page 8: Starting
8.- Input 12V DC power adapter (included). Starting After connecting the power to the instrument, the message “Initial….” “Please Wait...” appears for 37 seconds. Then the message “Keyboard Locked” appears. To access to the configuration menus the user has to enter a password. Press ENTER The field “Enter Password”... -
Page 9: Menu Tree
instrument. 24.- New Password: It allows the user to change to a new password to access the menu. 25.- Load Default: It returns to the default values. Menu Tree MAIN Layer 1 Layer 2(Default) Layer 2 Network Setting 1 Country Other Australia,Croatia,Czech,Denmark,Estonia,Fi nland,France,Ireland, Italy, Latvia,... - Page 10 The Deluxe Digital Modulator (SKU- HDMI-DVBT-DX) Setup Guide This device can be used in all counties which have implemented international DVB-T Standards. The default settings, as supplied by Darkstar, are for New Zealand and as such, this modulator is fully compatible with all NZ DVB-T television receivers although certain Samsung models may need some changes to those default settings.
