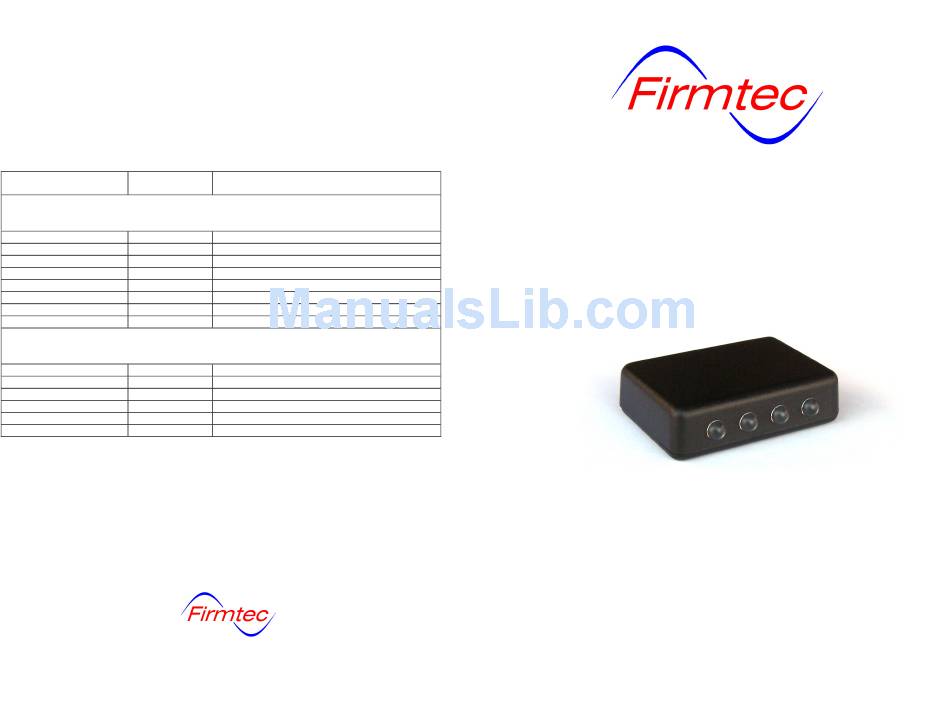

Firmtec PNP12 Operation Manual

4 led plug and play sequential shift light

Advertisement

To increase stability the extra bank option may be enabled which by default is
disabled. For most vehicles the additional required processor resources will not
negatively affect overall performance. If the shift light appears to randomly
respond to various engine speeds the DSP sensitivity may be increased slightly.
If the gap between the LEDs is noticeably uneven or inconsistent the DSP
sensitivity may be slightly decreased.
7.1
Fault Finding
Problem
Issue
No power
Blown fuse
All LEDs flash on startup
Stuck Switch
No response (DSP mode)
Sensitivity
Poor response
Sensitivity
Flicker throughout range
Sensitivity
Flicker throughout range
Sensitivity
Response at RPM/3
Third Harmonic
Response at RPM/3
Third Harmonic
No power
Blown fuse
All LEDs flash on startup
Stuck Switch
Flicker throughout range
Input Filter
No response at high revs
Input Filter
Flicker between LEDs
Hysteresis
Wrong set point
N
of Cylinders
o
Table 4. Fault Finding
We hope you enjoy using this product as much as we enjoyed developing it!
Developed and Manufactured by
Advent Controls Ltd, Liverpool, UK
Solution
DSP Mode
Check fuse in cigar lighter plug and vehicle
Release switch
Reduce Config Parameter 10 (default 7)
Reduce Config Parameter 10 (default 7)
Increase Config Parameter 10 (default 7)
Switch on extra RAM bank Config Param 13
Switch on Third Harmonic Test Config Param 12
Increase Config Parameter 10 (default 7)
Tacho Mode
Check fuses and wiring
Release switch
Increase config param 6 (start @ 0, inc by 1)
Increase config param 6 (by 1, down to 0)
Increase hysteresis filter config param 5
Run Auto Setup
Made in UK
PNP12
4 LED Plug and Play
Sequential Shift Light
Operation Manual
www.firmtec.co.uk

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PNP12 and is the answer not in the manual?

Questions and answers

Summary of Contents for Firmtec PNP12

  • Page 1 If the gap between the LEDs is noticeably uneven or inconsistent the DSP sensitivity may be slightly decreased. Fault Finding Problem Solution Issue PNP12 DSP Mode 4 LED Plug and Play No power Blown fuse Check fuse in cigar lighter plug and vehicle...
  • Page 2: Table Of Contents

    DSP Optimisation The Firmtec Sequential Shift Light was designed primarily for motorsport By default, in DSP mode, the Firmtec Sequential Shift Light is optimised for rapid applications allowing for no compromise in performance and reliability. Giving response at high engine speeds. On engines with high angular acceleration...
  • Page 3: Installation

    Firmtec Sequential Shift Light a truly plug and play device. The Firmtec Sequential Shift Light has two operating modes; DSP and Tacho. In DSP mode the Firmtec Sequential Shift Light performs a spectrum analysis on the...
  • Page 4 LEDs. Please refer to Figure 1 and Figure 2 for the user can specify the pulley ratio and number of claw poles (typically 6). This schematic diagrams. information is available on the Firmtec website for certain vehicles or can be physically measured on the vehicle. Red: 12V + VE (e.g.
  • Page 5: Setup And Usage

    Range Crossover Setup and Usage The Firmtec Sequential Shift Light has two DSP operating modes optimised for low and high engine speeds. This value controls the crossover set point which is typically around 4000RPM by default and is optimum for most engines.
  • Page 6: Setting The Shift Point

    If the vehicle engine is a 4-cylinder WS type and Please contact support@firmtec.co.uk for further details. A high hysteresis value the TACH connection is connected to a coil then this mode can be used with the may be required on some ‘V’...
  • Page 7 Please note holding the switch during initial power up will result in the ‘stuck reached. Release the SET button. The shift point has now been set to 6000rpm. switch’ error being displayed. In Tacho mode to set an interval of 200rpm the SET button should be pressed Default values are as follows: repeatedly until the red LED L4 is illuminated.
  • Page 8: Switching Off The Display

    0 – 3 0-14 0 – 15 DSP Sensitivity (default 7) To switch off the Firmtec Sequential Shift Light the SET button is given one short 0-14 0 – 15 Sample Rate Crossover (default 4) press with the engine running. The red shift light will be seen to flash 3 times 0 –...
