CJT HD12-15L Operating Instructions Manual

Hard ice cream machine
Hide thumbs

Advertisement

Quick Links

Download this manual

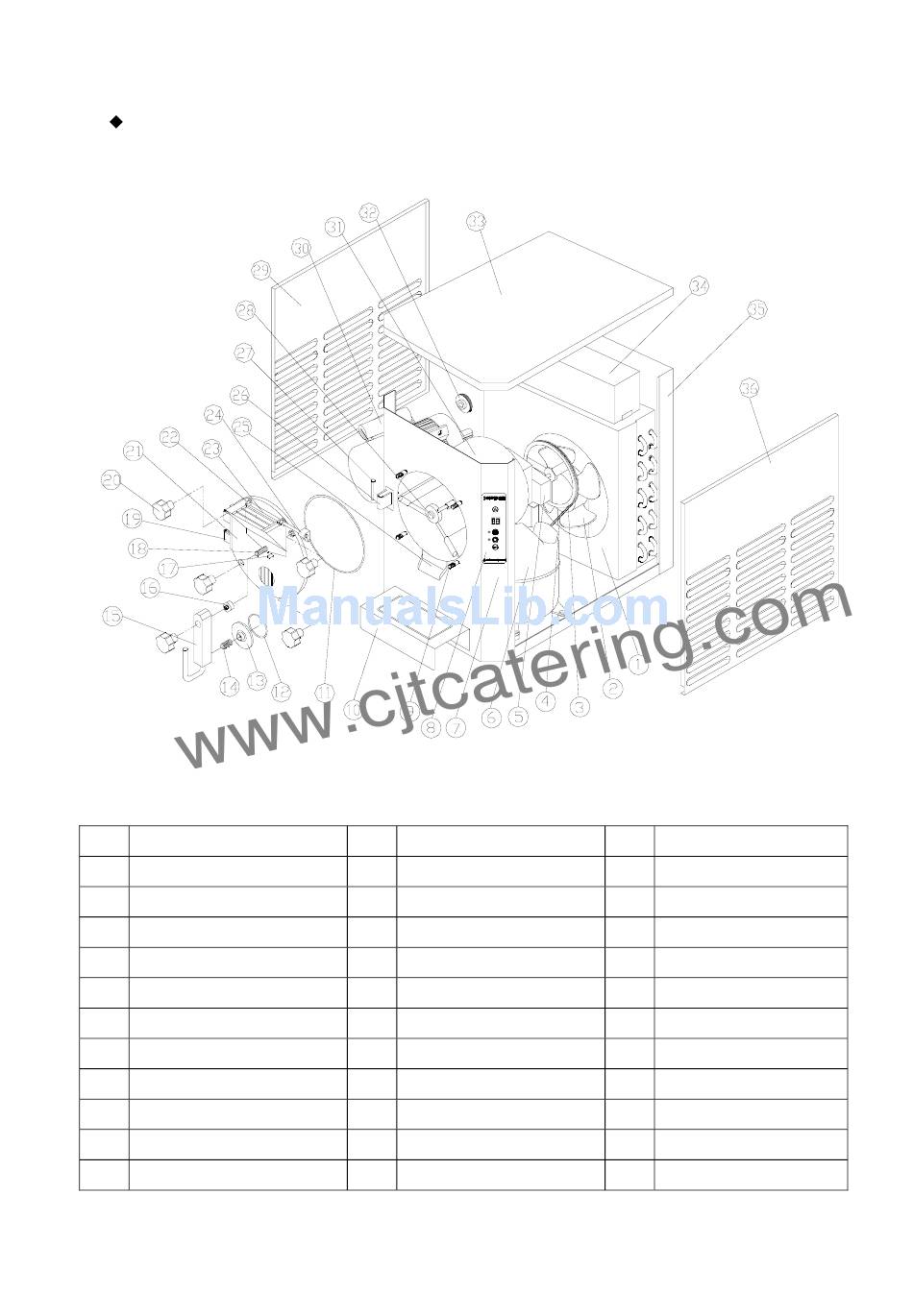

Ⅰ、Exploded Diagram
Model HD12-15L
1
Condenser
2
Fan motor
3
Follower pulley
4
Belt
5
Redactor
6
Compressor
7
Front panel
8
Operation panel
9
Screw
10
Tray
11
O-ring for dispensing door
12
O-ring for dispensing cover

OPERATING INSTRUCTIONS

13
Discharge tank lover
14
Spring
15
Handle
16
Nut
17
Spacer pin
18
Fixed pin
19
Permanent seat
20
Discharge handle
21
Container cover
22
Permanent seat
23
Guardrail
24
Proximity switch
- 1 -
25
Permanent
26
Seat B
27
Fixed pin
28
Stirrer
29
Left side panel
30
Agitator motor
31
Evaporator
32
Main pulley
33
Upper plat
34
Electrical box
35
Back panel
36
Right side panel

Advertisement

loading
Need help?

Need help?

Do you have a question about the HD12-15L and is the answer not in the manual?

Questions and answers

Summary of Contents for CJT HD12-15L

  • Page 1: Operating Instructions

    OPERATING INSTRUCTIONS Ⅰ、Exploded Diagram Model HD12-15L Condenser Discharge tank lover Permanent Fan motor Spring Seat B Follower pulley Handle Fixed pin Belt Stirrer Redactor Spacer pin Left side panel Compressor Fixed pin Agitator motor Front panel Permanent seat Evaporator Operation panel...
  • Page 2 OPERATING INSTRUCTIONS Model HD8-10L Motor Switch Locknut Support plate Left side panel Beater Bearing sleeve Fan motor Hopper cover Gear motor Compressor Top panel Belt Fan Blade Beating tube Passive wheel (big) Dispensing tube Supporting sleeve Plug pad Condenser Hopper Knob nut Front side panel Drive wheel (small)
  • Page 3 HD8-10L 1PH AC 220V/50Hz 800W 10L/h 50kg 596×490×400(mm) R134a /500g 1500 W R22 /800g 1PH AC 220V/50Hz 2000 W R404A/850g HD12-15L 15L/h 100kg 455×710×755(mm) 1800 W R22 /800g 1PH AC 230V/60Hz 2400 W R404A/850g 1PH AC 220V/50Hz 2000W 20L/h R404A/850g 110kg 455×700×710(mm)
  • Page 4 OPERATING INSTRUCTIONS Ⅳ、Use and Cautions Many customers summarize a lot of recipe to make different ice cream when using this machine. We suggest you make ice cream powder as follow. 、 ： Recipe Ingredient ( weight ratio) full cream milk power (8%) white sugar (16%) flavor ( a little) emulsion stabilizer (0.5%)

  • Page 5: Installation

    OPERATING INSTRUCTIONS Ⅴ、 Installations And Adjusting A. unpack and inspect 1) Cut off the wrapping tape. 2) Open the wooden case by screwdriver. 3) Remove the foam. 4) Inspect carefully whether there is defective appearance or not. 5) Check the accessories with packing list. 6) Remove the fixing bolt and fixing feet that are at the bottom of the machine, push the machine, let the front-wheel drive fall to the ground, and then take out the wooden base, let the four wheels grounded.
  • Page 6 OPERATING INSTRUCTIONS 、 The Pre-cool of the mixer In order to let the machine run more efficiently. It is necessary to pre-cool mixing. Normally, you can put the mixing on the cool place, let the well-prepared mixing cool by itself .If you have freezer, you can put the mixing into it and pre-cool it to 0~40℃. 、...
  • Page 7 Whole course for moulding take 15 minutes and different material take different time. Pour ice cream mixing into the hopper,2kg every time for HD12-15L or HD16-20L, 2.5kg every time for HD20-25L. After adjusting suitable time, press Auto-key and then leftward Indicator-light shine, beater system start working .Waiting 3s,referentent system start running.
  • Page 8 OPERATING INSTRUCTIONS 3） 、HD16-20L 1、Indicator-light 2、Display 3、Pause-Key 4、Clean-Key 5、Auto-Key 6、Time Adjust-Key Wash Press “Wash” key ，the corresponding indicator light flashes, the beater system start to work. Temperature adjust button Please set the hardness of ice cream before make it, When the machine tune on (the digital display “00”)，Press hardness adjust button more than 3 second，the digital display flashes，...
  • Page 9 OPERATING INSTRUCTIONS have different hardness, and the time to make ice cream is also different, customer can control it in practice operation. Stop No matter the machine is on wash working or auto working, you just need to press “Stop” key ,the machine will stop working (digital display will indicate“00’’...
  • Page 10 OPERATING INSTRUCTIONS Pour clean water to wash for 2-3 times, then stop machine. 4） Turn off the power. Clean the spare part. a. Unscrew four screw of the dispensing door, then take off the dispensing door. b. Take off the beater and o-ring of dispensing door. c.
  • Page 11 OPERATING INSTRUCTIONS Contact organ is broken Change the contact organ Controlling electronic board is Change the electronic board wrong Defective over load protect Check the over load protect and replace it Compressor is broken Change the compressor Compressor capacitor is broken Change the capacitor No refrigeration Refrigerant leakage...

  • Page 12: Electrical Diagram

    OPERATING INSTRUCTIONS Limited switch is broken Change the switch Ⅷ、Electrical Diagram HD6-8L、HD8-10L Electrical Diagram - 12 -...
  • Page 13 OPERATING INSTRUCTIONS HD12-15L、HD20-25L 、HD16-20L Electrical Diagram HD20-25L (380V/50Hz/60Hz) Electrical Diagram - 13 -...

This manual is also suitable for:
