Basic Component
①
②

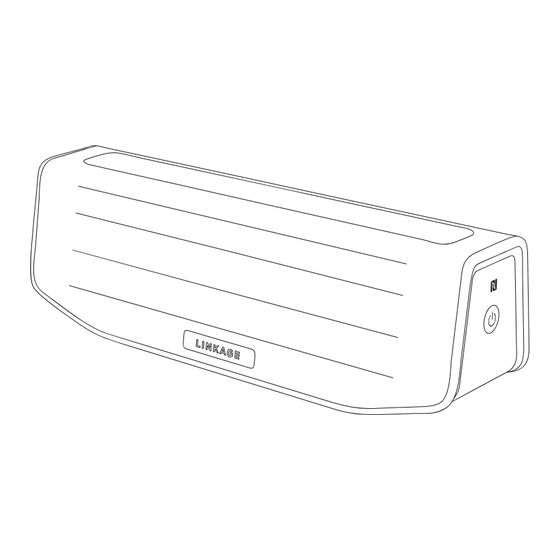

LINKAGE WiFi Speaker
①
DC Power Supply (100~240V/2A/9V)
②
Hardware
①
② ③
⑥
⑦ ⑧
Input Terminal Zone
On/Off Zone
LED Control Zone
Micro SD Card Slot
NFC Tag
Touch Panel
①
④
⑥
AUX Input
Power Button
WiFi Key
②
⑤
⑦
External Power Supply
Source Key
③
⑧
Icon Explanation
One-Finger-Touch
Two-Finger-Touch
④
⑤
Long Touch
Touch and
Swipe to the left
Caution
Touch the LED panel with wet or damp fingers will cause
malfunction or incorrect results
Short Tab
Touch and
Swipe to the right
Advertisement
Summary of Contents for Sklifeware LINKAGE SA200
- Page 1 Basic Component Hardware Icon Explanation ① One-Finger-Touch Two-Finger-Touch Short Tab ④ ⑤ ② ① ② ③ ⑥ ⑦ ⑧ Long Touch Touch and Touch and Swipe to the left Swipe to the right Caution Input Terminal Zone On/Off Zone LED Control Zone Touch the LED panel with wet or damp fingers will cause LINKAGE WiFi Speaker ①...
- Page 2 PLAY 1. Play and Pause 2. Volume Control 3. Next/Previous Control PLAY Tap the touch panel to resume PLAY from PAUSE Volume Up Touch and swipe the touch panel from left to right Next Touch and swipe the touch panel from left to right with one finger with two fingers PAUSE...
- Page 3 USA CANADA * FCC Information (For US customers) IMPORTANT NOTICE: DO NOT MODIFY THIS PRODUCT • Model Number: SA200 • FCC ID : MBBSA200 This product, when installed as indicated in the instructions contained in this manual, meets FCC requirements. Modification not expressly approved by Denon May void your authority, granted by the FCC, to use the product.
-
Page 4: Quick Guide
7.0 or later is required. Please download 1-1. WiFi Enabled Zone LINKAGE application through 1-2. WiFi Unabled Zone app store or LINKAGE homepage 2. Connecting SD Card 3. Comprehensive Usage of LINKAGE 3-1. LINKAGE App Guide 3-2. Connecting Internet Radio www.sklifeware.com/linkage... - Page 5 1. Connecting AirPlay 1-1. WiFi Enabled Zone Please turn on the power button. Press the WiFi key for 2 seconds until the blue LED right is blinking. Press the WiFi key for 2 seconds...
- Page 6 ① Choose and select accessible WiFi network from WiFi setting. Conneting WiFi...
- Page 7 ② LINKAGE device shall be shown on the bottom of the screen at ‘set up new airplay speaker’. Please tab your LINKAGE device. When the setting is completed, blue LED blinking right on the speaker shall turn solid. New AirPlay speaker appears when the setting is completed...
- Page 8 ③ Please swipe up the screen to access Control Center. Tap AirPlay. Tap LINKAGE from the list. Now you may enjoy your music. ※ Please refer to following links for more information. http://support.apple.com /ko-kr/HT4437 LINKAGE speaker connecting mode...
- Page 9 1-2. WiFi Unable Zone Tab the WiFi key for 2 times and wait until the pink LED right stops blinking. Tab the WiFi key for 2 times...
- Page 10 ① Choose and select ‘DIRECT-LBLinkage_SA200’ WiFi network from WiFi setting. Choose and select network...
- Page 11 ② Type ‘hello123’ when you see the pop-up of password. LINKAGE device shall be shown on the bottom of the screen at ‘set up new airplay speaker.’ Please tab your LINKAGE device from the list. Now all the process are the same as 1-1.
- Page 12 ③ LINKAGE application allows you to manage the song lists and folder in SD Card. For more information, please refer to following link. www.sklifeware.com/linkage ※Notice: Please beware of the error or contaminated file which will stop the music playing Micro SD slot...
- Page 13 3. Complete Usage of LINKAGE You may enjoy various value added services (ex. Internet radio, multi-room) with LINKAGE application. For more information, please refer to following link. www.sklifeware.com/linkage...
-
Page 14: Application Guide
3-1. Application Guide ① Above part of the screen shows current status of LINKAGE device. Current status of LINKAGE device... - Page 15 ② From the bottom part of the screen, please select the music sources you wish to play. Select the music source you wish to play...
- Page 16 ※ You may tap the source key to switch the source Blue: Network connected via AirPlay Pink: SD card connected Green: Internet Radio connected Orange: AUX input...
- Page 17 3-2. Internet Radio connected ① Please select ‘Tune In’ icon from the menu Select Tune In icon...
- Page 18 ② You may choose any channel from the list. ② The channels in ‘favorite list’ are played directly from the LINKAGE device without the phone control. ※ The channels are switched by swiping the touch panel with two fingers.
- Page 19 The channel is stored in ‘favorite list’ when you tab the ‘star’ on left upper screen. Tab the 'Star' button...
