Summary of Contents for All American MP-7454

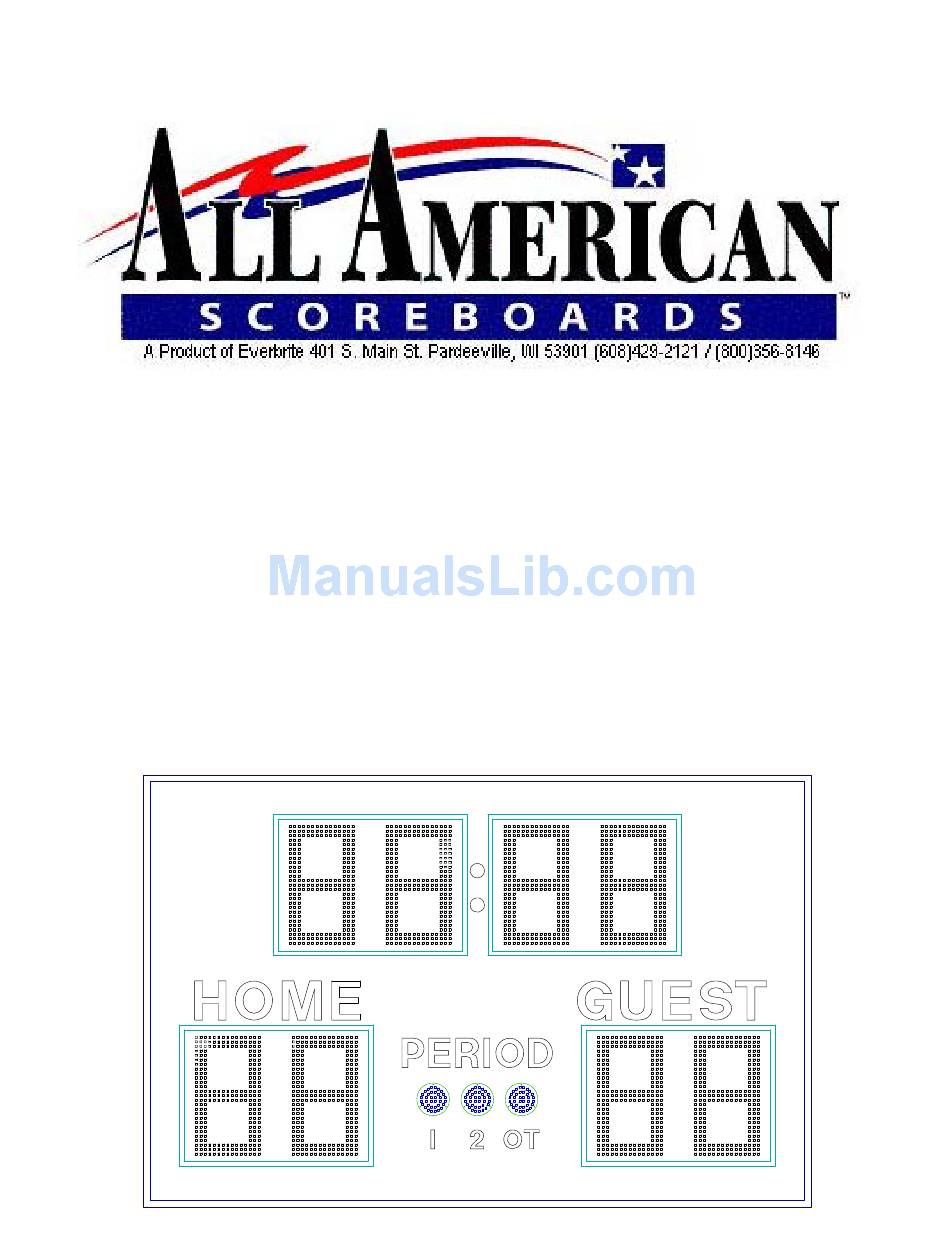

- Page 1 OPERATING INSTRUCTIONS AND SERVICE MANUAL FOOTBALL SCOREBOARD MODEL MP-7454 WITH MP-5000 CONTROL EFFECTIVE S.N.18,725, July, 2004...
-
Page 2: Table Of Contents
TABLE OF CONTENTS General Information Description Identification Damage Damage Claim Procedure Installation General Information Installation Electrical Connection Control Console Operation Scoreboard Power Control Console Display Control Console Power Initializing Scoreboard Time Setting and Control Team Scores Horn (Optional) Yards to Go, Ball On, Down, and Quarter Dimmer 3.10 Track Operation Maintenance and Troubleshooting... -
Page 3: General Information
401 S. Main Street Pardeeville, WI 53954 NOTE If you need to send parts in for repair, please call the ALL AMERICAN service department for a returned goods authorization (RGA) number. Identification ALL-AMERICAN uses a 5 digit serial number for scoreboard identification. The serial number tags are located on the back of the control console and the lower right hand corner on the face of the scoreboard display. -
Page 4: Damage Claim Procedure
Damage Claim Procedure An instruction sheet is enclosed advising the consignee in case of damage in transit. If damage is noted at the time of delivery, consignee must obtain an 'Inspection of Bad Order' from the delivering carrier. In order to process your claim, this must be properly filled out with a complete statement of all damage and it must be signed by the carrier. -
Page 5: Installation
Section 6. Consult Section 6 for scoreboard wiring. Electrical connections The MP-7454 scoreboard requires one 120 VAC 20 AMP circuit. IMPORTANT !!! To protect the control from damage, it is advisable to disconnect the control and store in a dry secure area when not in use. -
Page 6: Initializing Scoreboard
Push ON/OFF once to turn the console on. Push ON/OFF a second time to shut the console off. When first turned on; the console display should show as follows: MULTI-SPORT CONTROL MP-7000 V 2.00.A 2003 Initializing Scoreboard Enter the two digit code (17) shown in the lower left corner of the keyboard as in the following example: Push CODE... -
Page 7: Team Scores
Select automatic horn for end of period. Example, Yes/No and press ENTER . Select set time of day clock. Example, press ENTER for 2:15. The scoreboard will display the time of day after game time use, if desired. Accurate time will be kept without power to the scoreboard for up to 2 months. Timing The main game time period is set in the "SETUP"... -
Page 8: Track Operation
An 'H' is displayed on the LCD when this function is enabled. Period Entries to the above function is made in the same manner as direct entry for Team Scores. 3.10 Track Operation For track operation, use Code 82. The timer will now count up from zero When in the track mode, the console LCD will display two timers. -
Page 9: Troubleshooting
Troubleshooting Whenever possible, follow the troubleshooting guides prior to contacting the Customer Service Department. If a problem not described in the guides exists, contact the customer service department immediately. Read through the appropriate troubleshooting section before beginning a repair. Refer to the diagrams in chapter 6 as an aid in troubleshooting scoreboard malfunctions. - Page 10 (C) The scoreboard digits light but the console doesn't work. (a) For a cable connected system, check for 12 to 16 VDC between the red and black wires in the junction box . For wireless consoles, check the output of the wall transformer by unplugging it from the console, putting the + meter lead into the center cavity of the power plug and touching the meter lead to the metal shell.
- Page 11 (E) The scoreboard works, but some lights stay on all the time (a) With the main power "OFF", disconnect (and tag) the suspect digit from the driver board. Plug a known good digit into that position on the driver card. Do Not Plug the Suspect Digit into any other location! (b) Turn the power back on.
- Page 12 (A) All of the driver boards in a 7000 series scoreboard are interchangeable. However, each board has an address programmed inside its microcontroller chip. The chip from the board being replaced must be put into the new board for proper operation. Example: The scoring driver of a football board has a problem.
- Page 13 Using 22 gauge solid wire, connect pin 10 of the console connector to pin 10 of the scoreboard receiver board connector. Also connect pin 2 of the console connector to pin 6 on the receiver board connector. Powering the console from the battery or wall cube, the system should operate. This eliminates any radio related communication problems.
-
Page 14: Replacement Parts List
5. REPLACEMENT PARTS LIST Scoreboard Display Parts figure 1 DISPLAY ASSEMBLY... - Page 15 REPLACEMENT PARTS LIST (MP-7454) fig.& MFG PART VENDOR index NUMBER DESCRIPTION PART # 000000 Display, MP-7454 000000 000000 Controller Assembly, W/ 2 Drivers 000000 *****SEE DETAIL FIGURE 2***** 152022 Window Assy, double digit 18" EL00709P Digit, 18" Red EL00709P MM00770P Indicator, 4"...
-
Page 16: Controller Assembly
5.2 Scoreboard Controller Assembly Parts figure 2 CONTROLLER ASSEMBLY REPLACEMENT PARTS LIST (MP-7454) Controller Assembly fig.& MFG PART VENDOR index NUMBER DESCRIPTION PART # 000000 Controller Assembly 000000 150635 Receiver PCB Assembly 150635 *** PROGRAM 3MP-CNT-V00*** EL00852P Driver PCB Assembly, 4 Position... -
Page 17: Diagrams
6. DIAGRAMS 6.1 Control Console Keyboard and Slipsheet Layout figure 3 CONSOLE KEYBOARD... - Page 18 6.2 Scoreboard System Layout figure 4 SYSTEM LAYOUT...
- Page 19 6.3 Junction Box Wiring CONTROLLER ASSEMBLY...
- Page 20 6.4 Controller Assembly Wiring CONTROLLER ASSEMBLY...
- Page 21 6.5 Microprocessor 5 X 9 LED Pattern MICROPROCESSOR 5 X 9 (8 BIT) LED PATTERN...
- Page 22 6.6 Figuregram Wiring FIGUREGRAM WIRING...
-
Page 23: Installation Drawings
6.7 Installation Drawing... - Page 24 6.7 Installation Drawing Cont.
